Inconel 625
UNS N06625 / W.Nr. 2.4856
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with inconel 625 tubes / sheets / wires / bars / fittings
Inconel 625 Material Properties
UNS N06625 / W.Nr. 2.4856 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of inconel 625 for optimal resistance, strength, and stability
Inconel 625 Chemical Composition
Inconel 625 Material Properties Overview
As a manufacturer and supplier in China, Arialloy offers inconel 625 products in various dimensions and delivery conditions.
Inconel 625 (UNS N06625 / W.Nr. 2.4856) is an austenitic nickel alloy containing chromium, molybdenum and niobium. Its composition includes at least 58% nickel, 20% to 23% chromium, 8% to 10% molybdenum and 3.15% to 4.15% niobium plus tantalum. Molybdenum and niobium strengthen the nickel chromium matrix through solid solution effects, allowing substantial strength without a separate precipitation hardening treatment. Chromium supports resistance to oxidizing conditions, while molybdenum improves resistance to reducing media and localized corrosion. The high nickel content contributes to resistance against stress corrosion cracking caused by chlorides. This combination gives inconel 625 a useful balance of mechanical strength, corrosion resistance and fabrication capability.
The alloy can be formed by hot or cold working and joined using conventional welding processes. Its ductility supports bending and forming, although rapid work hardening can make intermediate annealing necessary. Annealed and solution annealed conditions provide different combinations of strength, ductility and creep resistance, so heat treatment should reflect the required material properties.
Inconel 625 Corrosion Resistance
Inconel 625 resists general corrosion, pitting, crevice attack and chloride induced stress corrosion cracking. Its nickel, chromium and molybdenum content supports corrosion resistance across both oxidizing and reducing environments.
The alloy performs well in seawater, neutral salts, alkaline solutions and many organic and mineral acids. Niobium helps limit sensitization during welding, supporting resistance to subsequent intergranular attack. Performance in aggressive acids and concentrated chlorides depends on temperature, concentration and metallurgical condition, particularly where elevated temperatures or crevices increase the likelihood of localized corrosion.
Inconel 625 Mechanical Properties
At room temperature, annealed inconel 625 rod, bar and plate typically exhibit tensile strengths of 827 to 1034 MPa, 0.2% yield strengths of 414 to 655 MPa and elongations of 30% to 60%. Cold working increases strength and hardness while reducing ductility.
These typical ranges describe specific product forms and conditions. Acceptance requirements should follow the applicable product specification, dimensions and heat treatment condition rather than treating these values as guaranteed limits for all products.
Inconel 625 Temperature Characteristics
Inconel 625 provides good oxidation resistance at temperatures up to approximately 982°C (1800°F), although this does not establish a universal limit for continuous service under load. Strength decreases at elevated temperatures, and prolonged thermal exposure can promote precipitation that reduces ductility and toughness.
Solution annealing generally improves creep and rupture resistance compared with conventional annealing. The appropriate temperature range therefore depends on material condition, exposure duration, stress and atmosphere. Thermal expansion increases with temperature, while elastic modulus decreases, affecting dimensional response and stiffness during heating.
Inconel 625 Products
Nickel Alloy 625 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 625 products tailored to each project’s needs
Inconel 625 Data Sheet
Inconel Alloy 625 Data Sheet
Access / download the inconel 625 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.44 | |
|---|---|---|---|
| lb/in.3 | 0.305 | ||
| Melting Range | °F | 2350 - 2460 | |
| °C | 1290 - 1350 | ||
| Specific Heat (21°C) | Btu/lb-°F | 0.098 | |
| J/kg-°C | 410 | ||
| Permeability at 200 oersted | 15.9 kA/m | 1.0006 | |
| Curie Temperature | °F | < -320 | |
| °C | -196 | ||
Mechanical Properties
| Form and Condition | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction Of Area | Hardness, Brinell | ||
|---|---|---|---|---|---|---|---|
| ksi | MPa | ksi | MPa | % | % | ||
| ROD, BAR, PLATE | |||||||
| As-Rolled | 120-160 | 827-1103 | 60-110 | 414-758 | 60-30 | 60-40 | 175-240 |
| Annealed | 120-150 | 827-1034 | 60-95 | 414-655 | 60-30 | 60-40 | 145-220 |
| Solution-Treated | 105-130 | 724-896 | 42-60 | 290-414 | 65-40 | 90-60 | 116-194 |
| SHEET and STRIP | |||||||
| Annealed | 120-150 | 827-1034 | 60-90 | 414-621 | 55-30 | - | 145-240 |
| TUBE and PIPE, COLD-DRAWN | |||||||
| Annealed | 120-140 | 827-965 | 60-75 | 414-517 | 55-30 | - | - |
| Solution-Treated | 100-120 | 689-827 | 40-60 | 276-414 | 60-40 | - | - |
Inconel 625 Standards
UNS N06625 / W.Nr. 2.4856 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B444
Seamless Pipe & Tube
ASTM B829
Seamless Pipe & Tube
ASTM B705
Welded Pipe
ASTM B775
Welded Pipe
ASTM B704
Welded Tube
ASTM B751
Welded Tube
ASTM B366
Welded Fittings
ASTM B446
Rod and Bar
ASTM B564
Forgings
ASTM B443
Plate, Sheet and Strip
AWS A5.14 ERNiCrMo-3
Filler Metal
AWS A5.11 ENiCrMo-3
Welding Electrode
Inconel 625 SHOW
Nickel Alloy 625 Showcase
From initial samples to large scale production, we supply high quality inconel 625 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Inconel 625 Quotation Process
From detailed consultation to final delivery, we make custom inconel 625 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Inconel 625 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy inconel alloy 625 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Inconel 625 Applications
UNS N06625 / W.Nr. 2.4856 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Inconel 625 Knowledge
Nickel Alloy 625 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Inconel Grades
Inconel Alloy Grades
Explore the full range of Inconel alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Inconel 625 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
If you need inconel 625, send us your requirements by email at sales@arialloy.com or through the inquiry form below. Our sales team will provide a detailed offer based on the information you submit. If you choose to proceed, send us your PO and we will issue the PI. Once the prepayment is received, we will begin manufacturing and inform you when the materials are finished.
Our sales team is structured to handle quotation requests promptly, and we generally respond within 24 hours. If there is insufficient information or we are unable to issue a quote, we will notify you without unnecessary delay.
Our normal inconel 625 quotation is based on FOB, so freight arrangements are typically made through a forwarder appointed by the customer. We will support your forwarder with the necessary local handling. If you would like greater convenience, we can also take responsibility for arranging the shipment and provide the freight cost.
The price of inconel 625 is strongly affected by the cost of the metals incorporated into the alloy. In particular, nickel, chromium, molybdenum, and niobium can significantly influence the total material cost. When their prices change, the cost of the alloy can change with them.
We have our own melting facilities for inconel 625, including over 30 vacuum smelting and electroslag remelting furnaces. The furnaces are available in 50 kg, 200 kg, 1,000 kg, and 5,000 kg capacities. By using the appropriate furnace for each order size, we can accept smaller MOQs.
We provide complete material test reports for inconel 625 before shipment. These reports identify the applicable standard and record chemical composition, mechanical properties, dimensions, and heat number to establish compliance.

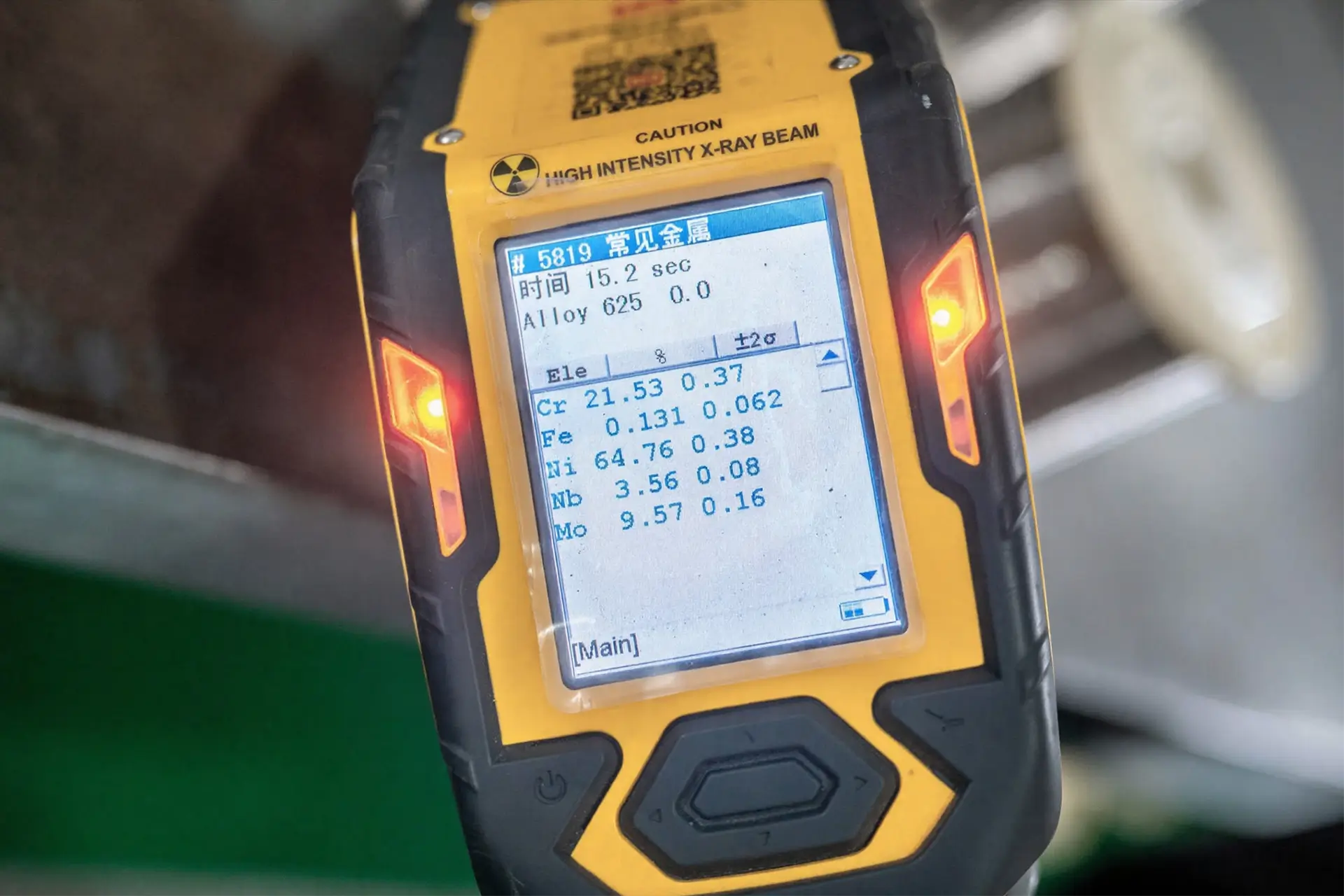

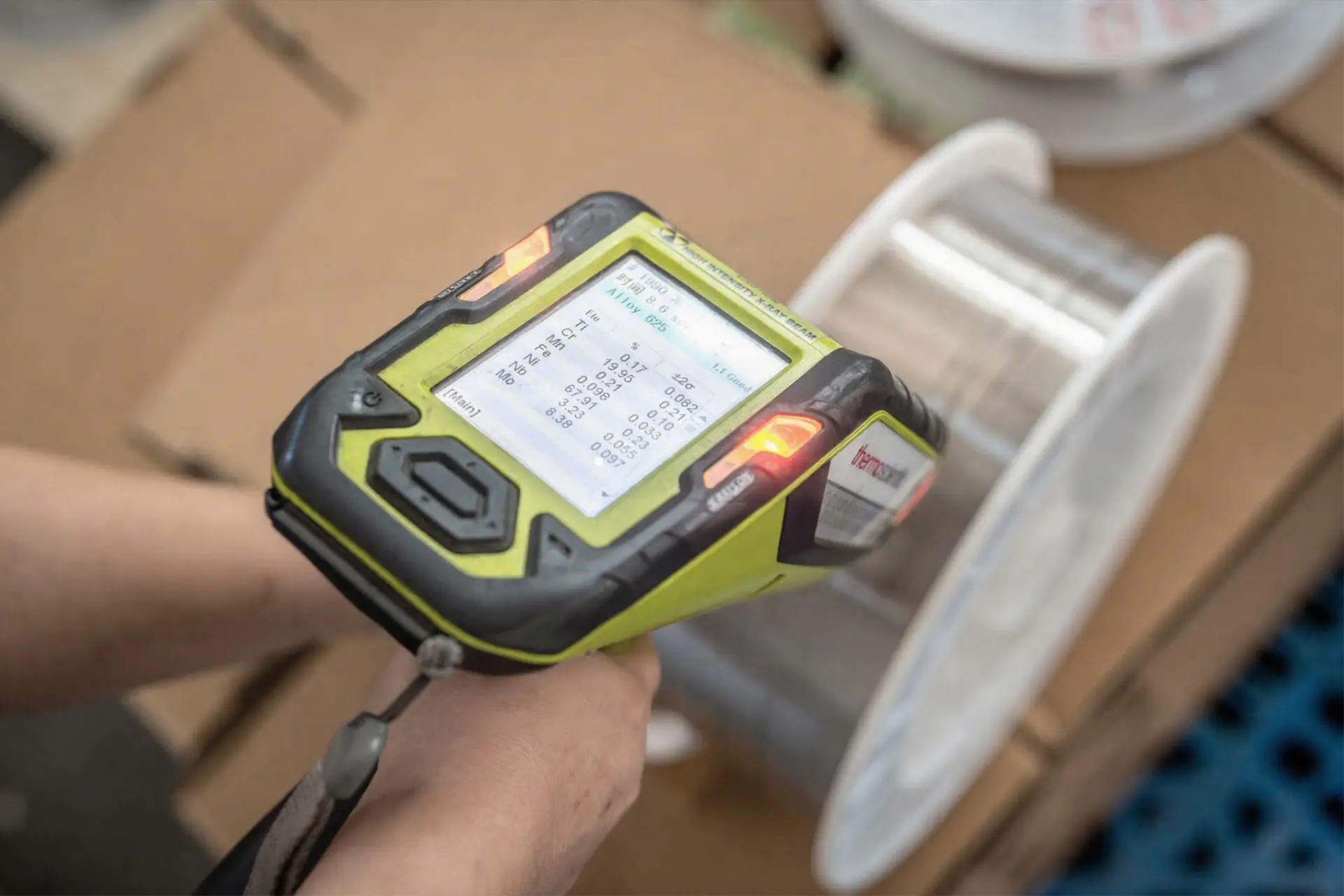

Inconel 625 is produced under strict control of raw material proportions, with chemical analysis used to monitor its composition during melting. After completion, PMI testing is performed, and independent chemical analysis can be obtained from a third-party laboratory if necessary.
