Nickel Alloy Round Bar & Rod

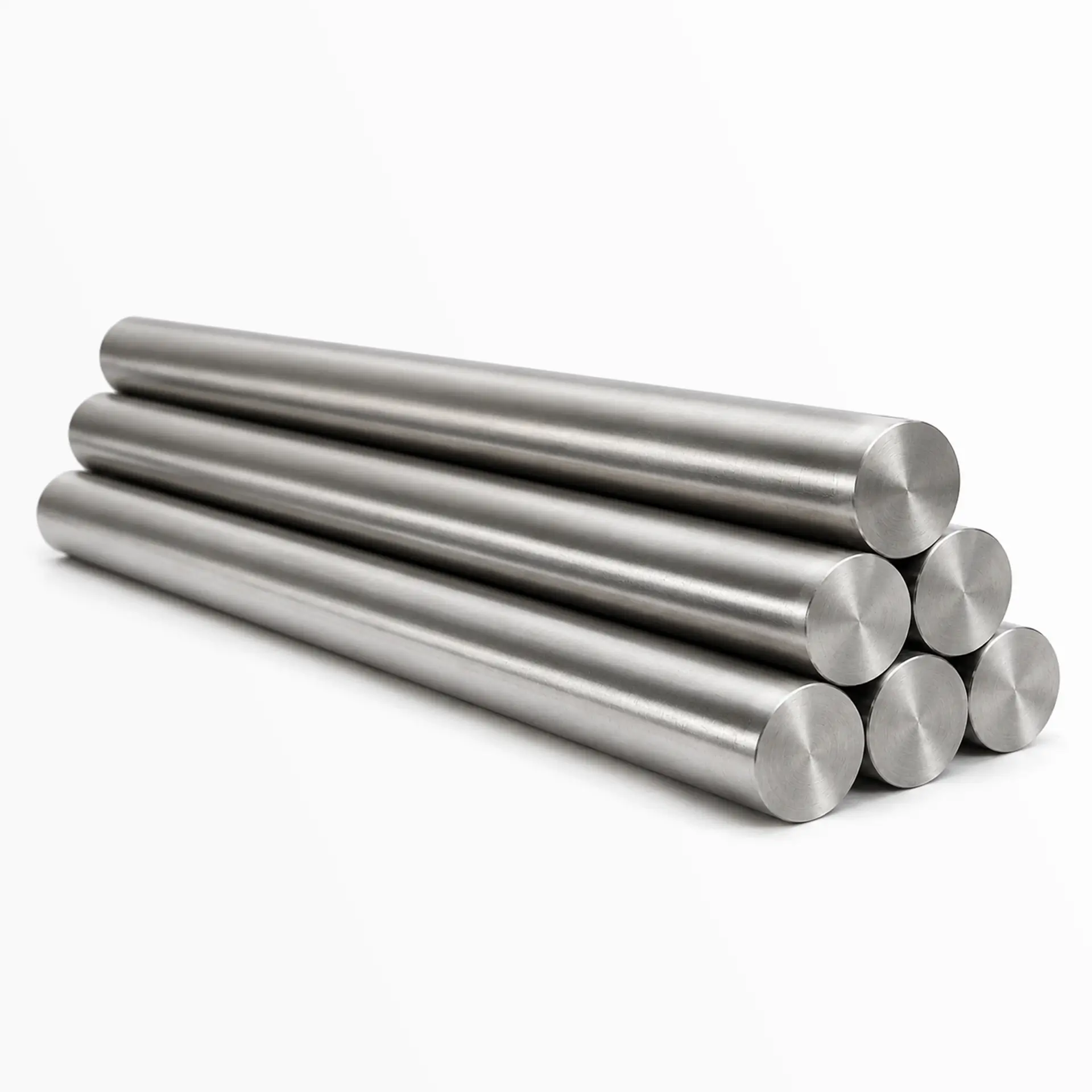

nickel alloy round bar by Arialloy

Catalog

Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy round bar & rod

Go to Quote

Nickel Alloy Round Bar & Rod Introduction

Round Nickel Alloy Bar & Rod Overview

Nickel Alloy Round Bar & Rod Overview

Nickel alloy coil tube is supplied in long, continuous lengths wound into compact coils for convenient handling, storage, and transportation. Compared with multiple sections of straight tubing, continuous coiled tubing reduces the number of intermediate connections and helps create a more consistent fluid path. The coil format also allows the required length to be cut or formed during subsequent processing while minimizing material waste.

Arialloy provides nickel alloy coil tubing in a broad selection of alloy grades, outside diameters, wall thicknesses, continuous lengths, coil diameters, and surface conditions. Depending on the chosen grade, the tubing can offer different combinations of corrosion resistance, strength, ductility, and temperature stability. Straight ends, specific coil dimensions, and customized packaging can also be supplied according to project and purchasing requirements.

Manufacturing may include tube forming, cold drawing, intermediate annealing, solution heat treatment, pickling, surface finishing, and controlled coiling. During winding, the tube is carefully guided to limit flattening, twisting, and surface damage while maintaining dimensional consistency throughout its length. Appropriate heat treatment and forming control also help preserve the required mechanical properties and flexibility.

Each nickel alloy coil tube is checked for outside diameter, wall thickness, ovality, surface condition, and coil dimensions. Non-destructive testing, pressure testing, and additional inspections can be arranged according to the applicable standard or customer specification. Arialloy supplies traceable nickel alloy coil tubing with verified material properties and complete quality documentation. Contact us with your required grade, tube dimensions, continuous length, coil size, and testing requirements.

Nickel Alloy Round Bar & Rod Standards

From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs

ASTM B160

ASTM B164

ASTM B166

ASTM B335

ASTM B408

ASTM B425

ASTM B446

ASTM B472

ASTM B473

ASTM B484

ASTM B484M

ASTM B511

ASTM B512

ASTM B572

ASTM B573

ASTM B574

ASTM B581

ASTM B637

ASTM B638

ASTM B638M

ASTM B649

ASTM B691

ASTM B805

Nickel Alloy Round Bar & Rod Applications

We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail

OIL & GAS EXTRACTION

Valve stems and trim, wellhead fasteners, landing nipples, hangers, packers, tool joints, pump shafts, downhole instruments, and sour service connectors.

CHEMICAL PROCESSING

Pump shafts and impellers, valve stems and seats, agitator shafts, mixer components, fasteners, reactor hardware, scraper blades, and machined corrosion resistant parts.

MARINE

Propeller and pump shafts, valve components, marine fasteners, coupling pins, seawater pump parts, mooring hardware, drive shafts, and oceanographic instrument components.

AEROSPACE

Turbine shafts, discs, rings, blades, seals, shrouds, engine fasteners, actuator rods, structural pins, and high temperature rotating components.

POWER GENERATION

Turbine and generator shafts, valve stems, nuclear valve components, rotor parts, high temperature fasteners, boiler support hardware, and pump shafting components.

THERMAL PROCESSING

Furnace rollers, fan shafts, fixture pins, burner components, retort hardware, heat treatment baskets, support rods, and high temperature conveyor parts.

AUTOMOTIVE

Turbocharger shafts and rotors, exhaust valves, high temperature fasteners, fuel system valve parts, sensor components, EGR hardware, and motorsport exhaust components.

Available Grades

Available Grades for Nickel Alloy Round Bar & Rod

Explore the full range of nickel alloy round bar & rod grades to expand your material choices and ensure you find the perfect nickel alloy

400
N04400 2.4360
Monel 400 Composition
Ni ≥ 63.0%
≥ 63.0%
Cu 28.0%~34.0%
28.0%~34.0%
Fe ≤ 2.5%
≤ 2.5%
Mn: ≤ 2.00% Si: ≤ 0.50% C: ≤ 0.30%
401
N04401
Monel 401 Composition
Cu 51.4%~56.4%
51.4%~56.4%
Ni 40.0%~45.0%
40.0%~45.0%
Mn ≤ 2.25%
≤ 2.25%
Fe: ≤ 0.75% Si: ≤ 0.25% Co: ≤ 0.25%
R-405
N04405
Monel R-405 Composition
Ni ≥ 63.0%
≥ 63.0%
Cu 28.0%~34.0%
28.0%~34.0%
Fe ≤ 2.5%
≤ 2.5%
Mn: ≤ 2.00% Si: ≤ 0.50% C: ≤ 0.30%
K-500
N05500 2.4375
Monel K-500 Composition
Ni ≥ 63.0%
≥ 63.0%
Cu 27.0%~33.0%
27.0%~33.0%
Ai 2.30%~3.15%
2.30%~3.15%
Fe: ≤ 2% Mn: ≤ 1.5% Ti: 0.35%~0.85%
502
N05502
Monel 502 Composition
Ni 63.0%~70.0%
63.0%~70.0%
Cu 21.9%~29.9%
21.9%~29.9%
Ai 2.50%~3.50%
2.50%~3.50%
Fe: ≤ 2.0% Mn: ≤ 1.50% Si: ≤ 0.50%
600
N06600 2.4816
Inconel 600 Composition
Ni ≥ 72.0%
≥ 72.0%
Cr 14.0%~17.0%
14.0%~17.0%
Fe 6.0%~10.0%
6.0%~10.0%
Mn: ≤ 1.00% Si: ≤ 0.50% Cu: ≤ 0.50%
601
N06601 2.4851
Inconel 601 Composition
Ni 58.0%~63.0%
58.0%~63.0%
Cr 21.0%~25.0%
21.0%~25.0%
Fe 7.7%~17.4%
7.7%~17.4%
Ai: 1.0%~1.7% Mn: ≤ 1.00% Cu: ≤ 1.00%
602CA
N06025 2.4633
Inconel 602CA Composition
Ni 59.2%~65.9%
59.2%~65.9%
Cr 24.0%~26.0%
24.0%~26.0%
Fe 8.0%~11.0%
8.0%~11.0%
Ai: 1.8%~2.4% Si: ≤ 0.5% C: 0.15%~0.25%
603XL
Inconel 603XL Composition
Ni 69.3%~77.3%
69.3%~77.3%
Cr 15.0%~23.0%
15.0%~23.0%
Mo ≤ 4.0%
≤ 4.0%
Si: ≤ 2.00% Ai: ≤ 0.50% Ti: ≤ 0.50%
617
N06617 2.4663a
Inconel 617 Composition
Ni ≥ 44.5%
≥ 44.5%
Cr 20.0%~24.0%
20.0%~24.0%
Co 10.0%~15.0%
10.0%~15.0%
Mo: 8%~10% Fe: ≤ 3.0% Ai: 0.8%~1.5%
625
N06625 2.4856
Inconel 625 Composition
Ni ≥ 58.0%
≥ 58.0%
Cr 20.0%~23.0%
20.0%~23.0%
Mo 8.0%~10.0%
8.0%~10.0%
Fe: ≤ 5% Nb+Ta: 3.15%~4.15% Co: ≤ 1%
686
N06686 2.4606
Inconel 686 Composition
Ni 49.5%~62.9%
49.5%~62.9%
Cr 19.0%~23.0%
19.0%~23.0%
Mo 15.0%~17.0%
15.0%~17.0%
Fe: ≤ 5.0% W: 3.0%~4.4% Mn: ≤ 0.75%
690
N06690 2.4642
Inconel 690 Composition
Ni ≥ 58.0%
≥ 58.0%
Cr 27.0%~31.0%
27.0%~31.0%
Fe 7.0%~11.0%
7.0%~11.0%
Si: ≤ 0.50% Mn: ≤ 0.50% Cu: ≤ 0.50%
693
N06693
Inconel 693 Composition
Ni 53.3%~64.3%
53.3%~64.3%
Cr 27.0%~31.0%
27.0%~31.0%
Fe 2.5%~6.0%
2.5%~6.0%
Ai: 2.5%~4% Nb: 0.5%~2.5% Mn: ≤ 1.0%
706
N09706
Inconel 706 Composition
Ni 39.0%~44.0%
39.0%~44.0%
Fe ≥ 32.5%
≥ 32.5%
Cr 14.5%~17.5%
14.5%~17.5%
Nb: 2.5%~3.3% Ti: 1.5%~2.0% Co: ≤ 1.0%
718
N07718 2.4668
Inconel 718 Composition
Ni 50.0%~55.0%
50.0%~55.0%
Fe 11.1%~22.5%
11.1%~22.5%
Cr 17.0%~21.0%
17.0%~21.0%
Nb+Ta: 4.75%~5.5% Mo: 2.8%~3.3% Ti: 0.65%~1.15%
725
N07725
Inconel 725 Composition
Ni 55.0%~59.0%
55.0%~59.0%
Cr 19.0%~22.5%
19.0%~22.5%
Fe 2.3%~14.3%
2.3%~14.3%
Mo: 7%~9.5% Nb: 2.75%~4% Ti: 1%~1.7%
X-750
N07750 2.4669
Inconel X-750 Composition
Ni ≥ 70.0%
≥ 70.0%
Cr 14.0%~17.0%
14.0%~17.0%
Fe 5.0%~9.0%
5.0%~9.0%
Ti: 2.25%~2.75% Nb+Ta: 0.7%~1.2% Mn: ≤ 1%
751
N07751
Inconel 751 Composition
Ni+Co ≥ 70.0%
≥ 70.0%
Cr 14.0%~17.0%
14.0%~17.0%
Fe 5.0%~9.0%
5.0%~9.0%
Ti: 2%~2.6% Ai: 0.9%~1.5% Nb+Ta: 0.7%~1.2%
MA754
N07754
Inconel MA754 Composition
Ni ≈ 78.0%
≈ 78.0%
Cr ≈ 20.0%
≈ 20.0%
Fe ≤ 1.0%
≤ 1.0%
Y2O3: ≈ 0.60% Ti: ≤ 0.50% Ai: ≤ 0.30%
MA758
Inconel MA758 Composition
Ni ≈ 67.6%
≈ 67.6%
Cr ≈ 30.0%
≈ 30.0%
Fe ≤ 1.0%
≤ 1.0%
Y2O3: ≈ 0.6% Ti: ≤ 0.5% Ai: ≤ 0.3%
783
R30783
Inconel 783 Composition
Ni 26.0%~30.0%
26.0%~30.0%
Co ≥ 28.0%
≥ 28.0%
Fe 24.0%~27.0%
24.0%~27.0%
Ai: 5%~6% Nb: 2.5%~3.5% Cr: 2.5%~3.5%
800
N08800 1.4876
Incoloy 800 Composition
Fe ≥ 39.5%
≥ 39.5%
Ni 30.0%~35.0%
30.0%~35.0%
Cr 19.0%~23.0%
19.0%~23.0%
Mn: ≤ 1.50% Si: ≤ 1.00% Cu: ≤ 0.75%
800H
N08810 1.4958
Incoloy 800H Composition
Fe ≥ 39.5%
≥ 39.5%
Ni 30.0%~35.0%
30.0%~35.0%
Cr 19.0%~23.0%
19.0%~23.0%
Mn: ≤ 1.50% Si: ≤ 1.00% Cu: ≤ 0.75%
800HT
N08811
Incoloy 800HT Composition
Fe ≥ 39.5%
≥ 39.5%
Ni 30.0%~35.0%
30.0%~35.0%
Cr 19.0%~23.0%
19.0%~23.0%
Mn: ≤ 1.5% Ai+Ti: 0.85%~1.2% Si: ≤ 1.0%
825
N08825 2.4858
Incoloy 825 Composition
Ni 38.0%~46.0%
38.0%~46.0%
Cr 19.5%~23.5%
19.5%~23.5%
Fe ≥ 22.0%
≥ 22.0%
Mo: 2.5%~3.5% Cu: 1.5%~3% Ti: 0.6%~1.2%
890
N08890
Incoloy 890 Composition
Ni 40.0%~45.0%
40.0%~45.0%
Cr 23.5%~28.5%
23.5%~28.5%
Fe ≥ 17.3%
≥ 17.3%
Si: 1.0%~2.0% Mo: 1%~2% Mn: ≤ 1.50%
903
N19903
Incoloy 903 Composition
Fe 36.5%~47.3%
36.5%~47.3%
Ni 36.0%~40.0%
36.0%~40.0%
Co 13.0%~17.0%
13.0%~17.0%
Nb: 2.4%~3.5% Ti: 1.0%~1.85% Ai: 0.3%~1.15%
907
N19907
Incoloy 907 Composition
Fe 36.5%~47.1%
36.5%~47.1%
Ni 35.0%~40.0%
35.0%~40.0%
Co 12.0%~16.0%
12.0%~16.0%
Nb: 4.3%~5.2% Ti: 1.3%~1.8% Si: 0.07%~0.35%
909
N19909
Incoloy 909 Composition
Fe 36.3%~46.9%
36.3%~46.9%
Ni 35.0%~40.0%
35.0%~40.0%
Co 12.0%~16.0%
12.0%~16.0%
Nb: 4.3%~5.2% Ti: 1.3%~1.8% Mn: ≤ 1.0%
925
N09925
Incoloy 925 Composition
Ni 42.0%~46.0%
42.0%~46.0%
Cr 19.5%~22.5%
19.5%~22.5%
Fe ≥ 22.0%
≥ 22.0%
Mo: 2.5%~3.5% Cu: 1.5%~3.0% Ti: 1.9%~2.4%
926
N08926 1.4529
Incoloy 926 Composition
Fe 41.7%~47.8%
41.7%~47.8%
Ni 24.0%~26.0%
24.0%~26.0%
Cr 19.0%~21.0%
19.0%~21.0%
Mo: 6.0%~7.0% Mn: ≤ 2.0% Cu: 0.5%~1.5%
945
N09945
Incoloy 945 Composition
Ni 45.0%~55.0%
45.0%~55.0%
Fe 5.7%~28.0%
5.7%~28.0%
Cr 19.5%~23.0%
19.5%~23.0%
Nb: 2.4%~4.5% Mo: 3%~4% Cu: 1.5%~3.0%
945X
N09946
Incoloy 945X Composition
Ni 50.0%~55.0%
50.0%~55.0%
Cr 19.5%~22.5%
19.5%~22.5%
Fe 6.2%~20.4%
6.2%~20.4%
Nb: 3.5%~4.5% Mo: 3%~4% Cu: 1.5%~3.0%
MA956
S67956
Incoloy MA956 Composition
Fe 70.1%~75.9%
70.1%~75.9%
Cr 18.5%~21.5%
18.5%~21.5%
Ai 3.75%~5.75%
3.75%~5.75%
Y2O3: 0.3%~0.7% Ti: 0.2%~0.6% Ni: ≤ 0.5%
A-286
S66286 1.4980
Incoloy A-286 Composition
Fe 49.1%~56.0%
49.1%~56.0%
Ni 24.0%~27.0%
24.0%~27.0%
Cr 13.5%~16.0%
13.5%~16.0%
Ti: 1.9%~2.35% Mn: ≤ 2.0% Mo: 1.0%~1.5%
020
N08020 2.4660
Incoloy 020 Composition
Fe 29.9%~44.0%
29.9%~44.0%
Ni 32.0%~38.0%
32.0%~38.0%
Cr 19.0%~21.0%
19.0%~21.0%
Cu: 3.0%~4.0% Mo: 2.0%~3.0% Mn: ≤ 2.0%
028
N08028 1.4563
Incoloy 028 Composition
Fe 29.0%~36.8%
29.0%~36.8%
Ni 30.0%~34.0%
30.0%~34.0%
Cr 26.0%~28.0%
26.0%~28.0%
Mo: 3.0%~4.0% Mn: ≤ 2.5% Cu: 0.6%~1.4%
DS
1.4862
Incoloy DS Composition
Fe 35.1%~45.0%
35.1%~45.0%
Ni+Co 34.5%~41.0%
34.5%~41.0%
Cr 17.0%~19.0%
17.0%~19.0%
Si: 1.9%~2.6% Mn: 0.8%~1.5% Cu: ≤ 0.5%
330
N08330 1.4886
Incoloy 330 Composition
Fe 39.4%~46.1%
39.4%~46.1%
Ni 34.0%~37.0%
34.0%~37.0%
Cr 17.0%~20.0%
17.0%~20.0%
Mn: ≤ 2.0% Si: 0.75%~1.5% Cu: ≤ 1.0%
25-6HN
N08367
Incoloy 25-6HN Composition
Fe 41.4%~50.3%
41.4%~50.3%
Ni 23.5%~25.5%
23.5%~25.5%
Cr 20.0%~22.0%
20.0%~22.0%
Mo: 6.0%~7.0% Mn: ≤ 2.0% Si: ≤ 1.0%
27-7MO
S31277
Incoloy 27-7MO Composition
Fe 35.5%~42.6%
35.5%~42.6%
Ni 26.0%~28.0%
26.0%~28.0%
Cr 20.5%~23.0%
20.5%~23.0%
Mo: 6.5%~8.0% Mn: ≤ 3.0% Cu: 0.5%~1.5%
B
N10001
Hastelloy B Composition
Ni 58.0%~64.2%
58.0%~64.2%
Mo 26.0%~30.0%
26.0%~30.0%
Fe 4.0%~6.0%
4.0%~6.0%
Co: ≤ 2.5% Si: ≤ 1.0% Mn: ≤ 1.0%
B-2
N10665 2.4617
Hastelloy B-2 Composition
Ni 65.0%~74.0%
65.0%~74.0%
Mo 26.0%~30.0%
26.0%~30.0%
Fe ≤ 2.0%
≤ 2.0%
Mn: ≤ 1.00% Co: ≤ 1.00% Cr: ≤ 1.0%
B-3
N10675 2.4600
Hastelloy B-3 Composition
Ni 65.0%~71.0%
65.0%~71.0%
Mo 27.0%~32.0%
27.0%~32.0%
Mn ≤ 3.00%
≤ 3.00%
Co: ≤ 3.0% W: ≤ 3.0% Fe: 1.0%~3.0%
C
Hastelloy C Composition
Ni 50.0%~58.0%
50.0%~58.0%
Mo 15.0%~17.0%
15.0%~17.0%
Cr 14.5%~16.5%
14.5%~16.5%
Fe: 4%~7% W: 3.0%~4.4% Co: ≤ 2.5%
C-4
N06455 2.4610
Hastelloy C-4 Composition
Ni 58.2%~72.0%
58.2%~72.0%
Cr 14.0%~18.0%
14.0%~18.0%
Mo 14.0%~17.0%
14.0%~17.0%
Fe: ≤ 3.0% Co: ≤ 2.0% Mn: ≤ 1.0%
C-22
N06022 2.4602
Hastelloy C-22 Composition
Ni 50.1%~63.0%
50.1%~63.0%
Cr 20.0%~22.5%
20.0%~22.5%
Mo 12.5%~14.5%
12.5%~14.5%
Fe: 2.0%~6.0% W: 2.5%~3.5% Co: ≤ 2.5%
C-22HS
N07022
Hastelloy C-22HS Composition
Ni 56.6%~64.5%
56.6%~64.5%
Cr 20.0%~21.4%
20.0%~21.4%
Mo 15.5%~17.4%
15.5%~17.4%
Fe: ≤ 1.8% Co: ≤ 1.0% W: ≤ 0.8%
C-276
N10276 2.4819
Hastelloy C-276 Composition
Ni 51.0%~63.5%
51.0%~63.5%
Mo 15.0%~17.0%
15.0%~17.0%
Cr 14.5%~16.5%
14.5%~16.5%
Fe: 4.0%~7.0% W: 3.0%~4.5% Co: ≤ 2.5%
C-2000
N06200 2.4675
Hastelloy C-2000 Composition
Ni 51.0%~61.7%
51.0%~61.7%
Cr 22.0%~24.0%
22.0%~24.0%
Mo 15.0%~17.0%
15.0%~17.0%
Fe: ≤ 3.0% Co: ≤ 2.0% Cu: 1.3%~1.9%
G-3
N06985
Hastelloy G-3 Composition
Ni 36.9%~45.4%
36.9%~45.4%
Cr 21.0%~23.5%
21.0%~23.5%
Fe 18.0%~21.0%
18.0%~21.0%
Mo: 6%~8% Co: ≤ 5.0% Cu: 1.5%~2.5%
G-30
N06030 2.4603
Hastelloy G-30 Composition
Ni 30.2%~47.2%
30.2%~47.2%
Cr 28.0%~31.5%
28.0%~31.5%
Fe 13.0%~17.0%
13.0%~17.0%
Mo: 4.0%~6.0% Co: ≤ 5.0% W: 1.5%~4.0%
G-35
N06035
Hastelloy G-35 Composition
Ni 51.5%~60.1%
51.5%~60.1%
Cr 32.25%~34.25%
32.25%~34.25%
Mo 7.6%~9.0%
7.6%~9.0%
Fe: ≤ 2.0% Co: ≤ 1.00% Si: ≤ 0.6%
N
N10003
Hastelloy N Composition
Ni 64.9%~78.9%
64.9%~78.9%
Mo 15.0%~18.0%
15.0%~18.0%
Cr 6.0%~8.0%
6.0%~8.0%
Fe: ≤ 5.0% Si: ≤ 1.00% Mn: ≤ 1.00%
S
N06635
Hastelloy S Composition
Ni ≥ 67.0%
≥ 67.0%
Cr ≈ 16.0%
≈ 16.0%
Mo ≈ 15.0%
≈ 15.0%
Fe: ≤ 3.0% Co: ≤ 2.00% W: ≤ 1.00%
W
N10004
Hastelloy W Composition
Ni 55.8%~69.0%
55.8%~69.0%
Mo 23.0%~26.0%
23.0%~26.0%
Fe 4.0%~7.0%
4.0%~7.0%
Cr: 4.0%~6.0% Co: ≤ 2.5% Si: ≤ 1.0%
X
N06002 2.4665
Hastelloy X Composition
Ni 41.3%~53.7%
41.3%~53.7%
Cr 20.5%~23.0%
20.5%~23.0%
Fe 17.0%~20.0%
17.0%~20.0%
Mo: 8.0%~10% Co: 0.5%~2.5% Si: ≤ 1.0%

Nickel Alloy Round Bar & Rod SHOW

Supplying Nickel Alloy Round Bar & Rod

From initial samples to large scale production, we supply high quality nickel alloy round bar & rod and help you achieve your manufacturing goals.

Manufacturing Process

Nickel Alloy Round Bar & Rod Manufacturing Process

The production process for Arialloy nickel alloy round bar & rod ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.

Steel Making Steel Making
Ingot Casting Ingot Casting
Ingot Ingot
Round Bar Round Bar
Heating Heating
Hot Rolling Hot Rolling
Heat Treatment Heat Treatment
Cooling Cooling
Straightening Straightening
Skinning Skinning
Cold Drawing Cold Drawing
Straightening Straightening
Polishing Polishing
Inspection Inspection
Analytic Analytic
Marking Marking
Packing & Shipping Packing & Shipping

Customized Dimensions

Nickel Alloy Round Bar & Rod Customization Scope
  • Outside Diameter (OD)

    Φ4 - Φ300 mm

  • Delivery State
    Cold Drawn, Hot Rolled, Forged, Grinding, Centerless Grinding
  • Finish
    Bright, Polishing, Mirror, Hairline, Pickled, Peeled, Black
Customized size please confirm with us

Formula: m = D (mm) × D (mm) × L (m) × ρ (g/cm³) × π ÷ 4000
D = Diameter, L = Length, ρ = Density, π = 3.1415926…

Data Sheet

Nickel Alloy Round Bar & Rod Data Sheet

Access the nickel alloy round bar & rod data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project

Tolerance

Cold Drawn
Specified Dimension, in. (mm)Permissible Variations from Specified Size, in. (mm)
OverUnder
Over 1/2(12.70) to 1(25.40), excl0.002(0.05)0.002(0.05)
1(25.40) to 3/2(38.10), incl0.0025(0.06)0.0025(0.06)
3/2(38.10) to 4(101.60), incl0.003(0.08)0.003(0.08)
Hot Rolled
Permissible Variations from Specified Size, in. (mm)Out-of-Round in. (mm)
OverUnder
Over 5/16(7.94) to 7/16(11.11), incl0.006(0.15)0.006(0.15)0.009(0.23)
Over 7/16(11.11) to 5/8(15.88), incl0.007(0.18)0.007(0.18)0.010(0.25)
Over 5/8(15.88) to 7/8(22.22), incl0.008(0.20)0.008(0.20)0.012(0.30)
Over 7/8(22.22) to 1(25.40), incl0.009(0.23)0.009(0.23)0.013(0.33)
Over 1(25.40) to 9/8(28.58), incl0.010(0.25)0.010(0.25)0.015(0.38)
Over 9/8(28.58) to 5/4(31.75), incl0.011(0.28)0.011(0.28)0.016(0.41)
Over 5/4(31.75) to 11/8(34.92), incl0.012(0.30)0.012(0.30)0.018(0.46)
Over 11/8(34.92) to 3/2(38.10), incl0.014(0.36)0.014(0.36)0.021(0.53)
Over 3/2(38.10) to 2(50.80), incl1/64(0.40)1/64(0.40)0.023(0.58)
Over 2(50.80) to 2 1/2(63.50), incl1/32(0.79)00.023(0.58)
Over 2 1/2(63.50) to 3 1/2(88.90), incl3/64(1.19)00.035(0.89)
Over 3 1/2(88.90) to 4 1/2(114.30), incl1/16(1.59)00.046(1.17)
Over 4 1/2(114.30) to 5 1/2(139.70), incl5/64(1.98)00.058(1.47)
Over 5 1/2(139.70) to 6 1/2(165.10), incl1/8(3.18)00.070(1.78)
Over 6 1/2(165.10) to 8(203.20), incl5/32(3.97)00.085(2.18)

Delivery State

Delivery State ChoiceSurface Condition
ForgedBlack
Polished
Hot RolledBlack
Polished
Bright
Pickled
Cold DrawnPolished
Bright
Note:
1. If you require different deliver state than the above listed, kindly confirm with us.
2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here.

Upload Your Requirements

To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them

Receive a Quote & Design Review

Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved

Confirm Your Order & Begin Production

Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation

Shipping & Delivery

On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours

Just 4 Steps
Custom Nickel Alloy Round Bar & Rod Quotation Process

From detailed consultation to final delivery, we make custom nickel alloy round bar & rod orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery

Nickel Alloy Round Bar & Rod FAQs

Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support

Yes. We can produce nickel alloy grinding rods with precise dimensions, better roundness and straightness than that of nickel alloy polishing rods, but the processing cost is also higher.

The standard minimum order quantity for nickel alloy round bar and rod is 100 kg. Larger volumes generally qualify for more favorable pricing.

The typical lead time is 35 days under normal production conditions. Large production quantities can require additional time.

Yes. Nickel alloy round bar and rod samples can be provided for evaluation when suitable material is available. Availability depends on suitable stock or preliminary material.

Yes. Buyers may send engineers or representatives to inspect nickel alloy round bar and rod at our factory. The visit date, inspection scope, participants, and required records should be agreed in advance.

Inspection of nickel alloy round bar and rod covers raw-material selection, production-stage checks, final inspection, and packing review. Only material that meets the approved specification and required results is released for shipment.

Standard export packing for nickel alloy round bar and rod follows this arrangement: bars and rods are bundled with moisture-resistant protection, with wooden cases or pallets selected for the confirmed length and shipment weight. The packing plan also considers dimensions, unit weight, surface protection, and transport conditions.

A complete nickel alloy round bar and rod inquiry should state diameter, length, straightness, tolerance, surface condition, and delivery state. Complete size data prevents ambiguity in production, inspection, and quotation.
