Incoloy 903
UNS N19903
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with incoloy 903 sheets / bars
Incoloy 903 Material Properties
UNS N19903 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of incoloy 903 for optimal resistance, strength, and stability
Incoloy 903 Chemical Composition
Incoloy 903 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies competitively priced incoloy 903 products.
Incoloy 903 (UNS N19903) is a precipitation hardening alloy containing nickel, iron and cobalt. Its composition combines approximately 36 to 40% nickel and 13 to 17% cobalt with iron as the balance. Aluminum, titanium and niobium support precipitation strengthening, while gamma prime particles increase resistance to plastic deformation during aging. Niobium content ranges from 2.40 to 3.50% by weight. The alloy combines high tensile strength with low thermal expansion and a relatively stable elastic modulus. Its austenitic matrix remains stable at cryogenic temperatures, and the material exhibits ferromagnetic behavior below its Curie temperature. These characteristics give incoloy 903 a distinctive combination of dimensional stability, stiffness retention and mechanical strength across a broad temperature range.
Solution treatment followed by aging develops the alloy’s high strength. A two stage aging treatment includes eight hours at 720°C, furnace cooling at 56°C per hour to 620°C and a further eight hour hold, followed by air cooling. The alloy supports hot forming, machining and gas tungsten arc welding.
Incoloy 903 Corrosion Resistance
Incoloy 903 has modest overall corrosion resistance because its chemistry contains essentially no chromium and therefore does not develop the chromium rich protective oxide associated with more corrosion resistant incoloy grades. The alloy shows useful resistance to hydrogen environment embrittlement, while chloride exposure can sharply reduce corrosion fatigue strength.
At elevated temperatures, oxidation increases as temperature rises, with measurable attack between 540°C and 650°C. Its corrosion profile therefore emphasizes hydrogen resistance and structural stability rather than broad resistance to oxidizing and chloride containing environments.
Incoloy 903 Mechanical Properties
After solution treatment and aging, incoloy 903 exhibits a room temperature tensile strength of approximately 1310 MPa (190,000 psi), a 0.2% offset yield strength of 1103 MPa (160,000 psi) and 14% elongation. At 650°C, tensile strength is approximately 1000 MPa, yield strength is 896 MPa and elongation reaches 18%.
The aged alloy also exhibits a room temperature fracture toughness of approximately 111 MPa√m, combining high tensile strength with resistance to crack extension.
Incoloy 903 Temperature Characteristics
Incoloy 903 has a mean thermal expansion coefficient of approximately 7.2 µm/m/°C from room temperature to about 425°C. Its Curie temperature lies between 416°C and 471°C, with thermal expansion increasing above the magnetic transition. The elastic modulus remains relatively stable from minus 196°C to approximately 650°C.
Expansion behavior is reproducible during repeated heating and cooling, while the combination of low expansion and stable stiffness provides resistance to thermal fatigue and thermal shock. The alloy melts over a range of 1318°C to 1393°C.

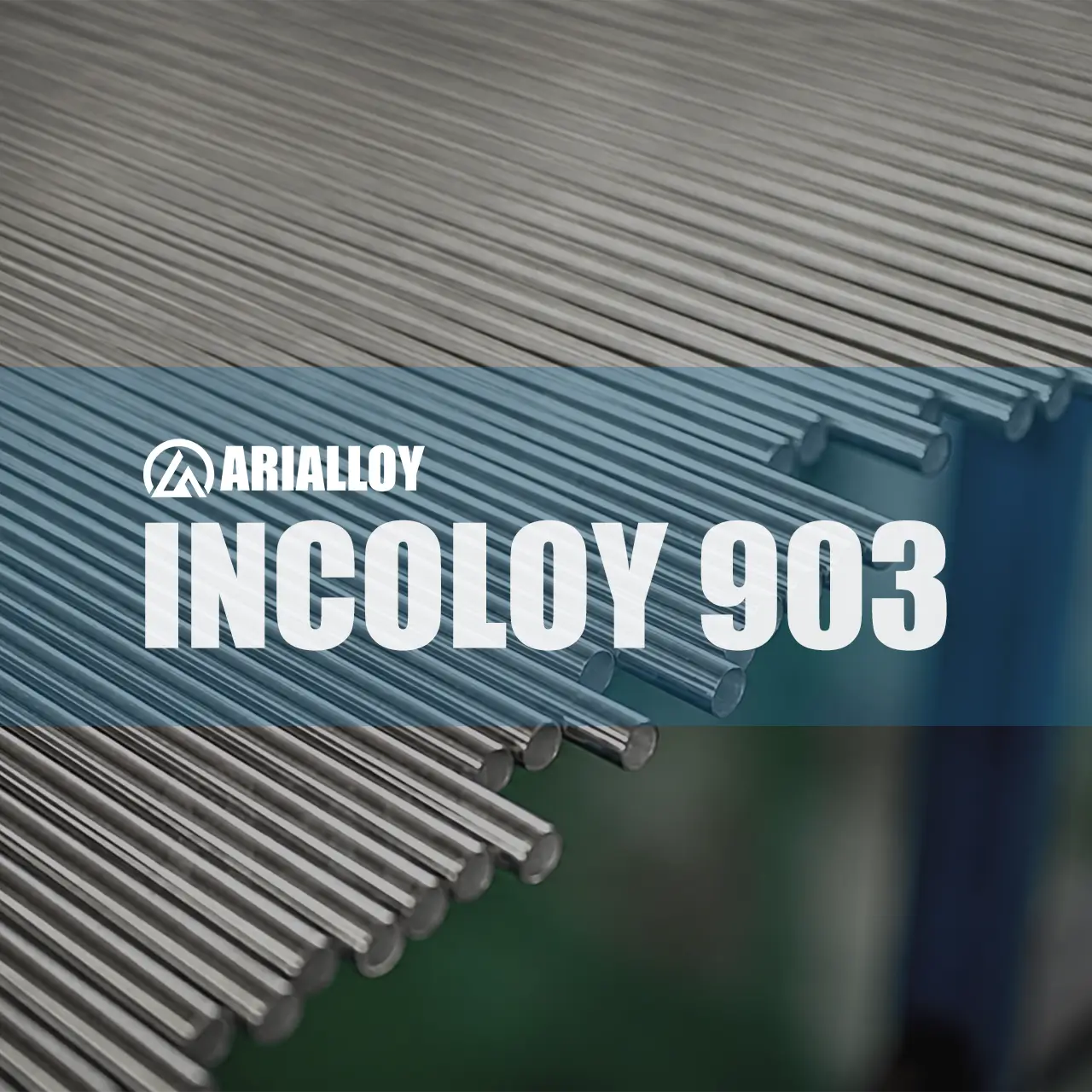

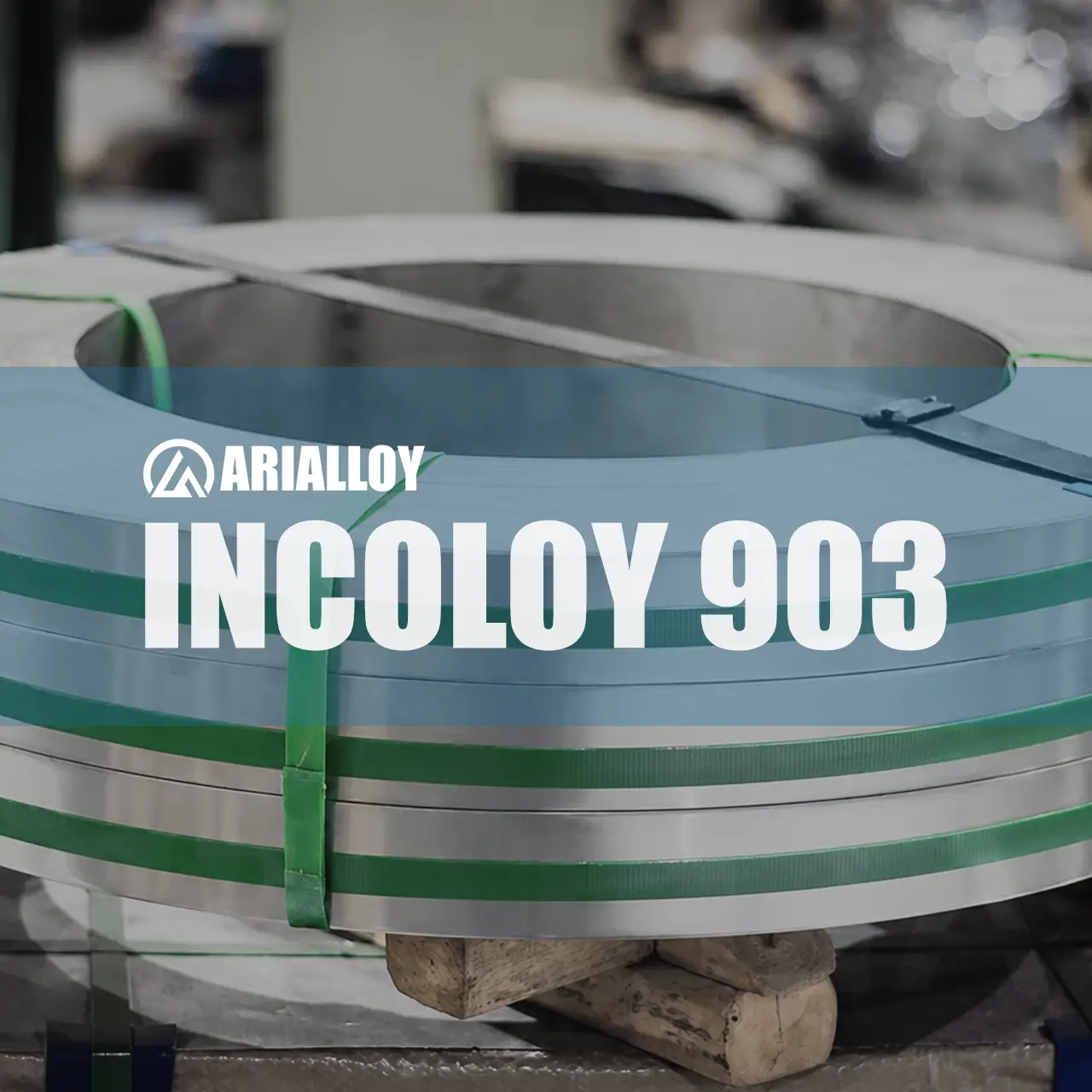

Incoloy 903 Products
Nickel Alloy 903 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 903 products tailored to each project’s needs
Incoloy 903 Data Sheet
Incoloy Alloy 903 Data Sheet
Access / download the incoloy 903 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.25 | |
|---|---|---|---|
| lb/in.3 | 0.298 | ||
| Melting Range | °F | 2405 - 2539 | |
| °C | 1318 - 1393 | ||
| Curie Temperature | °F | 780 - 880 | |
| °C | 416 - 471 | ||
Mechanical Properties
| Exposure Temperature | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | Reduction of Area | Impact Strength | ||||
|---|---|---|---|---|---|---|---|---|---|
| °F | °C | ksi | MPa | ksi | MPa | % | % | ft•lbf | J |
| 70 | 21 | 165.5 | 1141 | 198.5 | 1369 | 17 | 43 | 24 | 32.5 |
| 1100 | 595 | 169.5 | 1169 | 200.5 | 1382 | 16 | 44 | 25 | 33.9 |
| 1200 | 650 | 149.0 | 1027 | 185.0 | 1276 | 19 | 47 | 26 | 35.3 |
| 1300 | 705 | 107.0 | 738 | 149.0 | 1027 | 20 | 41 | — | — |
Incoloy 903 SHOW
Nickel Alloy 903 Showcase
From initial samples to large scale production, we supply high quality incoloy 903 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Incoloy 903 Quotation Process
From detailed consultation to final delivery, we make custom incoloy 903 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Incoloy 903 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy incoloy alloy 903 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Incoloy 903 Applications
UNS N19903 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Incoloy 903 Knowledge
Nickel Alloy 903 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Incoloy Grades
Incoloy Alloy Grades
Explore the full range of incoloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Incoloy 903 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Simply submit your incoloy 903 requirements to sales@arialloy.com or through the form below. Our sales team will review your request and send a quotation with the relevant details. If you accept our offer, send us your PO. We will issue the PI for payment and begin production after receiving the prepayment. We will notify you when manufacturing is finished.
We generally send the requested incoloy 903 quotation within 24 hours. If your requirements are unclear, incomplete, or cannot be quoted, our sales team will let you know promptly.
For customers purchasing incoloy 903 under our standard FOB terms, the usual practice is to designate a freight forwarder. We will coordinate with your forwarder and complete the local work needed for shipment. If preferred, we can take care of transportation and provide a separate freight quotation.
The price of incoloy 903 is influenced by changes in the cost of the raw metals required to produce it. Since nickel, iron, cobalt, and chromium and other alloying metals contribute to the final cost, fluctuations in these markets can result in changes to alloy prices.
Incoloy 903 is produced from material melted in house at our facility. Our more than 30 vacuum smelting and electroslag remelting furnaces cover batch sizes of 50 kg, 200 kg, 1,000 kg, and 5,000 kg. Because we have smaller-capacity equipment, we can accommodate lower volume requirements.
We provide the incoloy 903 test report in advance of shipment, with all key material details documented. These include the applicable standard, chemical composition, mechanical properties, dimensions, and heat number.
Our approach is to control the incoloy 903 material mix during smelting and continuously monitor composition through chemical analysis. PMI testing is then performed on the finished product, with third-party laboratory verification available if needed.
