Inconel 601
UNS N06601 / W.Nr. 2.4851
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with inconel 601 tubes / sheets / wires / bars / fittings
Inconel 601 Material Properties
UNS N06601 / W.Nr. 2.4851 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of inconel 601 for optimal resistance, strength, and stability
Inconel 601 Chemical Composition
Inconel 601 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies competitively priced inconel 601 products.
Inconel 601 (UNS N06601 / W.Nr. 2.4851) is an austenitic nickel alloy containing chromium, iron, and aluminum, combining exceptional oxidation resistance with useful mechanical strength. Its composition includes 58.0% to 63.0% nickel, 21.0% to 25.0% chromium, and 1.0% to 1.7% aluminum, with iron forming the balance. Nickel supports structural stability, while chromium promotes the formation of a protective surface oxide. Aluminum improves oxidation resistance and helps the oxide layer remain adherent during repeated heating and cooling. The alloy has a stable face centered cubic matrix and combines resistance to elevated temperature degradation with good ductility. Its properties depend on the product form, grain structure, and processing condition, which should be considered when specifying material requirements.
The alloy can be hot formed, cold worked, machined, and welded using suitable procedures. Cold deformation increases strength and hardness, while intermediate annealing may be needed to restore ductility during extensive forming. Welding consumables should be selected according to the required joint properties, particularly when maintaining oxidation resistance at elevated temperatures is important.
Inconel 601 has a density of approximately 8.11 g/cm³, providing a useful reference for calculating product weight from the specified dimensions.
Inconel 601 Corrosion Resistance
Inconel 601 resists oxidation and carburization through a protective surface oxide that limits further attack. Its chromium and aluminum content helps maintain this protection during repeated thermal exposure.
In aqueous environments, the alloy offers good resistance to nitric acid and sodium hydroxide solutions, with useful resistance to dilute phosphoric acid. Resistance decreases at higher phosphoric acid concentrations, and the alloy generally performs poorly in sulfuric, hydrochloric, and hydrofluoric acids. Corrosion behavior must therefore be evaluated against the actual chemical composition, concentration, and temperature.
Inconel 601 Mechanical Properties
In the solution annealed condition, representative room temperature data for inconel 601 show a tensile strength of approximately 620 MPa, a 0.2% proof strength of 270 MPa, and 30% elongation. Cold working increases strength and hardness, while reducing the ductility available for subsequent forming. Product form and heat treatment also influence measured properties.
These values describe a representative material condition and should not replace the acceptance requirements stated in the applicable product specification.
Inconel 601 Temperature Characteristics
Inconel 601 offers excellent oxidation resistance at temperatures approaching 1200°C in air, supported by an oxide layer that resists spalling during thermal cycling. This temperature indicates oxidation capability rather than a universal limit for sustained mechanical loading. Strength decreases as temperature rises, and resistance to creep depends on stress, exposure time, and material condition. Solution annealing establishes the grain structure needed for elevated temperature performance. Operating limits should therefore account for both surface oxidation and progressive deformation under load, together with the surrounding atmosphere.
Inconel 601 Products
Nickel Alloy 601 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 601 products tailored to each project’s needs
Inconel 601 Data Sheet
Inconel Alloy 601 Data Sheet
Access / download the inconel 601 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.11 | |
|---|---|---|---|
| lb/in.3 | 0.293 | ||
| Melting Range | °F | 2480 - 2571 | |
| °C | 1360 - 1411 | ||
| Specific Heat | Btu/lb-°F | 0.107 | |
| J/kg-°C | 448 | ||
| Permeability at 200 oersted | 76°F (24°C) | 15.9 kA/m | 1.003 |
| -109°F (-78°C) | 15.9 kA/m | 1.004 | |
| -320°F (-196°C) | 15.9 kA/m | 1.016 | |
| Curie Temperature | °F | -320 | |
| °C | -196 | ||
Mechanical Properties
| Form and Condition | Tensile Strength | Yield Strength (0.2% Offset) | Elongation, % | Hardness, Rb | ||
|---|---|---|---|---|---|---|
| ksi | MPa | ksi | MPa | |||
| ROD and BAR | ||||||
| Hot-Finished | 85-120 | 585-825 | 35-100 | 240-690 | 60-15 | 65-95 |
| Annealed | 80-115 | 550-790 | 30-60 | 205-415 | 70-40 | 60-80 |
| PLATE | ||||||
| Annealed | 80-100 | 550-690 | 30-45 | 205-310 | 65-45 | 60-75 |
| SHEET | ||||||
| Cold-Rolled | 115-190 | 790-1310 | 100-175 | 690-1205 | 20-2 | - |
| Annealed | 85-100 | 585-690 | 30-50 | 205-345 | 55-35 | 65-80 |
| STRIP | ||||||
| Cold-Rolled | 115-190 | 790-1310 | 100-175 | 690-1205 | 20-2 | - |
| Annealed | 85-100 | 585-690 | 30-50 | 205-345 | 55-35 | 65-80 |
| TUBE and PIPE | ||||||
| Cold-Drawn & Annealed | 80-110 | 550-760 | 30-60 | 205-415 | 65-35 | 70-95 |
| WIRE | ||||||
| Cold-Drawn | 120-205 | 825-1415 | 100-195 | 690-1345 | 20-3 | - |
| Annealed | 90-115 | 620-790 | 35-70 | 240-480 | 45-35 | - |
| ALL FORMS | ||||||
| Solution-Treated | 75-110 | 515-760 | 25-55 | 160-380 | 75-40 | 55-95 |
Inconel 601 Standards
UNS N06601 / W.Nr. 2.4851 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs

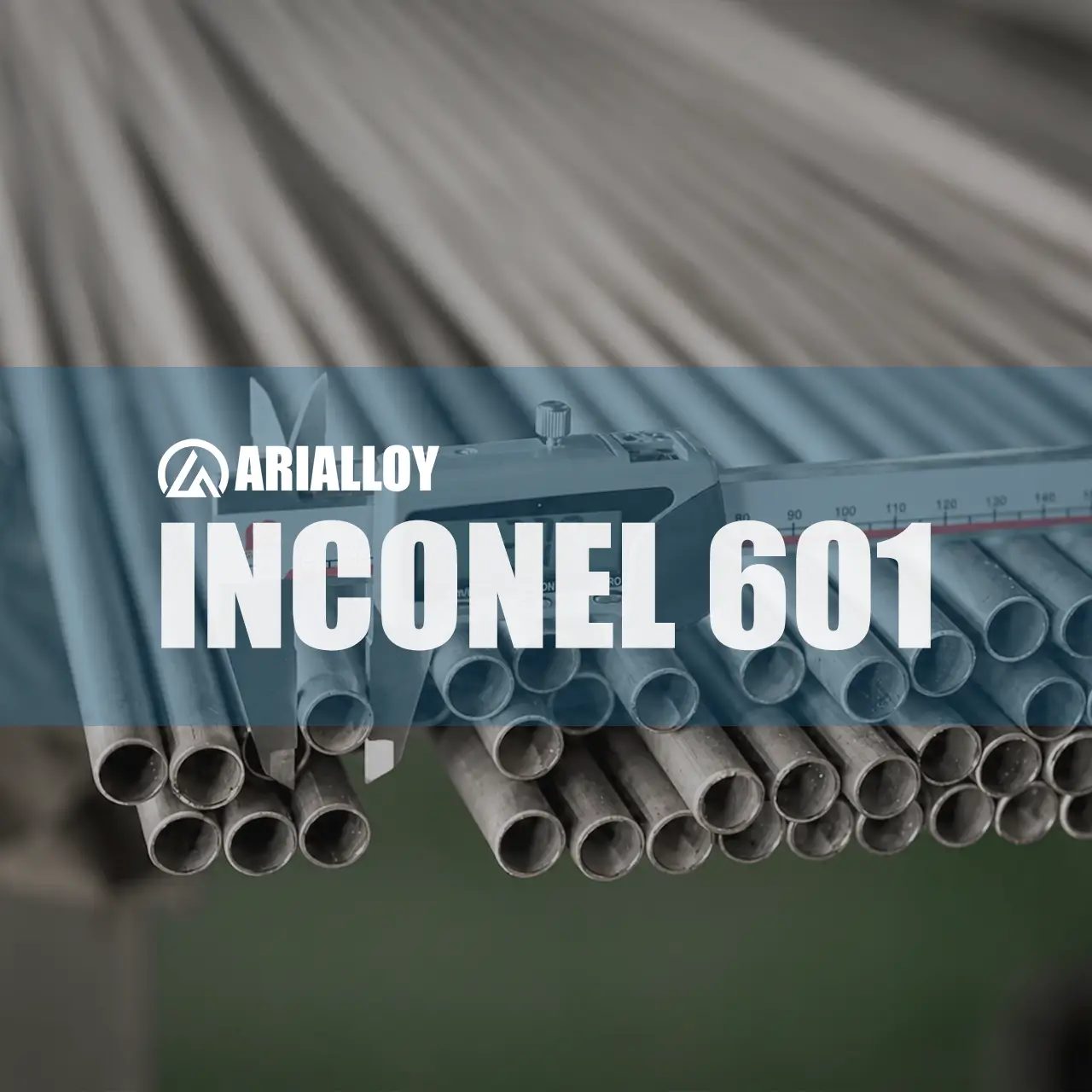

ASTM B167
Seamless Pipe & Tube
ASTM B829
Seamless Pipe & Tube
ASTM B775
Welded Pipe
ASTM B516
Welded Tube
ASTM B751
Welded Tube
ASTM B366
Welded Fittings
ASTM B166
Rod, Bar and Wire
ASTM B168
Plate, Sheet and Strip
ASTM B906
Plate, Sheet and Strip

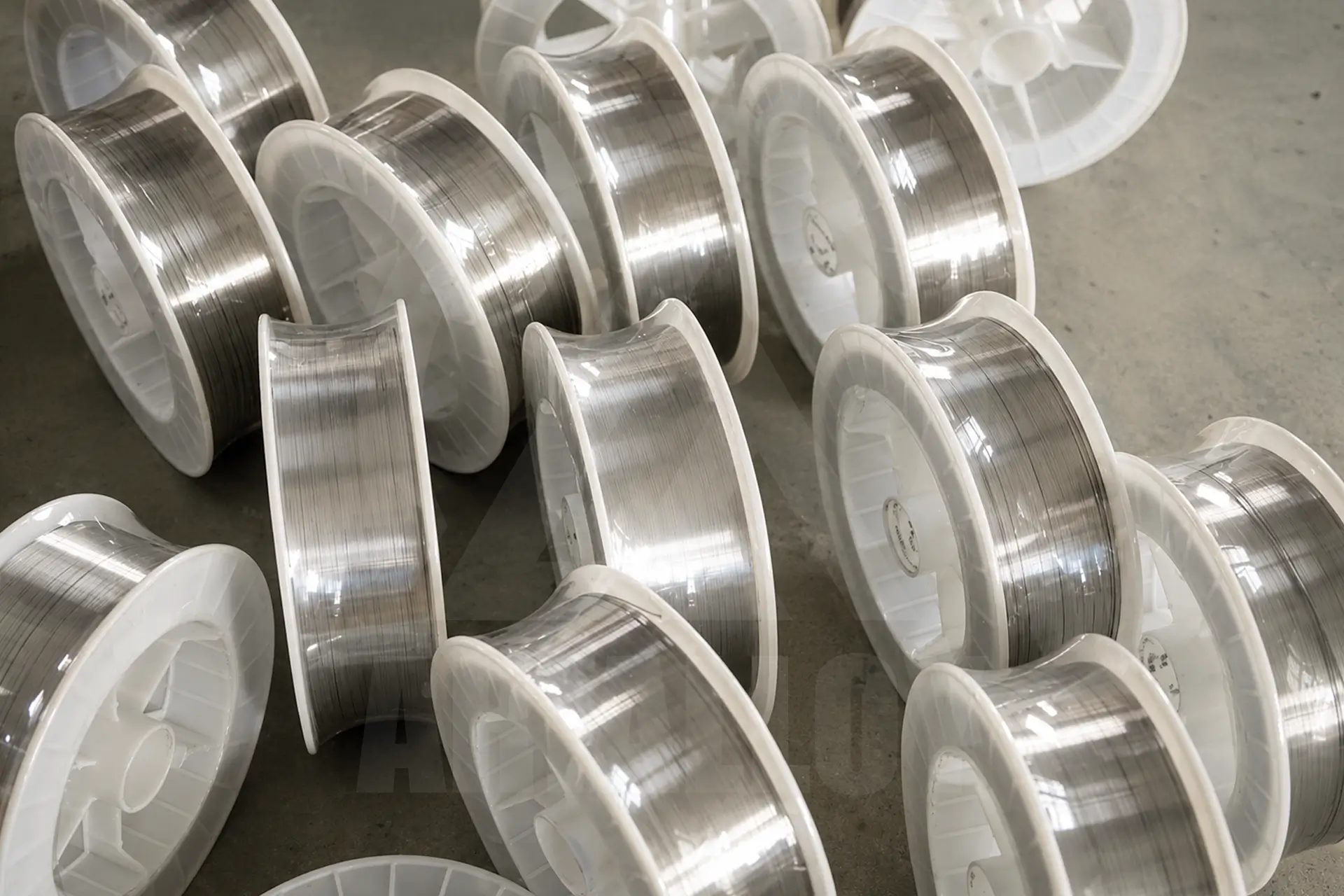

AWS A5.14 ERNiCrFe-11
Filler Metal
Inconel 601 SHOW
Nickel Alloy 601 Showcase
From initial samples to large scale production, we supply high quality inconel 601 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Inconel 601 Quotation Process
From detailed consultation to final delivery, we make custom inconel 601 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Inconel 601 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy inconel alloy 601 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Inconel 601 Applications
UNS N06601 / W.Nr. 2.4851 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Inconel 601 Knowledge
Nickel Alloy 601 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Inconel Grades
Inconel Alloy Grades
Explore the full range of Inconel alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Inconel 601 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
The purchasing process is straightforward. Send your inconel 601 requirements to sales@arialloy.com or fill out the form at the bottom of the page. Our sales team will respond with a detailed quotation. If you decide to order, send us your PO, after which we will issue a PI for payment. We will start production upon receipt of the prepayment and notify you when the material is ready.
Most inconel 601 inquiries receive a quotation from our sales team within 24 hours. If we find that your inquiry needs more information or cannot be quoted, we will contact you promptly.
Our standard FOB terms mean that customers usually arrange their own freight forwarder for inconel 601 transportation. We will assist the designated forwarder with all relevant work at our end. If you prefer a one-stop arrangement, we can organize the shipping for you and provide the corresponding freight quote.
Since an alloy is produced from various metallic raw materials, changes in those materials can directly affect its market price. Nickel, chromium, and aluminum are among the important metals influencing superalloy costs, and significant price movements in these metals are often reflected in alloy quotations.
Our factory carries out the inconel 601 melting process in-house. We have more than 30 vacuum smelting and electroslag remelting furnaces, covering four production capacities from 50 kg up to 5,000 kg. Because we can choose an appropriate furnace for each batch, we are able to offer smaller MOQs.
Certainly, we issue the inconel 601 MTR prior to shipment based on applicable industry standards. It provides the material standard, chemical analysis, mechanical test data, dimensions, and heat number needed to verify conformity.

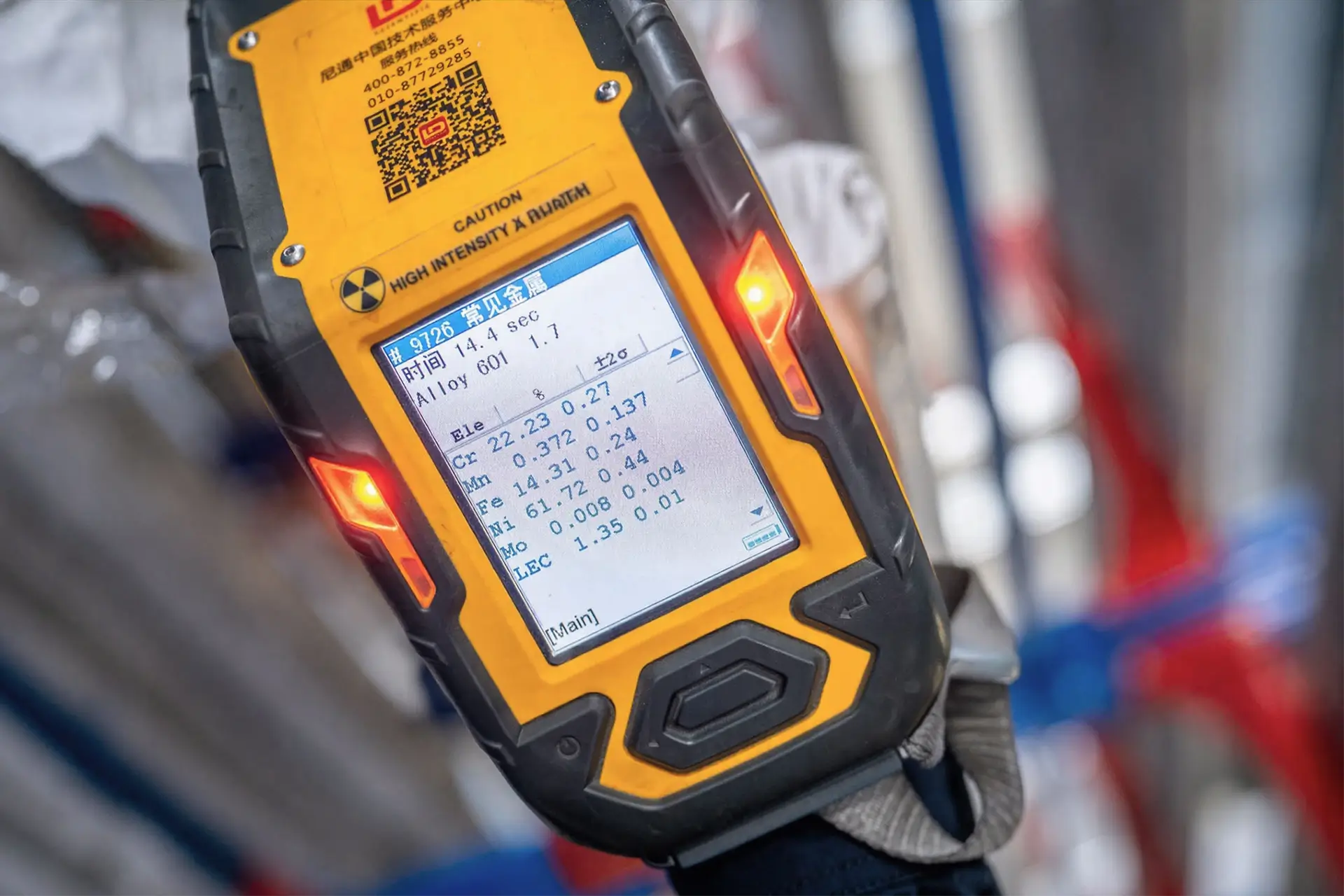

We verify inconel 601 composition at multiple stages. Material ratios are controlled during smelting, chemical analysis monitors the chemistry, and PMI testing is performed after production. Third-party laboratory analysis can be arranged for final confirmation.
