Inconel MA754
UNS N07754
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with inconel ma754 tubes / sheets / bars
Inconel MA754 Material Properties
UNS N07754 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of inconel ma754 for optimal resistance, strength, and stability
Inconel MA754 Chemical Composition
Inconel MA754 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies cost effective inconel MA754 products.
Inconel MA754 (UNS N07754) is a nickel chromium superalloy strengthened by a fine dispersion of yttrium oxide. Its nominal composition includes approximately 20% chromium and 0.6% yttrium oxide by weight, together with small amounts of titanium, aluminum and iron. Mechanical alloying distributes the oxide particles throughout the metal powder, which is subsequently consolidated and hot worked.
These stable particles obstruct dislocation movement and help preserve strength during prolonged exposure to elevated temperatures. Chromium supports oxidation resistance, while the nickel rich matrix provides structural stability. Final annealing establishes the coarse grain structure needed for high temperature creep resistance, with grain shape and orientation influencing the properties of the finished material.
Inconel MA754 Corrosion Resistance
Inconel MA754 offers strong resistance to high temperature oxidation. Chromium supports the formation of a protective oxide scale. High nickel content and the protective surface scale also improve resistance to nitridation in suitable atmospheres.
Tests in air containing 5% water vapor at 1177°C showed low metal loss after 1008 hours. Resistance in molten salts requires separate assessment, as sodium sulfate and sodium chloride mixtures can cause substantial attack. Atmosphere composition, surface deposits and exposure duration should therefore be considered alongside the operating temperature.
Inconel MA754 Mechanical Properties
Inconel MA754 combines dispersion strengthening with mechanical properties that depend on grain structure and orientation. At 21°C, typical longitudinal elastic modulus values are approximately 149 GPa for textured bar and 203 GPa for untextured bar. In coarse grained material, transverse strength and ductility can be lower than longitudinal values, particularly during high temperature creep.
Inconel MA754 Temperature Characteristics
Inconel MA754 retains useful creep strength above 1000°C through its stable oxide dispersion and properly developed grain structure. Its approximate solidus temperature is 1400°C (2550°F).
Thermal conductivity rises from about 14.3 W/m·K at 26°C to 32.6 W/m·K at 1000°C, while thermal expansion follows the general behavior of other nickel chromium alloys. A strong crystallographic texture can improve thermal fatigue resistance by lowering longitudinal elastic stiffness.

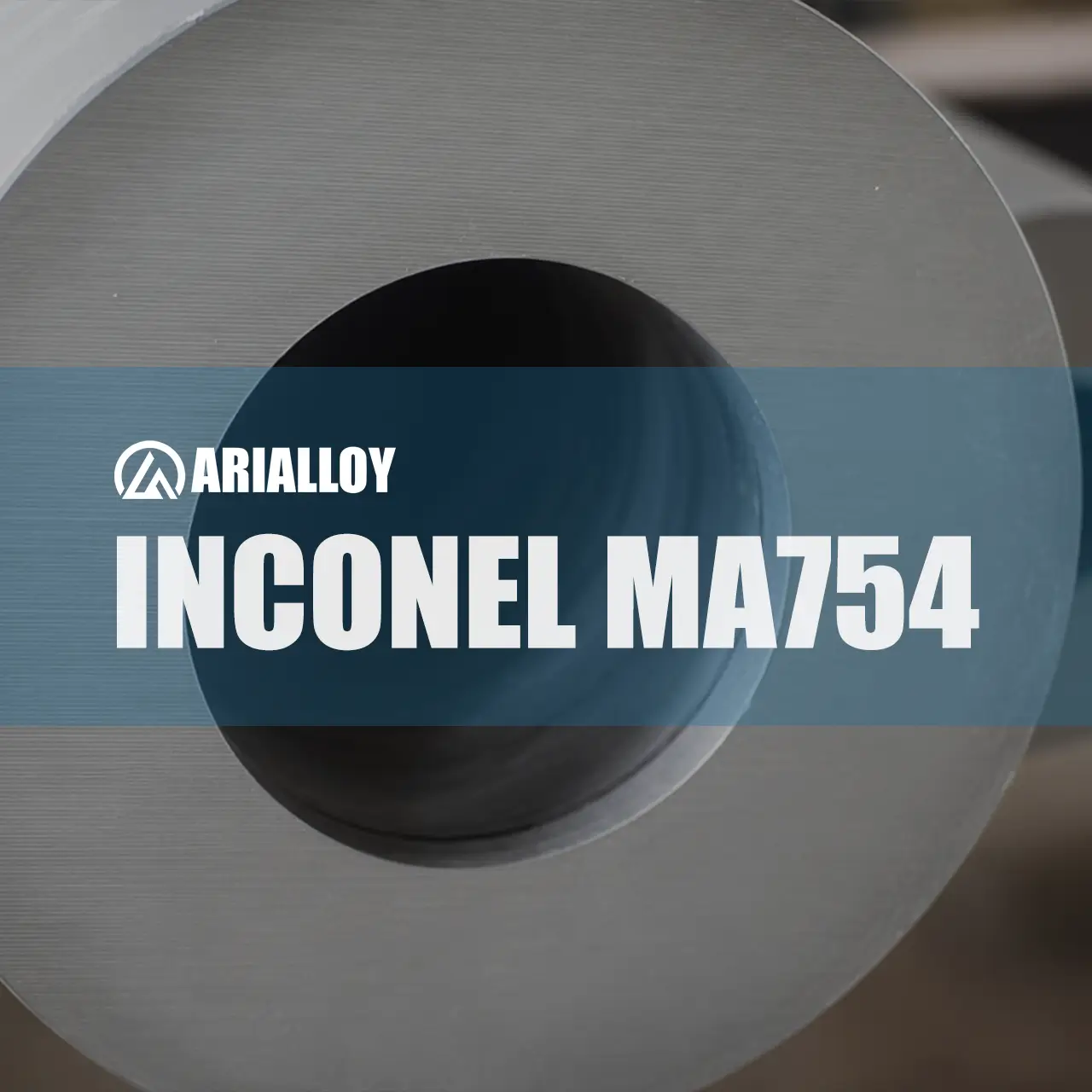

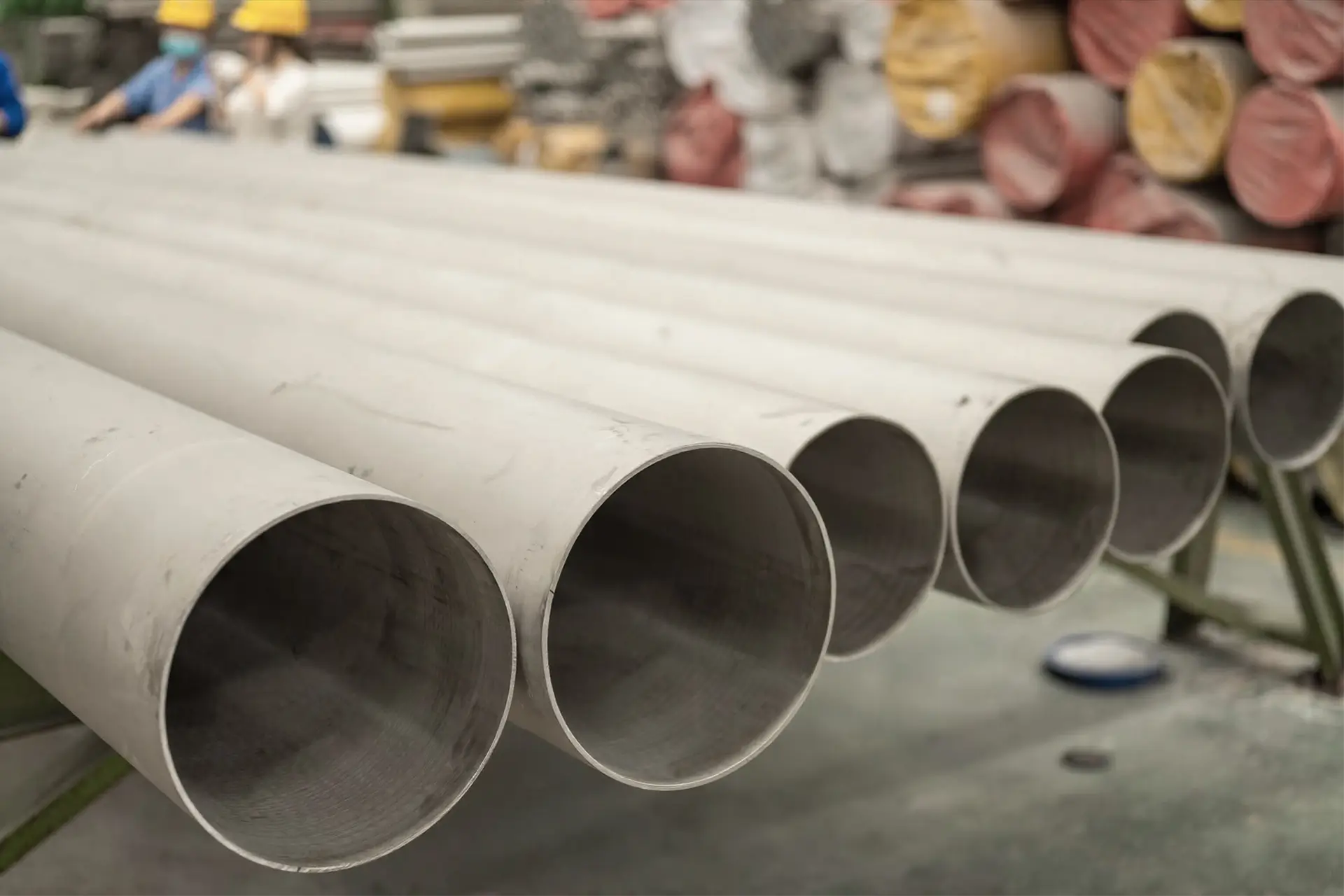

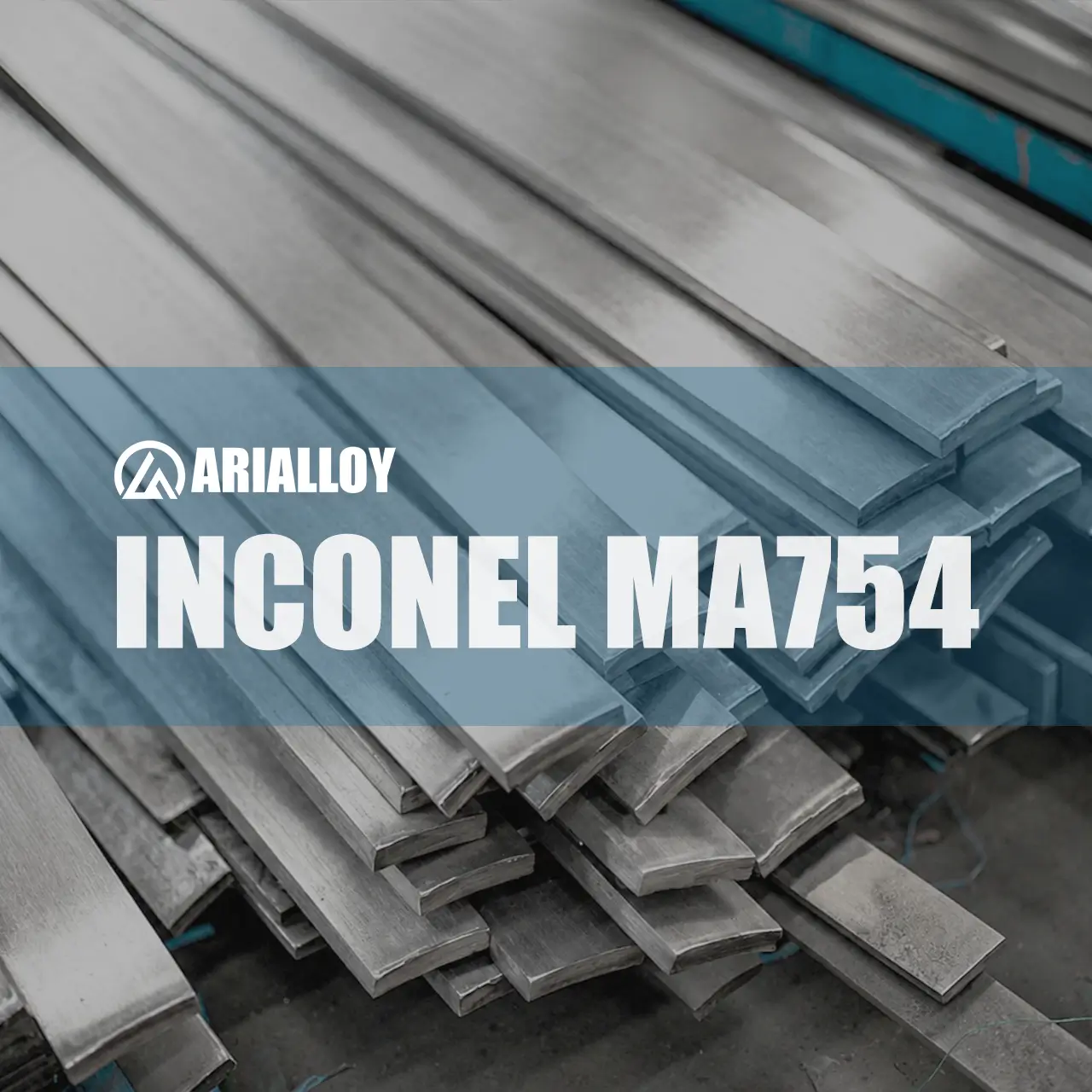

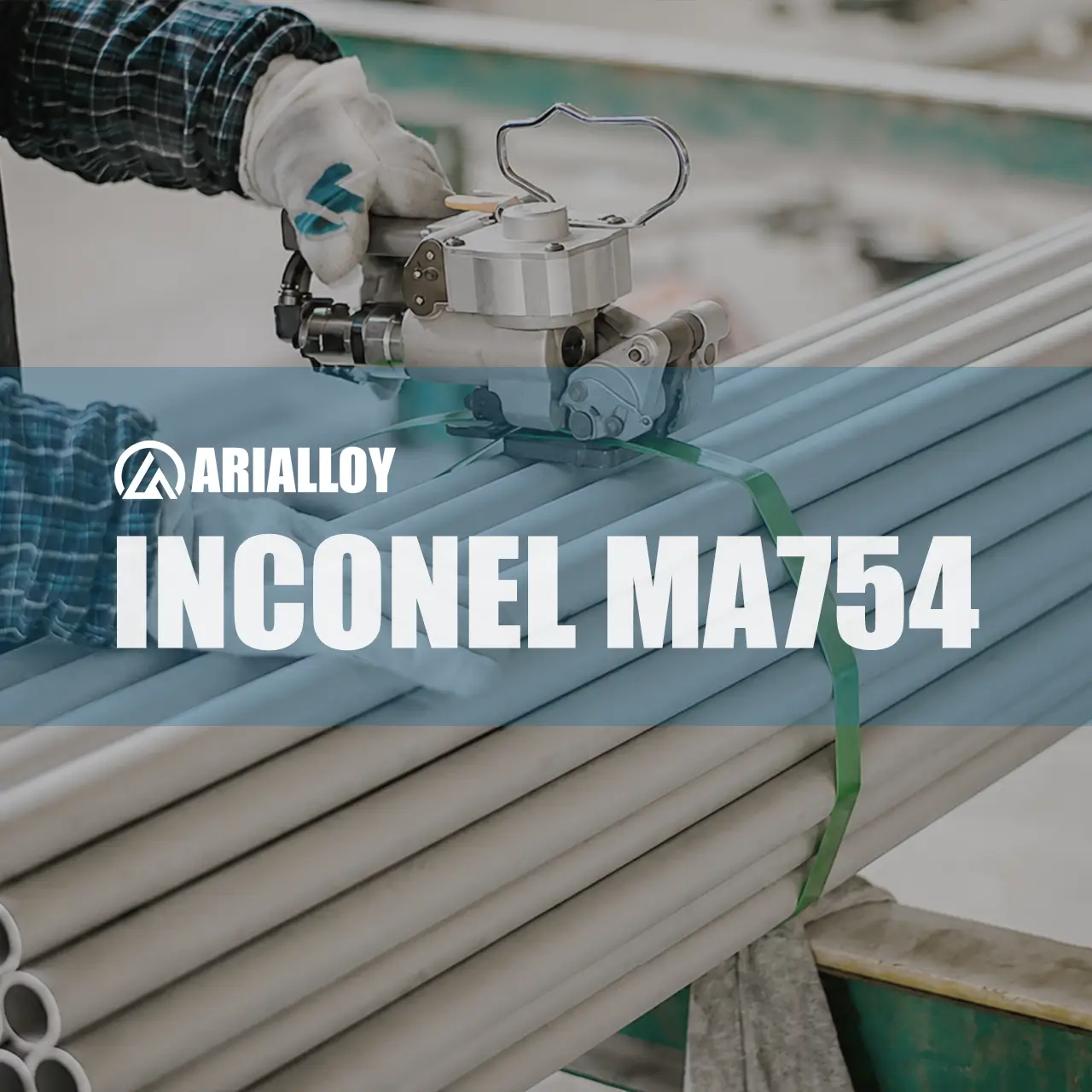

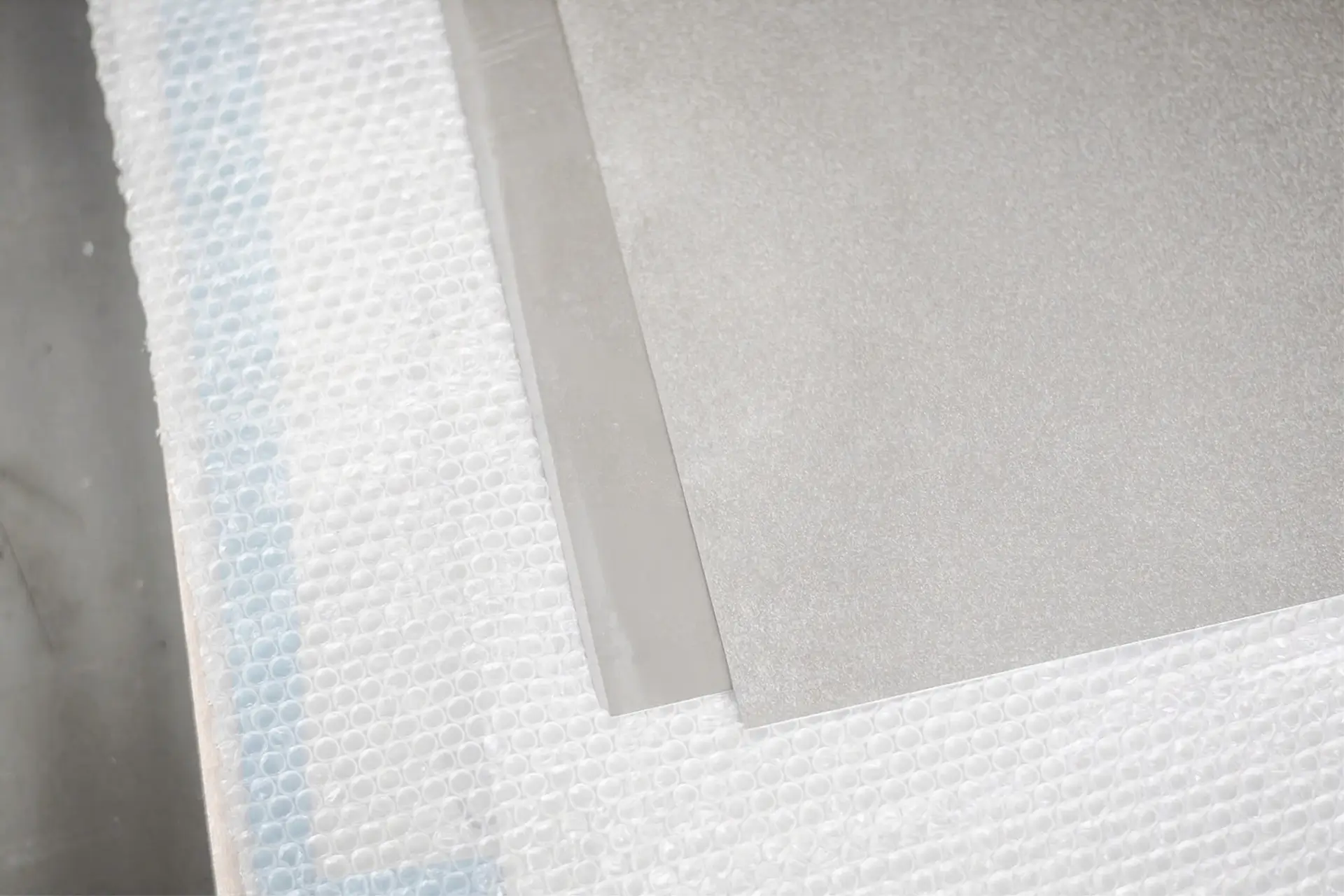

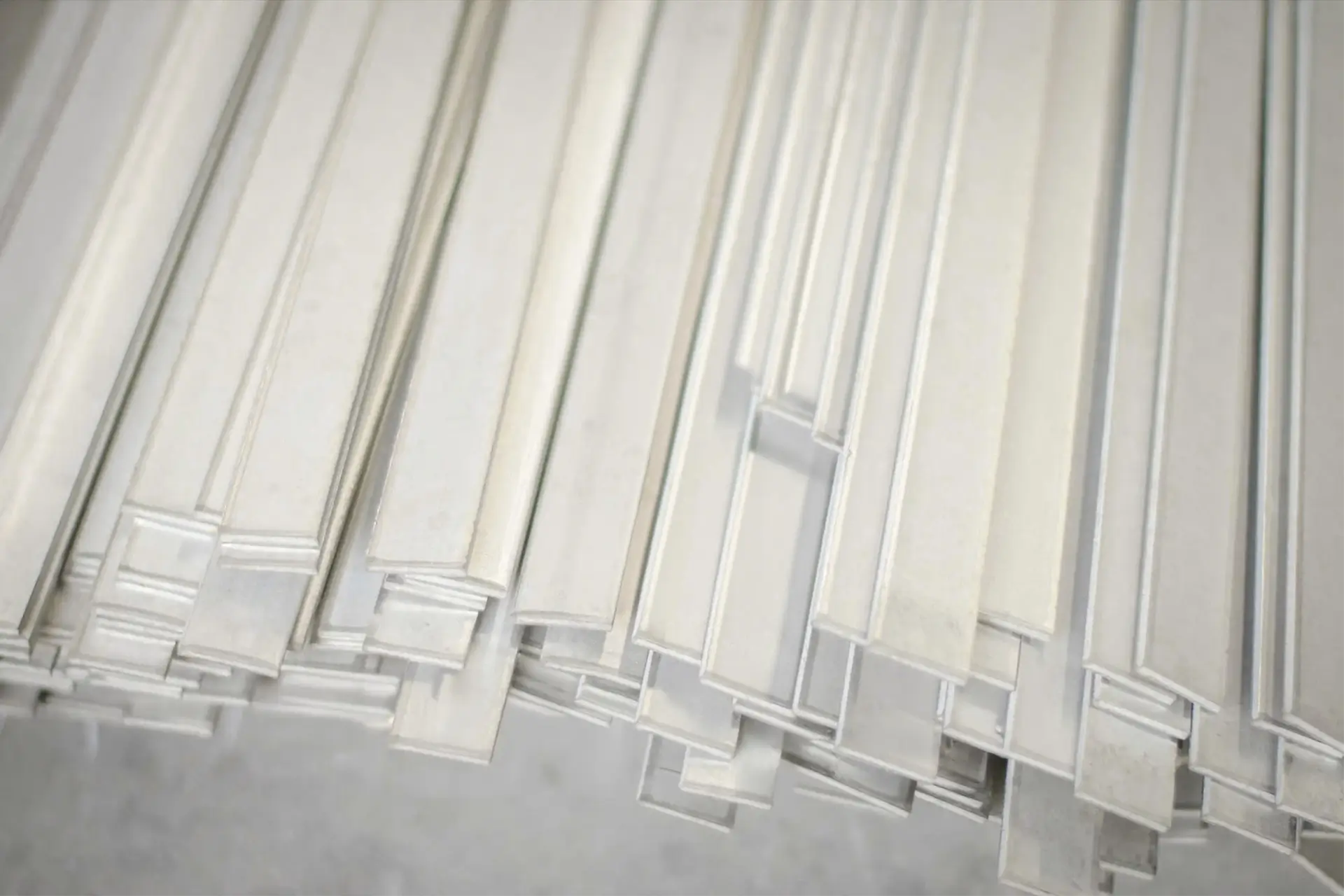

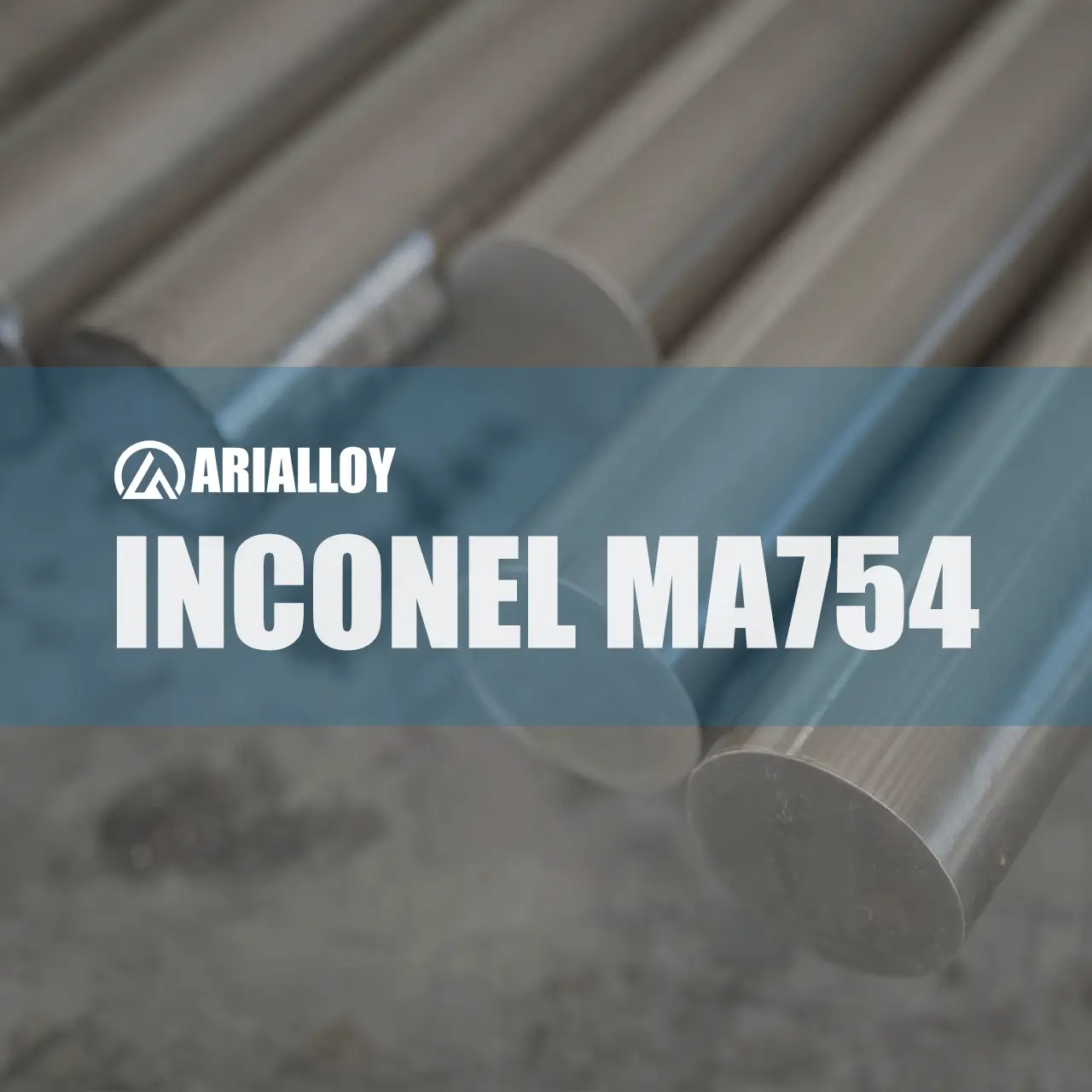

Inconel MA754 Products
Nickel Alloy MA754 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy ma754 products tailored to each project’s needs
Inconel MA754 Data Sheet
Inconel Alloy MA754 Data Sheet
Access / download the inconel ma754 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.55 | |
|---|---|---|---|
| lb/in.3 | 0.309 | ||
| Melting Range | °F | 2550 | |
| °C | 1400 | ||
| Permeability | 1.001 | ||
Inconel MA754 SHOW
Nickel Alloy MA754 Showcase
From initial samples to large scale production, we supply high quality inconel ma754 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Inconel MA754 Quotation Process
From detailed consultation to final delivery, we make custom inconel ma754 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Inconel MA754 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy inconel alloy ma754 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Inconel MA754 Applications
UNS N07754 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Inconel MA754 Knowledge
Nickel Alloy MA754 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Inconel Grades
Inconel Alloy Grades
Explore the full range of Inconel alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Inconel MA754 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
We handle inconel ma754 orders through our sales team. Send your requirements to sales@arialloy.com or complete the form at the bottom of this page. We will provide a quotation based on your needs. After receiving your PO, we will issue the PI for payment. Production starts once the prepayment is received, and we will notify you when the material is ready.
We provide fast quotation support through our professional sales team, with most inconel ma754 inquiries answered within 24 hours. If we cannot quote your request, we will promptly let you know.
We normally provide inconel ma754 quotations on an FOB basis. This means the buyer generally designates a freight forwarder, while we cooperate with the forwarder to complete the local shipping formalities. For added convenience, we can also arrange the shipment and check the applicable transportation charges.
Since the alloy is composed of several metallic elements, its price is partly determined by the cost of each major raw material. Nickel, chromium, aluminum, and yttrium oxide are important contributors to superalloy pricing, and fluctuations in their values can cause the finished alloy price to move.
The inconel ma754 alloy is smelted by our own production team. We have more than 30 vacuum smelting and electroslag remelting furnaces, ranging from 50 kg to 5,000 kg in capacity. This selection enables us to avoid applying a large-batch requirement to every order.
Our pre shipment documentation for inconel ma754 includes a material test report prepared according to industry standards. The report covers chemical composition, mechanical properties, dimensions, material standard, and heat number.
The composition of inconel ma754 is monitored through the entire production process. We control material ratios during smelting, conduct chemical analysis during processing, and use PMI testing on the finished material. Independent lab verification is available when needed.
