Nickel Alloy Wire Rod
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy wire rod
Nickel Alloy Wire Rod Introduction
Wire Nickel Alloy Rod Overview
Nickel Alloy Wire Rod Supplier
As a professional nickel alloy wire rod manufacturer and supplier in China, Arialloy offers a broad selection of nickel alloy grades, nominal diameters, coil weights, coil inside and outside diameters, heat treatment conditions, surface conditions, and dimensional tolerances to meet different material and specification requirements. Wire rod can be supplied as hot rolled, annealed, descaled, pickled, or surface conditioned coils with packaging matched to each order. Depending on the selected grade, alloying elements such as chromium, molybdenum, copper, iron, cobalt, aluminum, titanium, or niobium provide different combinations of corrosion resistance, strength, ductility, toughness, and thermal stability.
Nickel Alloy Wire Rod Product Features

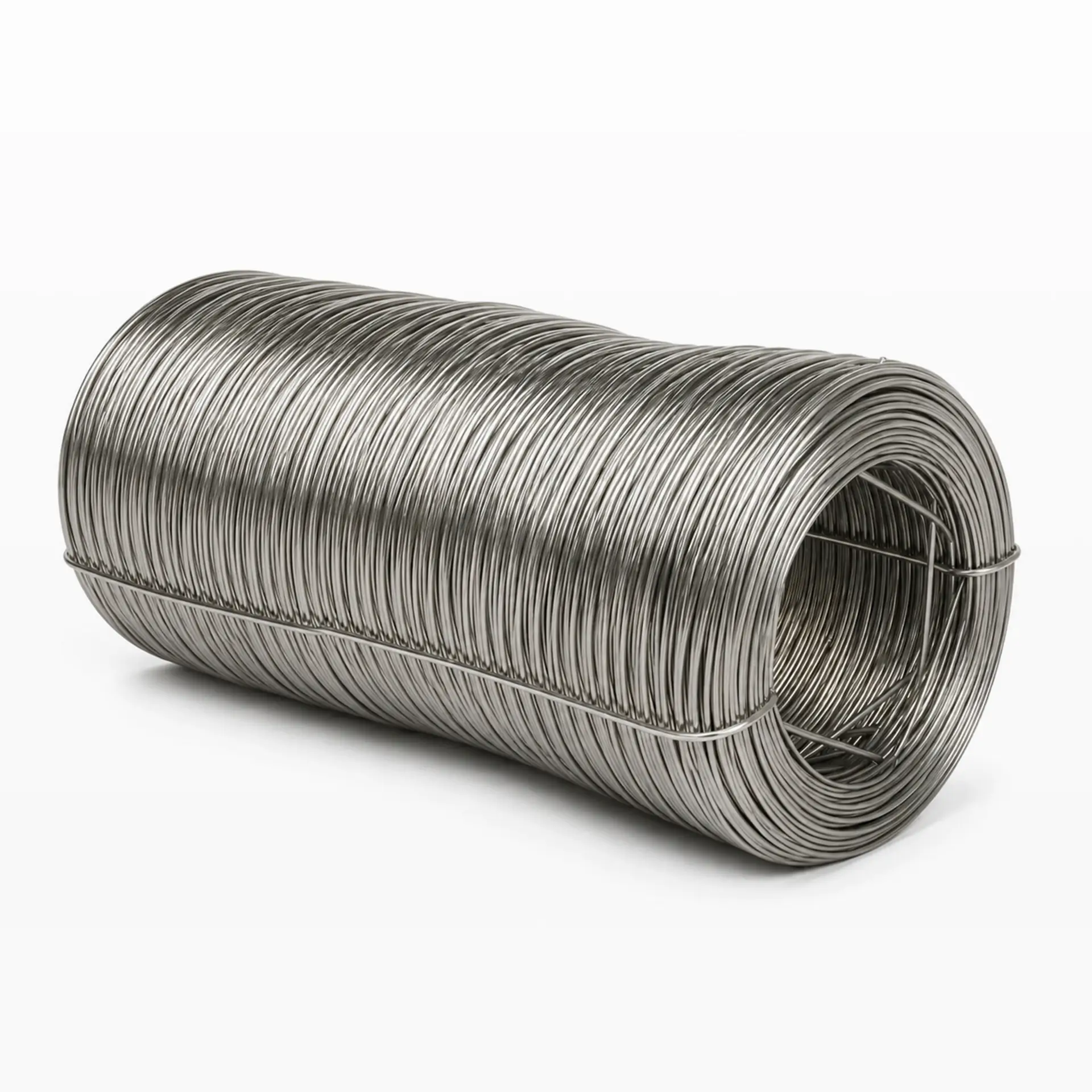

Arialloy nickel alloy wire rod is a continuous round product supplied in coil form and generally has a larger diameter than finished wire. Controlled diameter, ovality, coil shape, surface quality, and mechanical properties help maintain a consistent material condition throughout the coil. A uniform cross section and sound surface provide stable material for subsequent drawing, forming, and finishing.
Nickel Alloy Wire Rod Manufacture
Production begins with verification and preparation of nickel alloy billets, followed by controlled reheating. The material is progressively reduced through roughing, intermediate, and finishing stands, then formed into loops, cooled under controlled conditions, and collected into coils. We control reheating temperature, rolling reduction, finishing temperature, rolling speed, cooling rate, and laying pattern to maintain diameter, ovality, microstructure, and coil shape. Depending on the required delivery condition, annealing, descaling, pickling, and surface conditioning may follow.
Nickel Alloy Wire Rod Inspection
Every Arialloy nickel alloy wire rod order is inspected according to the applicable material standard and customer requirements. Chemical composition verification, diameter and ovality measurement, surface examination, coil inside and outside diameter measurement, coil weight verification, tensile testing, hardness testing, and macrostructure examination can be carried out as specified. Eddy current or ultrasonic examination may also be performed when required to assess surface or internal quality. Coil shape, binding condition, product identification, and packaging are checked before shipment. Each order is supported by traceable heat numbers, material test certificates, inspection reports, and complete quality documentation.
Nickel Alloy Wire Rod Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B160
ASTM B164
ASTM B166
ASTM B335
ASTM B408
ASTM B425
ASTM B446
ASTM B472
ASTM B473
ASTM B572
ASTM B573
ASTM B574
ASTM B581
ASTM B691
ASTM B805
Nickel Alloy Wire Rod Applications
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
WIRE DRAWING
Feedstock for fine wire, resistance wire, thermocouple wire, spring wire, weaving wire, braiding wire, and precision wire used in industrial and electronic components.WELDING CONSUMABLES
Feedstock for MIG and TIG wire, submerged arc wire, flux cored wire, weld overlay wire, repair welding wire, and matching or dissimilar alloy filler products.FASTENER MANUFACTURING
Cold heading stock for bolts, screws, rivets, pins, threaded studs, lockwire, specialty nuts, and corrosion or heat resistant fastening components.SPRING MANUFACTURING
Feedstock for compression springs, extension springs, torsion springs, valve springs, connector springs, high temperature springs, and corrosion resistant precision coils.WIRE ROPE & CABLE
Feedstock for marine wire rope, control cable, mooring cable, cable armor, braided hose reinforcement, lifting cable, and subsea or aerospace cable components.FILTRATION & MESH
Feedstock for woven wire mesh, demister pads, filtration screens, catalyst support mesh, conveyor mesh, battery mesh, and high temperature screening components.THERMAL & ELECTRICAL
Feedstock for industrial heating wire, radiant coils, furnace elements, resistance wire, thermocouple conductors, electrical leads, igniter wire, and high temperature sensor components.Available Grades
Available Grades for Nickel Alloy Wire Rod
Explore the full range of nickel alloy wire rod grades to expand your material choices and ensure you find the perfect nickel alloy
Nickel Alloy Wire Rod SHOW
Supplying Nickel Alloy Wire Rod
From initial samples to large scale production, we supply high quality nickel alloy wire rod and help you achieve your manufacturing goals.
Manufacturing Process
Nickel Alloy Wire Rod Manufacturing Process
The production process for Arialloy nickel alloy wire rod ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.
Steel Making
Ingot Casting
Ingot
Heating
Hot Rolling
Hot Rolled Wire Rod
Annealing
Pickling
Cold Drawing
Hydrogen Annealing
Cold Drawing
Polishing
Polished Wire Rod
Inspection
Analytic
Marking
Packing & Shipping
Customized Dimensions
Nickel Alloy Wire Rod Customization Scope
-
Diameter
6-20 mm
-
Weight
100kg per roll
-
Delivery State
Hot Rolled, Cold Drawn
Formula: m = D (mm) × D (mm) × L (m) × ρ (g/cm³) × π ÷ 4000
D = Diameter, L = Length, ρ = Density, π = 3.1415926…
Data Sheet
Nickel Alloy Wire Rod Data Sheet
Access the nickel alloy wire rod data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project
Tolerance
| Cold Drawn | |||
|---|---|---|---|
| Specified Diameter, in. (mm) | Diameter Tolerance, in. (mm) | ||
| Over | Under | ||
| 0.5000(12.70) | 0.002(0.05) | 0.002(0.05) | |
| Under 0.5000(12.70) to 0.3125(7.94), incl | 0.0015(0.04) | 0.0015(0.04) | |
| Under 0.3125(7.94) to 0.0440(1.12), incl | 0.001(0.03) | 0.001(0.03) | |
| Under 0.0440(1.12) to 0.0330(0.84), incl | 0.0008(0.02) | 0.0008(0.02) | |
| Hot Rolled | |||
| Permissible Variations from Specified Size, in. (mm) | Out-of-Round or Out-of-Square, in. (mm) | ||
| Over | Under | ||
| Over 5/16(7.94) to 7/16(11.11), incl | 0.006(0.15) | 0.006(0.15) | 0.009(0.23) |
| Over 7/16(11.11) to 5/8(15.88), incl | 0.007(0.18) | 0.007(0.18) | 0.010(0.25) |
| Over 5/8(15.88) to 7/8(22.22), incl | 0.008(0.20) | 0.008(0.20) | 0.012(0.30) |
| Over 7/8(22.22) to 1(25.40), incl | 0.009(0.23) | 0.009(0.23) | 0.013(0.33) |
| Over 1(25.40) to 9/8(28.58), incl | 0.010(0.25) | 0.010(0.25) | 0.015(0.38) |
| Over 9/8(28.58) to 5/4(31.75), incl | 0.011(0.28) | 0.011(0.28) | 0.016(0.41) |
| Over 5/4(31.75) to 11/8(34.92), incl | 0.012(0.30) | 0.012(0.30) | 0.018(0.46) |
| Over 11/8(34.92) to 3/2(38.10), incl | 0.014(0.36) | 0.014(0.36) | 0.021(0.53) |
| Over 3/2(38.10) to 2(50.80), incl | 1/64(0.40) | 1/64(0.40) | 0.023(0.58) |
| Over 2(50.80) to 5/2(63.50), incl | 1/32(0.79) | 0 | 0.023(0.58) |
| Over 5/2(63.50) to 7/2(88.90), incl | 3/64(1.19) | 0 | 0.035(0.89) |
| Over 7/2(88.90) to 9/2(114.30), incl | 1/16(1.59) | 0 | 0.046(1.17) |
Delivery State
| Delivery State Choice | Surface Condition |
|---|---|
| Hot Rolled | Pickled |
| Polished | |
| Cold Drawn | Bright |
| Polished | |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. | |
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Nickel Alloy Wire Rod Quotation Process
From detailed consultation to final delivery, we make custom nickel alloy wire rod orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Nickel Alloy Wire Rod FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
We can pack wire rod in waterproof woven bags, on timber reels, or in timber cases.
Order fulfillment generally takes about 3 weeks for standard nickel alloy wire rod orders. The timeframe can change for special materials, custom dimensions, or complex specifications. Batch size is considered when the delivery schedule is confirmed. Events outside reasonable control may affect the schedule.
Recognized ASTM standards in our supply program include ASTM B160, ASTM B164, ASTM B166; ASTM B335; ASTM B408, ASTM B425, ASTM B446, ASTM B472, ASTM B473; ASTM B572, ASTM B573, ASTM B574, ASTM B581; ASTM B691; ASTM B805.
We use an MOQ of 100 kg for nickel alloy wire rod.
Buyers may request a nickel alloy wire rod sample by supplying the required grade, size, and sample dimensions. Grade, size, sample dimensions, and required processing are reviewed before dispatch.
The material standard for nickel alloy wire rod must be stated together with the alloy designation. Special material requirements are approved before material is allocated to production.
An accurate nickel alloy wire rod quotation requires diameter, coil weight, coil dimensions, tolerance, surface condition, and delivery state. Conflicting dimensions between documents are resolved before the order is accepted.
Material identity is verified before nickel alloy wire rod is released for further processing. Inspection results and batch identification remain traceable in the order documentation.
