Hastelloy C-2000
UNS N06200 / W.Nr. 2.4675
Catalog

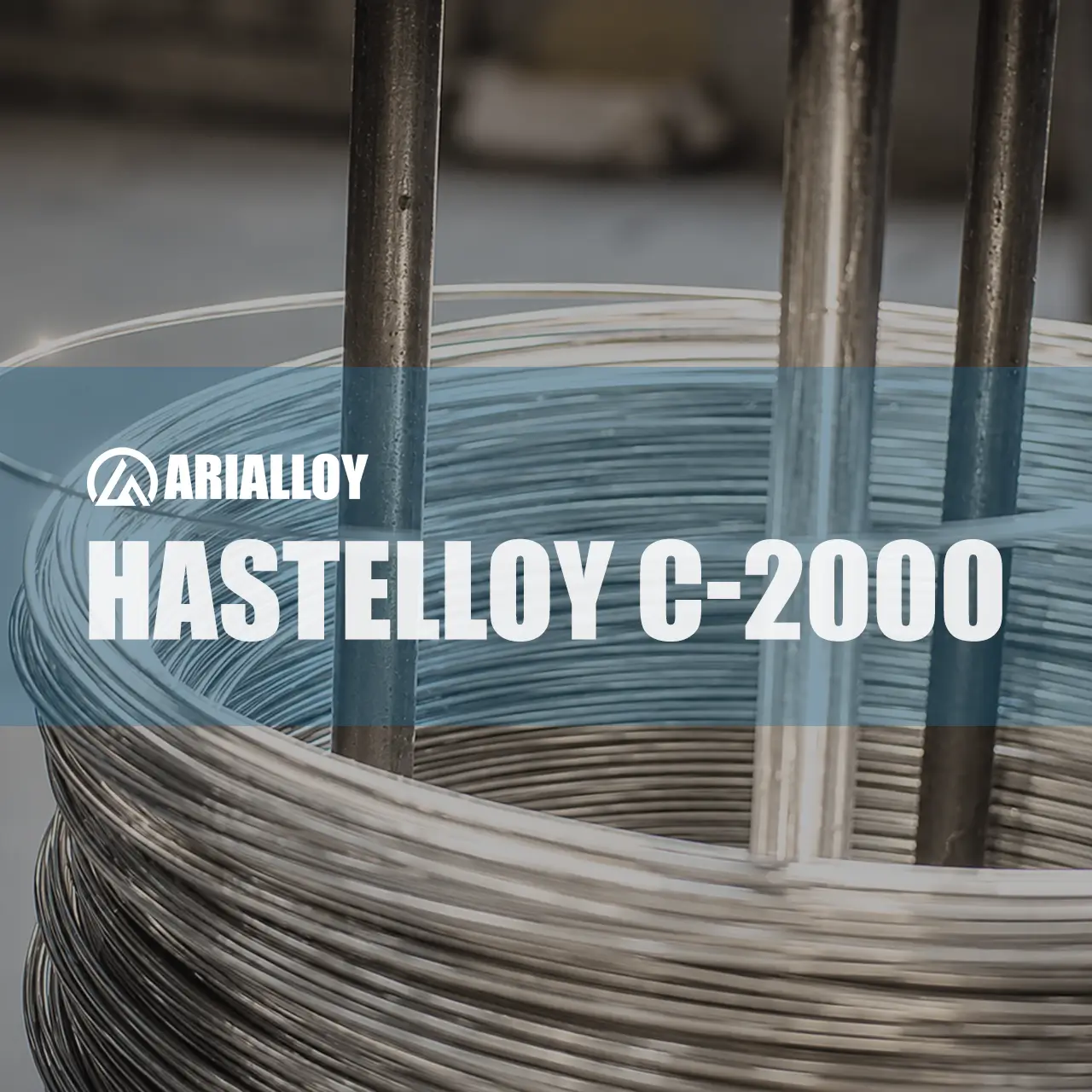

Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with hastelloy c2000 tubes / sheets / wires / bars / fittings
Hastelloy C-2000 Material Properties
UNS N06200 / W.Nr. 2.4675 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of hastelloy c2000 for optimal resistance, strength, and stability
Hastelloy C2000 Chemical Composition
Hastelloy C2000 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies hastelloy C2000 products at competitive prices.
Hastelloy C2000 (UNS N06200 / W.Nr. 2.4675) is an austenitic nickel alloy containing chromium, molybdenum and copper. Its nominal composition includes approximately 23% chromium, 16% molybdenum and 1.6% copper, with nickel forming the balance. Chromium strengthens resistance to oxidizing media, while molybdenum and copper improve performance in reducing environments. The copper addition is particularly beneficial in sulfuric acid and distinguishes this material from many other alloys in the same family. Carbon and silicon contents are limited to reduce unwanted precipitation during fabrication. In the solution annealed condition, the alloy combines a uniform matrix with good ductility, supporting forming and welding while maintaining broad resistance to aggressive chemical environments.

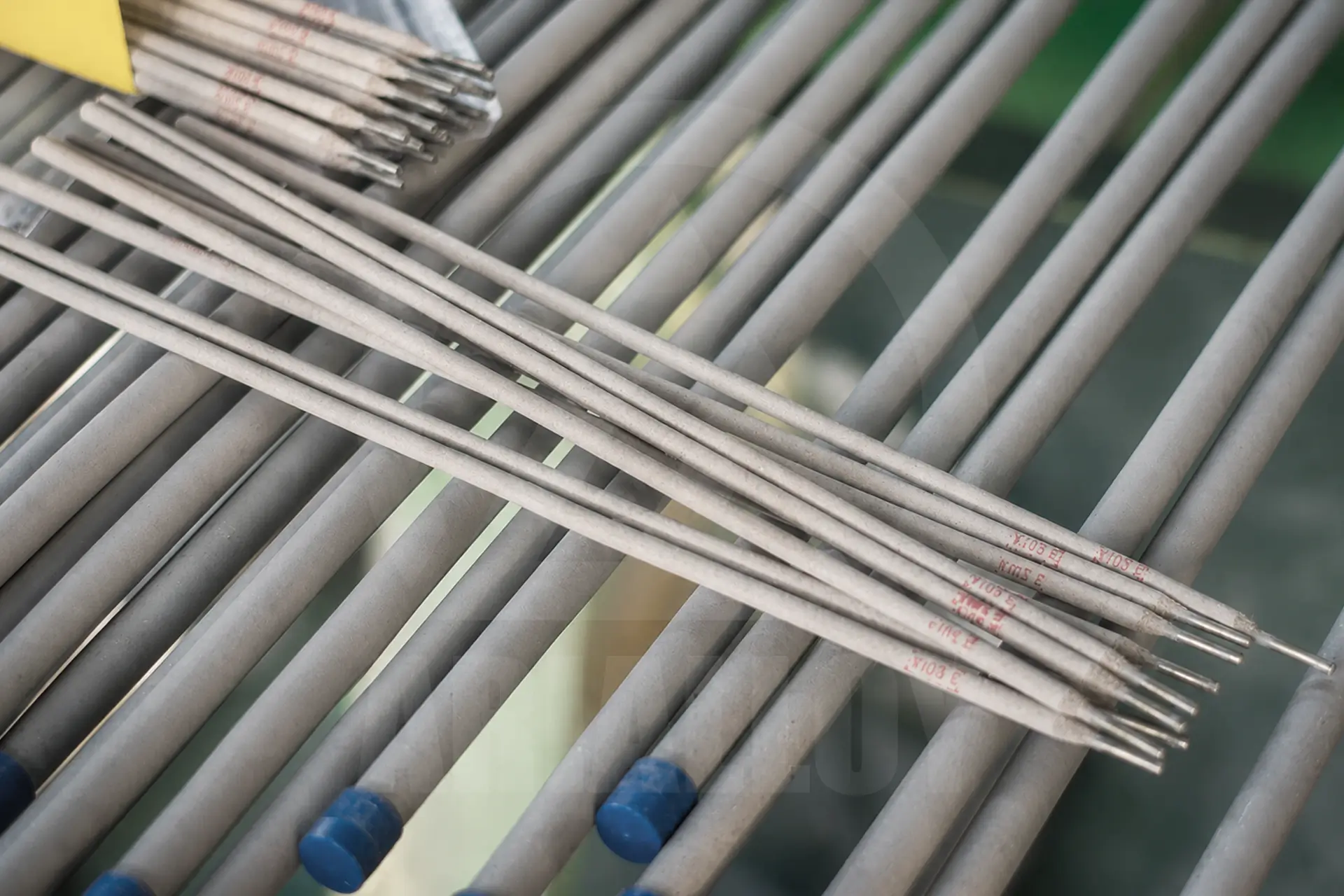

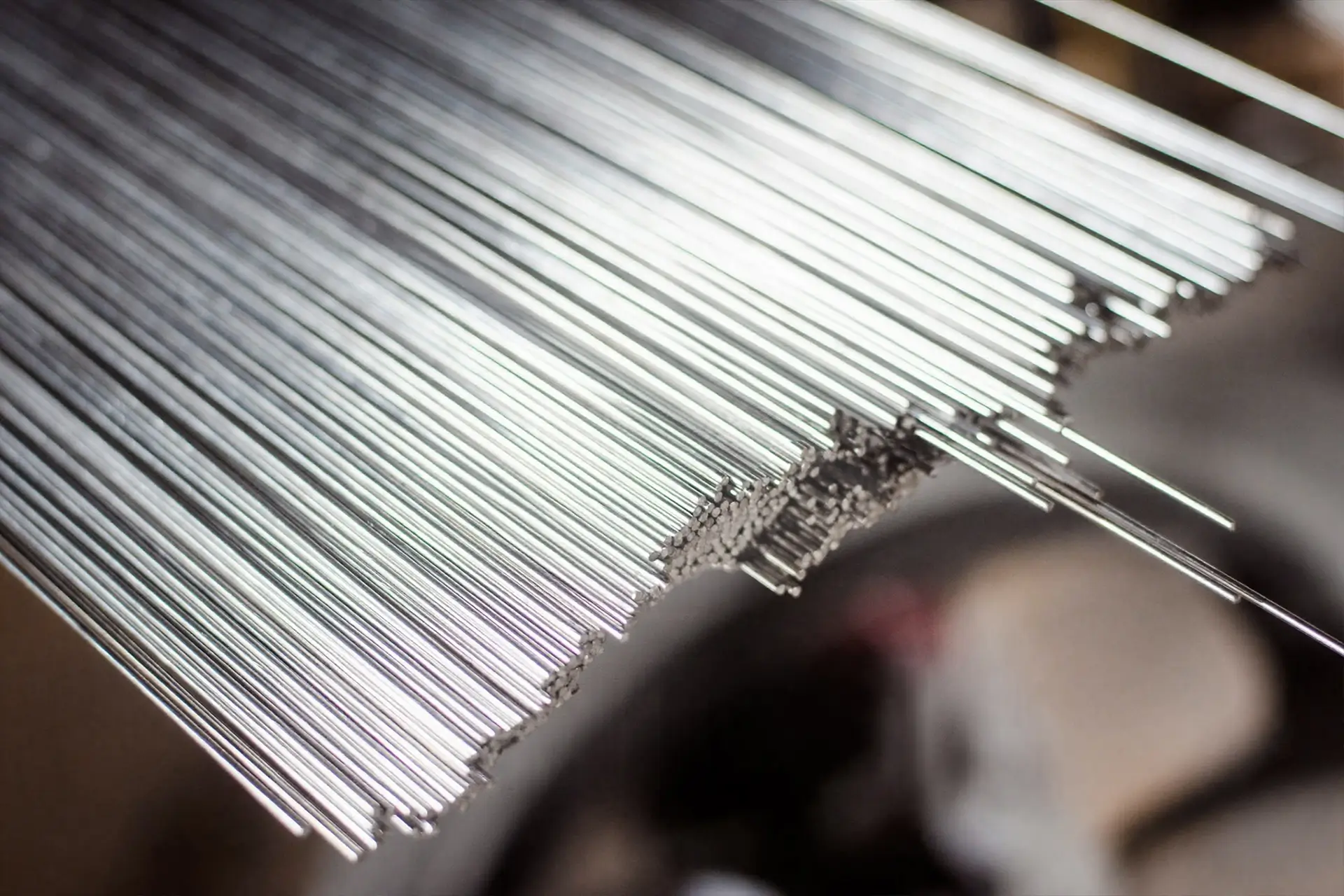

Matching welding consumables include solid filler wire and covered electrodes. Their deposited metal provides resistance to both oxidizing and reducing conditions. Appropriate filler selection and welding procedures help preserve joint integrity and corrosion performance. Weld metal properties should be evaluated separately from those of the wrought base material.
Hastelloy C-2000 Corrosion Resistance
With resistance to uniform and localized attack, hastelloy C2000 performs well in acidic solutions containing chlorides and other halides. Its nickel base also provides strong resistance to chloride induced stress corrosion cracking.
The alloy resists sulfuric, hydrochloric and phosphoric acids under suitable combinations of concentration and temperature. Chromium supports resistance when oxidizing contaminants are present, while molybdenum and copper improve performance in reducing media. Corrosion rates depend on concentration, temperature and impurities, so resistance should be assessed against the actual solution chemistry.
Hastelloy C-2000 Mechanical Properties
At room temperature, representative solution annealed sheet, plate and bar exhibit 0.2% offset yield strengths of 345 to 359 MPa and tensile strengths of 752 to 758 MPa, with elongations of 64 to 68%. This combination provides substantial ductility for forming. Cold working increases strength and hardness while reducing the remaining capacity for deformation.
Hastelloy C2000 Temperature Characteristics
As temperature rises, hastelloy C2000 conducts heat more readily while becoming less stiff. Thermal conductivity increases from 9.1 W/(m·K) at room temperature to 21.6 W/(m·K) at 600°C, while the elastic modulus decreases from 207 to 166 GPa.
Solution annealing at approximately 1149°C followed by rapid cooling helps retain a uniform microstructure. Slow cooling can promote unwanted precipitation at grain boundaries. Operating temperature depends on exposure duration, loading and corrosive conditions; the annealing temperature is not a continuous service rating.
Hastelloy C-2000 Products
Nickel Alloy C2000 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy c2000 products tailored to each project’s needs
Hastelloy C-2000 Data Sheet
Hastelloy Alloy C2000 Data Sheet
Access / download the hastelloy c2000 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.50 | |
|---|---|---|---|
| lb/in.3 | 0.307 | ||
| Melting Range | °F | 2422 - 2476 | |
| °C | 1328 - 1358 | ||
Mechanical Properties
| Form | Test Temperature | Thickness / Bar Diameter | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | ||||
|---|---|---|---|---|---|---|---|---|---|
| °F | °C | in | mm | ksi | MPa | ksi | MPa | % | |
| Sheet | 0.063 | 1.6 | RT | RT | 52 | 359 | 109 | 752 | 64 |
| Sheet | 0.063 | 1.6 | 200 | 93 | 46 | 317 | 107 | 738 | 66 |
| Sheet | 0.063 | 1.6 | 400 | 204 | 38 | 262 | 96 | 662 | 65 |
| Sheet | 0.063 | 1.6 | 600 | 316 | 34 | 234 | 92 | 634 | 68 |
| Sheet | 0.063 | 1.6 | 800 | 427 | 31 | 214 | 89 | 614 | 76 |
| Sheet | 0.063 | 1.6 | 1000 | 538 | 30 | 207 | 82 | 565 | 75 |
| Sheet | 0.063 | 1.6 | 1200 | 649 | 30 | 207 | 77 | 531 | 62 |
| Plate | 0.5 | 12.7 | RT | RT | 50 | 345 | 110 | 758 | 68 |
| Plate | 0.5 | 12.7 | 200 | 93 | 46 | 317 | 105 | 724 | 68 |
| Plate | 0.5 | 12.7 | 400 | 204 | 35 | 241 | 97 | 669 | 72 |
| Plate | 0.5 | 12.7 | 600 | 316 | 31 | 214 | 92 | 634 | 70 |
| Plate | 0.5 | 12.7 | 800 | 427 | 28 | 193 | 88 | 607 | 72 |
| Plate | 0.5 | 12.7 | 1000 | 538 | 28 | 193 | 83 | 572 | 69 |
| Plate | 0.5 | 12.7 | 1200 | 649 | 28 | 193 | 76 | 524 | 78 |
| Bar | 1 | 25.4 | RT | RT | 52 | 359 | 110 | 758 | 67 |
| Bar | 1 | 25.4 | 200 | 93 | 44 | 303 | 103 | 710 | 68 |
| Bar | 1 | 25.4 | 400 | 204 | 38 | 262 | 92 | 634 | 70 |
| Bar | 1 | 25.4 | 600 | 316 | 33 | 228 | 90 | 621 | 70 |
| Bar | 1 | 25.4 | 800 | 427 | 30 | 207 | 87 | 600 | 71 |
| Bar | 1 | 25.4 | 1000 | 538 | 27 | 186 | 82 | 565 | 72 |
| Bar | 1 | 25.4 | 1200 | 649 | 26 | 179 | 77 | 531 | 77 |
Hastelloy C-2000 Standards
UNS N06200 / W.Nr. 2.4675 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs

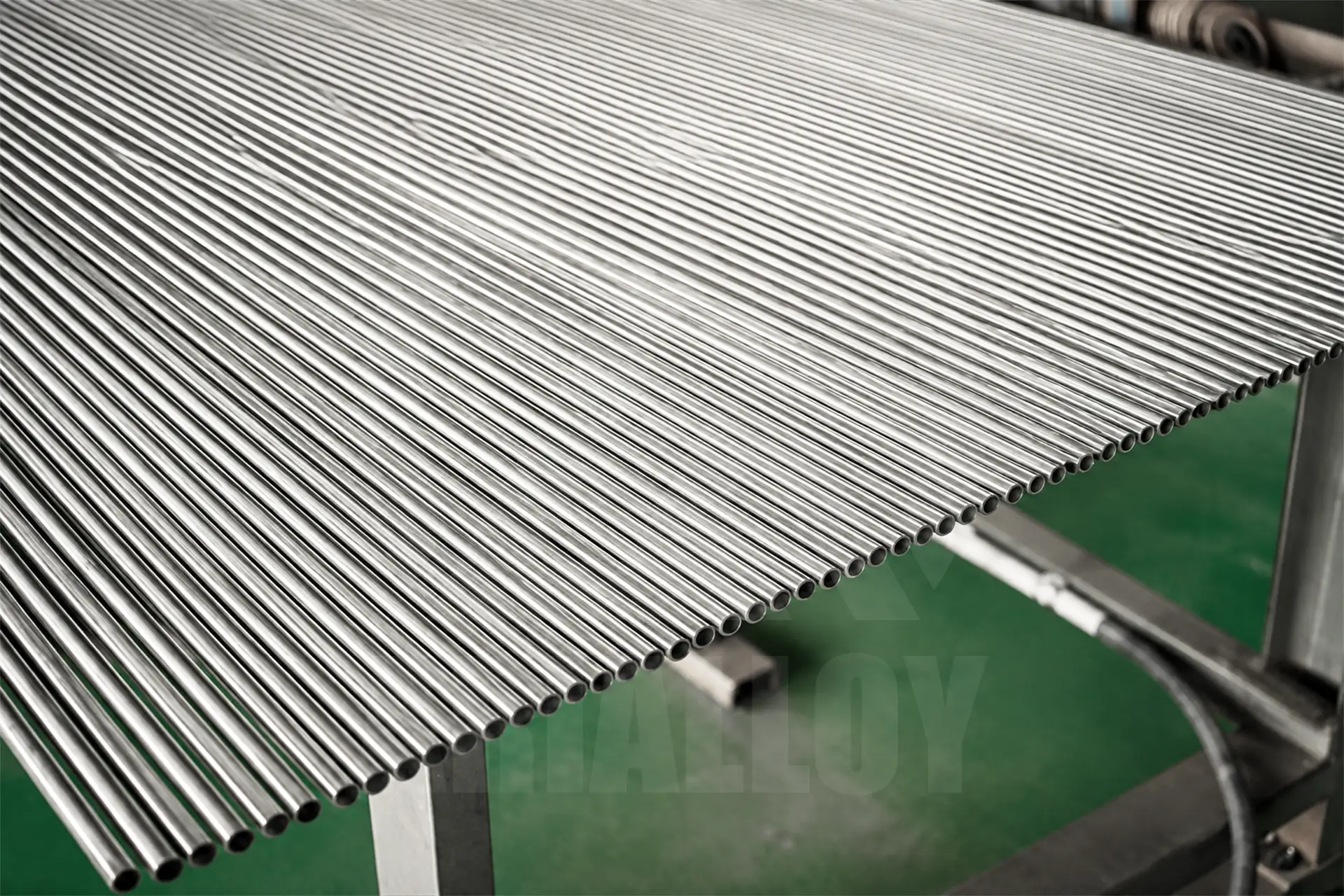

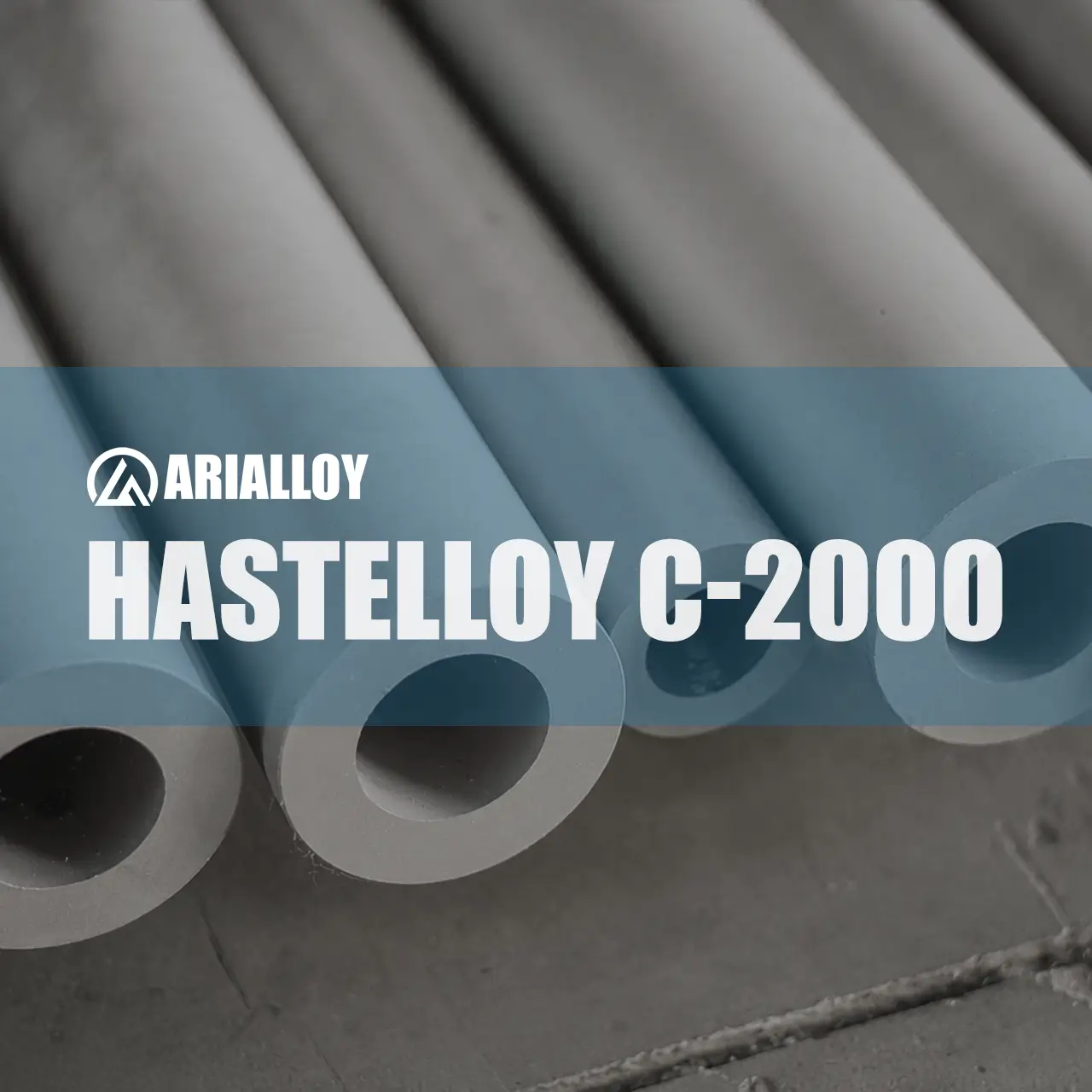

ASTM B622
Seamless Pipe & Tube
ASTM B619
Welded Pipe & Tube
ASTM B626
Welded Pipe & Tube
ASTM B366
Fittings
ASTM B462
Fittings and Forgings

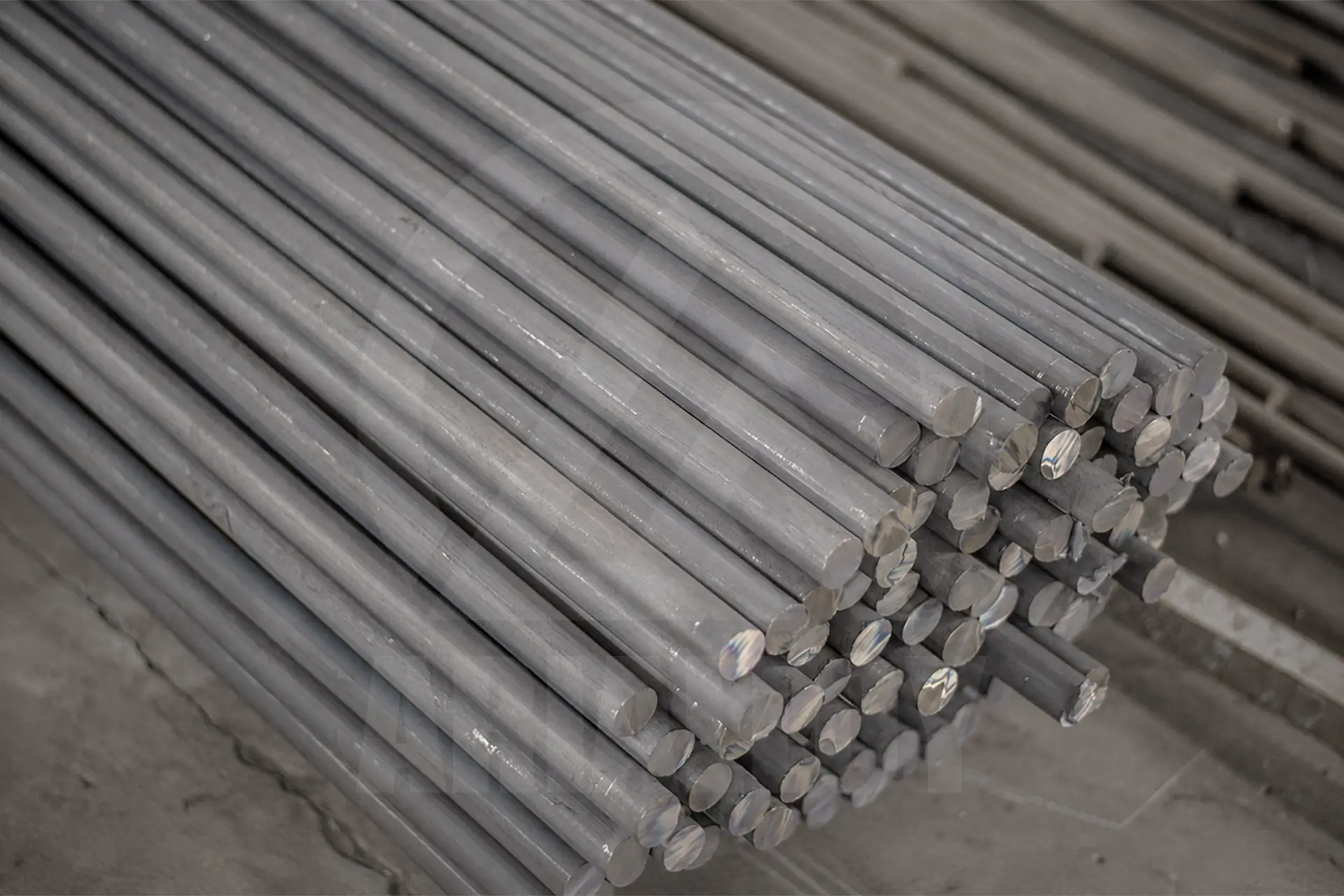

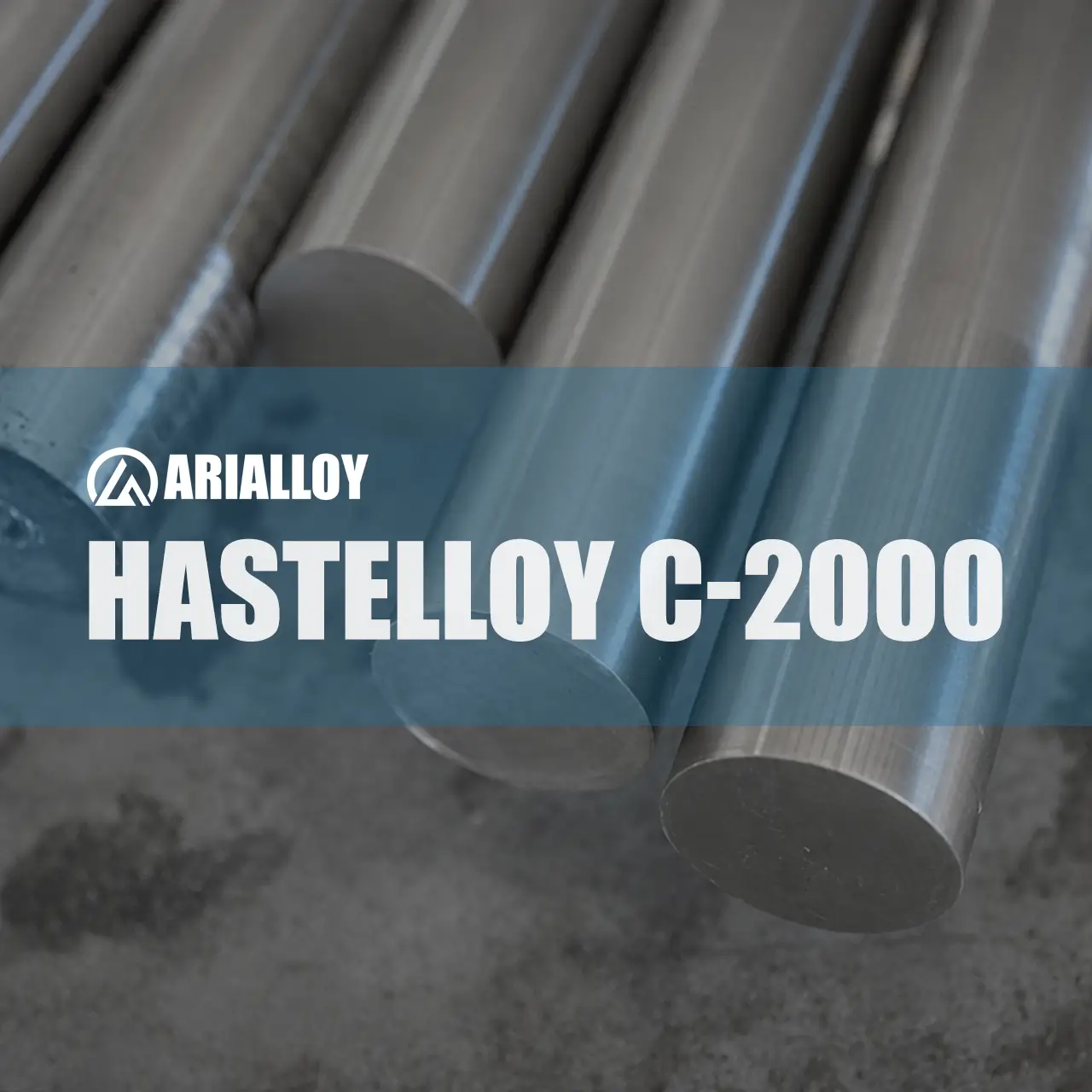

ASTM B574
Billet, Rod and Bar
ASTM B564
Forgings

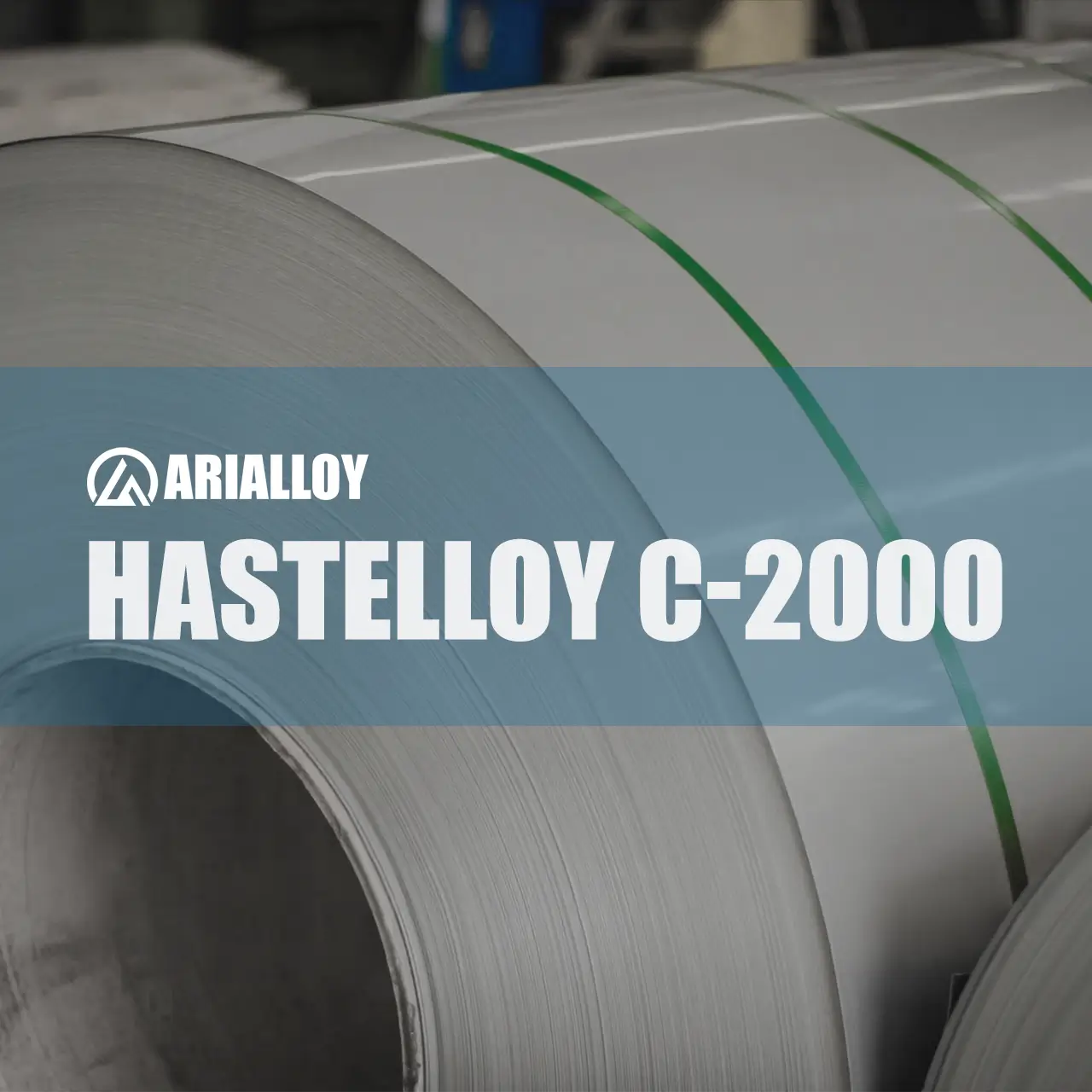

ASTM B575
Plate, Sheet and Strip
AWS A5.14 ERNiCrMo-17
Filler Metal
AWS A5.11 ENiCrMo-17
Welding Electrode
Hastelloy C-2000 SHOW
Nickel Alloy C2000 Showcase
From initial samples to large scale production, we supply high quality hastelloy c2000 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Hastelloy C-2000 Quotation Process
From detailed consultation to final delivery, we make custom hastelloy c2000 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Hastelloy C2000 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy hastelloy alloy c2000 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Hastelloy C2000 Applications
UNS N06200 / W.Nr. 2.4675 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Hastelloy C-2000 Knowledge
Nickel Alloy C2000 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Hastelloy Grades
Hastelloy Alloy Grades
Explore the full range of hastelloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Hastelloy C-2000 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
If you need to purchase hastelloy c2000, contact us by email at sales@arialloy.com or submit the inquiry form on this page. We will send a detailed quotation based on your requirements. After you confirm that you want to proceed, send us your PO. We will provide the PI for payment and start manufacturing once the prepayment is received. Completion will be communicated to you promptly.
You should normally receive an hastelloy c2000 quotation from us within 24 hours. If we need more details to prepare the offer or cannot quote your requirements, we will get back to you promptly.
We normally offer hastelloy c2000 on FOB terms, with shipping arranged through a freight forwarder appointed by the customer. Our team will coordinate with your forwarder to complete the necessary local operations. If you would like us to handle the transportation, we can arrange it and quote the shipping cost.
The fluctuation of raw metal prices is one of the main reasons alloy prices do not remain constant. For superalloys, the costs of nickel, chromium, molybdenum, and copper and other metallic elements can significantly influence the price of the finished product.
Our hastelloy c2000 material is made using our own smelting resources. With over 30 vacuum smelting and electroslag remelting furnaces and four available capacities, we can adjust the production scale to the order. This flexibility is a key reason we can accept smaller minimum quantities.
Certainly. The material test report for hastelloy c2000 is issued prior to dispatch and serves as formal documentation of conformity. It includes the applicable standard, chemical composition, mechanical properties, dimensions, and heat number.
Our method for verifying hastelloy c2000 composition combines controlled material ratios, in process chemical analysis, and final PMI testing. If additional assurance is needed, we can arrange third party laboratory analysis and provide the resulting test data.
