Incoloy DS
W.Nr. 1.4862
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with incoloy ds tubes / sheets / wires / bars / fittings
Incoloy DS Material Properties
W.Nr. 1.4862 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of incoloy ds for optimal resistance, strength, and stability
Incoloy DS Chemical Composition
Incoloy DS Material Properties Overview
As a leading supplier and manufacturer in China, Arialloy supplies cost effective Incoloy DS products. Incoloy DS (W.Nr. 1.4862) is an austenitic nickel iron chromium alloy containing about 2% silicon, combining high temperature corrosion resistance, useful mechanical strength and strong structural stability during prolonged thermal exposure.
Chromium and silicon promote the formation of a tightly adherent protective oxide layer, improving resistance to oxidation, scaling, carburization and the selective oxidation phenomenon known as green rot. Nickel stabilizes the austenitic structure and helps suppress sigma phase embrittlement during extended exposure from about 600°C to 900°C. The relatively high nickel content also helps preserve austenitic stability during repeated thermal cycling, while the silicon addition strengthens the protective scale response in carburizing and oxidizing atmospheres.
The alloy retains good tensile strength and ductility through a broad temperature range, while its creep and rupture behavior supports long duration thermal service. Its strongest property balance is in elevated temperature environments, where oxidation resistance, carburization resistance and metallurgical stability are more important than broad aqueous chemical corrosion resistance.
Arialloy recommends incoloy DS for buyers who prioritize long term high temperature stability, protective scale retention and reliable mechanical performance under repeated or sustained heating.
Incoloy DS Corrosion Resistance
Incoloy DS develops a tightly adherent oxide layer that protects the surface from high temperature corrosion and limits progressive metal loss. Its chromium and silicon content provides strong resistance to oxidation, scaling and carburization, including atmospheres that alternate between oxidizing and reducing conditions.
The alloy also resists green rot, a selective oxidation mechanism associated with chromium depletion in nickel chromium materials. This protective behavior gives incoloy DS particularly stable surface performance during prolonged thermal exposure and repeated changes in furnace atmosphere.
Incoloy DS Mechanical Properties
Incoloy DS combines useful strength with high ductility in its austenitic structure. At room temperature, tensile data show about 363 MPa 0.2% proof strength, about 687 MPa tensile strength and about 37% elongation for sheet material.
The alloy maintains substantial tensile strength as temperature rises and retains good deformation capacity, helping it tolerate thermal movement without rapid embrittlement. Its mechanical profile also includes good impact toughness and useful creep and rupture strength for long duration exposure at elevated temperatures.
Incoloy DS Temperature Characteristics
Incoloy DS is distinguished by strong thermal stability and resistance to high temperature oxidation. Nickel maintains a stable austenitic structure and suppresses sigma phase embrittlement through the 600°C to 900°C range. Chromium and silicon support a persistent protective oxide scale and strong carburization resistance during prolonged heating.
The alloy also shows useful creep and rupture strength at elevated temperatures and good cyclic oxidation behavior. Its oxidation resistance in air extends to about 1100°C, making temperature performance one of the strongest characteristics of incoloy DS.

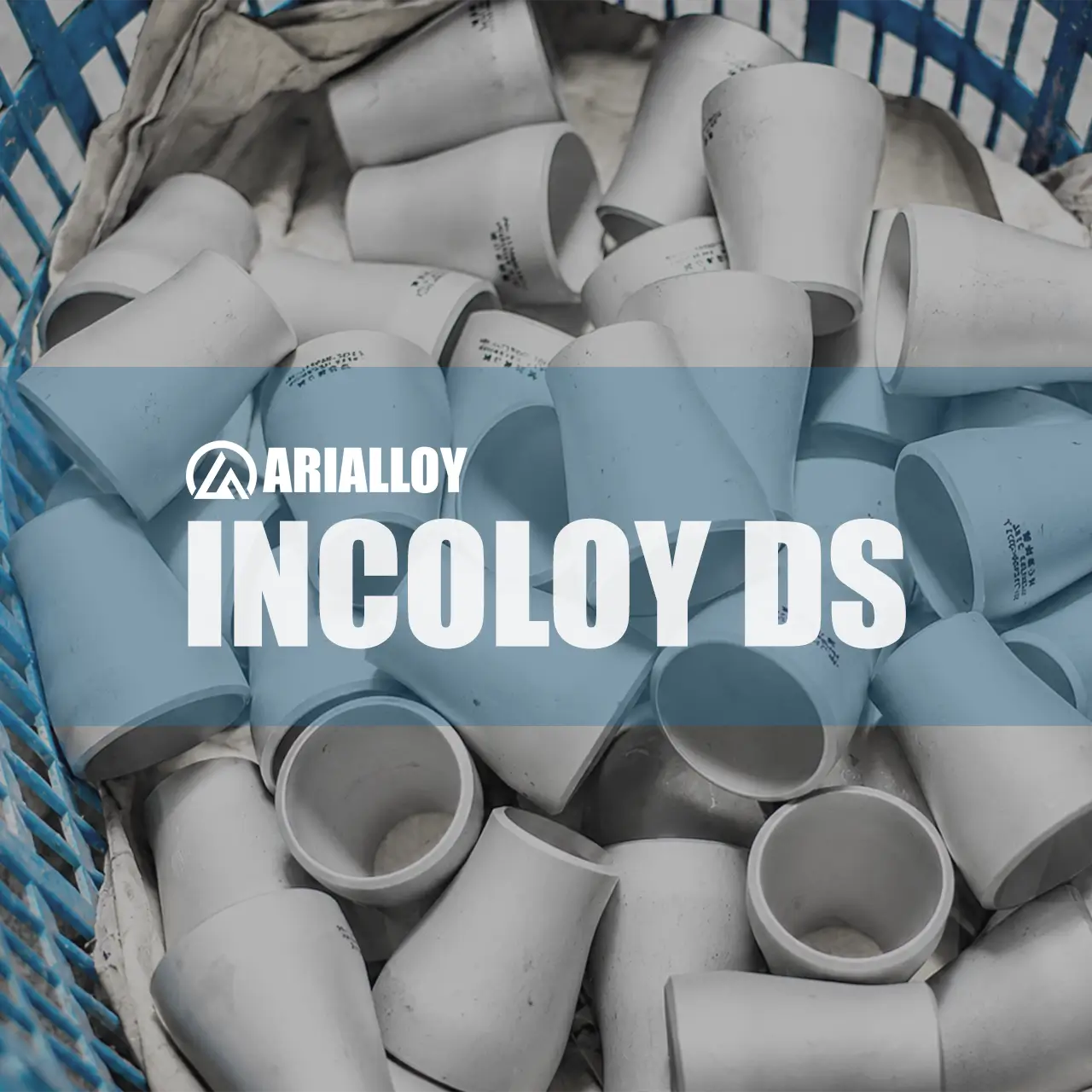

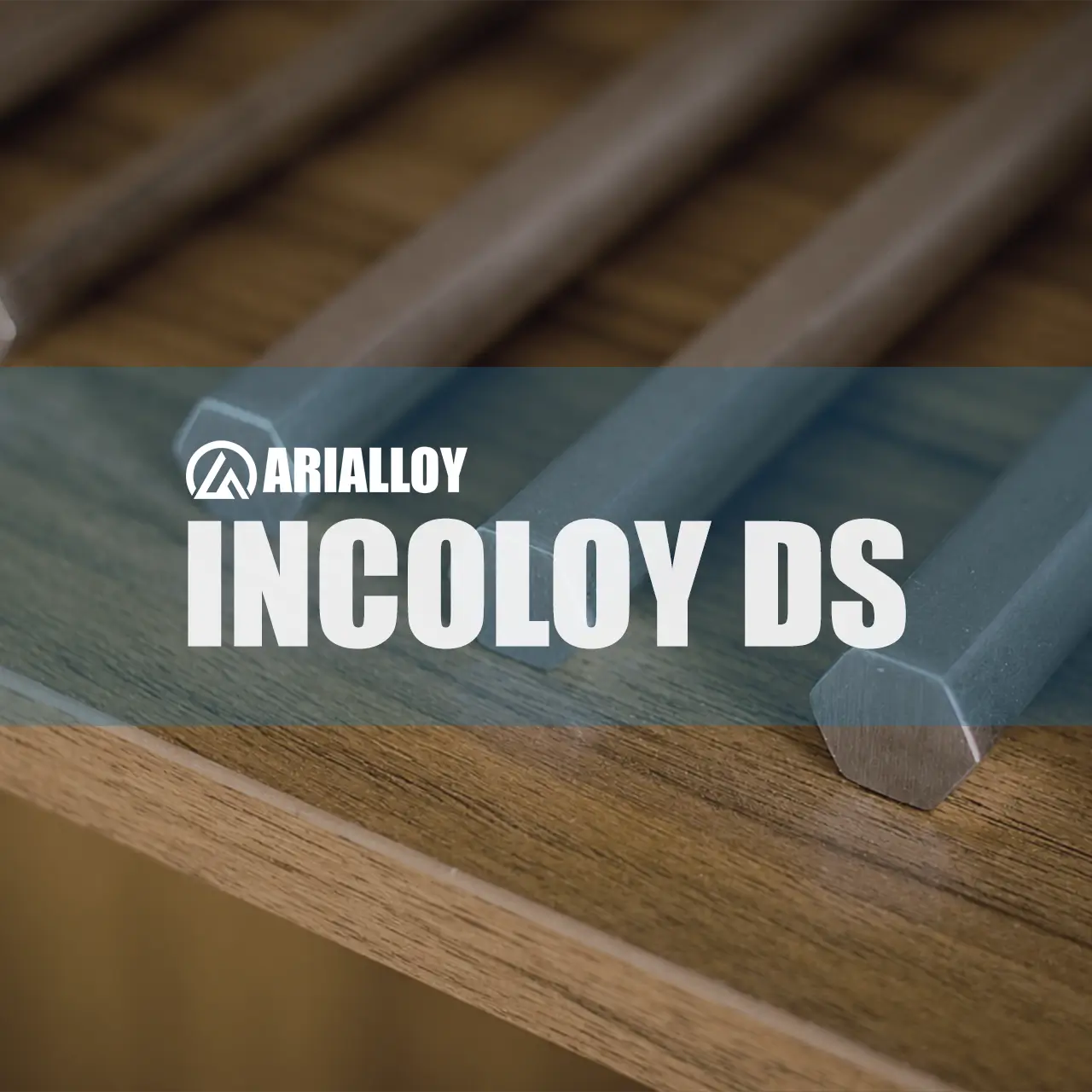

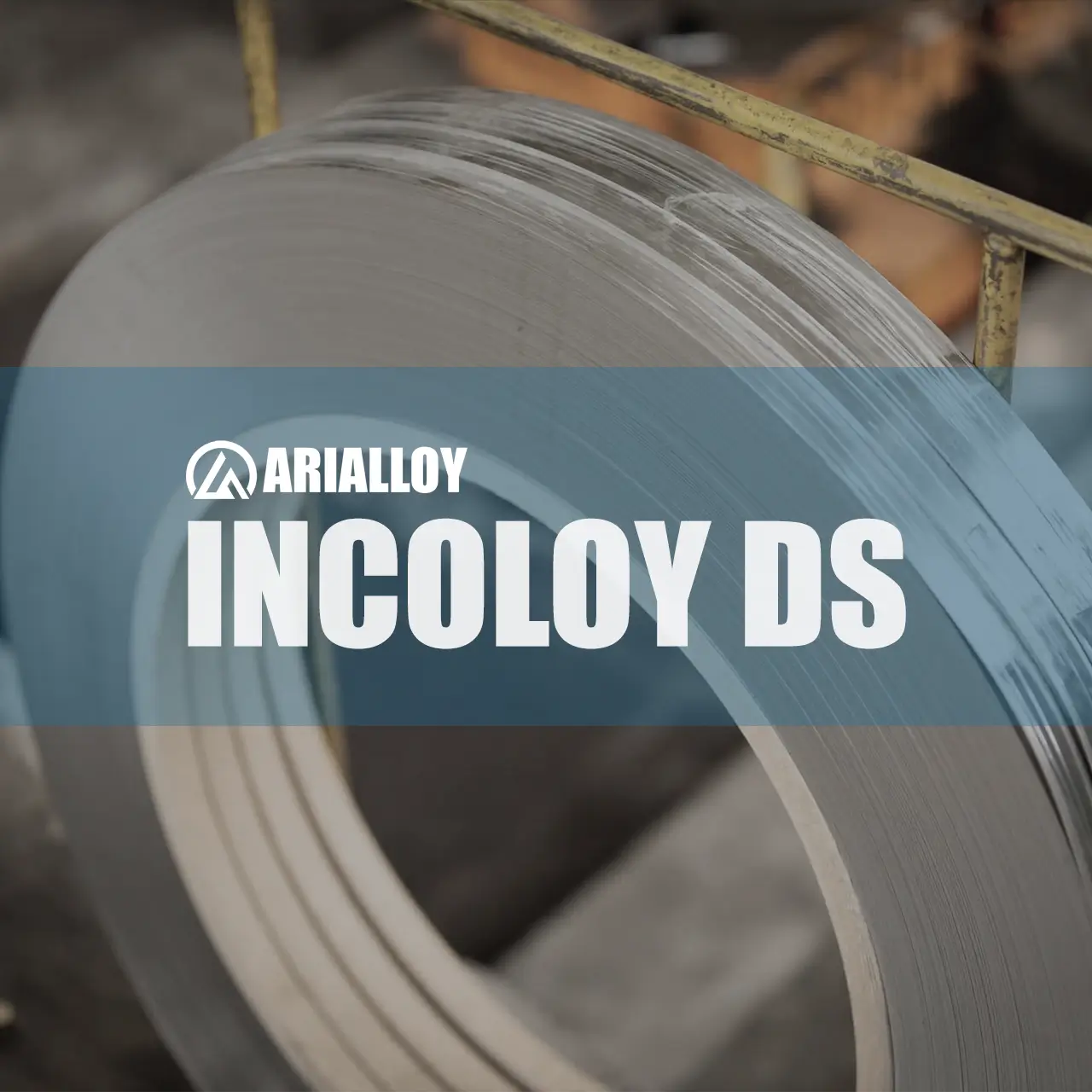

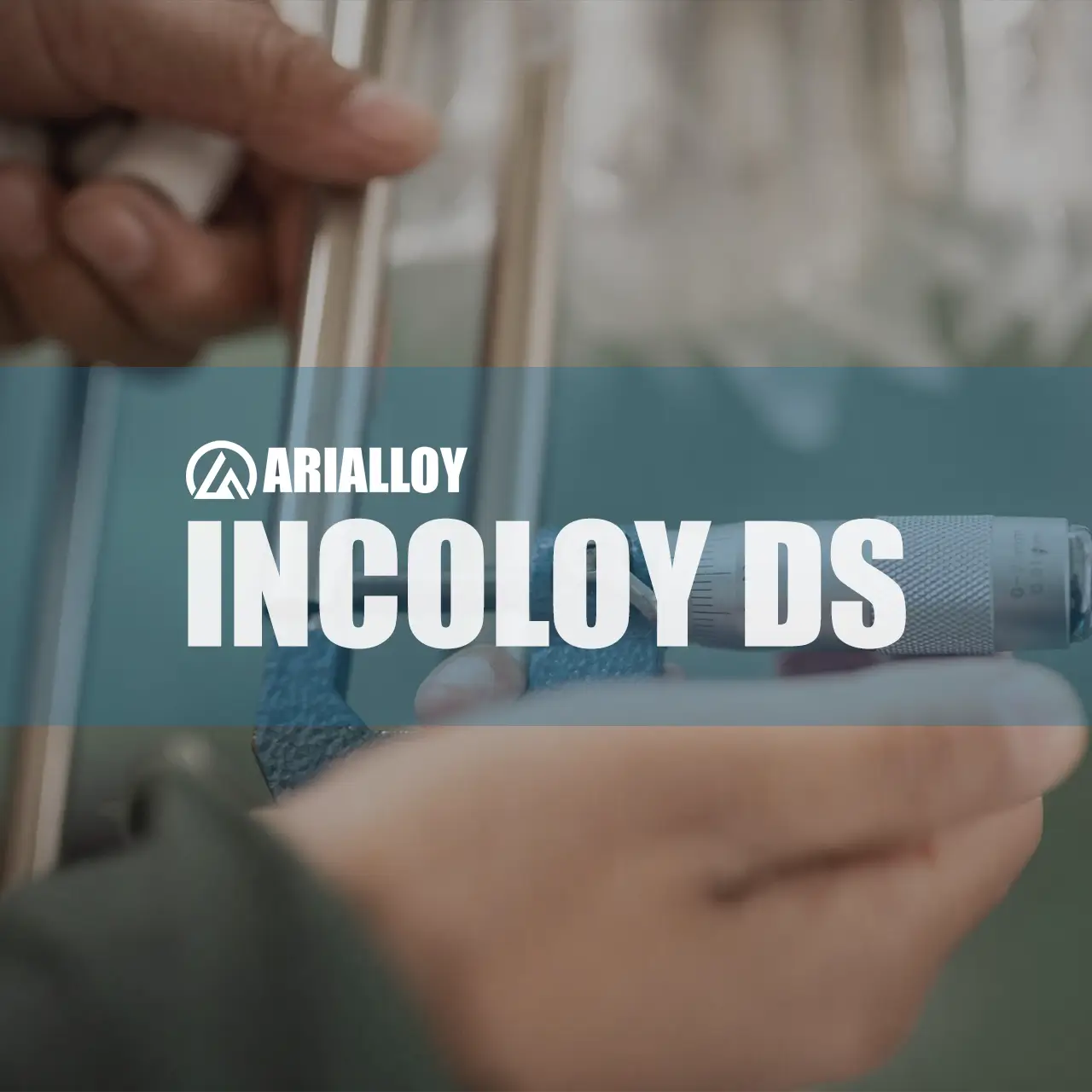

Incoloy DS Products
Nickel Alloy DS Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy ds products tailored to each project’s needs
Incoloy DS Data Sheet
Incoloy Alloy DS Data Sheet
Access / download the incoloy ds data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 7.86 | |
|---|---|---|---|
| lb/in.3 | 0.284 | ||
| Melting Range | °C | 1330 - 1400 | |
Mechanical Properties
| °C | 0.1% proof stress MPa | 0.2% proof stress MPa | Tensile Strength MPa | Elongationon 5.65 √ So % | Reduction of Area % |
|---|---|---|---|---|---|
| sheet, cold-rolled, heat treated | |||||
| 20 | 327 | 363 | 687 | 37.1 | - |
| 100 | 310 | 329 | 629 | 36.3 | - |
| 200 | 284 | 303 | 616 | 32.7 | - |
| 300 | 292 | 304 | 607 | 36.7 | - |
| 400 | 286 | 297 | 602 | 35.2 | - |
| 500 | 269 | 283 | 578 | 35.4 | - |
| 600 | 239 | 253 | 482 | 40.1 | - |
| 700 | 195 | 208 | 335 | 48.8 | - |
| 800 | 107 | 116 | 181 | 75.7 | - |
| 900 | 63 | 66 | 105 | 79.9 | - |
| 1000 | 31 | 36 | 65 | 74.6 | - |
| plate, hot-rolled, heat treated 10 min/1020°C/AC | |||||
| -196 | 473 | 485 | 914 | 54.5 | 68.1 |
| 20 | 298 | 301 | 670 | 47.6 | 71.5 |
| 100 | 263 | 269 | 618 | 44.1 | 69.0 |
| 200 | 242 | 247 | 581 | 41.1 | 64.0 |
| 300 | 219 | 222 | 593 | 41.5 | 62.1 |
| 400 | 213 | 219 | 593 | 46.7 | 60.8 |
| 500 | 196 | 202 | 568 | 43.6 | 57.3 |
| 600 | 196 | 201 | 490 | 45.3 | 45.0 |
| 700 | 179 | 185 | 351 | 56.7 | 44.9 |
| 800 | 136 | 142 | 208 | 74.0 | 60.7 |
| 900 | 63 | 71 | 119 | 90.9 | 75.1 |
| 1000 | 37 | 42 | 73 | 111.3 | 82.2 |
| plate, hot-rolled, heat treated 1h/1150°C/AC | |||||
| -196 | 391 | 406 | 798 | 61.1 | 75.5 |
| 20 | 210 | 219 | 602 | 61.1 | 77.0 |
| 100 | 188 | 196 | 551 | 55.0 | 70.9 |
| 200 | 164 | 168 | 528 | 55.6 | 71.4 |
| 300 | 133 | 136 | 505 | 55.6 | 68.0 |
| 400 | 133 | 136 | 511 | 62.2 | 64.3 |
| 500 | 119 | 124 | 493 | 64.4 | 67.8 |
| 600 | 113 | 116 | 440 | 55.5 | 44.6 |
| 700 | 117 | 124 | 334 | 31.1 | 37.3 |
| 800 | 137 | 145 | 232 | 35.6 | 32.0 |
| 900 | 66 | 74 | 122 | 86.7 | 61.9 |
| 1000 | 37 | 42 | 73 | 97.8 | 66.3 |
| plate, hot-rolled, heat treated and welded | |||||
| -196 | 558 | 579 | 951 | 31.1 | 41.6 |
| 20 | 360 | 380 | 672 | 38.9 | 71.1 |
| 100 | 290 | 314 | 468 | 13.3 | 22.3 |
| 200 | 303 | 317 | 595 | 33.3 | 66.7 |
| 300 | 300 | 306 | 588 | 38.9 | 58.6 |
| 400 | 280 | 297 | 582 | 37.8 | 63.9 |
| 500 | 276 | 300 | 562 | 36.7 | 48.0 |
| 600 | 252 | 266 | 513 | 36.7 | 56.5 |
| 700 | 221 | 233 | 408 | 32.2 | 47.8 |
| 800 | 159 | 171 | 235 | 35.6 | 65.9 |
| 900 | 82 | 88 | 124 | 52.2 | 81.2 |
| 1000 | 46 | 48 | 76 | 42.2 | 88.7 |
Incoloy DS Standards
W.Nr. 1.4862 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
BS 3074
Seamless Tube
BS 3076
Bar
BS 3075
Wire
BS 3072
Sheet and Plate
BS 3073
Strip

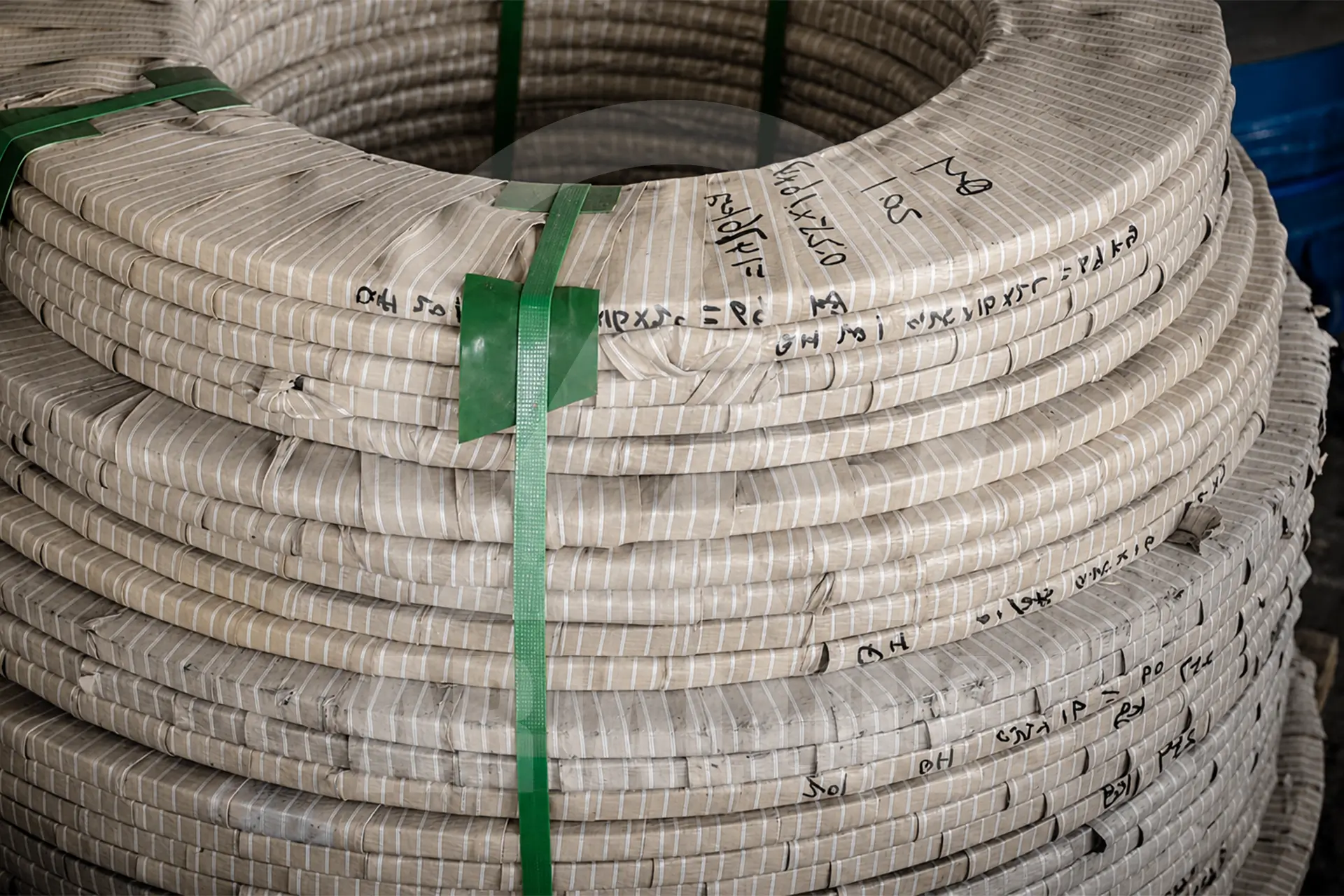

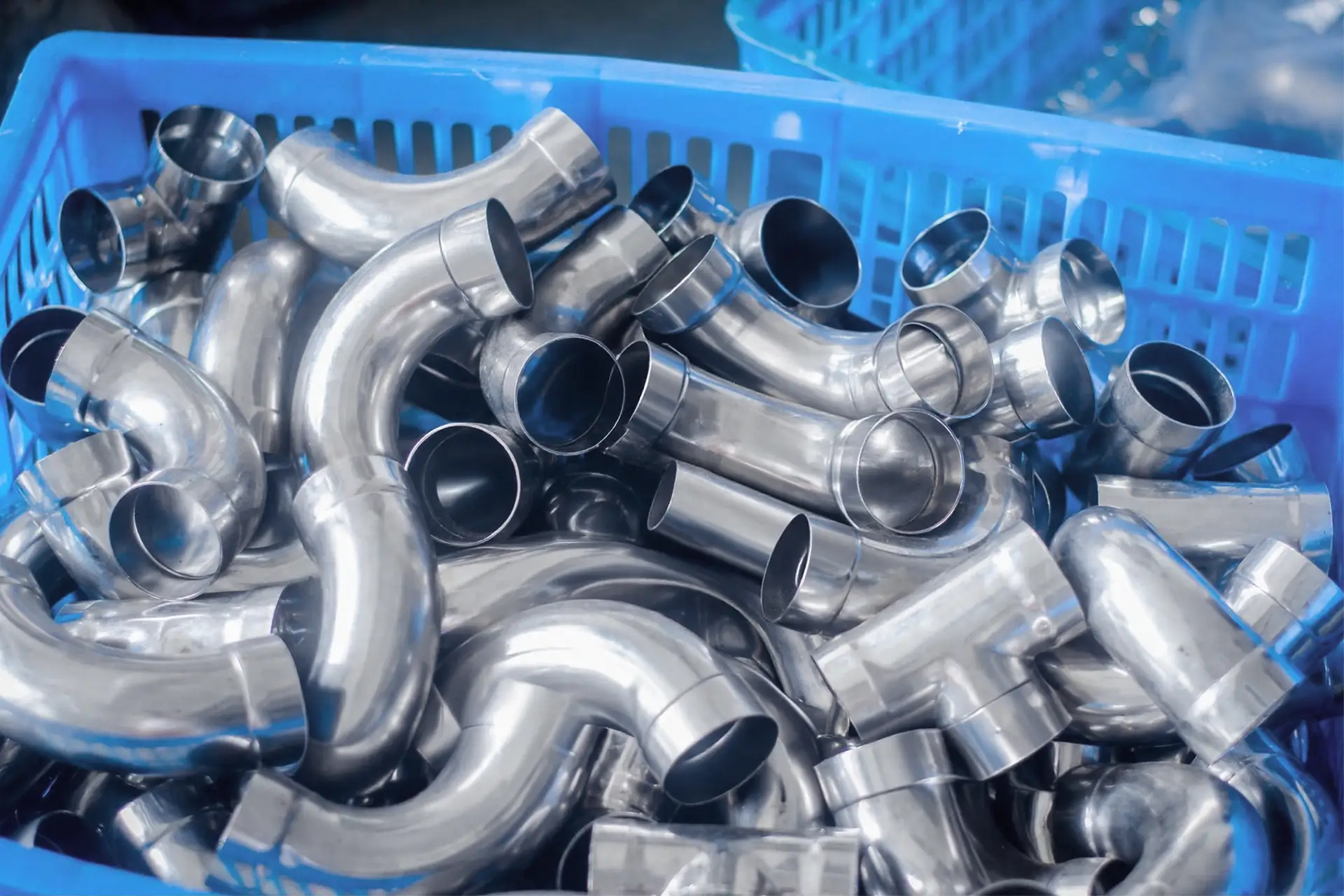

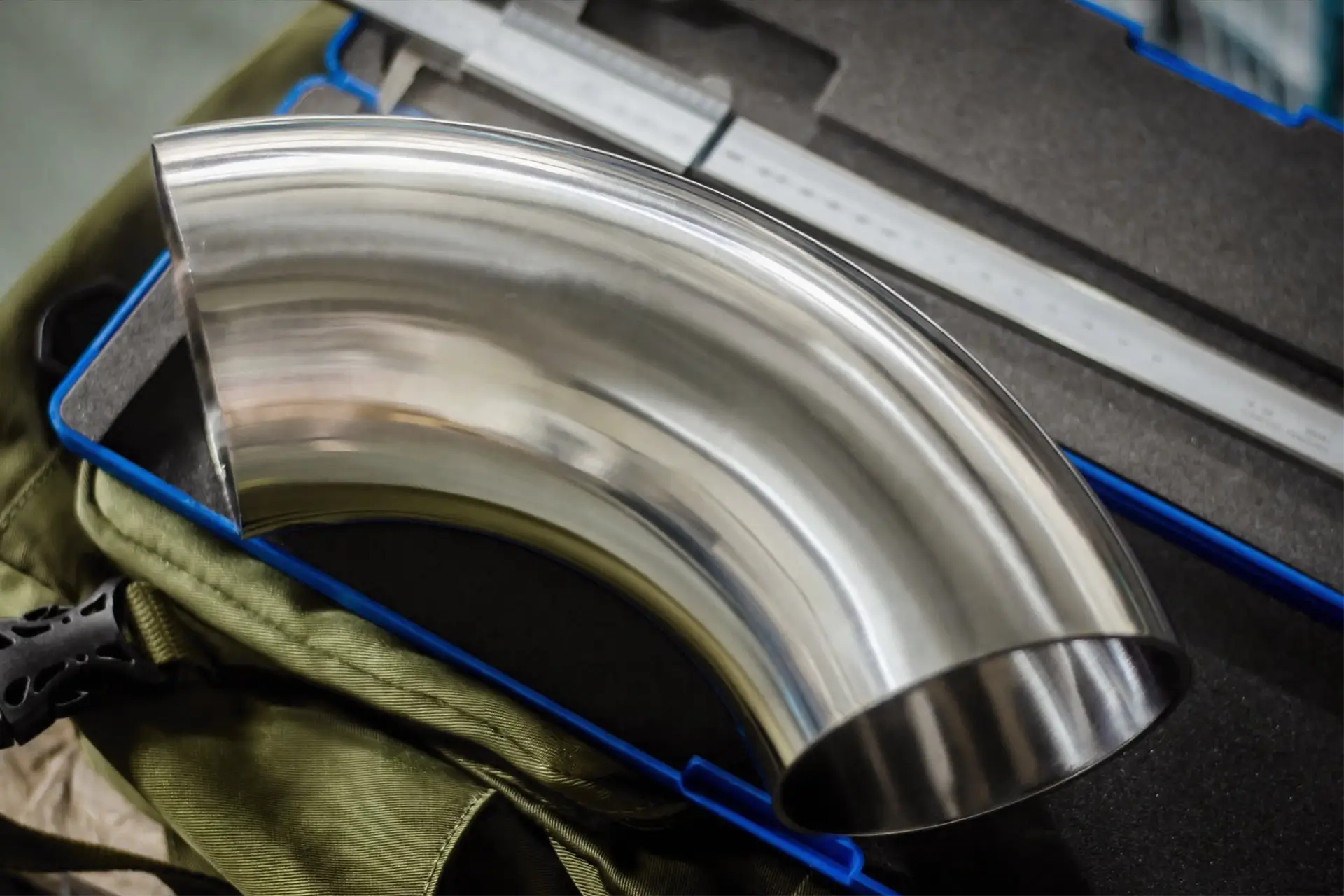

Incoloy DS SHOW
Nickel Alloy DS Showcase
From initial samples to large scale production, we supply high quality incoloy ds products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Incoloy DS Quotation Process
From detailed consultation to final delivery, we make custom incoloy ds product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Incoloy DS Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy incoloy alloy ds manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Incoloy DS Applications
W.Nr. 1.4862 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Incoloy DS Knowledge
Nickel Alloy DS Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Incoloy Grades
Incoloy Alloy Grades
Explore the full range of incoloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Incoloy DS FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Please contact us at sales@arialloy.com with your incoloy ds requirements, or use the inquiry form at the bottom of the page. We will prepare a detailed quotation for your review. If you would like to proceed, send us your PO. We will issue a PI for payment and start production after receiving the prepayment. You will receive confirmation when the material is complete.
Once we receive your inquiry for incoloy ds, our sales team will normally provide the quotation within 24 hours. If the request requires additional information or cannot be quoted, we will contact you promptly.
We normally use FOB terms when quoting incoloy ds. The customer can therefore appoint a freight forwarder of their choice, and we will work with that forwarder to complete the local shipping work. If you want a more convenient service, we can also organize the transportation and calculate the freight.
A change in the price of a major alloying metal can affect the cost of the finished alloy. For incoloy ds and other superalloys, nickel, chromium, iron, and silicon, and related metallic inputs contribute substantially to pricing, so their market movements can influence the final quotation.
The raw incoloy ds material is produced through our own smelting process. Our factory has more than 30 vacuum and electroslag remelting furnaces, and the available capacities allow us to select the right equipment for each order. This capability is what makes smaller MOQs possible for our customers.
We issue the incoloy ds material test report before release for shipment. It provides traceable records of the applicable standard, chemical composition, mechanical properties, dimensions, and heat number, confirming material compliance.
Our incoloy ds manufacturing controls include material ratio management and chemical composition monitoring during smelting. Finished material is subjected to PMI testing, and additional chemical analysis can be conducted by an independent laboratory upon request.
