Nickel Alloy Coil Tube
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy coil tube
Nickel Alloy Coil Tube Introduction
Coil Nickel Alloy Tube Overview
Nickel Alloy Coil Tube Overview

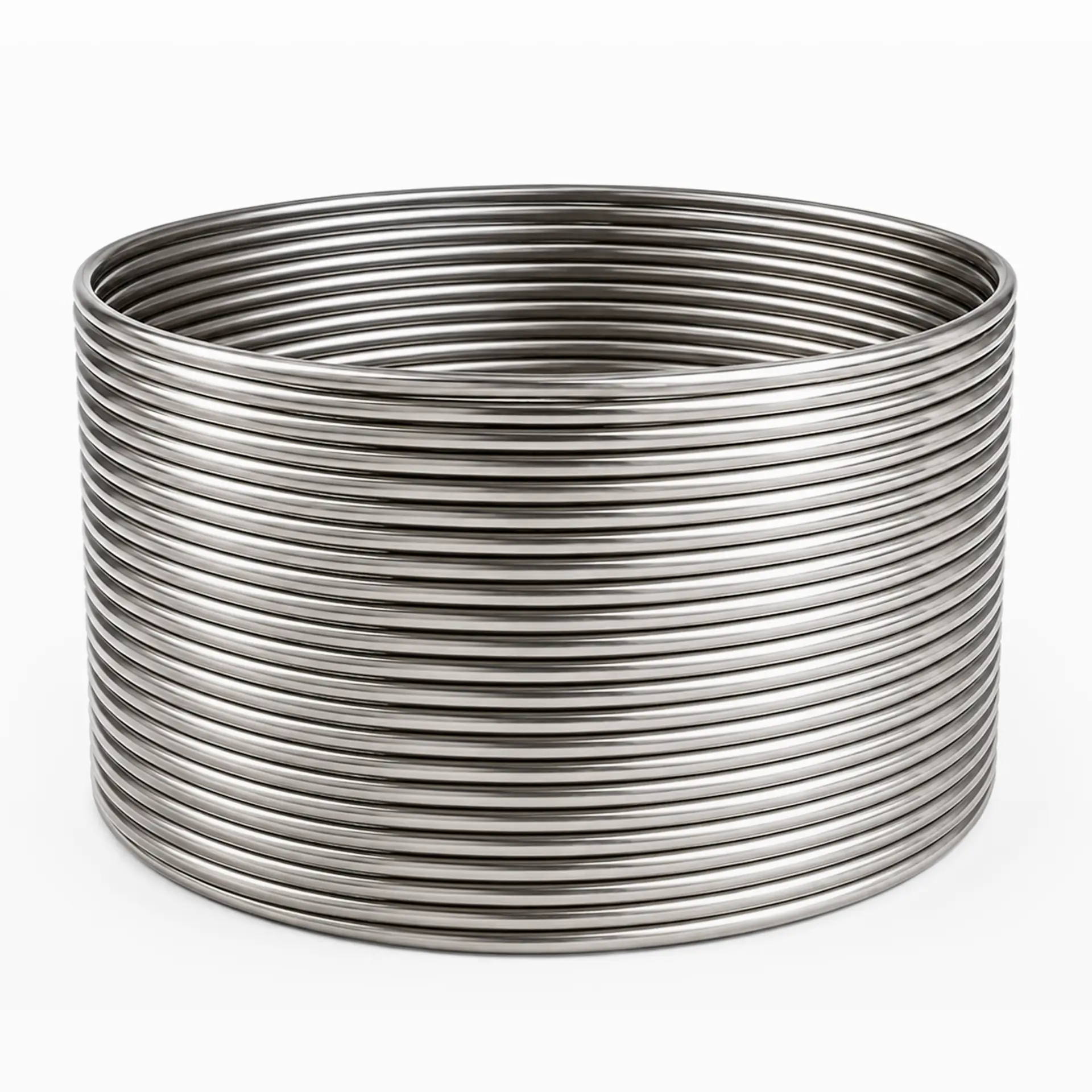

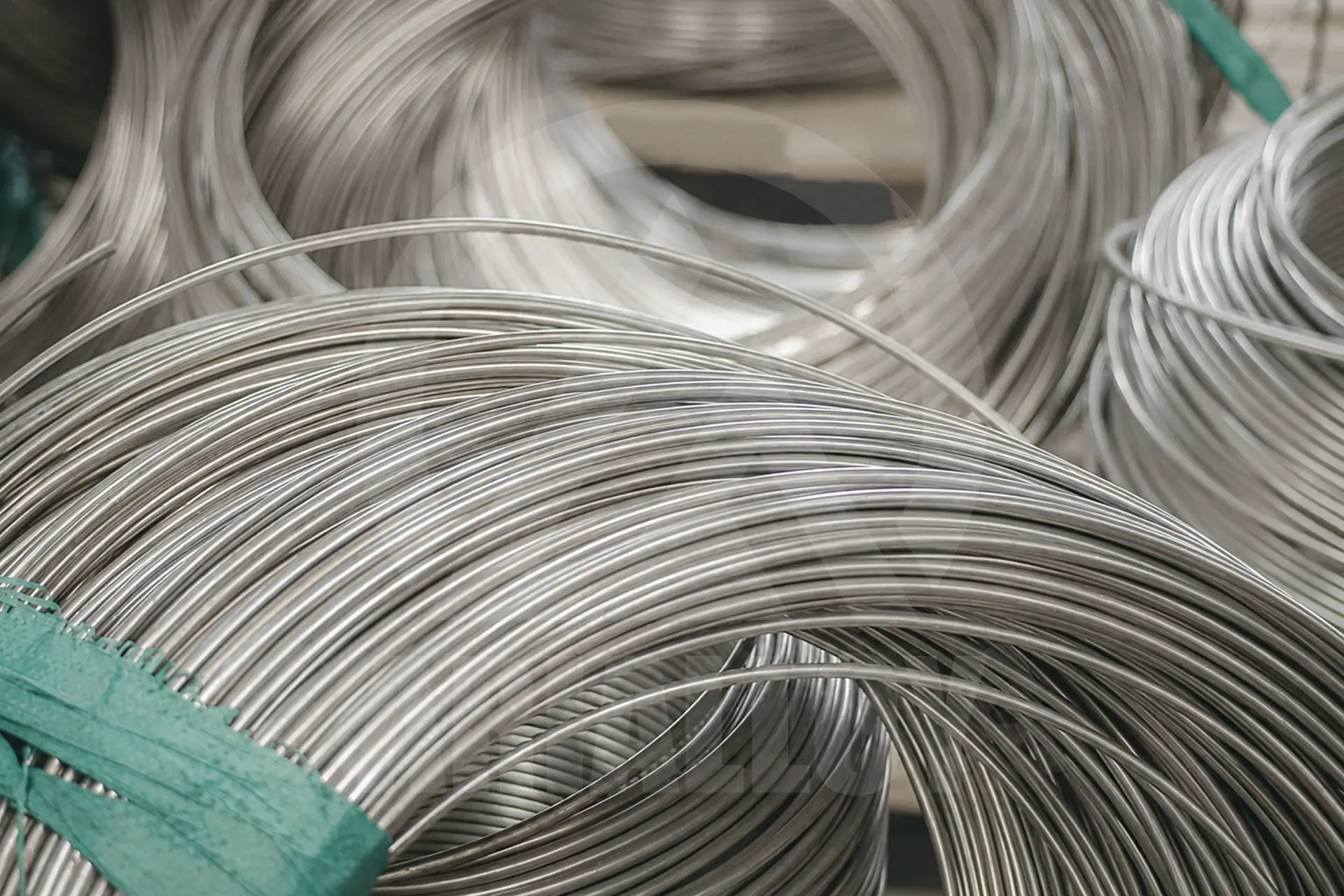

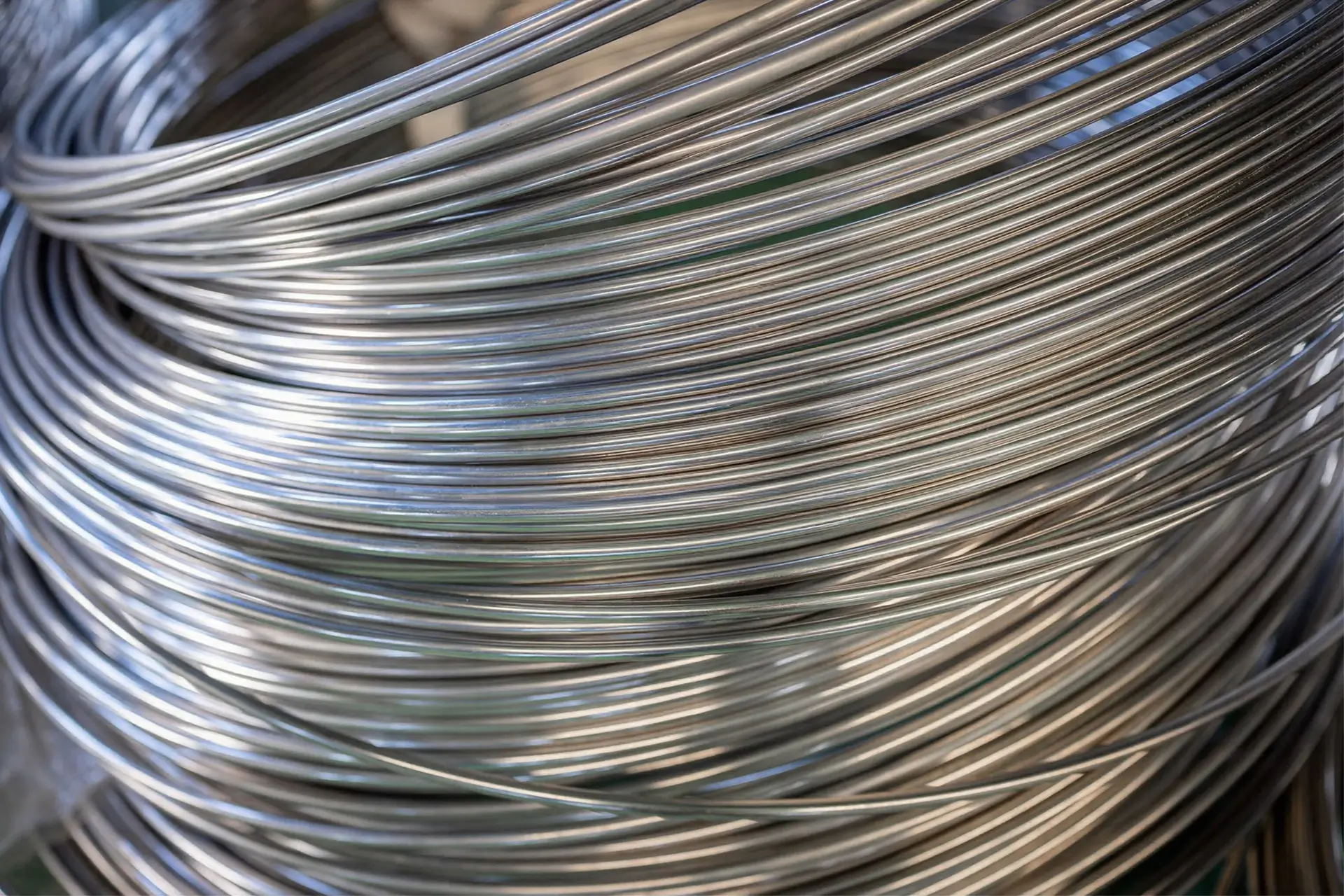

Nickel alloy coil tube is supplied in long, continuous lengths wound into compact coils for convenient handling, storage, and transportation. Compared with multiple sections of straight tubing, continuous coiled tubing reduces the number of intermediate connections and helps create a more consistent fluid path. The coil format also allows the required length to be cut or formed during subsequent processing while minimizing material waste.
Arialloy provides nickel alloy coil tubing in a broad selection of alloy grades, outside diameters, wall thicknesses, continuous lengths, coil diameters, and surface conditions. Depending on the chosen grade, the tubing can offer different combinations of corrosion resistance, strength, ductility, and temperature stability. Straight ends, specific coil dimensions, and customized packaging can also be supplied according to project and purchasing requirements.

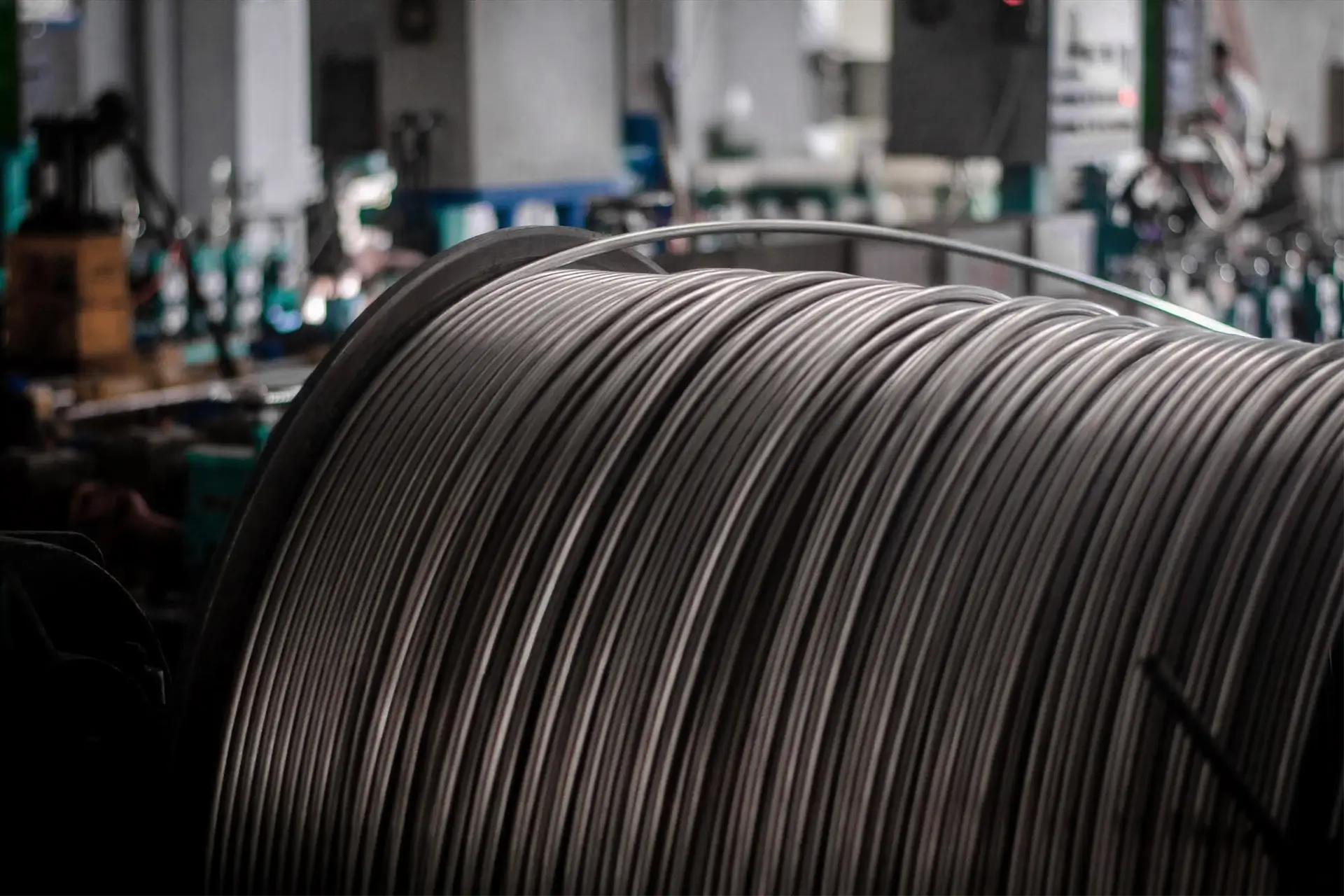

Manufacturing may include tube forming, cold drawing, intermediate annealing, solution heat treatment, pickling, surface finishing, and controlled coiling. During winding, the tube is carefully guided to limit flattening, twisting, and surface damage while maintaining dimensional consistency throughout its length. Appropriate heat treatment and forming control also help preserve the required mechanical properties and flexibility.

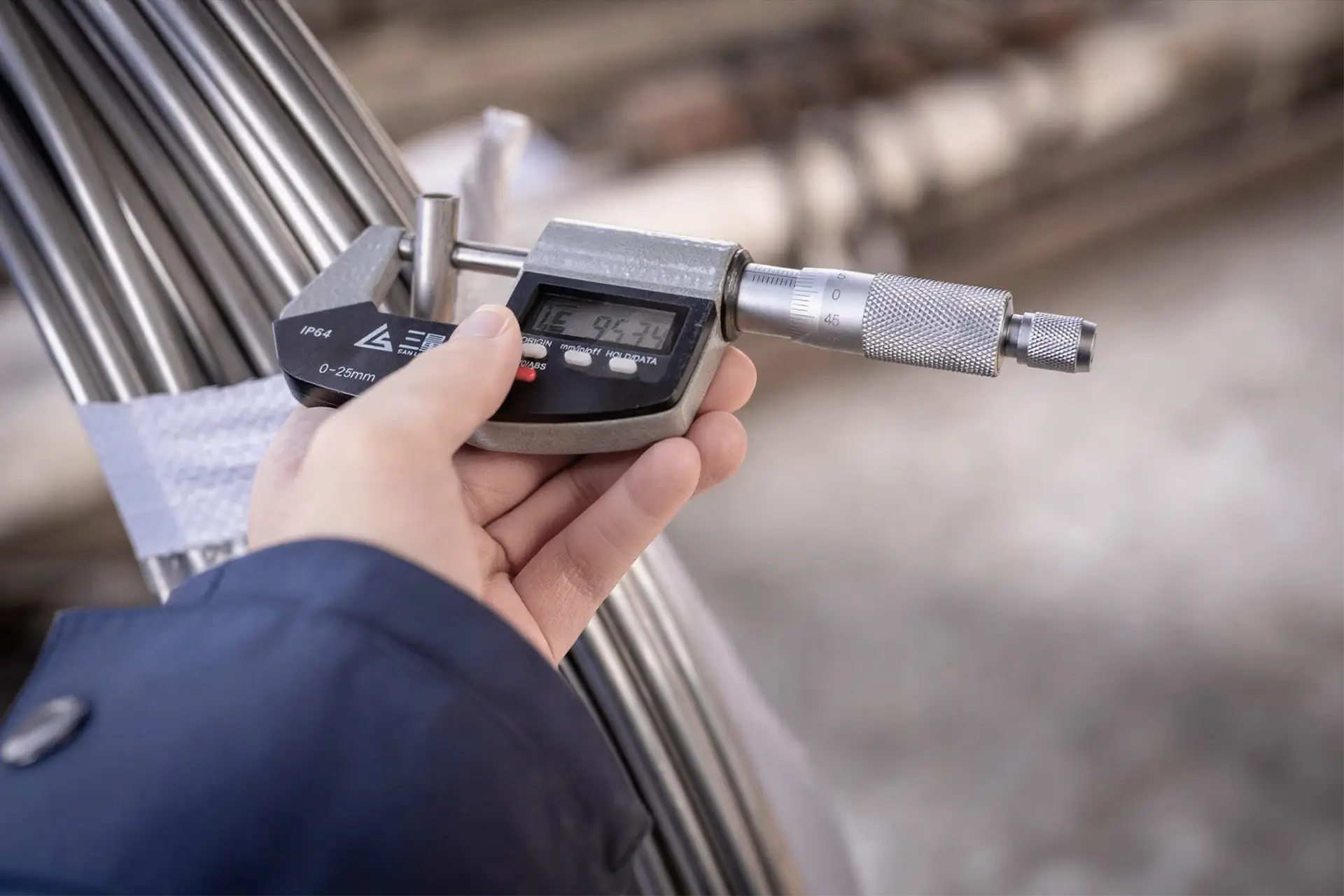

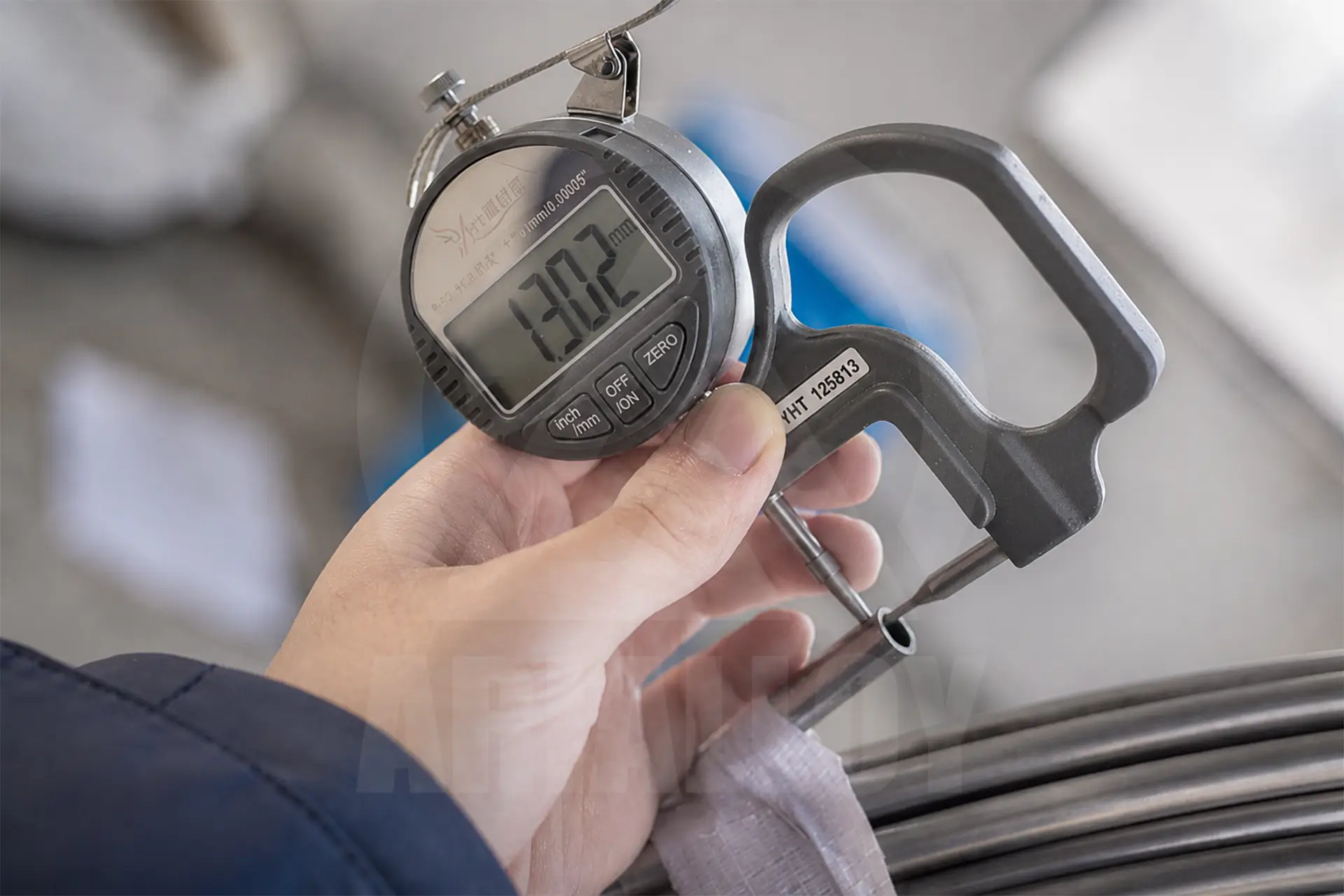

Each nickel alloy coil tube is checked for outside diameter, wall thickness, ovality, surface condition, and coil dimensions. Non-destructive testing, pressure testing, and additional inspections can be arranged according to the applicable standard or customer specification. Arialloy supplies traceable nickel alloy coil tubing with verified material properties and complete quality documentation. Contact us with your required grade, tube dimensions, continuous length, coil size, and testing requirements.
Nickel Alloy Coil Tube Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B161
ASTM B163
ASTM B165
ASTM B167
ASTM B407
ASTM B423
ASTM B444
ASTM B468
ASTM B515
ASTM B516
ASTM B535
ASTM B622
ASTM B626
ASTM B674
ASTM B676
ASTM B677
ASTM B690
ASTM B704
ASTM B751
ASTM B829
ASTM B983
Nickel Alloy Coil Tube Applications
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
OIL & GAS EXTRACTION
Downhole hydraulic control lines, chemical injection lines, subsurface safety valve control tubing, well monitoring lines, methanol injection lines, and long length capillary strings.SUBSEA & OFFSHORE
Subsea umbilical tubing, offshore hydraulic control lines, chemical injection bundles, topside instrumentation tubing, reel supplied service lines, and corrosion resistant control line flatpacks.CHEMICAL PROCESSING
Continuous dosing lines, reactor heating and cooling coils, analyzer sampling lines, corrosive fluid transfer coils, pilot tubing, and long length instrumentation runs with fewer joints.HEAT EXCHANGER SYSTEMS
Helical coil heat exchangers, immersion heating and cooling coils, condenser coils, evaporator coils, process heater coils, and compact heat recovery units.AEROSPACE
Long continuous hydraulic lines, fuel and lubrication tubing, pneumatic control lines, engine instrumentation coils, aircraft test system tubing, and spacecraft fluid control lines.POWER GENERATION
Turbine instrumentation tubing, boiler sampling lines, condenser service coils, heat recovery coils, generator cooling lines, and long run hydraulic and control tubing.GEOTHERMAL & CCUS
Downhole chemical injection lines, geothermal well control tubing, supercritical CO2 monitoring lines, injection well instrumentation, ORC heat exchanger coils, and corrosion monitoring lines.Available Grades
Available Grades for Nickel Alloy Coil Tube
Explore the available nickel alloy grades for coil tube to find the material best suited to your project and specification requirements
Nickel Alloy Coil Tube SHOW

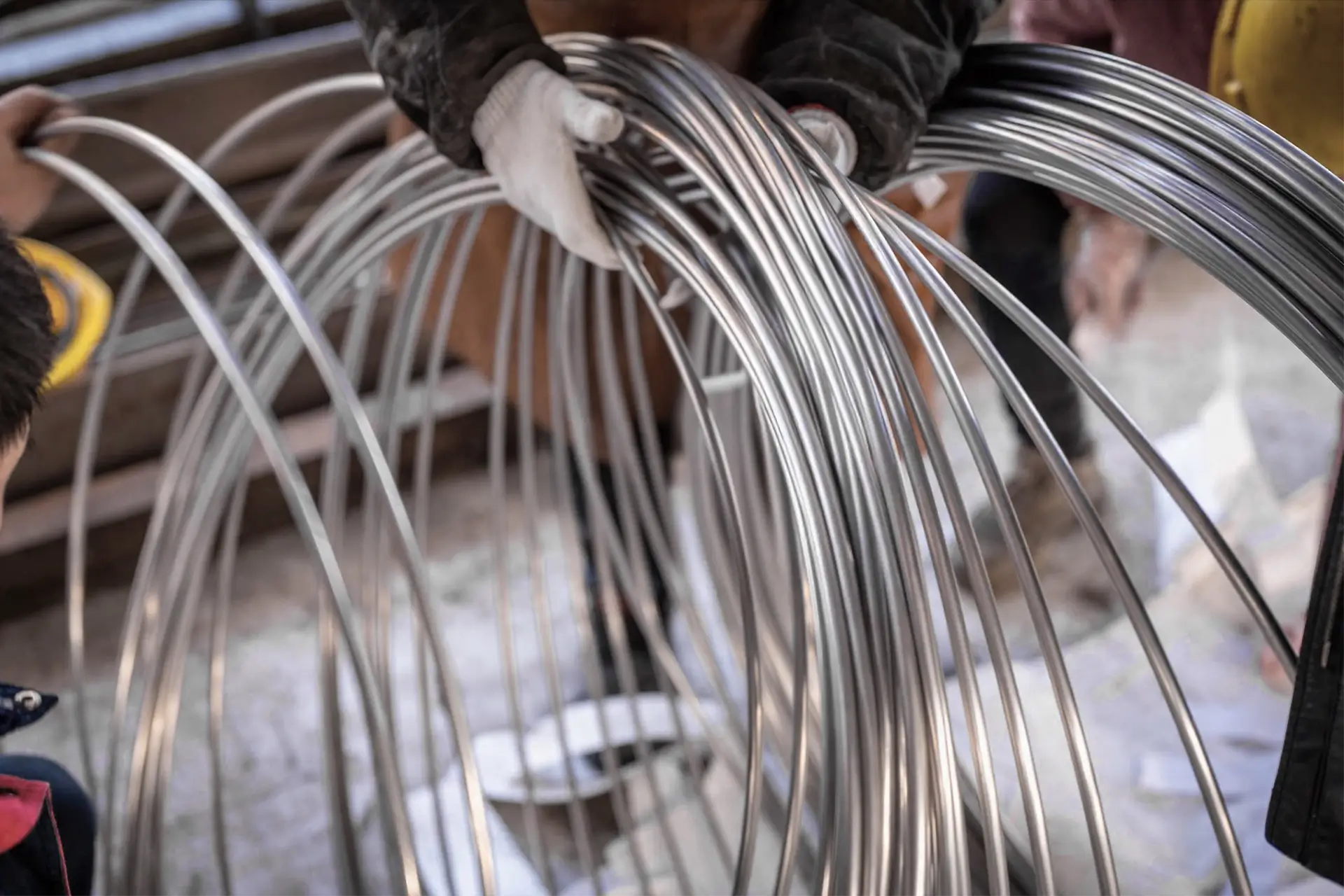

Supplying Nickel Alloy Coil Tube
From initial samples to large scale production, we supply high quality nickel alloy coil tube and help you achieve your manufacturing goals.
Manufacturing Process
Nickel Alloy Coil Tube Manufacturing Process
The production process for Arialloy nickel alloy coil tube ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.
Strip
Inspection
Analytic
Auto Welding
Welding Cleaning
Seam Grinding
Degreasing
Curing Heat Treatment
Eddy Current Testing
Straightening
Wall Reduction
Bright Annealing
Precision Cutting
Flat End
Hydro Statio Test
Coiling
Coil Tube
Inspection
Analytic
Marking
Packing & Shipping
Customized Dimensions
Nickel Alloy Coil Tube Customization Scope
-
Outside Diameter (OD)
0.4-16 mm
-
Wall Thickness (THK)
0.1-3 mm
-
Length (L)
150, 1500, 1800 m
-
Classification (Type)
O, I, W, U
Formula: m = (OD – THK) × THK (mm) × L (m) × ρ (g/cm³) × π ÷ 1000
OD = Outside Diameter, THK = Wall Thickness, L = Length
ρ = Density, π = 3.1415926…
Data Sheet
Nickel Alloy Coil Tube Data Sheet
Access the nickel alloy coil tube data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project
Size Range
| Size | Size | Size | Size | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.4*0.11 | 1.6*0.15 | 2.5*0.75 | 4.5*0.5 | ||||||||||
| 0.5*0.15 | 1.6*0.2 | 2.5*0.8 | 4.5*1.0 | ||||||||||
| 0.6*0.15 | 1.6*0.25 | 2.55*0.13 | 4.7*1.0 | ||||||||||
| 0.63*0.15 | 1.6*0.3 | 2.55*0.8 | 5.0*0.2 | ||||||||||
| 0.7*0.15 | 1.6*0.4 | 2.6*0.2 | 5.0*0.25 | ||||||||||
| 0.8*0.125 | 1.7*0.15 | 2.8*0.2 | 5.0*0.3 | ||||||||||
| 0.8*0.15 | 1.7*0.25 | 3.0*0.15 | 5.0*0.35 | ||||||||||
| 0.9*0.15 | 1.8*0.11 | 3.0*0.2 | 5.0*0.5 | ||||||||||
| 1.0*0.1 | 1.8*0.125 | 3.0*0.25 | 5.0*1.0 | ||||||||||
| 1.0*0.125 | 1.8*0.15 | 3.0*0.3 | 5.0*1.5 | ||||||||||
| 1.0*0.135 | 1.8*0.2 | 3.0*0.5 | 5.5*0.2 | ||||||||||
| 1.0*0.15 | 2.0*0.125 | 3.2*0.2 | 6.0*1.5 | ||||||||||
| 1.0*0.16 | 2.0*0.15 | 3.2*0.5 | 6.0*0.8 | ||||||||||
| 1.1*0.115 | 2.0*0.2 | 3.4*0.2 | 6.0*2.0 | ||||||||||
| 1.1*0.12 | 2.0*0.25 | 3.5*0.2 | 6.35*0.3 | ||||||||||
| 1.1*0.125 | 2.0*0.3 | 3.5*0.25 | 6.35*0.35 | ||||||||||
| 1.1*0.135 | 2.0*0.4 | 3.5*0.5 | 6.35*0.5 | ||||||||||
| 1.1*0.14 | 2.0*0.5 | 3.5*1.0 | 6.35*0.7 | ||||||||||
| 1.1*0.15 | 2.0*0.7 | 3.5*1.2 | 6.35*0.8 | ||||||||||
| 1.1*0.2 | 2.1*0.5 | 3.7*0.2 | 6.35*1.25 | ||||||||||
| 1.2*0.1 | 2.1*0.55 | 3.7*0.25 | 6.35*1.65 | ||||||||||
| 1.2*0.125 | 2.1*0.65 | 3.8*0.2 | 6.35*1.8 | ||||||||||
| 1.2*0.135 | 2.1*0.7 | 3.8*0.25 | 6.35*0.89 | ||||||||||
| 1.2*0.15 | 2.2*0.2 | 4.0*0.2 | 6.35*1.24 | ||||||||||
| 1.2*0.2 | 2.2*0.3 | 4.0*0.25 | 6.35*1.65 | ||||||||||
| 1.3*0.1 | 2.2*0.6 | 4.0*0.35 | 6.5*0.3 | ||||||||||
| 1.3*0.11 | 2.2*0.8 | 4.0*0.4 | 6.5*0.4 | ||||||||||
| 1.3*0.12 | 2.3*0.2 | 4.0*0.5 | 6.5*0.5 | ||||||||||
| 1.3*0.125 | 2.3*0.25 | 4.0*0.7 | 6.5*0.6 | ||||||||||
| 1.3*0.15 | 2.5*0.18 | 4.0*1.0 | 7.0*0.2 | ||||||||||
| 1.3*0.3 | 2.5*0.2 | 4.2*0.25 | 7.0*0.3 | ||||||||||
| 1.4*0.15 | 2.5*0.25 | 4.4*0.25 | 7.0*0.5 | ||||||||||
| 1.4*0.2 | 2.5*0.3 | 4.4*0.4 | 7.0*1.0 | ||||||||||
| 1.4*0.25 | 2.5*0.4 | 4.5*0.2 | 8.0*0.2 | ||||||||||
| 1.45*0.1 | 2.5*0.5 | 4.5*0.25 | 8.0*0.5 | ||||||||||
| 1.5*0.125 | 2.5*0.55 | 4.5*0.3 | 9.52*0.89 | ||||||||||
| 1.5*0.15 | 2.5*0.6 | 5.5*0.25 | 9.52*1.24 | ||||||||||
| 1.5*0.2 | 2.5*0.7 | 5.5*0.3 | 9.52*1.65 | ||||||||||
| 1.5*0.25 | 3.0*0.6 | 5.5*0.5 | 9.52*2.03 | ||||||||||
| 1.5*0.4 | 3.0*0.7 | 5.5*1.0 | 12.7*1.24 | ||||||||||
| 1.55*0.325 | 3.0*0.9 | 6.0*0.15 | 12.7*1.65 | ||||||||||
| 1.6*0.1 | 3.0*1.0 | 6.0*0.2 | 12.7*2.03 | ||||||||||
| 1.8*0.25 | 3.0*1.2 | 6.0*0.25 | 15.88*1.24 | ||||||||||
| 1.8*0.4 | 3.1*0.55 | 6.0*0.3 | 15.88*1.65 | ||||||||||
| 1.9*0.15 | 3.18*0.71 | 6.0*0.5 | |||||||||||
| 2.0*0.1 | 3.18*0.89 | 6.0*1.0 | |||||||||||
| *Customized size please confirm with us | |||||||||||||
Delivery State
| Delivery State Choice | Surface Condition |
|---|---|
| BA: Bright Annealed | Bright |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. | |
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
