Inconel 600
UNS N06600 / W.Nr. 2.4816
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with inconel 600 tubes / sheets / wires / bars / fittings
Inconel 600 Material Properties
UNS N06600 / W.Nr. 2.4816 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of inconel 600 for optimal resistance, strength, and stability
Inconel 600 Chemical Composition
Inconel 600 Material Properties Overview
As a leading supplier & manufacturer in China, Arialloy supply cost effective inconel 600 Products.
Inconel alloy 600 (UNS N06600 / W. Nr. 2.4816) is a nickel chromium iron alloy offering excellent resistance to corrosion and oxidation across a wide range of demanding environments. Its high nickel (Ni) content provides good resistance under reducing conditions and excellent resistance to alkaline solutions and chloride ion stress corrosion cracking. Chromium (Cr) improves resistance to oxidizing media and sulfur compounds, while the balanced nickel chromium composition provides good resistance to carburization and high temperature oxidation. The alloy is nonmagnetic and maintains useful mechanical properties over a wide range of temperatures.
Inconel alloy 600 combines high strength, good ductility, toughness, and good fabrication characteristics. It is not precipitation hardenable and can be strengthened by cold working. The alloy maintains useful mechanical properties at both cryogenic and elevated temperatures and offers good resistance to high purity water, neutral and alkaline salt solutions, steam, and many organic and inorganic compounds. Its good forming and welding characteristics further contribute to its versatility in demanding service conditions.
Inconel 600 is widely used in chemical processing, heat treatment, furnace equipment, nuclear engineering, aerospace, and food processing applications. Its combination of corrosion resistance, oxidation resistance, mechanical strength, and fabricability makes it suitable for components exposed to corrosive environments and elevated temperatures.
Inconel 600 Corrosion Resistance
Inconel alloy 600 offers excellent resistance to general corrosion, chloride ion stress corrosion cracking, caustic corrosion, and corrosion in high purity water. Its high nickel content provides strong resistance under reducing conditions and alkaline media, while chromium improves resistance to oxidizing environments and sulfur compounds.
It also offers good resistance to neutral and alkaline salt solutions, steam, and mixtures of steam, air, and carbon dioxide. The alloy provides useful resistance to dry chlorine and hydrogen chloride at moderately elevated temperatures, as well as good resistance to carburization and oxidation. However, strong oxidizing solutions such as hot concentrated nitric acid can be aggressive toward Inconel alloy 600, so corrosion performance should be evaluated according to the specific chemical environment, concentration, temperature, and exposure conditions.
Inconel 600 Mechanical Properties
In the annealed condition, inconel 600 typically exhibits tensile strengths of 80,000 to 100,000 psi (550 to 690 MPa), with yield strengths of 25,000 to 50,000 psi (170 to 345 MPa). Elongation generally ranges from 35 to 55%, providing good ductility and allowing the alloy to be readily formed and fabricated.
Cold working can significantly increase the tensile and yield strength of Inconel alloy 600. The alloy also maintains good toughness and ductility at cryogenic temperatures and useful mechanical properties at elevated temperatures. It has good hot and cold forming characteristics and can be welded using conventional welding processes.
Values for mechanical properties reported in technical publications are typical and may vary according to product form, thickness, heat treatment, and cold working condition. Such values should not be used for specification purposes unless stated as minimum or maximum requirements.
Inconel 600 Temperature Characteristics
Inconel 600 maintains useful properties from cryogenic temperatures to elevated temperatures approaching 2000°F (1093°C) under suitable conditions. Its high nickel and chromium contents provide a combination of oxidation resistance, corrosion resistance, and mechanical stability over a broad temperature range.
At elevated temperatures, chromium contributes to the formation of a protective oxide layer that improves resistance to oxidation and scaling. The alloy also provides good resistance to carburization and corrosive gas atmospheres. Studies of oxidation behavior show that protective oxide films containing chromium oxide contribute significantly to its oxidation resistance at elevated temperatures.
Inconel 600 Products
Nickel Alloy 600 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 600 products tailored to each project’s needs
Inconel 600 Data Sheet
Inconel Alloy 600 Data Sheet
Access / download the inconel 600 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.47 | |
|---|---|---|---|
| lb/in.3 | 0.306 | ||
| Melting Range | °F | 2470 - 2575 | |
| °C | 1354 - 1413 | ||
| Specific Heat | Btu/lb-°F | 0.106 | |
| J/kg-°C | 444 | ||
| Electrical Resistivity | ohm-circ mil/ft | 620 | |
| μΩ-m | 1.03 | ||
| Curie Temperature | °F | -192 | |
| °C | -124 | ||
| Permeability at 200 oersted | 15.9 kA/m | 1.010 | |
Mechanical Properties
| Form and Condition | Tensile Strength | Yield Strength (0.2% Offset) | Elongation, % | Hardness, Rockwell | ||
|---|---|---|---|---|---|---|
| ksi | MPa | ksi | MPa | |||
| Rod and Bar | ||||||
| Cold-Drawn | ||||||
| Annealed | 80-100 | 550-690 | 25-50 | 170-345 | 55-35 | 65-85B |
| As-Drawn | 105-150 | 725-1035 | 80-125 | 550-860 | 30-10 | 90B-30C |
| Hot-Finished | ||||||
| Annealed | 80-100 | 550-690 | 30-50 | 205-345 | 55-35 | 65-85B |
| Hot-Finished | 85-120 | 585-830 | 35-90 | 240-620 | 50-30 | 75-95B |
| Plate | ||||||
| Hot-Rolled | ||||||
| Annealed | 80-105 | 550-725 | 30-50 | 205-345 | 55-35 | 65-85B |
| As-Rolled | 85-110 | 580-760 | 35-65 | 240-450 | 50-30 | 80-95B |
| Sheet | ||||||
| Cold-Rolled | ||||||
| Annealed | 80-100 | 550-690 | 30-45 | 205-310 | 55-35 | 88B max. |
| Hard | 120-150 | 830-1035 | 90-125 | 620-860 | 15-2 | 24C min. |

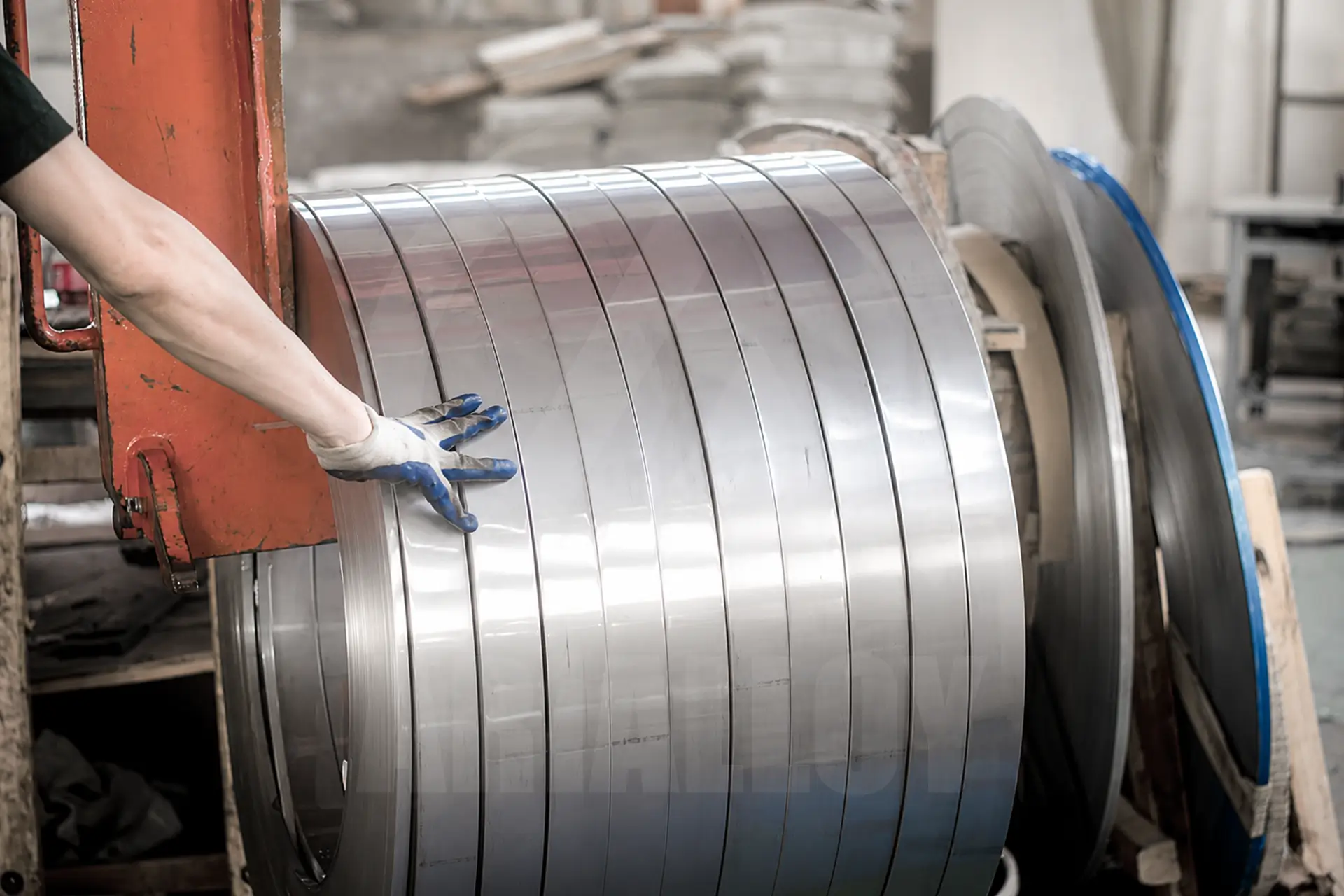

| Strip | ||||||
| Cold-Rolled | ||||||
| Annealed | 80-100 | 550-690 | 30-45 | 205-310 | 55-35 | 84B max. |
| Spring Temper | 145-170 | 1000-1170 | 120-160 | 830-1100 | 10-2 | 30C min. |
| Tube and Pipe | ||||||
| Hot-Finished | ||||||
| Hot-Finished | 75-100 | 520-690 | 25-50 | 170-345 | 55-35 | - |
| Annealed | 75-100 | 520-690 | 25-50 | 170-345 | 55-35 | - |
| Cold-Drawn | ||||||
| Annealed | 80-100 | 550-690 | 25-50 | 170-345 | 55-35 | 88B max. |
| Wire | ||||||
| Cold-Drawn | ||||||
| Annealed | 80-120 | 550-830 | 35-75 | 240-520 | 45-20 | - |
| No.1 Temper | 105-135 | 725-930 | 70-105 | 480-725 | 35-15 | - |
| Spring Temper | 170-220 | 1170-1520 | 150-210 | 1035-1450 | 5-2 | - |
Inconel 600 Standards
UNS N06600 / W.Nr. 2.4816 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B163
Condensor and Heat Exchanger Tube
ASTM B167

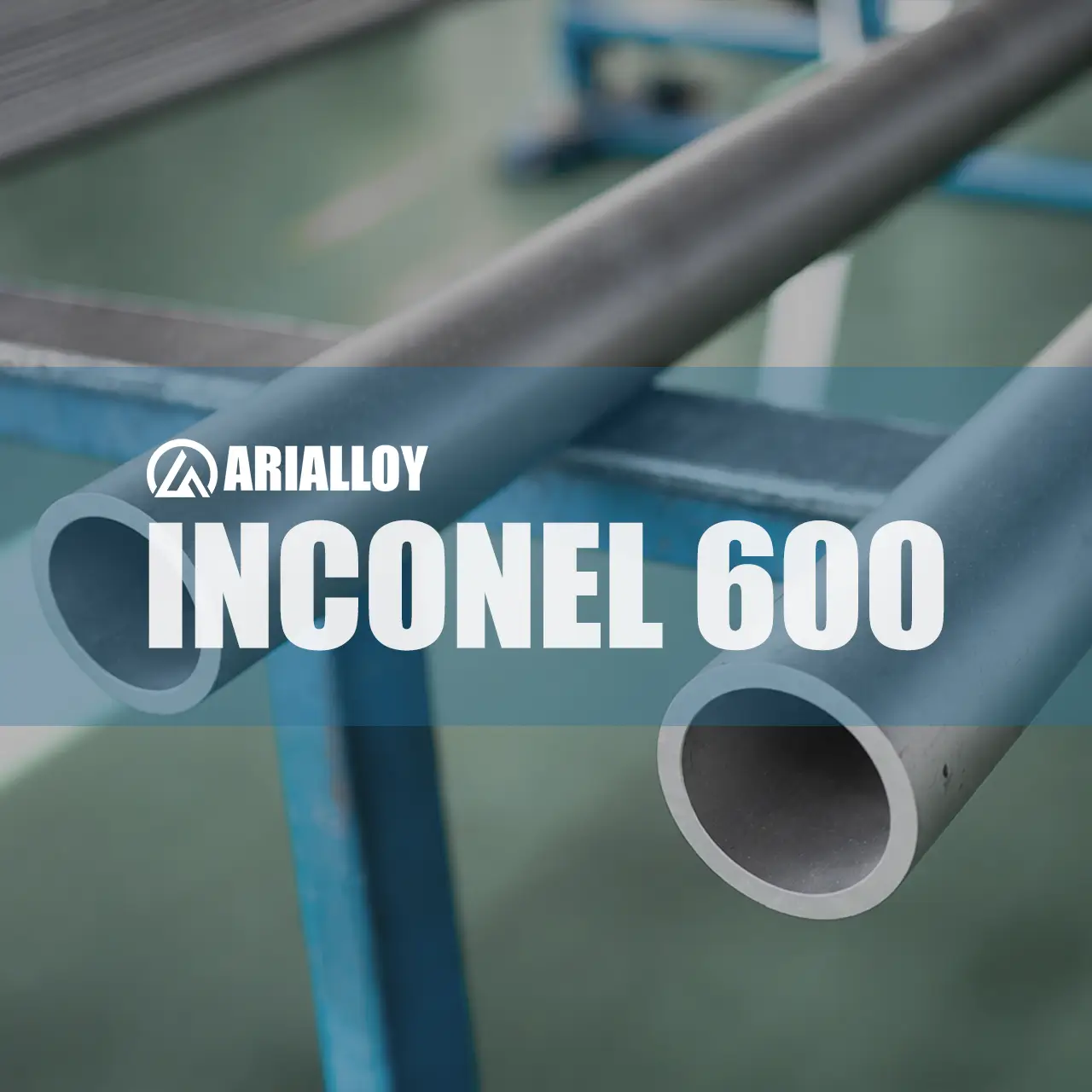

Seamless Pipe & Tube
ASTM B829
Seamless Pipe & Tube
ASTM B517
Welded Pipe
ASTM B775
Welded Pipe
ASTM B516
Welded Tube
ASTM B751
Welded Tube
ASTM B366

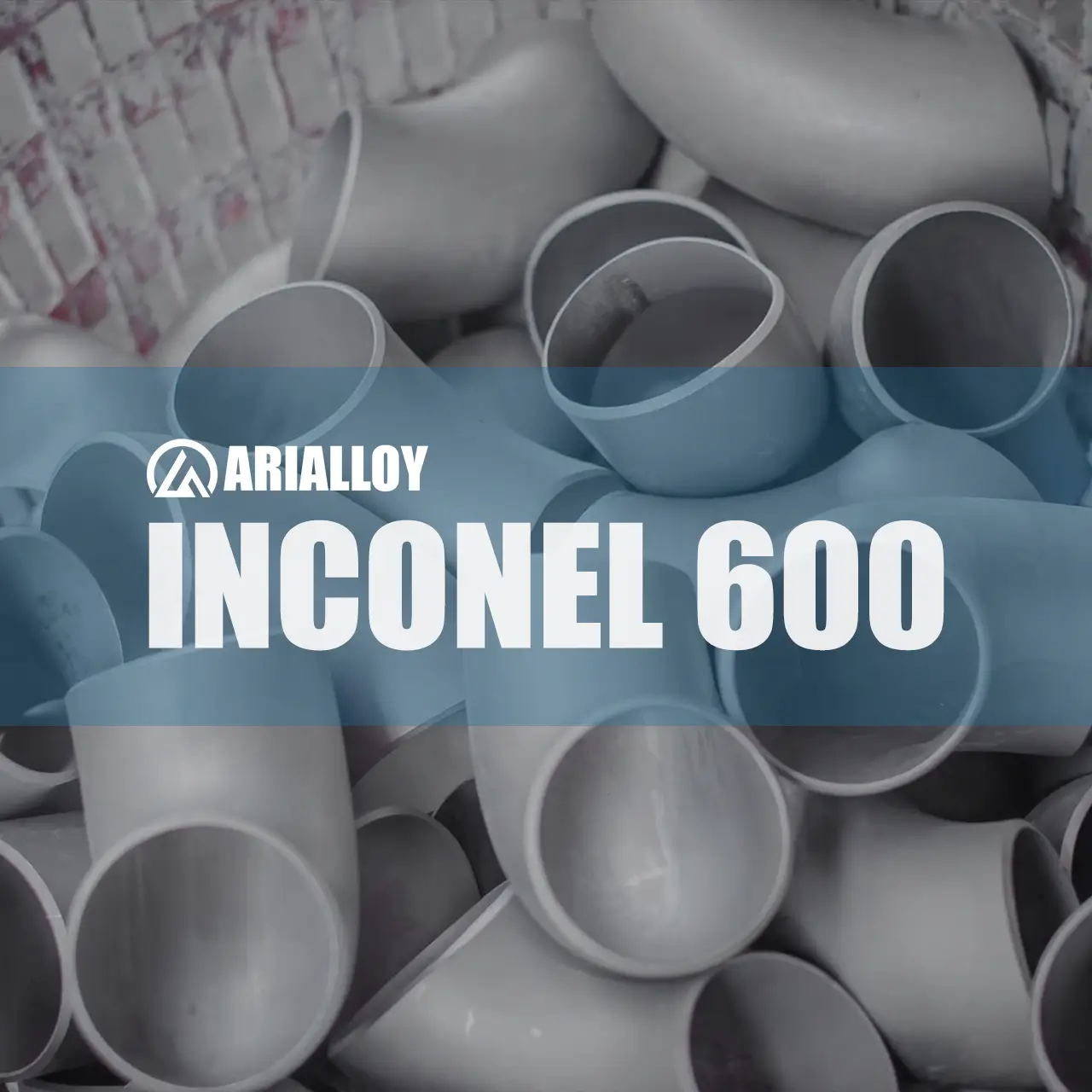

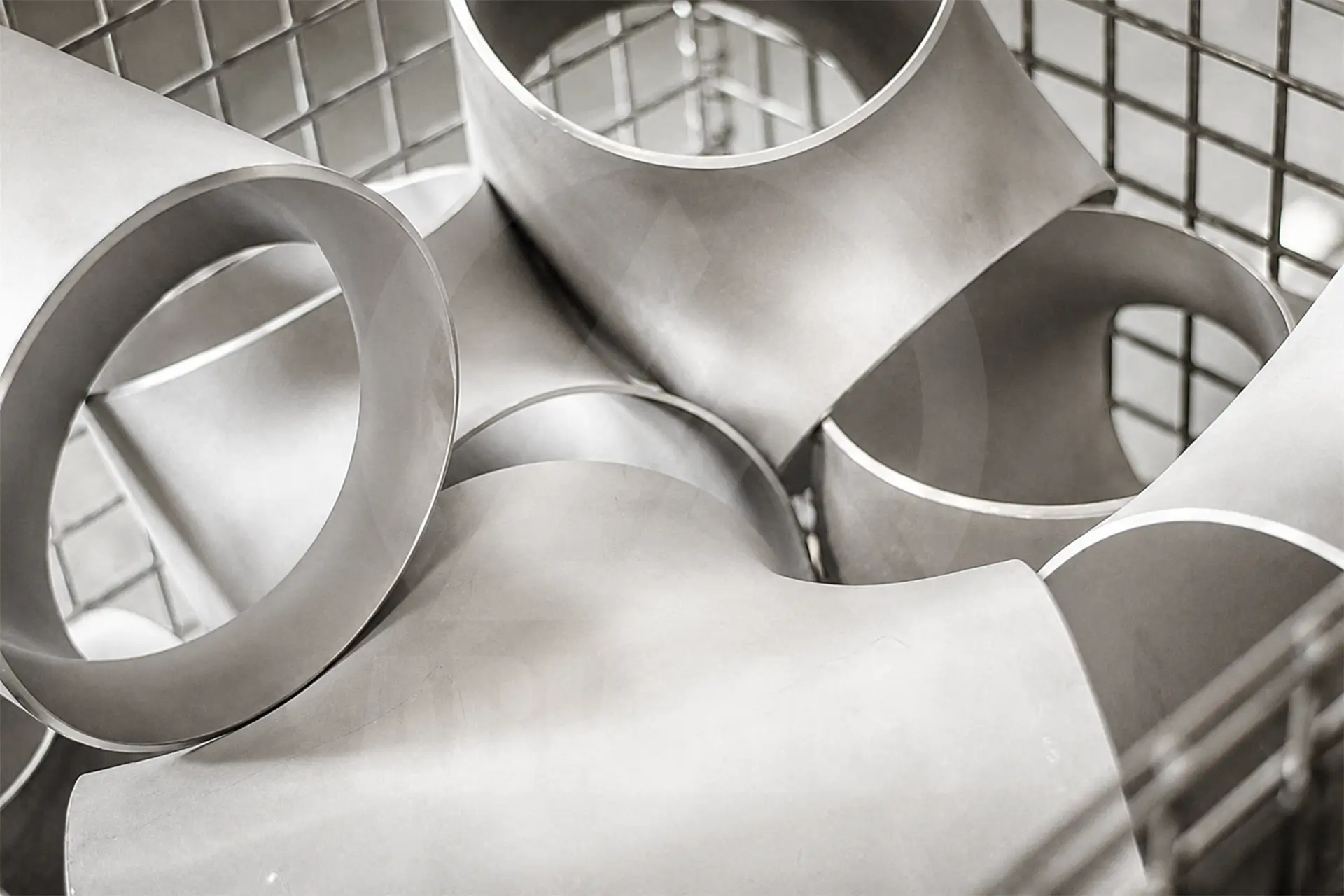

Welded Fittings
ASTM B166
ASTM B168
Plate, Sheet and Strip
ASTM B564
ASTM B906
Plate, Sheet and Strip
AWS A5.14 ERNiCrMo-14
Filler Metal
AWS A5.11 ENiCrMo-14

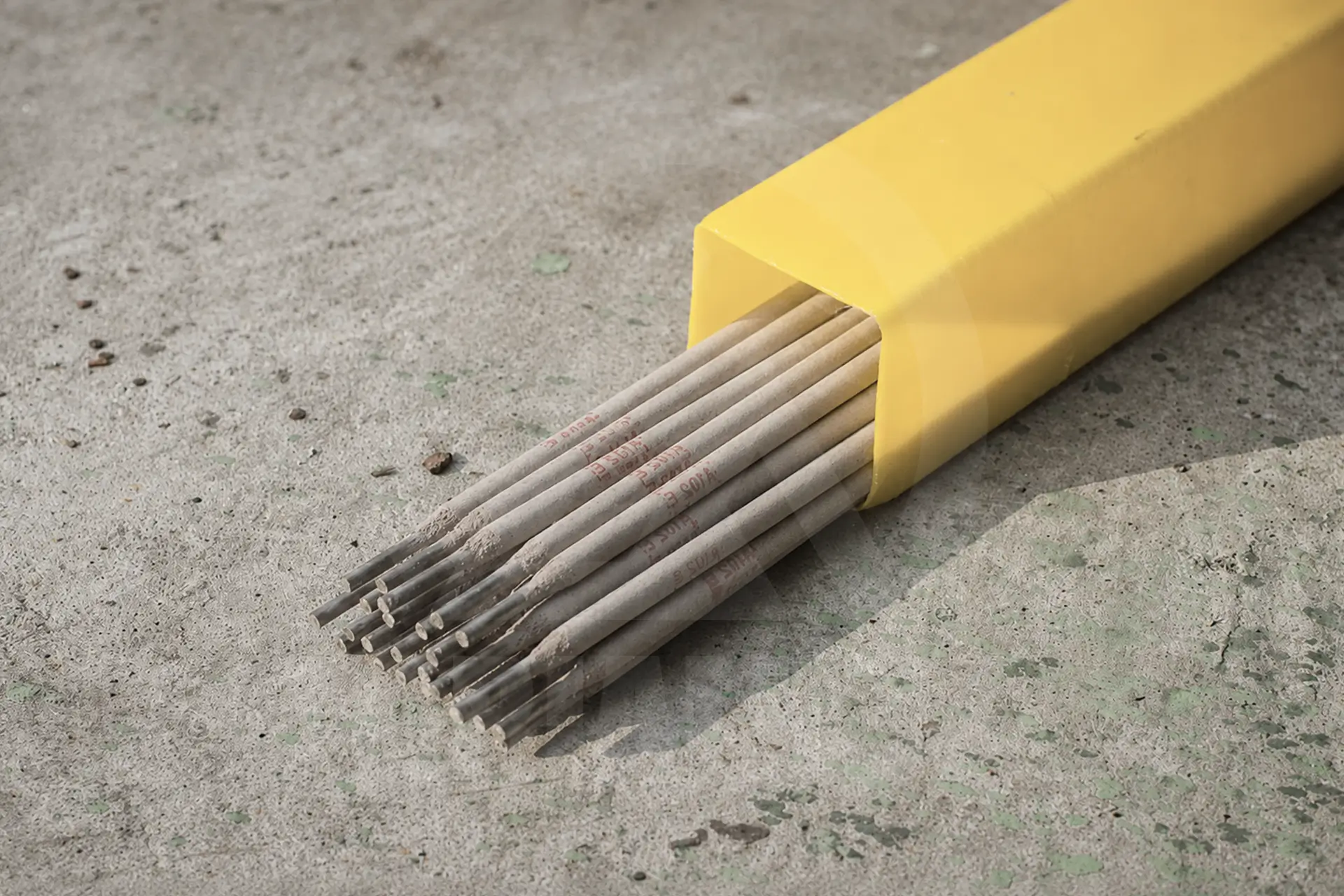

Welding Electrode
Inconel 600 SHOW
Nickel Alloy 600 Showcase
From initial samples to large scale production, we supply high quality inconel 600 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Inconel 600 Quotation Process
From detailed consultation to final delivery, we make custom inconel 600 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Inconel 600 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy inconel alloy 600 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Inconel 600 Applications
UNS N06600 / W.Nr. 2.4816 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Inconel 600 Knowledge
Nickel Alloy 600 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Inconel Grades
Inconel Alloy Grades
Explore the full range of Inconel alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Inconel 600 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Inconel 601 contains more aluminum and chromium and less nickel than Inconel 600. As a result, Inconel 601 provides better corrosion resistance than Inconel 600, although its high temperature performance is somewhat lower.
You can request an inconel 600 quotation by contacting sales@arialloy.com directly or by submitting the inquiry form below. Please include your material requirements so our sales team can prepare an accurate offer. If you accept the quotation, send us your PO. We will issue the PI, and production will begin once the prepayment is received. We will contact you after completion.
Our team is committed to responding to inconel 600 inquiries quickly, with quotations generally provided within 24 hours. Where additional details are needed or a quotation is not possible, we will notify you accordingly.
Inconel 600 is generally offered at FOB pricing, so the normal arrangement is for the customer to nominate a freight forwarder. We will cooperate with that forwarder to complete the required operations locally. If you would like us to handle the logistics instead, we can arrange transportation and obtain a freight quotation for you.
The price of inconel 600 does not depend only on processing costs; it is also heavily influenced by raw metal prices. Key alloying metals such as nickel, chromium, and iron play an important role in determining cost, so changes in their prices can affect the price of the finished alloy.
We perform inconel 600 smelting internally, supported by a furnace fleet of more than 30 vacuum and electroslag remelting furnaces. The available furnace sizes are 50 kg, 200 kg, 1,000 kg, and 5,000 kg. This gives us the production flexibility needed to accept smaller minimum quantities.
Our inconel 600 material test reports are prepared according to industry requirements and supplied before shipment. They include chemical composition, mechanical properties, dimensions, material standards, and heat identification for traceability and compliance verification.
For inconel 600, we control the proportions of the input materials during smelting and use chemical analysis to monitor chemistry changes. Finished products are checked by PMI, while independent lab analysis is available for customers seeking additional verification.
