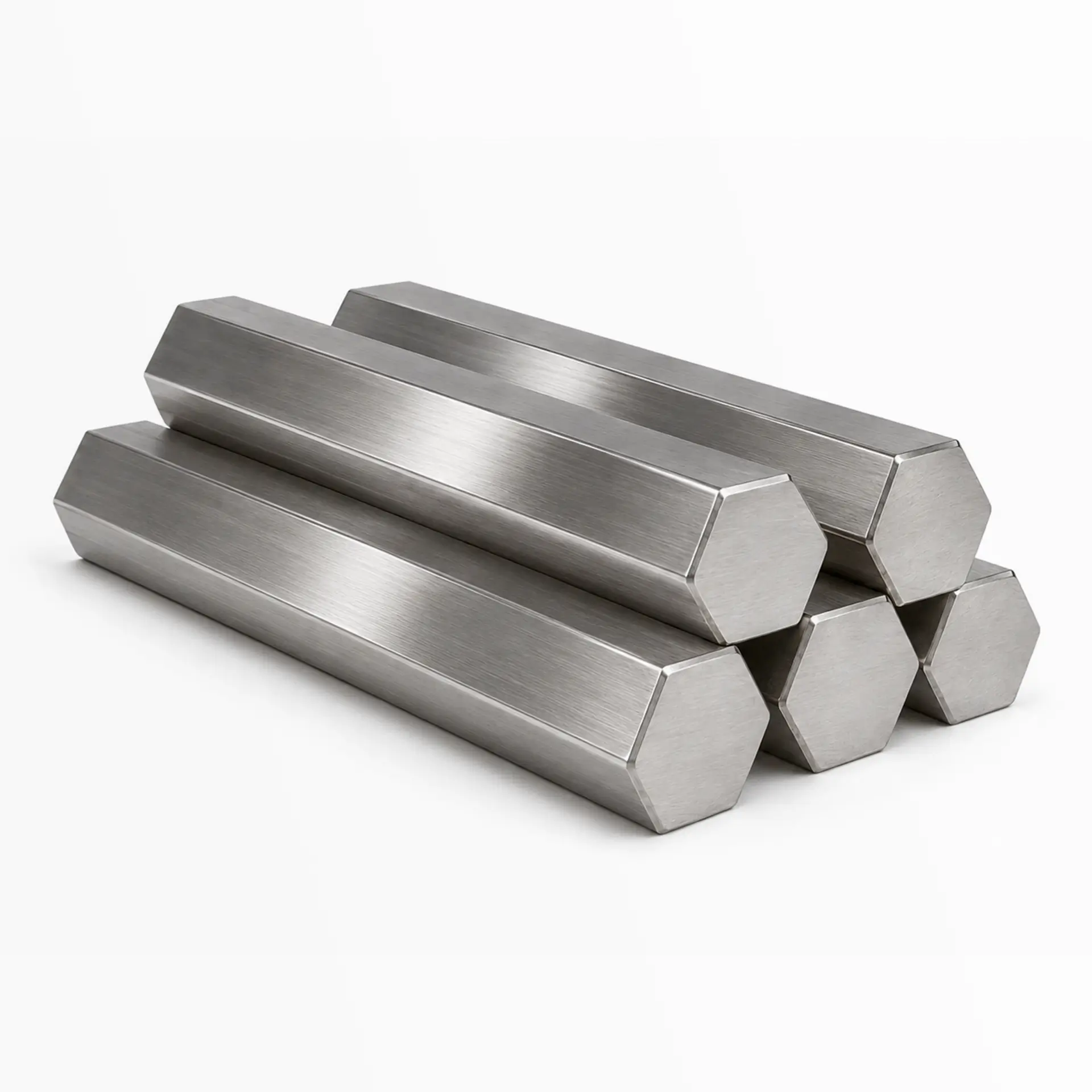

Nickel Alloy Hexagon Bar
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy hexagon bar
Nickel Alloy Hexagon Bar Introduction
Hexagon Nickel Alloy Bar Overview
Nickel Alloy Hexagon Bar Overview
Nickel alloy coil tube is supplied in long, continuous lengths wound into compact coils for convenient handling, storage, and transportation. Compared with multiple sections of straight tubing, continuous coiled tubing reduces the number of intermediate connections and helps create a more consistent fluid path. The coil format also allows the required length to be cut or formed during subsequent processing while minimizing material waste.
Arialloy provides nickel alloy coil tubing in a broad selection of alloy grades, outside diameters, wall thicknesses, continuous lengths, coil diameters, and surface conditions. Depending on the chosen grade, the tubing can offer different combinations of corrosion resistance, strength, ductility, and temperature stability. Straight ends, specific coil dimensions, and customized packaging can also be supplied according to project and purchasing requirements.
Manufacturing may include tube forming, cold drawing, intermediate annealing, solution heat treatment, pickling, surface finishing, and controlled coiling. During winding, the tube is carefully guided to limit flattening, twisting, and surface damage while maintaining dimensional consistency throughout its length. Appropriate heat treatment and forming control also help preserve the required mechanical properties and flexibility.
Each nickel alloy coil tube is checked for outside diameter, wall thickness, ovality, surface condition, and coil dimensions. Non-destructive testing, pressure testing, and additional inspections can be arranged according to the applicable standard or customer specification. Arialloy supplies traceable nickel alloy coil tubing with verified material properties and complete quality documentation. Contact us with your required grade, tube dimensions, continuous length, coil size, and testing requirements.
Nickel Alloy Hexagon Bar Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B160
ASTM B164
ASTM B166
ASTM B408
ASTM B425
ASTM B446
ASTM B472
ASTM B473
ASTM B484
ASTM B484M
ASTM B511
ASTM B512
ASTM B638
ASTM B638M
ASTM B649
ASTM B691
ASTM B805
Nickel Alloy Hexagon Bar Applications
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
FASTENERS & MACHINING
Hex nuts, bolts, threaded fittings, plugs, glands, bushings, connector bodies, valve parts, and precision screw machine products.OIL & GAS EXTRACTION
Instrumentation fittings, valve stems and trim, wellhead fasteners, sensor bodies, pressure connectors, downhole tool parts, hydraulic fittings, and sour service plugs.CHEMICAL PROCESSING
Compression fittings, valve and pump parts, metering nozzles, packing glands, corrosive service fasteners, instrument connectors, sampling fittings, and threaded inserts.MARINE
Marine fasteners, hydraulic fittings, valve components, propeller shaft nuts, cable connectors, seawater pump hardware, deck fittings, and threaded corrosion resistant parts.AEROSPACE
High temperature nuts and bolts, fluid system fittings, engine hardware, actuator components, sensor housings, threaded inserts, control connectors, and precision fasteners.POWER & NUCLEAR
Valve stem nuts, instrument fittings, turbine fasteners, nuclear grade bolting, sensor housings, steam system plugs, pump components, and generator hardware.ELECTRONICS & INSTRUMENTATION
Connector bodies, threaded sensor housings, terminal hardware, precision fittings, relay components, vacuum system connectors, measurement device parts, and electrical fasteners.Available Grades
Available Grades for Nickel Alloy Hexagon Bar
Explore the full range of nickel alloy hexagon bar grades to expand your material choices and ensure you find the perfect nickel alloy
Nickel Alloy Hexagon Bar SHOW

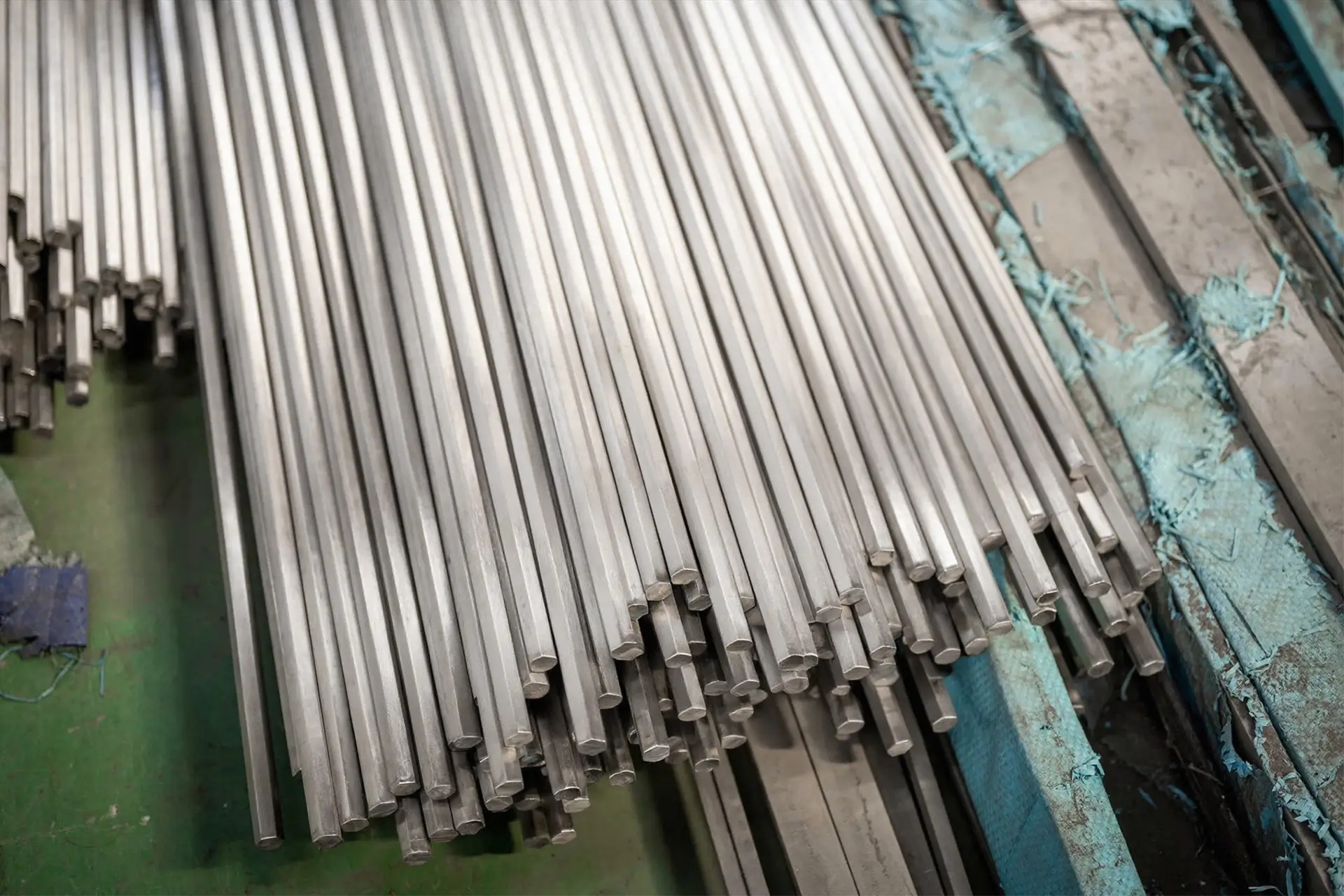

Supplying Nickel Alloy Hexagon Bar
From initial samples to large scale production, we supply high quality nickel alloy hexagon bar and help you achieve your manufacturing goals.
Manufacturing Process
Nickel Alloy Hexagon Bar Manufacturing Process
The production process for Arialloy nickel alloy hexagon bar ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.
Steel Making
Ingot Casting
Ingot
Heating
Continuous Hot Rolling
Square Billet
Heat Treatment
Hot Rolling
Hexagon Bar
Cooling
Cold Drawing
Straightening
Polishing
Inspection
Analytic
Marking
Packing & Shipping
Customized Dimensions
Nickel Alloy Hexagon Bar Customization Scope
-
Dimensions
3-180 mm
-
Delivery State
Cold Drawn, Hot Rolled, Grinding, Forged, Centerless Grinding
-
Finish
Polished, Bright, Hairline, Grinded, Sandblast, Pickled, Mill Finish
Formula: m = D (mm) × D (mm) × L (m) × ρ (g/cm³) × 0.866 ÷ 1000
D = Diameter between two adjacent side width, L = Length, ρ = Density
Data Sheet
Nickel Alloy Hexagon Bar Data Sheet
Access the nickel alloy hexagon bar data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project
Tolerance
| Cold Drawn | |||
|---|---|---|---|
| Specified Dimension, in. (mm) | Permissible Variations from Specified Size, in. (mm) | ||
| Over | Under | ||
| Over 1/2(12.70) to 1(25.40), incl | 0 | 0.004(0.10) | |
| Over 1(25.40) to 2(50.80), incl | 0 | 0.006(0.15) | |
| Over 2(50.80) to 3(76.20), incl | 0 | 0.008(0.20) | |
| Over 3(76.20) | 0 | 0.010(0.25) | |
| Hot Rolled | |||
| Specified Sizes Measured Between Opposite Sides, in. (mm) | Permissible Variations from Specified Size, in. (mm) | Maximum Difference in 3 Measurements for Hexagons, in. (mm) | |
| Over | Under | ||
| 1/4(6.35) to 1/2(12.70), incl | 0.007(0.18) | 0.007(0.18) | 0.011(0.28) |
| Over 1/2(12.70) to 1(25.40), incl | 0.010(0.25) | 0.010(0.25) | 0.015(0.38) |
| Over 1(25.40) to 1 1/2(38.10), incl | 0.021(0.53) | 0.021(0.53) | 0.025(0.64) |
| Over 1 1/2(38.10) to 2(50.80), incl | 1/32(0.79) | 1/32(0.79) | 1/32(0.79) |
| Over 2(50.80) to 2 1/2(63.50), incl | 3/64(1.19) | 3/64(1.19) | 3/64(1.19) |
| Over 2 1/2(63.50) to 3 1/2(88.90), incl | 1/16(1.59) | 1/16(1.59) | 1/16(1.59) |
Delivery State
| Delivery State Choice | Surface Condition |
|---|---|
| Hot Rolled | Pickled |
| Sand Blasted | |
| Cold Drawn | Polished |
| Bright | |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. | |
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Nickel Alloy Hexagon Bar Quotation Process
From detailed consultation to final delivery, we make custom nickel alloy hexagon bar orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Nickel Alloy Hexagon Bar FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Yes. We can manufacture nickel alloy hexagon bar with rounded edges to match the required specification.
The standard minimum order quantity for nickel alloy hexagon bar is 500 kg. Larger volumes generally qualify for more favorable pricing.
The estimated production lead time for nickel alloy hexagon bar is about 45 days. Special grades, nonstandard dimensions, large quantities, or additional testing can extend the schedule.
Yes. Nickel alloy hexagon bar samples can be provided for evaluation when suitable material is available. Availability depends on suitable stock or preliminary material.
Yes. Buyers may send engineers or representatives to inspect nickel alloy hexagon bar at our factory. The visit date, inspection scope, participants, and required records should be agreed in advance.
Inspection of nickel alloy hexagon bar covers raw-material selection, production-stage checks, final inspection, and packing review. Only material that meets the approved specification and required results is released for shipment.
Standard export packing for nickel alloy hexagon bar follows this arrangement: bars are bundled and protected from moisture, with wooden cases or pallet support available for the confirmed length and weight. The packing plan also considers dimensions, unit weight, surface protection, and transport conditions.
The governing standard for nickel alloy hexagon bar is the standard and edition confirmed in the quotation and purchase order. The quotation and purchase order identify the governing standard and its edition.
