Incoloy 945X
UNS N09946
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with incoloy 945x tubes / wires / bars
Incoloy 945X Material Properties
UNS N09946 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of incoloy 945x for optimal resistance, strength, and stability
Incoloy 945X Chemical Composition
Incoloy 945X Material Properties Overview
As a leading supplier and manufacturer in China, Arialloy supplies cost effective incoloy 945X products.
Incoloy 945X (UNS N09946) is an age hardenable nickel iron chromium alloy strengthened by additions of molybdenum, copper, niobium, titanium and aluminum. Its composition combines strong corrosion resistance with very high mechanical strength.
Nickel improves resistance to chloride induced stress corrosion cracking, while molybdenum and copper enhance resistance in reducing media and molybdenum supports resistance to pitting and crevice corrosion. Chromium improves resistance to oxidizing environments. Niobium, titanium and aluminum promote finely distributed gamma prime and gamma double prime precipitates during age hardening, producing high yield strength, tensile strength, hardness and fatigue resistance while retaining useful ductility and impact toughness. In the solution annealed and aged condition, the alloy provides a minimum yield strength of about 140 ksi (965 MPa) and a minimum tensile strength of about 165 ksi (1138 MPa). It also retains a large proportion of its room temperature strength at moderately elevated temperatures and maintains good fracture toughness and cyclic performance.
Arialloy recommends incoloy 945X to buyers prioritizing very high strength, strong corrosion resistance and dependable mechanical stability across a broad temperature range.
Incoloy 945X Corrosion Resistance
Incoloy 945X provides strong resistance to chloride induced stress corrosion cracking, sulfide stress cracking, general corrosion, pitting and crevice corrosion.
Its high nickel content improves resistance to chloride attack, while nickel, molybdenum and copper strengthen performance in reducing media. Chromium supports resistance in oxidizing environments, and molybdenum improves localized corrosion resistance. The alloy also maintains resistance in environments containing hydrogen sulfide, carbon dioxide and concentrated chlorides.
Incoloy 945X Mechanical Properties
Incoloy 945X is precipitation hardened by finely distributed gamma prime and gamma double prime phases formed from niobium, titanium and aluminum.
In the solution annealed and aged condition, minimum yield strength is about 140 ksi (965 MPa), minimum tensile strength is about 165 ksi (1138 MPa), and elongation reaches 18%. Commercial bar data show yield strengths around 992 to 1025 MPa and tensile strengths around 1224 to 1275 MPa, together with good ductility, impact toughness and fatigue resistance. Cold worked and aged material can reach substantially higher strength and hardness.
Incoloy 945X Temperature Characteristics
Incoloy 945X retains a large proportion of its room temperature strength through moderately elevated temperatures. Rod testing shows average yield strength factors of about 0.91 at 149°C, 0.90 at 204°C and 0.88 at 232°C, while tubing data remain around 0.91 at 288°C. Fracture toughness also remains high through 232°C, and low cycle fatigue data demonstrate stable cyclic strength at this temperature.
Its age hardened microstructure supports strength retention, while chromium contributes oxidation resistance. Thermal conductivity rises progressively with temperature, while elastic modulus decreases in a predictable manner.
Incoloy 945X Products
Nickel Alloy 945X Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 945x products tailored to each project’s needs
Incoloy 945X Data Sheet
Incoloy Alloy 945X Data Sheet
Access / download the incoloy 945x data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.2 | |
|---|---|---|---|
| lb/in.3 | 0.296 | ||
| Melting Range | °F | 2317 - 2510 | |
| °C | 1270 - 1377 | ||
| Electrical Resistivity | ohm circ mil/ft | 663 | |
| μΩ-m | 1.10 | ||
| Permeability at 200 oersted (15.9 kA/m) | 1.003 | ||
| Young’s Modulus (70°F) | 103 ksi | 29.1 | |
| GPa | 200.8 | ||
Mechanical Properties
| Typical mechanical properties of annealed and aged round bar of INCOLOY alloy 945X. Impact strength was determined at -75ºF. Impact strength for bar 3.5 inch diameter and larger were determined in the transverse orientation. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rod Size | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | Reduction of Area | Impact Strength | Hardness | Grain Size | ||||
| in | mm | ksi | MPa | ksi | MPa | % | % | ft•lb | joules | Rc | ASTM # |
| 1.0 | 25 | 143.8 | 992 | 182.8 | 1260 | 29.9 | 56.0 | 94 | 128 | 42 | 3.5 |
| 2.0 | 51 | 146.6 | 1010 | 184.9 | 1275 | 29.9 | 51.0 | 95 | 136 | 40.5 | 3.5 |
| 3.5 | 89 | 146.2 | 1008 | 177.6 | 1224 | 30.6 | 53.7 | 65 | 88 | 40.5 | 3.5 |
| 6.0 | 152 | 148.6 | 1025 | 179.6 | 1238 | 27.1 | 50.1 | 75 | 102 | 40 | 3 |
| 8.5 | 305 | 146.6 | 1011 | 179.5 | 1238 | 29.0 | 51.2 | 103 | 139.8 | 40.5 | 2.5 |
Incoloy 945X Standards
UNS N09946 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
AWS A5.14 ERNiFeCr-3

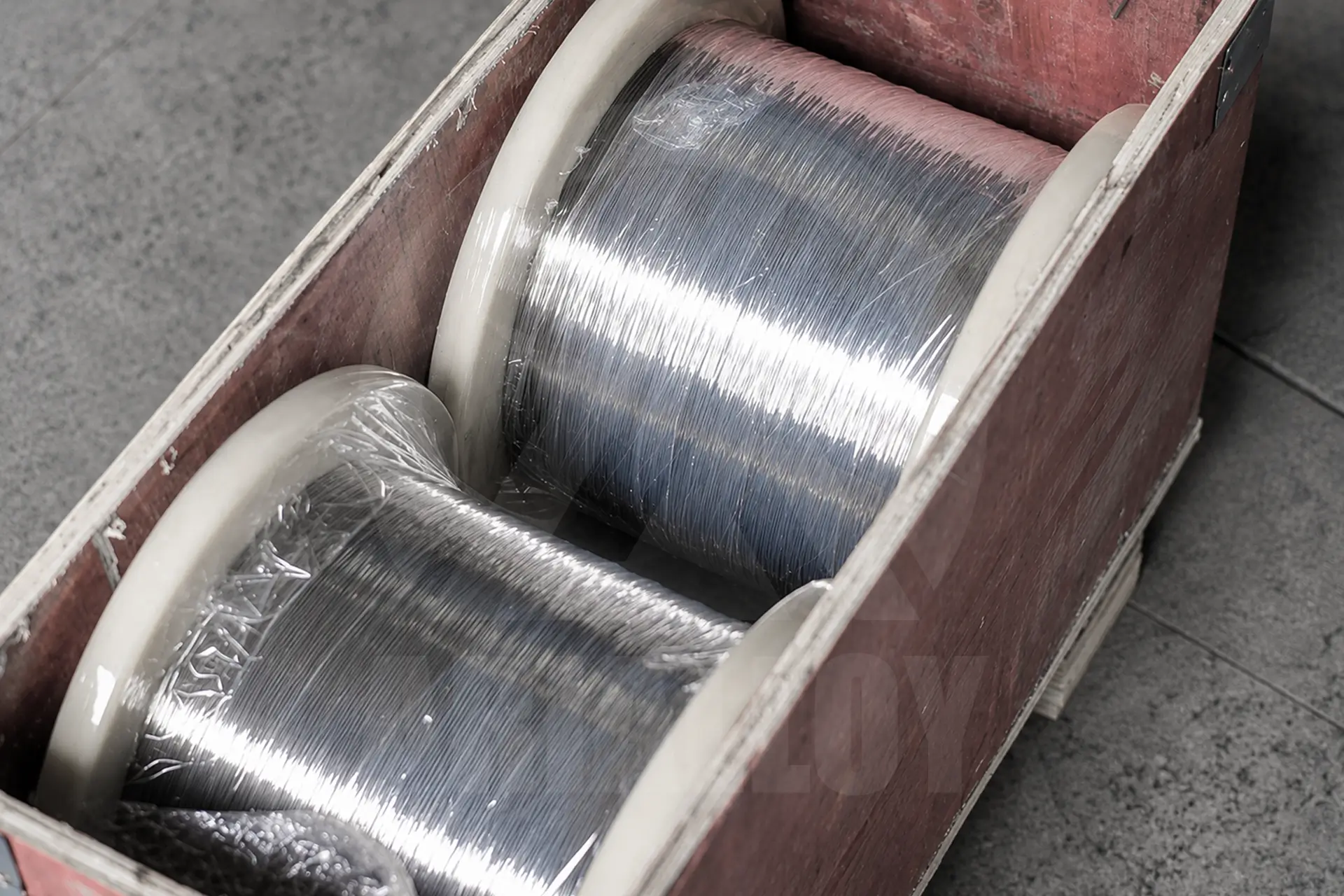

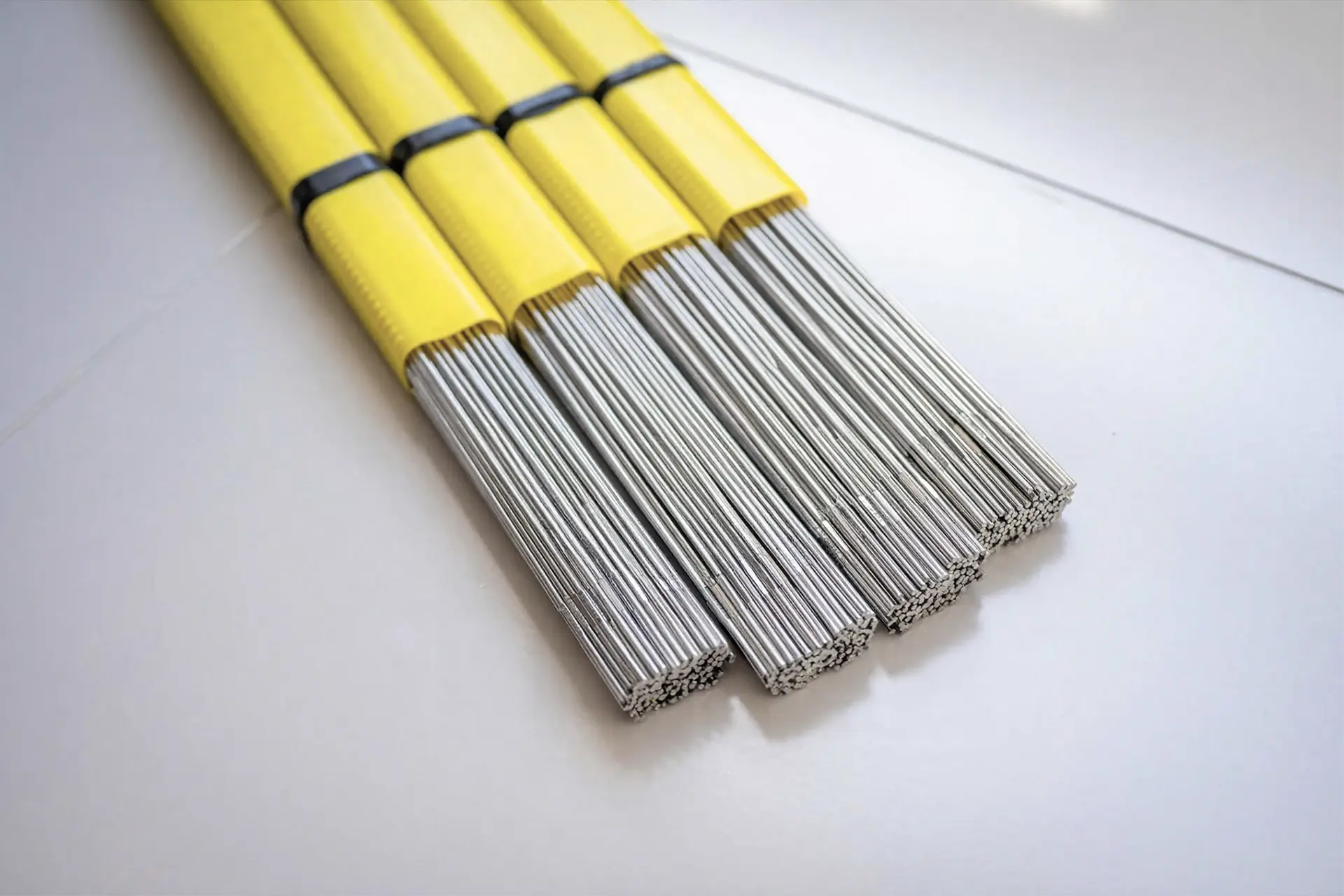

Filler Metal
Incoloy 945X SHOW
Nickel Alloy 945X Showcase
From initial samples to large scale production, we supply high quality incoloy 945x products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Incoloy 945X Quotation Process
From detailed consultation to final delivery, we make custom incoloy 945x product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Incoloy 945X Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy incoloy alloy 945x manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Incoloy 945X Applications
UNS N09946 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Incoloy 945X Knowledge
Nickel Alloy 945X Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Incoloy Grades
Incoloy Alloy Grades
Explore the full range of incoloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Incoloy 945X FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
For your incoloy 945x purchase, send your specifications to sales@arialloy.com or fill out the inquiry form below. Our sales team will provide a quotation based on your requirements. Once you confirm the offer, send us your PO. We will prepare the PI for payment and start manufacturing after receipt of the prepayment. We will notify you when your materials are completed.
Incoloy 945X quotation requests are normally handled within 24 hours. If the information supplied is insufficient for us to prepare an offer, or if we cannot quote the request, we will contact you promptly.
Under our standard FOB pricing, the incoloy 945x buyer normally appoints the freight forwarder. We will cooperate with the nominated forwarder to complete the local procedures associated with the shipment. If you would like us to handle transportation instead, we can arrange it and confirm the additional cost.
Since the alloy is made from a combination of metals, its price is affected by the cost of those metals. Nickel, iron, chromium, molybdenum, and copper are important contributors to superalloy pricing, so changes in their market values can cause the alloy price to fluctuate.
We perform incoloy 945x smelting ourselves and have the equipment to support different production volumes. Our factory operates more than 30 vacuum smelting and electroslag remelting furnaces in 50 kg, 200 kg, 1,000 kg, and 5,000 kg capacities. This flexibility enables us to work with smaller MOQs.
Certainly. The pre shipment MTR for incoloy 945x contains the essential material and testing information required for verification, including the applicable standard, chemical composition, mechanical properties, dimensions, and heat number.
Our production controls for incoloy 945x include strict management of material proportions and chemical composition analysis during smelting. Once completed, the material undergoes PMI testing, and third-party laboratory analysis can be arranged for further confirmation.
