Hastelloy C-276
UNS N10276 / W.Nr. 2.4819
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with hastelloy c276 tubes / sheets / wires / bars / fittings
Hastelloy C-276 Material Properties
UNS N10276 / W.Nr. 2.4819 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of hastelloy c276 for optimal resistance, strength, and stability
Hastelloy C276 Chemical Composition
Hastelloy C-276 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies competitively priced hastelloy C276 products.
Hastelloy C276 (UNS N10276 / W.Nr. 2.4819) is an austenitic nickel alloy containing chromium, molybdenum and tungsten. Its nominal composition includes approximately 16% chromium, 16% molybdenum and 4% tungsten, providing broad resistance to aggressive aqueous environments. Chromium contributes resistance to oxidizing media, while molybdenum supports resistance to reducing acids and localized corrosion. Tungsten further improves resistance to attack in chloride solutions. Very low carbon and silicon contents reduce the formation of harmful precipitates during welding, helping preserve corrosion resistance in the surrounding base metal. The alloy combines these chemical characteristics with good ductility and weldability, allowing fabrication in the solution annealed condition while retaining a useful balance of strength and resistance to corrosion.
The alloy can be joined using common arc welding processes and suitable filler metals of matching composition. Careful heat input management and clean joint surfaces help maintain weld quality. Heat treatment after welding is generally unnecessary for most corrosive environments, although severe forming or particular service conditions may require solution annealing to restore optimum properties.
Hastelloy C276 Corrosion Resistance
Hastelloy C276 provides strong resistance to general corrosion, pitting, crevice corrosion and stress corrosion cracking caused by chlorides. Its low carbon content helps limit carbide precipitation during welding, preserving resistance to intergranular attack near welded joints.
The alloy resists many hydrochloric, sulfuric, phosphoric and organic acid solutions, as well as wet chlorine and hypochlorite media. Performance depends on temperature, concentration and oxidizing contaminants. Strongly oxidizing conditions, particularly hot concentrated nitric acid, require separate evaluation because resistance is less favorable than in many reducing acid environments.
Hastelloy C-276 Mechanical Properties
In the solution annealed condition, hastelloy C276 combines tensile strength with high ductility. Typical room temperature results for 25.4 mm plate include a tensile strength of 785 MPa, a 0.2% offset yield strength of 365 MPa and 59% elongation. Cold working increases strength and hardness while reducing ductility. This behavior increases subsequent forming loads.
These figures represent typical test results, rather than guaranteed minimum values. Acceptance requirements depend on the applicable product specification, dimensions and delivery condition.
Hastelloy C276 Temperature Characteristics
Hastelloy C276 retains useful ductility as temperature rises, although tensile strength and elastic modulus decrease. Prolonged exposure between approximately 600°C and 1100°C can promote intermetallic precipitation and grain boundary carbides, reducing corrosion resistance. Solution annealing at approximately 1121°C followed by rapid cooling helps restore the appropriate metallurgical condition.
Its melting range is approximately 1323°C to 1371°C, but this does not define a permissible operating temperature. Temperature limits must account for the corrosive medium, exposure duration, mechanical loading and the condition of the material.
Hastelloy C-276 Products
Nickel Alloy C276 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy c-276 products tailored to each project’s needs
Hastelloy C276 Data Sheet
Hastelloy Alloy C-276 Data Sheet
Access / download the hastelloy c276 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.89 | |
|---|---|---|---|
| lb/in.3 | 0.321 | ||
| Melting Range | °F | 2415 - 2500 | |
| °C | 1323 - 1371 | ||
| Poisson’s Ratio | 0.31 | ||
| Magnetic Permeability | 200 oersted | 1.0002 | |
| 15.9 kA/m | 1.0002 | ||
Mechanical Properties
| Form | Test Temperature | Thickness | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | ||||
|---|---|---|---|---|---|---|---|---|---|
| °F | °C | in | mm | ksi | MPa | ksi | MPa | % | |
| Sheet | RT | RT | 0.078 | 2 | 51.6 | 356 | 114.9 | 792 | 61 |
| Sheet | 400 | 204 | 0.078 | 2 | 42 | 290 | 100.6 | 694 | 59 |
| Sheet | 600 | 316 | 0.078 | 2 | 35.9 | 248 | 98.8 | 681 | 68 |
| Sheet | 800 | 427 | 0.078 | 2 | 32.7 | 225 | 94.3 | 650 | 67 |
| Sheet | 400 | 204 | 0.094 | 2.4 | 39.9 | 275 | 101 | 696 | 58 |
| Sheet | 600 | 316 | 0.094 | 2.4 | 33.5 | 231 | 97.6 | 673 | 64 |
| Sheet | 800 | 427 | 0.094 | 2.4 | 29.7 | 205 | 93.5 | 645 | 64 |
| Sheet | 400 | 204 | 0.063-0.187 | 1.6-4.7 | 42.1 | 290 | 100.8 | 695 | 56 |
| Sheet | 600 | 316 | 0.063-0.187 | 1.6-4.7 | 37.7 | 260 | 97 | 669 | 64 |
| Sheet | 800 | 427 | 0.063-0.187 | 1.6-4.7 | 34.8 | 240 | 95 | 655 | 65 |
| Sheet | 1000 | 538 | 0.063-0.187 | 1.6-4.7 | 33.8 | 233 | 88.9 | 613 | 60 |
| Plate | 400 | 204 | 0.188-1.0 | 4.8-25.4 | 38.2 | 263 | 98.9 | 682 | 61 |
| Plate | 600 | 316 | 0.188-1.0 | 4.8-25.4 | 34.1 | 235 | 94.3 | 650 | 66 |
| Plate | 800 | 427 | 0.188-1.0 | 4.8-25.4 | 32.7 | 225 | 91.5 | 631 | 60 |
| Plate | 1000 | 538 | 0.188-1.0 | 4.8-25.4 | 32.8 | 226 | 87.2 | 601 | 59 |
| Plate | RT | RT | 1 | 25.4 | 52.9 | 365 | 113.9 | 785 | 59 |
| Plate | 600 | 316 | 1 | 25.4 | 36.2 | 250 | 96.3 | 664 | 63 |
| Plate | 800 | 427 | 1 | 25.4 | 30.5 | 210 | 94.8 | 654 | 61 |
Hastelloy C-276 Standards
UNS N10276 / W.Nr. 2.4819 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B622
Seamless Pipe & Tube
ASTM B983
Seamless Pipe & Tube
ASTM B619
Welded Pipe
ASTM B626
Welded Tube
ASTM B366
Fittings
ASTM B462
Fittings
ASTM B574
Billet, Rod and Bar
ASTM B564
ASTM B462
Forgings
ASTM B575
Plate, Sheet and Strip
AWS A5.14 ERNiCrMo-4
Filler Metal
AWS A5.11 ENiCrMo-4
Welding Electrode
Hastelloy C276 SHOW
Nickel Alloy C-276 Showcase
From initial samples to large scale production, we supply high quality hastelloy c276 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Hastelloy C-276 Quotation Process
From detailed consultation to final delivery, we make custom hastelloy c276 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Hastelloy C-276 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy hastelloy alloy c276 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Hastelloy C276 Applications
UNS N10276 / W.Nr. 2.4819 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Hastelloy C-276 Knowledge
Nickel Alloy C276 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Hastelloy Grades
Hastelloy Alloy Grades
Explore the full range of hastelloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Hastelloy C276 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Start by sharing your hastelloy c276 requirements with us at sales@arialloy.com or through the form below. Our sales team will review the details and prepare a quotation. Once you approve the offer, send your PO. We will issue the PI for payment, then begin production after the prepayment is received. We will inform you when your material has been completed.
Our professional sales staff will generally send your hastelloy c276 pricing within 24 hours. If your inquiry is incomplete or the requested quotation is not possible, we will communicate with you promptly.
For hastelloy c276 quoted FOB, the buyer typically handles the choice of freight forwarder, while we support the forwarder with the local logistics work. If you would like a more convenient arrangement, we can also organize the shipment for you and check the applicable freight charges.
Alloy pricing naturally reflects changes in the cost of its metallic ingredients. Hastelloy C-276 and other superalloys contain valuable metals whose market prices can vary, with nickel, chromium, molybdenum, and tungsten being important factors behind changes in the final material cost.
We directly melt the hastelloy c276 alloy ourselves. Our manufacturing site has more than 30 vacuum smelting and electroslag remelting furnaces, with equipment suitable for both 50 kg and larger 5,000 kg batches. This scalable setup allows us to support customers with smaller MOQ requirements.
We provide the hastelloy c276 MTR before shipment, with the documentation prepared to the applicable industry standards. It contains material standard information together with chemical, mechanical, dimensional, and heat number data.

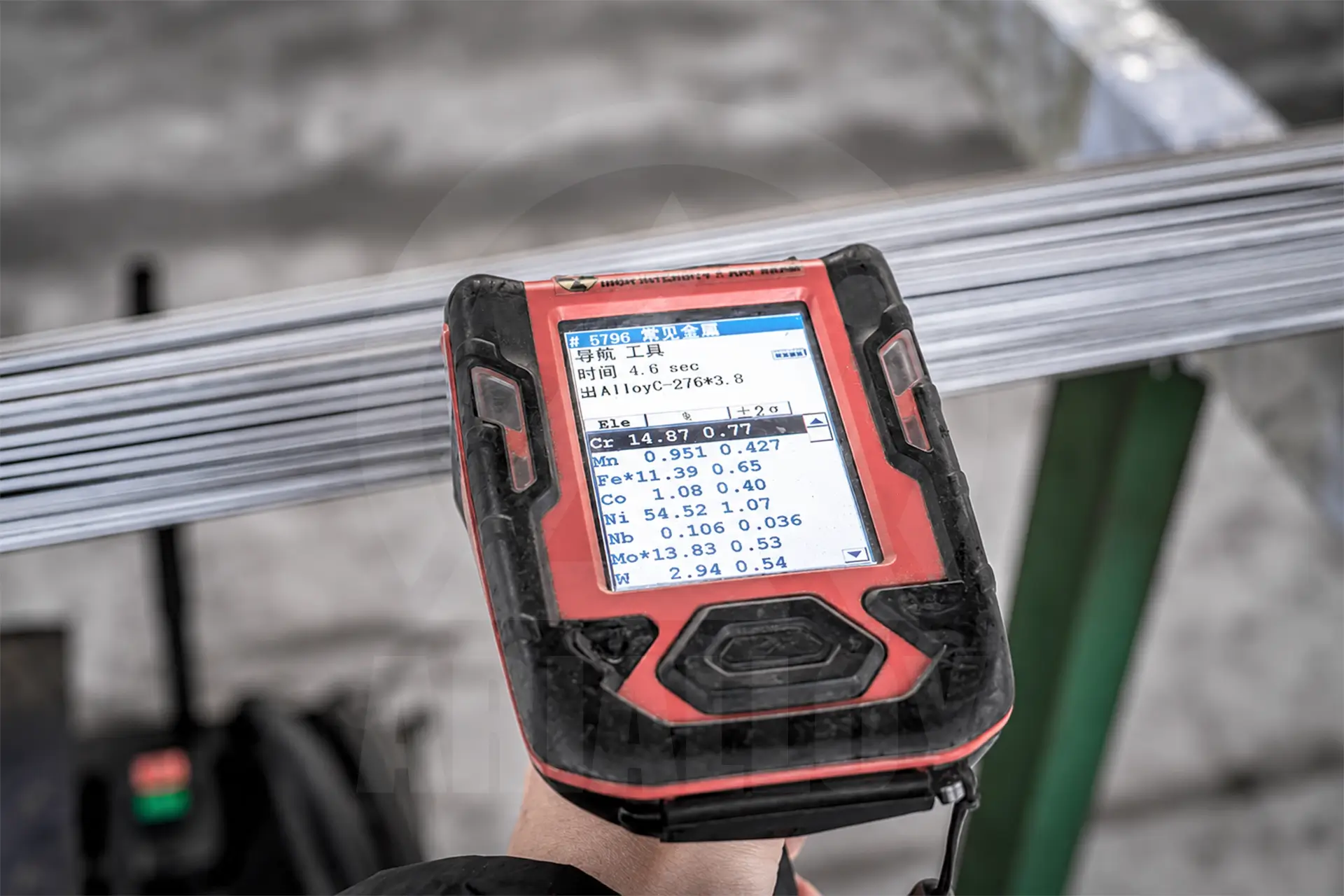

We carefully control the hastelloy c276 formulation during melting and use chemical analysis to monitor any changes in composition. After production, PMI testing is carried out, and independent laboratory analysis can be provided when requested.
