Monel 404
UNS N04404
Catalog

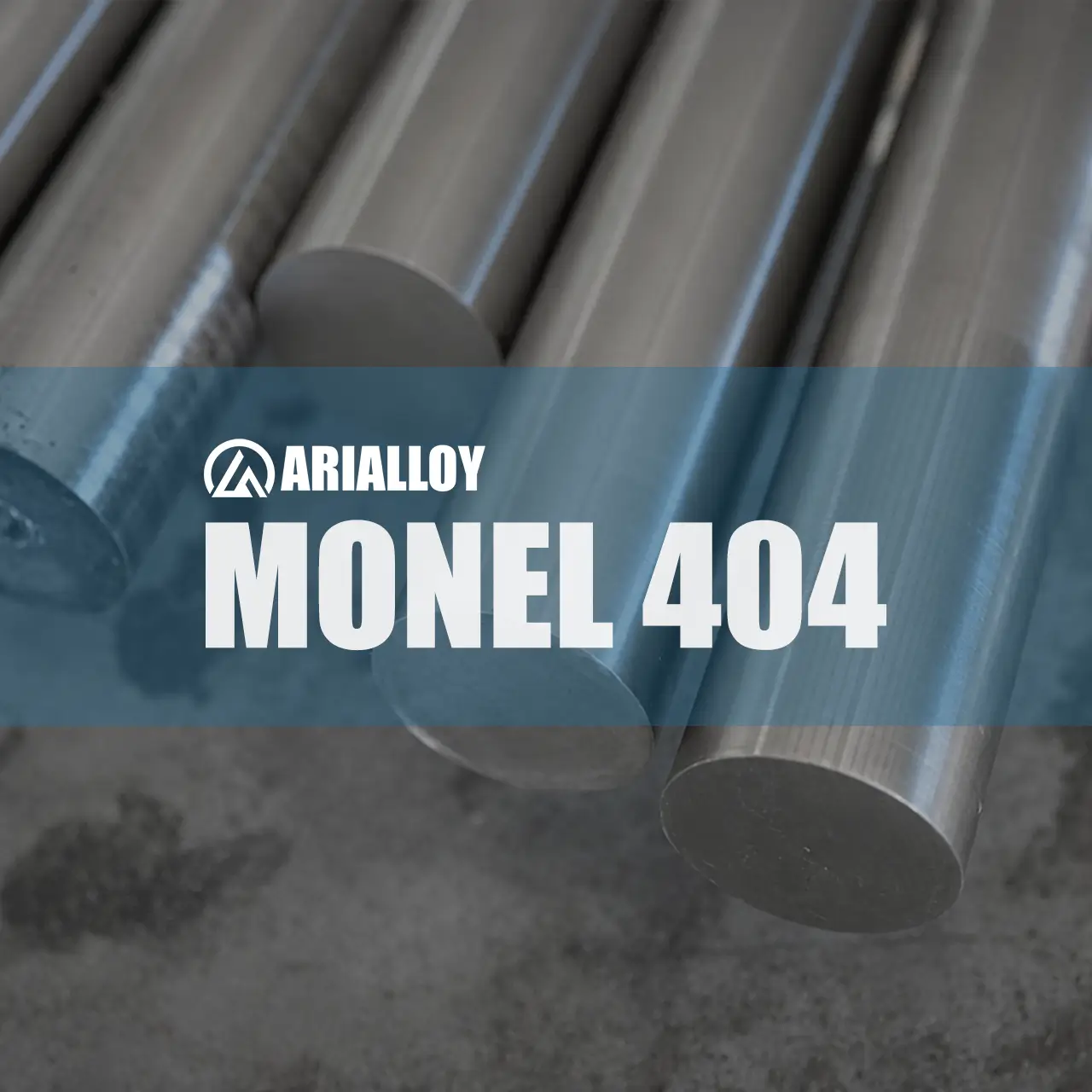

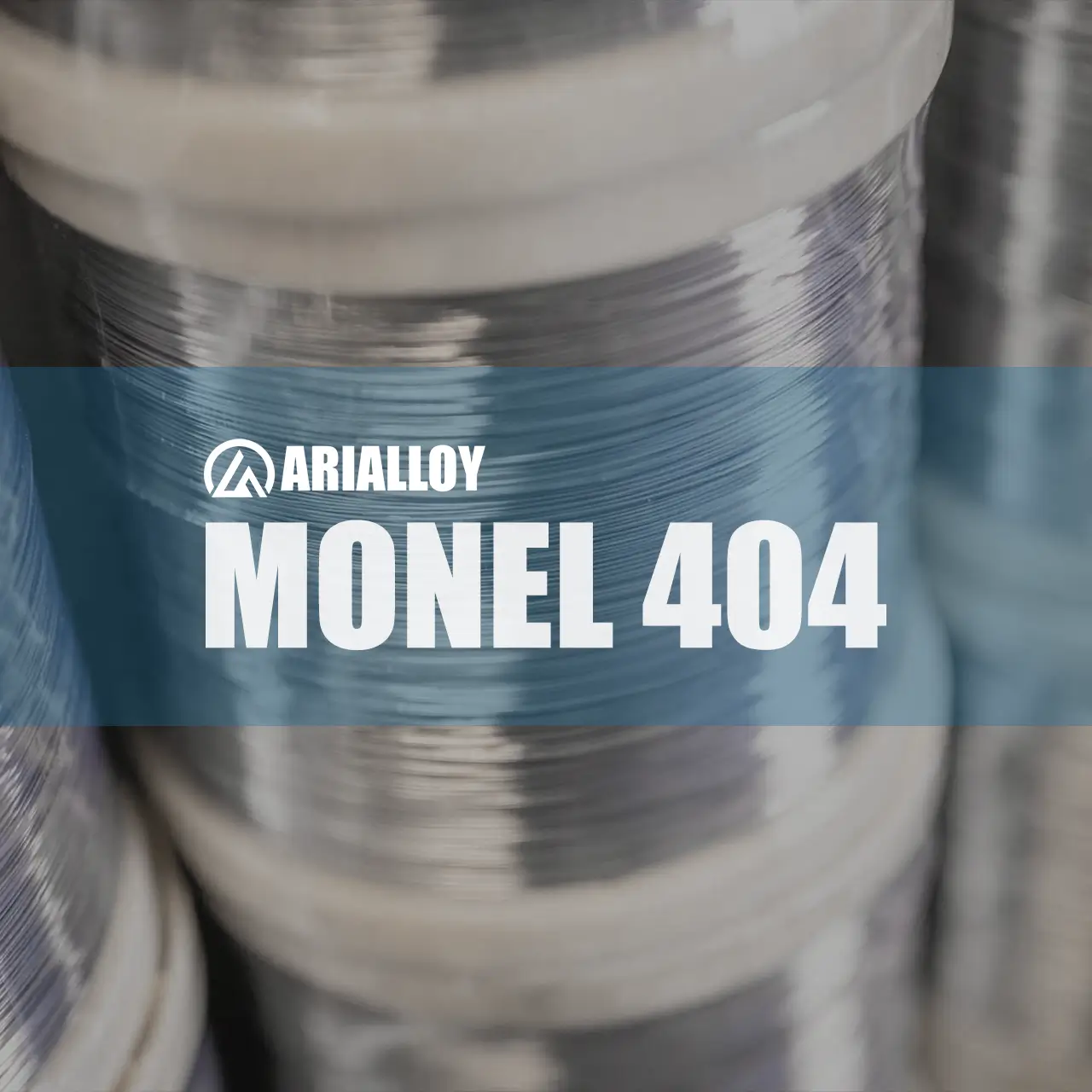

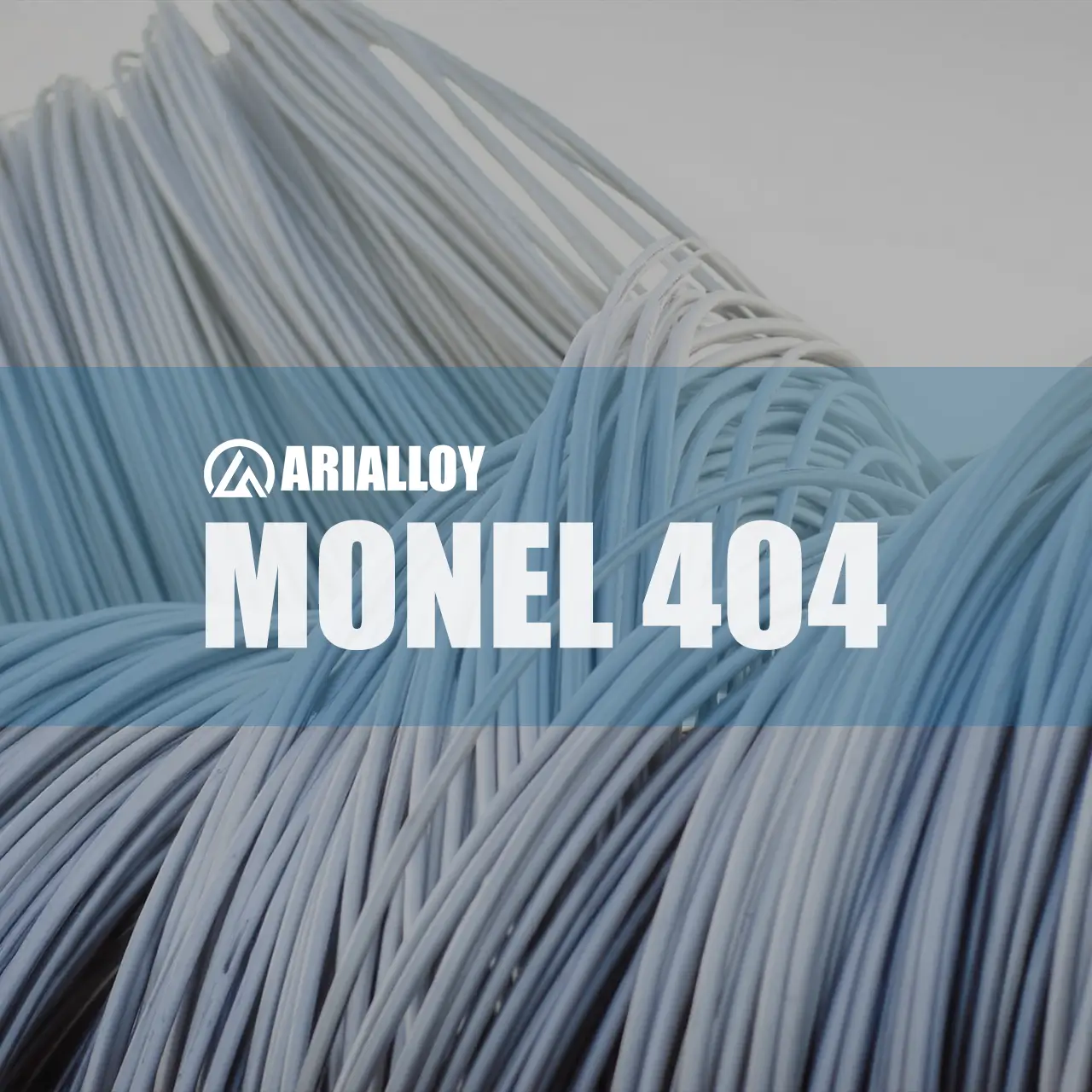

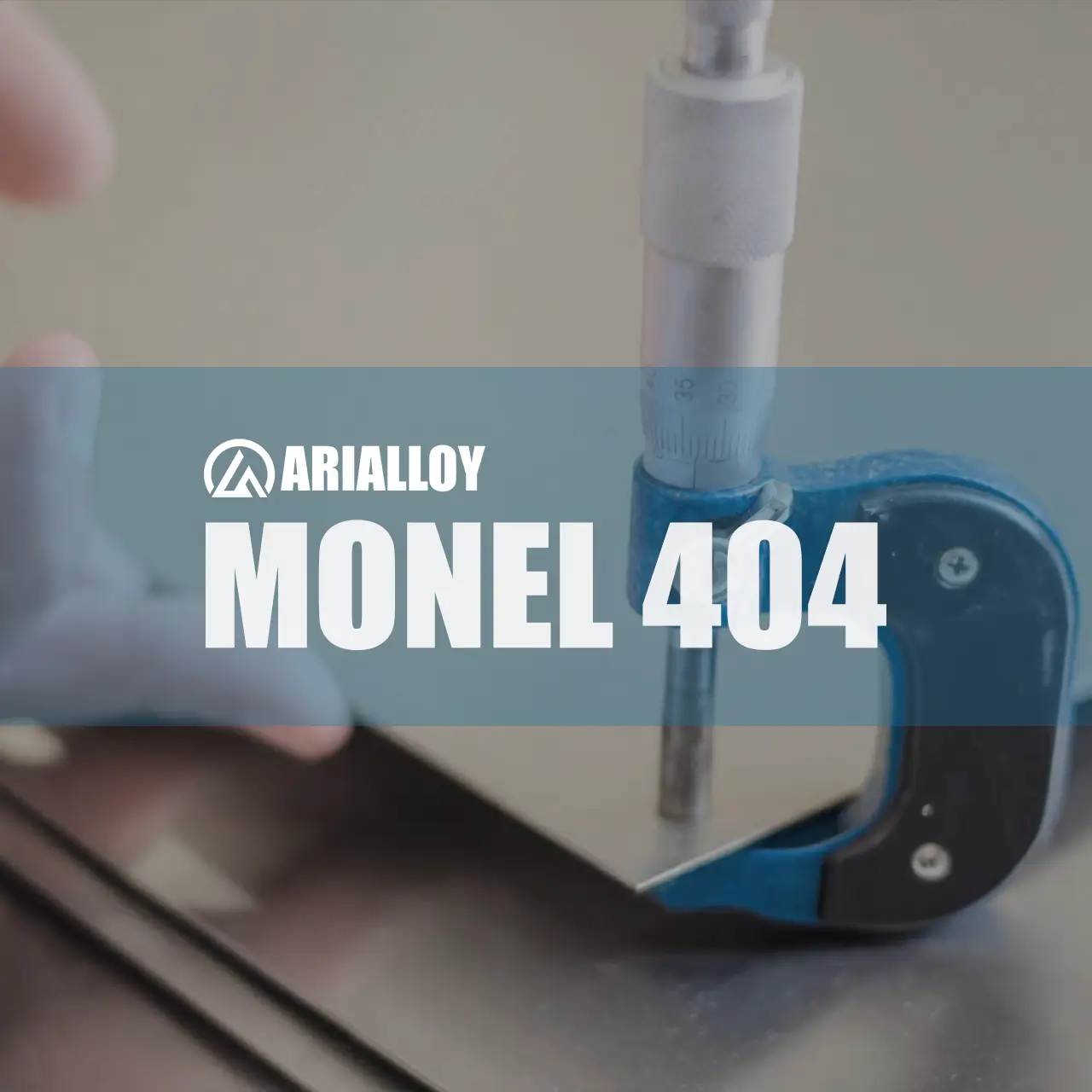

Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with monel 404 sheets / wires / bars
Monel 404 Material Properties
UNS N04404 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of monel 404 for optimal resistance, strength, and stability
Monel 404 Chemical Composition
Monel 404 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies competitively priced monel 404 products.
Monel 404 (UNS N04404) is a wrought nickel copper alloy combining low magnetic permeability, good ductility, and favorable brazing characteristics. It contains 52.0% to 57.0% nickel, including cobalt, with copper forming the balance. Iron is limited to 0.50%, while manganese and silicon are each limited to 0.10%. Aluminum, carbon, and sulfur have maximum contents of 0.05%, 0.15%, and 0.024%, respectively. This composition gives monel 404 a very low Curie temperature and a low magnetic response that is not significantly affected by processing and fabrication. Its relatively high copper content distinguishes it from monel 400, while the nickel copper base contributes useful strength, ductility, and resistance to a range of corrosive media.
Monel 404 responds to cold forming, drawing, and rolling, with strength and hardness increasing as deformation progresses. Annealing restores a softer condition and improves ductility for subsequent forming. Its good brazing behavior supports sound joints when surfaces, filler metal, and the heating atmosphere are properly prepared. Appropriate conventional welding procedures can also be used.
Monel 404 Corrosion Resistance
Monel 404 provides good resistance to seawater, fresh water, alkaline solutions, and certain reducing acids. Its nickel copper matrix supports resistance to hydrofluoric acid and selected sulfuric acid conditions. Actual corrosion rates depend on concentration, temperature, aeration, and impurities.
Resistance to one medium does not imply equivalent performance in mixed acids or strongly oxidizing solutions. Dissolved oxygen and oxidizing contaminants can change corrosion behavior, particularly in acidic environments. Assessment should therefore consider the complete solution chemistry, exposure temperature, flow conditions, and local surface conditions.
Monel 404 Mechanical Properties
Annealed monel 404 show tensile and yield strengths of approximately 70,000 psi (483 MPa) and 25,000 psi (172 MPa), respectively. Hard wire has corresponding values of approximately 110,000 psi (758 MPa) and 100,000 psi (689 MPa), illustrating the strengthening achieved through cold working.
Actual properties depend on product form, dimensions, processing condition, and thermal history. These figures provide a reference and do not replace the mechanical requirements specified for an individual order.
Monel 404 Temperature Characteristics
Monel 404 has a thermal conductivity of approximately 21 W/(m·K) and a specific heat capacity of 414 J/(kg·K) near room temperature. Its mean coefficient of thermal expansion increases from about 13.3 µm/(m·K) between 21°C and 93°C to 17.6 µm/(m·K) between 21°C and 816°C.
Heating can alter the strength obtained through cold working as recovery and recrystallization develop, depending on both the heating temperature and exposure time. The measured temperature intervals are reference ranges; permissible service temperatures require separate assessment of strength, exposure time, and atmosphere.
Monel 404 Products
Nickel Alloy 404 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 404 products tailored to each project’s needs
Monel 404 Data Sheet
Monel Alloy 404 Data Sheet
Access / download the monel 404 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Unit | Value |
|---|---|
| Density | |
| lb/in.^3 | 0.322 |
| g/cm^3 | 8.91 |
| Specific Heat | |
| Btu/lb•°F, at 70°F | 0.099 |
| J/kg•°C | 414 |
| Thermal Expansion, in./in./°F x 10^-6 | |
| 70°-200°F (21-93°C) | 7.4 |
| 70°-500°F (21-260°C) | 8.5 |
| 70°-1000°F (21-539°C) | 9.2 |
| 70°-1500°F (21-816°C) | 9.8 |
| Thermal Conductivity | |
| Btu•in/ft^2•h•°F | 133 |
| W/m•°C | 21 |
| Electrical Resistivity | |
| ohm•circ mil/ft, at 70°F | 294 |
| μΩ•m | 0.498 |
Monel 404 Standards
UNS N04404 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
Monel 404 SHOW
Nickel Alloy 404 Showcase
From initial samples to large scale production, we supply high quality monel 404 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Monel 404 Quotation Process
From detailed consultation to final delivery, we make custom monel 404 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Monel 404 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy monel alloy 404 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Monel 404 Applications
UNS N04404 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Monel 404 Knowledge
Nickel Alloy 404 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Monel Grades
Monel Alloy Grades
Explore the full range of monel alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Monel 404 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
You can start your monel 404 order by emailing sales@arialloy.com with your requirements or submitting an inquiry through the form below. Our sales team will send you a detailed quote for review. If the quotation meets your needs, send us your PO. We will issue a PI for payment and arrange production after receiving the prepayment. You will be informed as soon as the material is completed.
Monel 404 pricing is influenced considerably by the market prices of its constituent metals. Nickel, copper, and silicon and other metallic inputs contribute significantly to the material cost. As the prices of these raw materials rise or fall, the price of the alloy can change accordingly.
We aim to return monel 404 quotations within 24 hours of receiving an inquiry. If we need more information or cannot provide a quotation for your requirements, our sales team will inform you promptly.
Monel 404 is smelted directly at our own factory. We have over 30 vacuum smelting and electroslag remelting furnaces with capacities of 50, 200, 1,000, and 5,000 kg. This in-house production capability gives us the flexibility to accept lower minimum order quantities.
The standard monel 404 quotation we provide uses FOB terms. Normally, the customer is responsible for selecting a freight forwarder, and we assist the nominated forwarder with the local shipping work. Alternatively, we can manage the transportation ourselves if you would like a more hassle-free service and will quote the freight separately.
Certainly, an monel 404 material test report is provided before the material leaves our facility. It identifies the material standard, chemical composition, mechanical properties, dimensions, and heat number, confirming conformity with the specified requirements.
We control the charge ratios during monel 404 smelting and regularly analyze the chemistry to detect composition changes. After completion, PMI testing confirms the material, while external laboratory testing can be arranged for further validation.
