Incoloy 800H
UNS N08810 / W.Nr. 1.4958
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with incoloy 800h tubes / sheets / wires / bars / fittings
Incoloy 800H Material Properties
UNS N08810 / W.Nr. 1.4958 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of incoloy 800h for optimal resistance, strength, and stability
Incoloy 800H Chemical Composition
Incoloy 800H Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies incoloy 800H products at competitive prices.
Incoloy 800H (UNS N08810 / W.Nr. 1.4958) is an austenitic iron, nickel and chromium alloy combining resistance to high temperature corrosion with enhanced creep strength. Its composition contains 30.0 to 35.0% nickel and 19.0 to 23.0% chromium, with iron forming the balance. Nickel stabilizes the austenitic structure, while chromium supports a protective surface oxide. A carbon range of 0.05 to 0.10% distinguishes incoloy 800H from standard incoloy 800. Solution annealing produces an average grain size of ASTM No. 5 or coarser. Together, the specified carbon content and coarse grain structure improve resistance to creep deformation and stress rupture during extended exposure to elevated temperatures. Aluminum and titanium additions also influence precipitation behavior and mechanical stability during prolonged exposure to heat.
The alloy can be formed and welded using conventional methods suitable for austenitic alloys. Welding consumables should be selected according to service temperature and joint properties. Suitable options include inconel filler metal 82 for moderate temperature conditions and inconel filler metal 617 when greater strength at elevated temperatures is required.
Incoloy 800H Corrosion Resistance
Incoloy 800H resists oxidation, carburization and many nitriding atmospheres. Chromium promotes a protective oxide layer, while nickel helps maintain oxidation resistance during thermal cycling. The alloy also offers useful resistance to chloride stress corrosion cracking.
Exposure to approximately 540°C to 760°C can cause sensitization, increasing susceptibility to intergranular corrosion in certain aqueous environments. This is particularly relevant after welding or extended exposure to heat. Performance therefore depends on temperature, exposure history and medium composition, particularly when the material encounters corrosive condensates or aggressive cleaning solutions.
Incoloy 800H Mechanical Properties
Solution annealed incoloy 800H plate and bar can be supplied with room temperature tensile strength of 450 to 700 MPa, minimum 0.2% proof strength of 170 MPa, and minimum elongation of 30%, subject to specification and dimensional limits. Cold working increases strength and hardness while reducing ductility. The annealed structure also permits substantial deformation before intermediate annealing.
These values describe specified material conditions. Acceptance requirements must follow the ordered product standard, dimensions, heat treatment and test orientation.
Incoloy 800H Temperature Characteristics
Incoloy 800H offers improved creep and stress rupture strength above approximately 600°C compared with standard incoloy 800. A representative elevated temperature service range is 600°C to 950°C. Its austenitic structure provides good stability during prolonged thermal exposure, while carbon content and grain size support resistance to deformation under sustained loading. Permissible operating temperature depends on stress, exposure duration, atmosphere and applicable code requirements.
Oxidation test temperatures should not be interpreted as continuous load bearing limits, since oxidation resistance and creep resistance describe different performance characteristics.

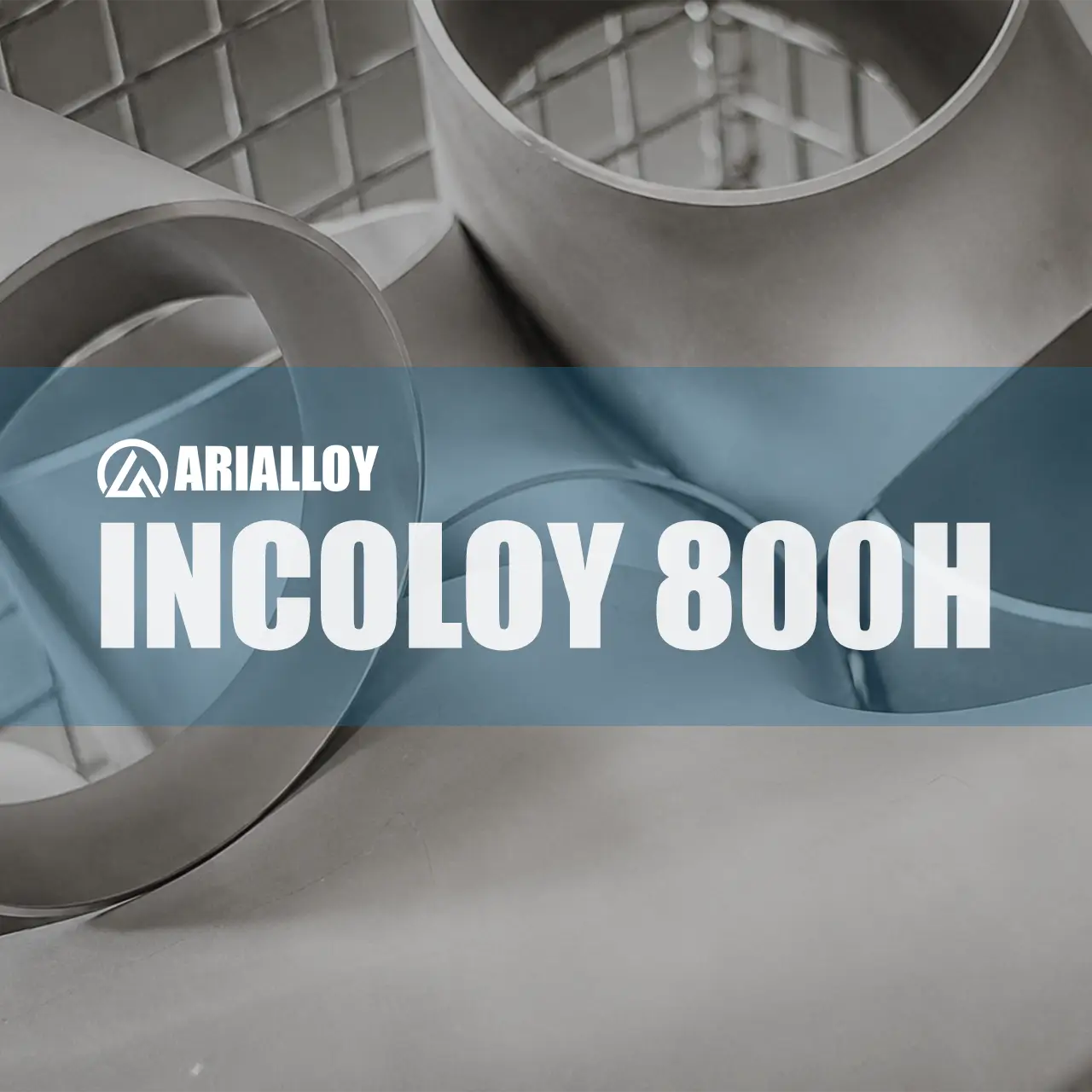

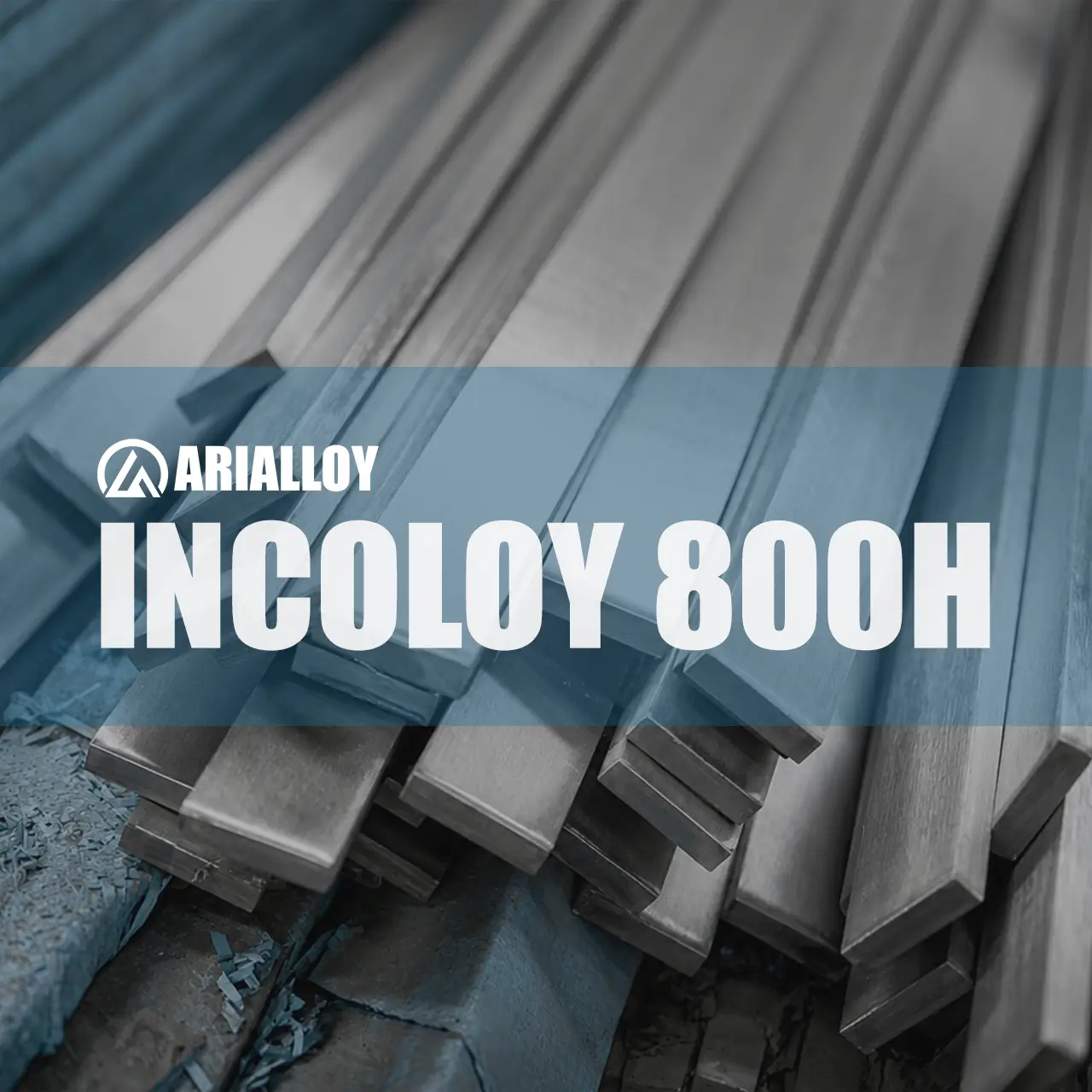

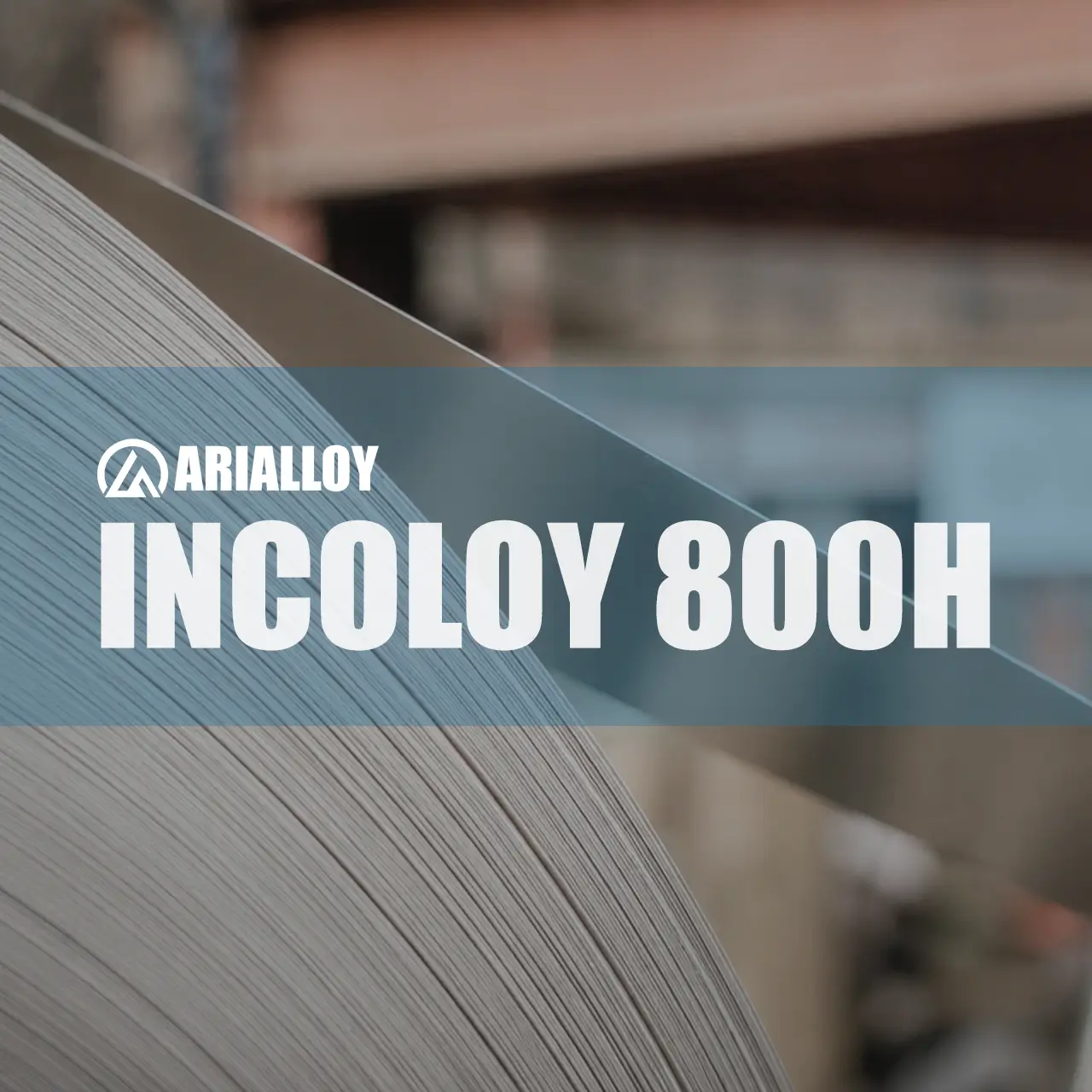

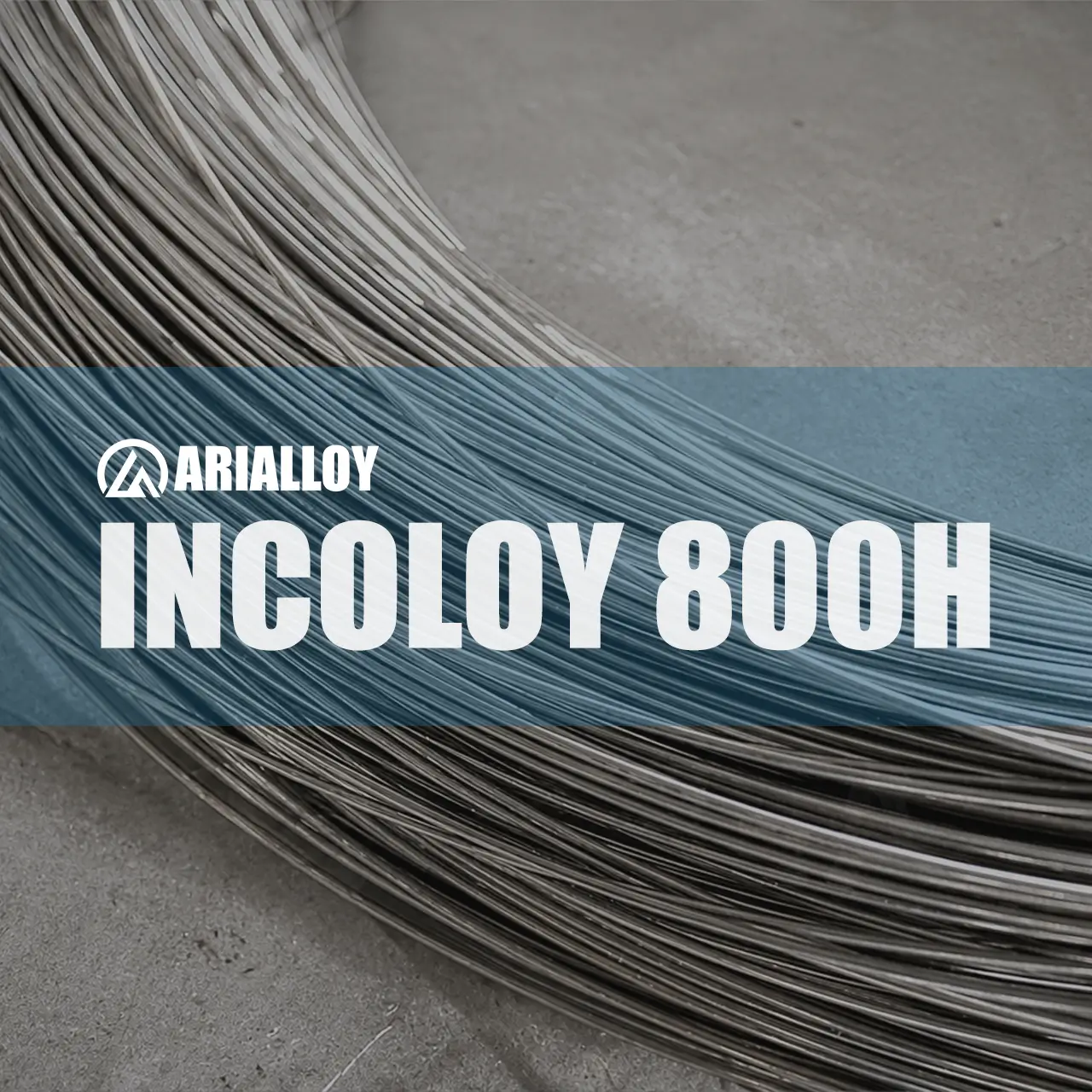

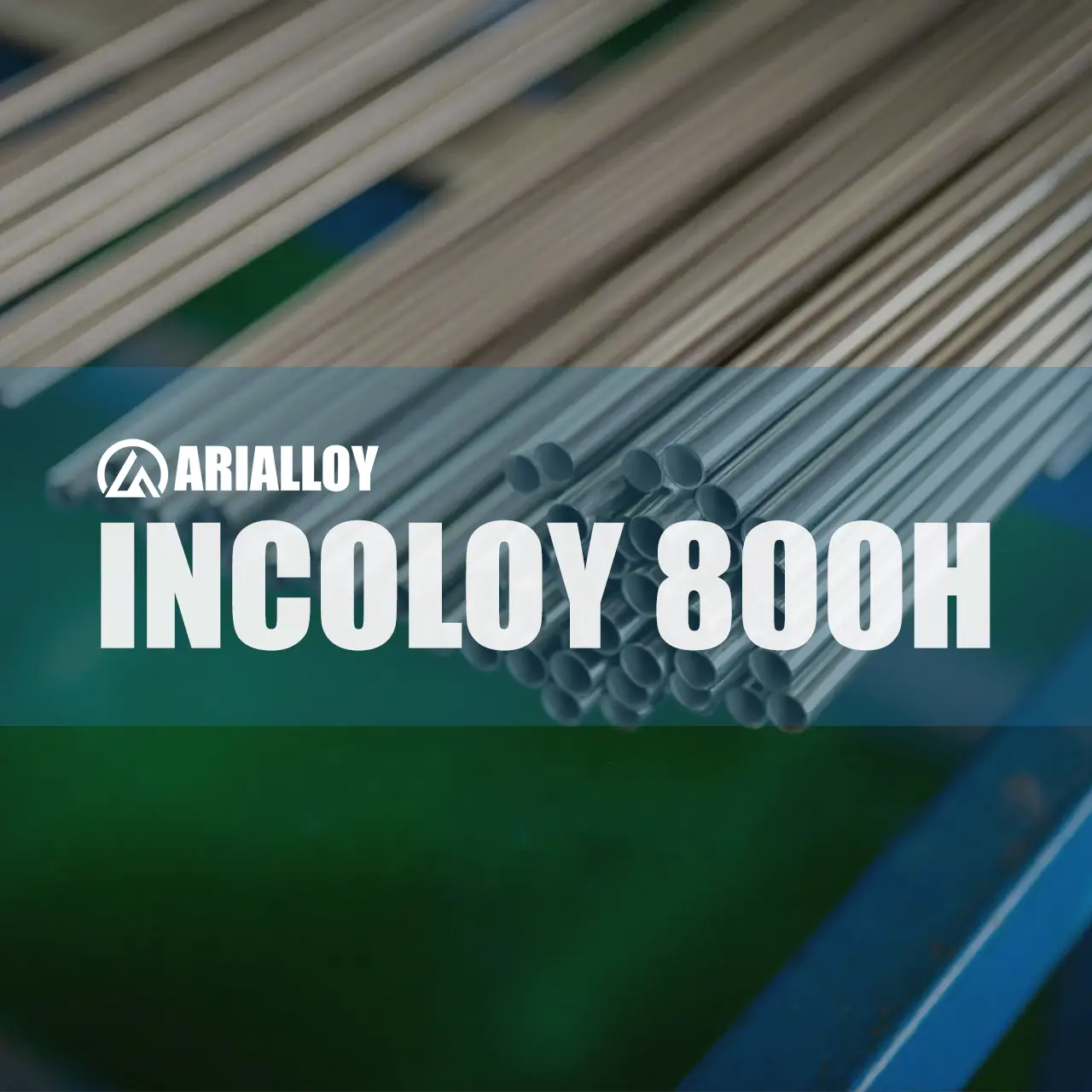

Incoloy 800H Products
Nickel Alloy 800H Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 800h products tailored to each project’s needs
Incoloy 800H Data Sheet
Incoloy Alloy 800H Data Sheet
Access / download the incoloy 800h data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 7.94 | |
|---|---|---|---|
| lb/in.3 | 0.287 | ||
| Melting Range | °F | 2475 - 2525 | |
| °C | 1357 - 1385 | ||
| Specific Heat | 32-212°F | Btu/lb•°F | 0.11 |
| 0-100°C | J/kg•°C | 460 | |
| Permeability at 70°F (21°C) and 200 oersted (15.9 kA/m) | Annealed | 1.014 | |
| Hot-Rolled | 1.009 | ||
| Curie Temperature | °F | -175 | |
| °C | -115 | ||
Mechanical Properties
| Temperature | Hardness BHN | Tensile Strength | Yield Strength (0.2% Offset) | |||
|---|---|---|---|---|---|---|
| °F | °C | ksi | MPa | ksi | MPa | |
| 80 | 27 | 126 | 77.8 | 536 | 21.7 | 150 |
| 800 | 425 | – | 67.5 | 465 | 18.8 | 130 |
| 1000 | 540 | 90 | 62.7 | 432 | 13.0 | 90 |
| 1200 | 650 | 84 | 54.8 | 378 | 13.5 | 93 |
| 1300 | 705 | 82 | 47.7 | 329 | 15.8 | 109 |
| 1400 | 760 | 74 | 34.2 | 236 | 13.1 | 90 |
Incoloy 800H Standards
UNS N08810 / W.Nr. 1.4958 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B163
Condensor and Heat Exchanger Tube
ASTM B407
Seamless Pipe & Tube
ASTM B829
Seamless Pipe & Tube
ASTM B514
Welded Pipe
ASTM B775
Welded Pipe
ASTM B515
Welded Tube
ASTM B751
Welded Tube
ASTM B366
Welded Fittings
ASTM B408
Rod and Bar
ASTM B564
Forgings
ASTM B409
Plate, Sheet and Strip
ASTM B906
Plate, Sheet and Strip
ASTM A240
Plate, Sheet and Strip
ASTM A480
Plate, Sheet and Strip
Incoloy 800H SHOW
Nickel Alloy 800H Showcase
From initial samples to large scale production, we supply high quality incoloy 800h products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Incoloy 800H Quotation Process
From detailed consultation to final delivery, we make custom incoloy 800h product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Incoloy 800H Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy incoloy alloy 800h manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Incoloy 800H Applications
UNS N08810 / W.Nr. 1.4958 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Incoloy 800H Knowledge
Nickel Alloy 800H Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Incoloy Grades
Incoloy Alloy Grades
Explore the full range of incoloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Incoloy 800H FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
The first step is to send us your incoloy 800h requirements through sales@arialloy.com or the form below. We will then send you a detailed quotation. If you decide to place the order, provide your PO and we will issue a PI for payment. Once the prepayment is received, we will start production and keep you informed when the material is completed.
Our quotation turnaround for incoloy 800h is normally within 24 hours. If we find that more information is needed or a quotation cannot be issued, our team will contact you promptly.
The normal arrangement for FOB incoloy 800h is that the customer selects the freight forwarder. After receiving the forwarder’s details, we cooperate with them on the local logistics procedures. If you prefer a more streamlined service, we can also organize transportation and provide a separate freight quotation.
Because the composition of an alloy involves several metals, changes in individual metal prices can affect the overall material cost. nickel, iron, and chromium are particularly important in superalloy pricing, making their market movements an important reason for alloy price changes.
We produce the incoloy 800h melt internally using our own furnace equipment. There are more than 30 vacuum smelting and electroslag remelting furnaces at our facility, with capacities from 50 kg to 5,000 kg. This range is particularly useful for customers who do not require large quantities.
Yes, the required incoloy 800h material test report is supplied prior to shipment. It provides traceable information on the applicable standard, chemical composition, mechanical properties, dimensions, and heat number.
Our incoloy 800h quality checks cover both production and final inspection. Material ratios are controlled during smelting, chemical analysis tracks composition, and PMI testing is performed on completed products. Independent laboratory analysis can be added for further verification.
