Hastelloy N
UNS N10003
Catalog

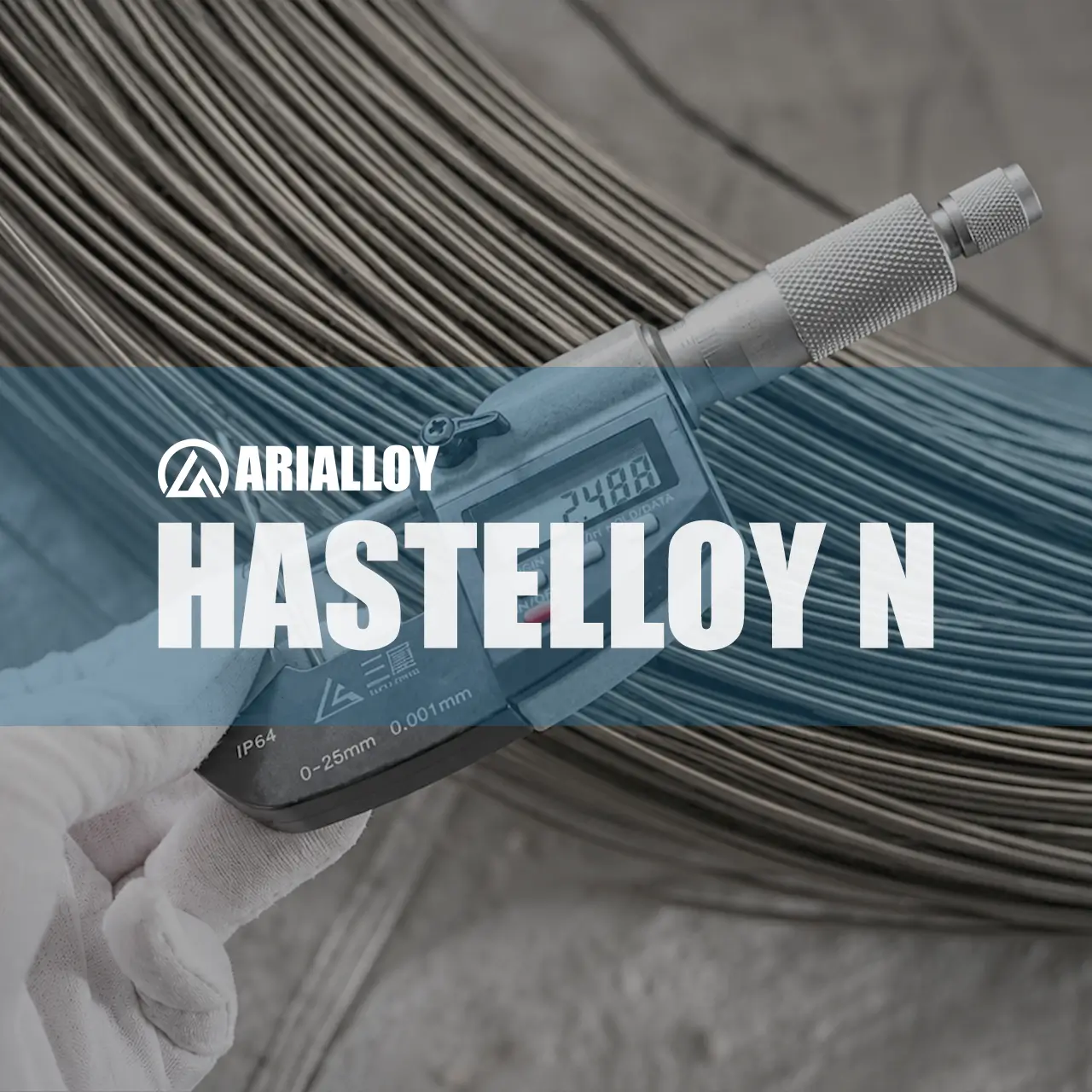

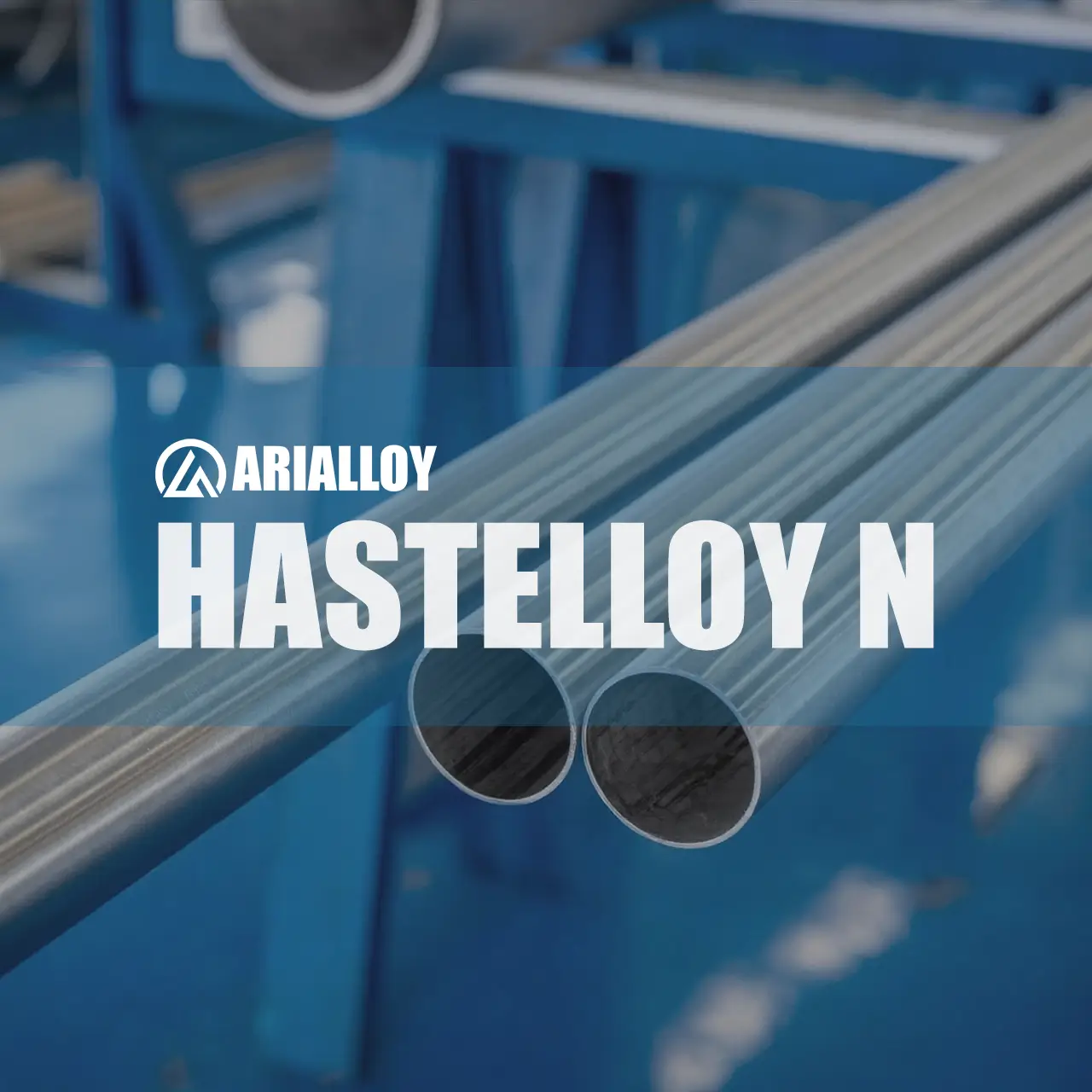

Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with hastelloy n tubes / sheets / wires / bars / fittings
Hastelloy N Material Properties
UNS N10003 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of hastelloy n for optimal resistance, strength, and stability
Hastelloy N Chemical Composition
Hastelloy N Material Properties Overview
As a nickel alloy manufacturer and supplier in China, Arialloy supplies cost effective hastelloy N products.
Hastelloy N (UNS N10003) is a nickel based alloy containing approximately 16% molybdenum and 7% chromium. Molybdenum provides solid solution strengthening, while chromium contributes to oxidation resistance in air. The relatively modest chromium content also limits the amount of this reactive element available for selective dissolution in molten fluoride salts. This composition gives the alloy a distinctive balance of salt corrosion resistance, strength and fabricability. Its microstructure consists of a nickel rich matrix with carbide particles, whose distribution depends on composition and thermal history. Although conventional aging does not produce substantial hardening, heat treatment influences carbide precipitation and the resulting mechanical behavior.
The alloy can be forged, formed and welded, with gas tungsten arc welding providing an established joining method. Weld preparation requires removal of surface oxides and contaminants, together with effective shielding to protect the molten metal. Welding conditions affect the microstructure across the weld and adjacent material, so joint properties should be evaluated separately from those of the parent alloy.
Solution annealing after hot or cold working helps restore a suitable material condition, with the treatment temperature and cooling method selected according to product thickness.
Hastelloy N Corrosion Resistance
Hastelloy N offers strong resistance to molten fluoride salts under suitable chemical conditions. Tests extending beyond two years recorded corrosion rates below 0.0254 mm per year at temperatures up to 704°C (1300°F).
This performance depends on salt purity, redox potential and exposure conditions. Oxidizing impurities can promote selective chromium dissolution, while applied stress may accelerate grain boundary attack. Salt chemistry, temperature gradients and contact with other materials therefore require careful consideration when evaluating corrosion behavior over extended periods of exposure.
Hastelloy N Mechanical Properties
In the solution annealed condition, 1.6 mm sheet typically exhibits a room temperature tensile strength of 794 MPa (115,100 psi), a 0.2% offset yield strength of 314 MPa (45,500 psi), and elongation of 50.7%. This combination provides substantial strength with good ductility. Cold working further increases strength and hardness. Mechanical properties vary with product form, thermal history and welding condition.
Hastelloy N Temperature Characteristics
Hastelloy N shows good oxidation resistance in air, with potential for continuous exposure up to 982°C (1800°F) and intermittent exposure up to 1038°C (1900°F). These temperatures describe oxidation behavior and do not establish equivalent strength or corrosion limits in molten salts.
At elevated temperatures, creep resistance and rupture life depend on both applied stress and exposure duration. Thermal history also affects carbide precipitation and ductility, so temperature capability must be assessed together with the material condition and the surrounding environment.
Hastelloy N Products
Nickel Alloy N Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy n products tailored to each project’s needs
Hastelloy N Data Sheet
Hastelloy Alloy N Data Sheet
Access / download the hastelloy n data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.86 | |
|---|---|---|---|
| lb/in.3 | 0.320 | ||
| Melting Range | °F | 2375 - 2550 | |
| °C | 1300 - 1400 | ||
Mechanical Properties
| Form | Condition | Aging Temperature | Test Temperature | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | ||
|---|---|---|---|---|---|---|---|---|
| 0.063 in thick | Heat-treated for at 2150°F (1177°C), RAC | °F | °C | °F | °C | psi | psi | % |
| - | - | RT | RT | 115,100 | 45,500 | 50.7 | ||
| - | - | 1100 | 593 | 86,900 | 32,900 | 45.3 | ||
| - | - | 1300 | 764 | 69,600 | 31,600 | 30 | ||
| - | - | 1500 | 816 | 55,900 | 29,500 | 24.3 | ||
| - | - | 1700 | 927 | 34,000 | 25,900 | 30 | ||
| - | 1500 | 128 | RT | RT | 115,400 | 49,300 | 46.8 | |
| Heat-treated at 2150°F (1177°C), then welded and tested as-welded | - | - | RT | RT | 116,100 | - | 37.5 | |
| - | - | 1200 | 649 | 71,500 | - | 17 | ||
| - | - | 1300 | 704 | 63,500 | - | 10.5 | ||
| - | - | 1500 | 816 | 52,000 | - | 8.5 | ||
| Sheet 0.045 in thick | Heat-treated at 2100°F (1177°C), RAC | - | - | RT | RT | 114,400 | 44,700 | 50 |
| - | - | 1000 | 538 | 93,000 | 28,300 | 46 | ||
| - | - | 1100 | 593 | 93,000 | 28,900 | 50 | ||
| - | - | 1200 | 648 | 82,400 | 27,500 | 37 | ||
| - | - | 1300 | 704 | 69,900 | 28,000 | 24 | ||
| - | - | 1400 | 760 | 61,800 | 26,200 | 21 | ||
| 1000 | 10,000 | RT | RT | 117,700 | 45,100 | 50 | ||
| 1100 | - | RT | RT | 120,000 | 47,500 | 49 | ||
| 1200 | - | RT | RT | 116,000 | 46,800 | 46 | ||
| 1300 | - | RT | RT | 115,500 | 45,800 | 46 | ||
| 1400 | - | RT | RT | 115,000 | 43,600 | 40 | ||
| 1000 | 10,000 | 1000 | 538 | 97,700 | - | 46 | ||
| 1100 | - | 1100 | 593 | 90,500 | - | 40 | ||
| 1200 | - | 1200 | 649 | 81,900 | - | 32 | ||
| 1300 | - | 1300 | 704 | 76,100 | - | 24 | ||
| 1400 | - | 1400 | 760 | 65,100 | - | 20 | ||
| Weld Metal | As Welded | - | - | RT | RT | 116,100 | - | 39.3 |
| - | - | 1200 | 649 | 73,600 | - | 18.1 | ||
| 1200 | 500 | RT | RT | 116,800 | - | 38.6 | ||
| - | - | 1200 | 649 | 82,700 | - | 26.5 | ||
Hastelloy N Standards
UNS N10003 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B366

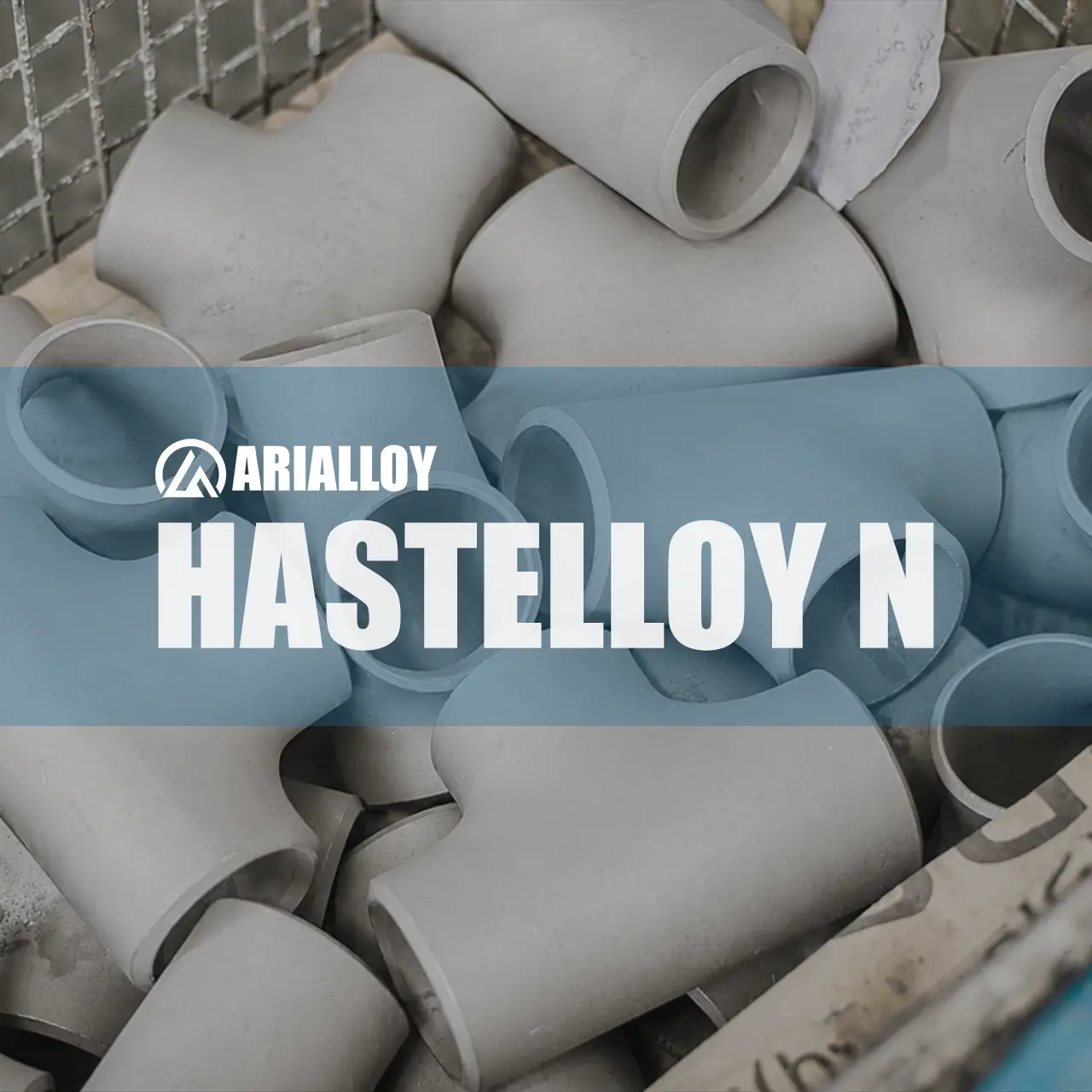

Fittings
ASTM B573

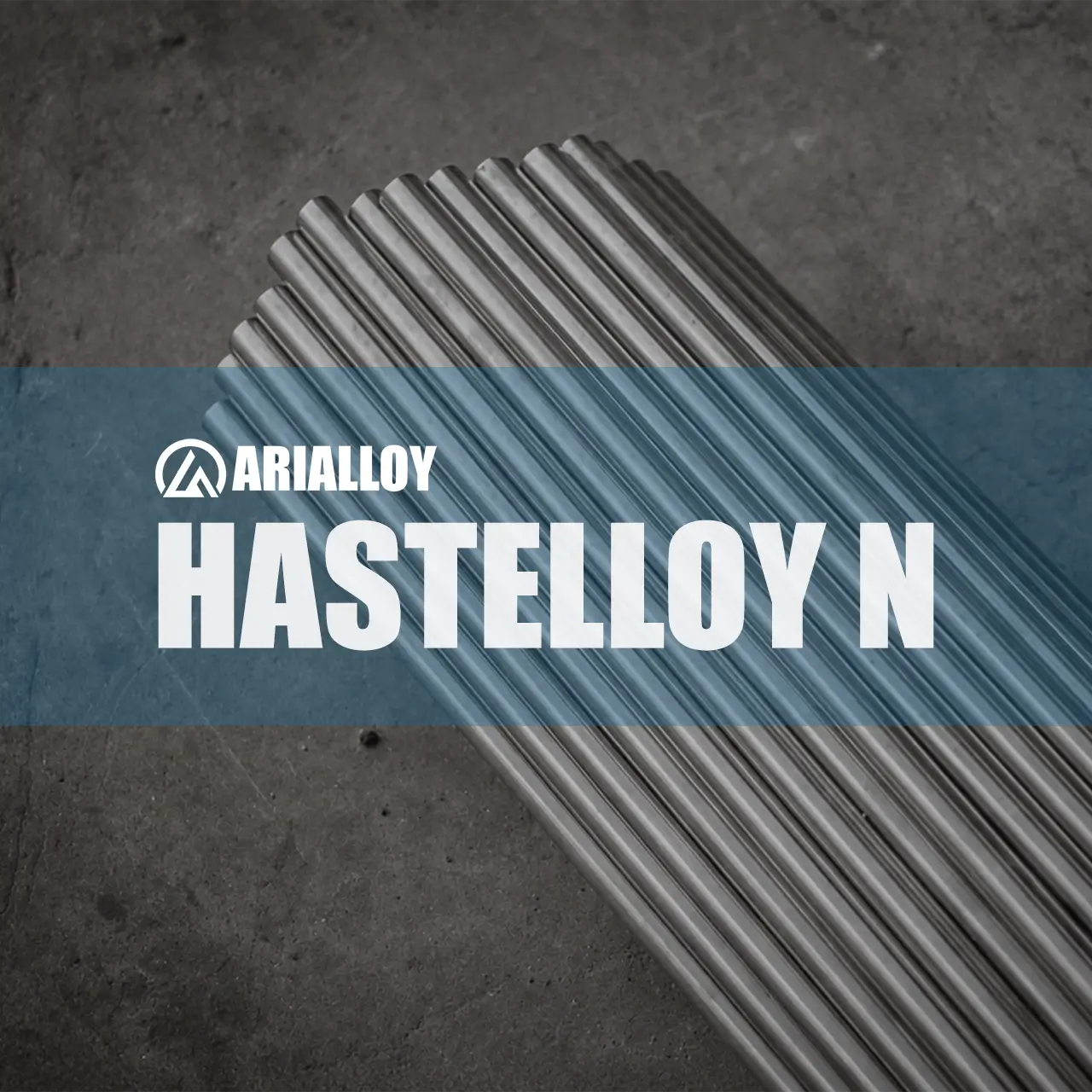

Billet, Rod and Bar
ASTM B434

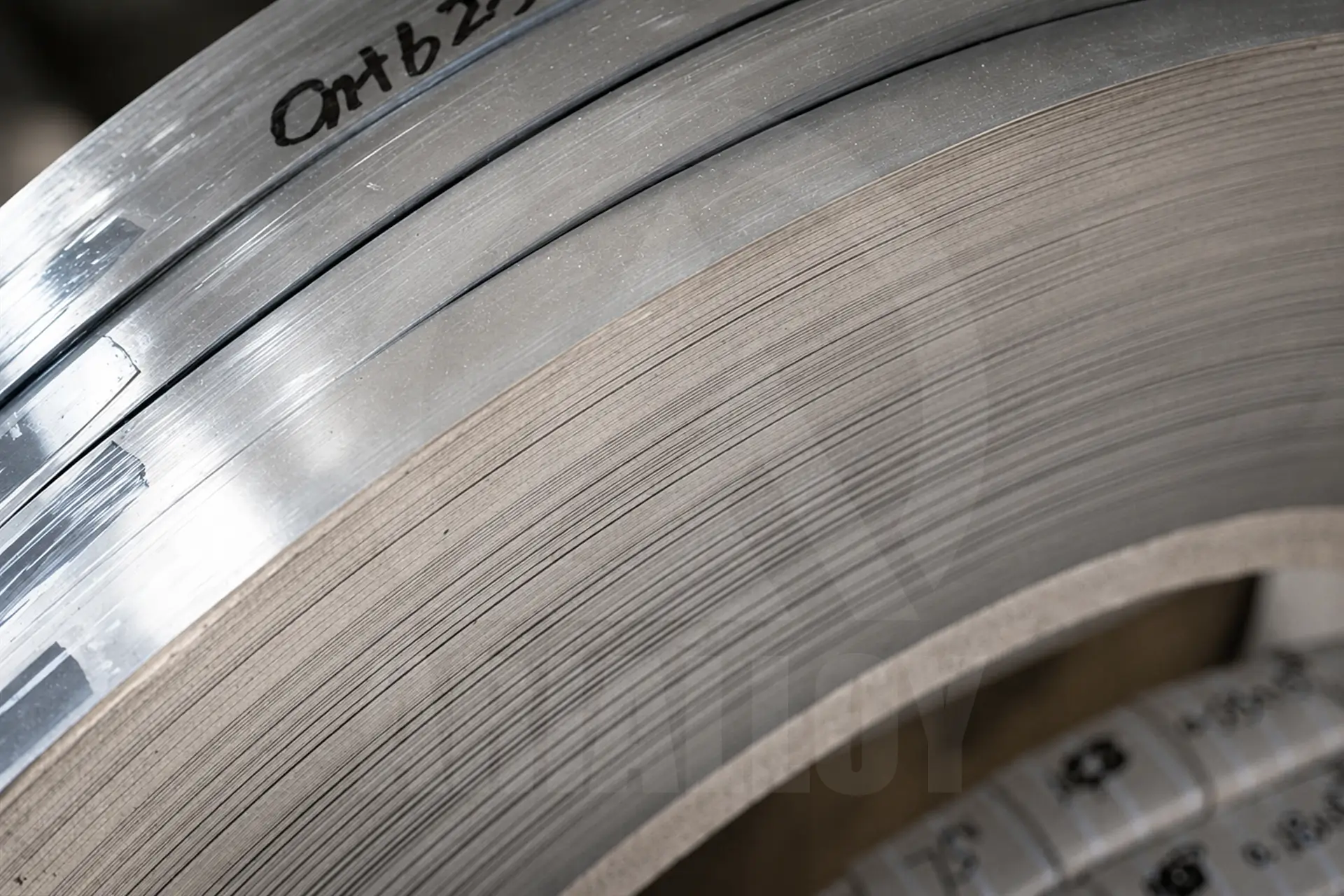

Plate, Sheet and Strip
SAE AMS 5771
Rod, Bar and Forgings
SAE AMS 5607
Plate, Sheet and Strip
AWS A5.14 ERNiCrMo-2

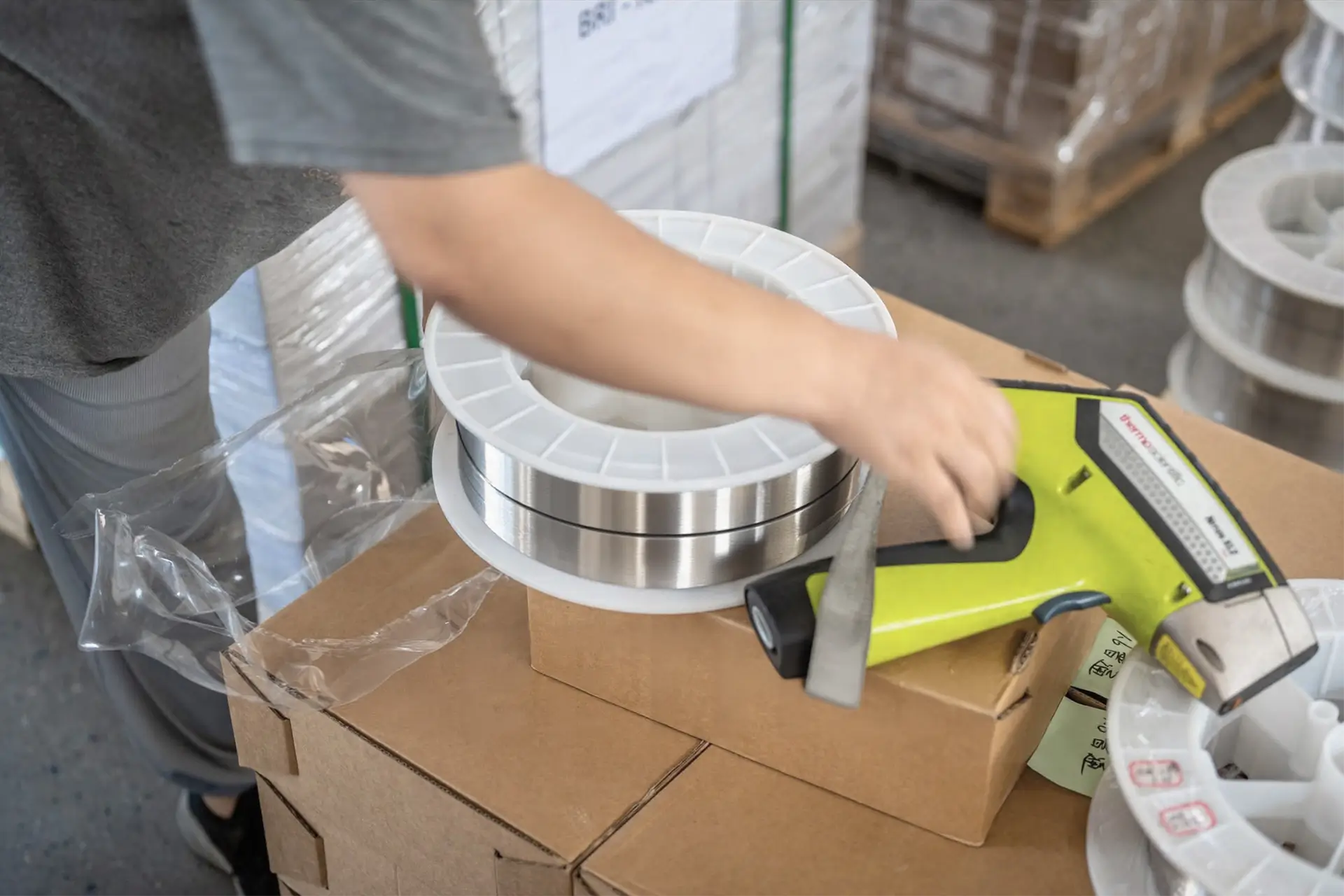

Filler Metal
AWS A5.11 ENiCrMo-2
Welding Electrode
Hastelloy N SHOW
Nickel Alloy N Showcase
From initial samples to large scale production, we supply high quality hastelloy n products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Hastelloy N Quotation Process
From detailed consultation to final delivery, we make custom hastelloy n product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Hastelloy N Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy hastelloy alloy n manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Hastelloy N Applications
UNS N10003 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Hastelloy N Knowledge
Nickel Alloy N Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Hastelloy Grades
Hastelloy Alloy Grades
Explore the full range of hastelloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Hastelloy N FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
You can submit an hastelloy n purchase request either by emailing sales@arialloy.com or by using the inquiry form at the bottom of the page. Our sales team will prepare a detailed quotation based on your requirements. Once you accept the offer, send your PO. We will issue the PI, and manufacturing will begin after the prepayment is received. We will notify you when the material is ready.
We maintain a typical 24 hour turnaround for hastelloy n quotations. If your inquiry requires clarification or falls outside what we can quote, our sales team will notify you without unnecessary delay.
Our standard FOB terms mean that hastelloy n transportation is usually arranged by a freight forwarder designated by the buyer. We will work with that forwarder to complete the necessary local operations. If you prefer a more hands-off solution, we can arrange the shipment and inquire about the applicable freight.
Because hastelloy n is made from several metallic elements, its price is naturally exposed to fluctuations in the raw material market. The prices of important metals such as nickel and molybdenum can significantly influence the final cost of the alloy.
Hastelloy N is melted under our own manufacturing control. Our factory has more than 30 vacuum smelting and electroslag remelting furnaces, covering capacities from 50 kg to 5,000 kg. The availability of multiple furnace sizes enables us to keep our minimum order requirements flexible.
Yes. We provide a pre shipment MTR for hastelloy n that documents conformity with the applicable material requirements. It includes standard identification, chemical analysis, mechanical properties, dimensions, and heat number.

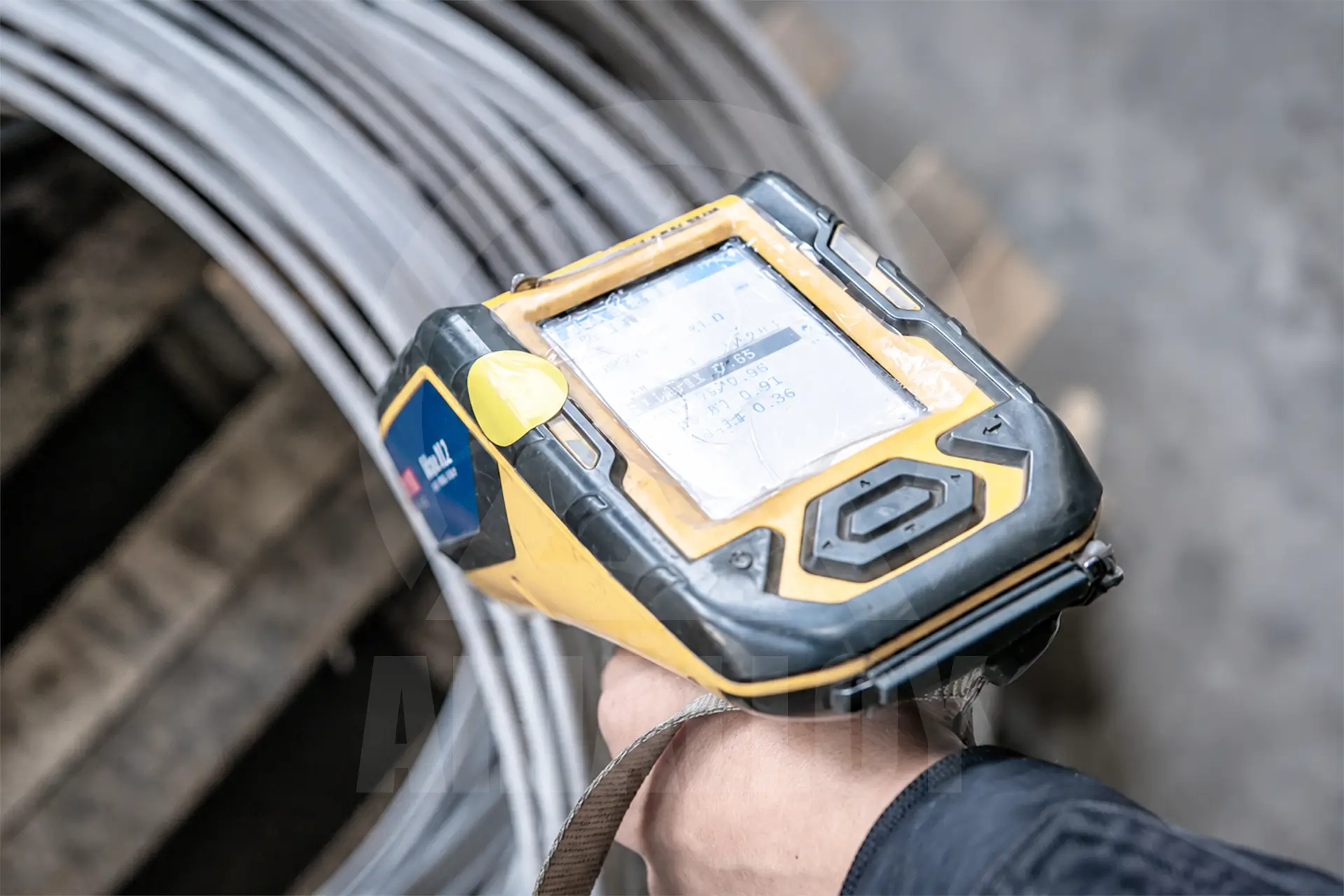

The chemistry of hastelloy n is monitored during melting through strict control of material proportions and analytical testing. After the finished product is completed, PMI testing is performed, and an independent laboratory can conduct further chemical analysis if needed.
