Incoloy 890 Material Properties
UNS N08890 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of incoloy 890 for optimal resistance, strength, and stability
Incoloy 890 Chemical Composition
Incoloy 890 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies incoloy 890 products with customized dimensions, surface finishes, and material inspection services.
Incoloy alloy 890 (UNS N08890) is a solid solution alloy with a single phase structure, composed primarily of nickel, iron, and chromium. Its nominal composition includes approximately 42.5% nickel, 25% chromium, 1.8% silicon, 1.5% molybdenum, and 0.4% niobium, with iron forming the balance. This combination provides elevated temperature strength together with resistance to oxidation, carburization, and sulfidation.
The alloy retains the high chromium content associated with incoloy 803 and incorporates silicon, molybdenum, and niobium to enhance its performance. Chromium and silicon improve resistance to aggressive hot atmospheres, while molybdenum and niobium contribute to strength and resistance to creep. Its chemistry brings together resistance to surface deterioration and mechanical deformation at elevated temperatures.
Incoloy 890 is normally supplied in the annealed condition and can be formed using conventional fabrication techniques.Its combination of formability, weldability, and thermal performance supports the manufacture of both tubular and flat products.
Incoloy 890 Corrosion Resistance
Incoloy 890 offers strong resistance to oxidation, carburization, and sulfidation. Its chromium and silicon contents enhance resistance to chemical attack at elevated temperatures and reduce deterioration in aggressive gaseous atmospheres.
Comparative tests at 1000°C and 1100°C show greater resistance to oxidation and carburization than incoloy 803 and incoloy 800HT. The alloy exhibits lower mass changes during exposure to gases containing hydrogen and methane, as well as air containing water vapor, demonstrating its resistance to carbon uptake and oxidative degradation.
Incoloy 890 Mechanical Properties
In the solution annealed condition, incoloy 890 combines tensile strength with good ductility. At approximately 22°C, hot rolled plate has a typical tensile strength of 652 MPa, a 0.2% offset yield strength of 272 MPa, and elongation of 46.6%.
Solution annealed cold drawn tubing exhibits a typical tensile strength of 652 MPa, yield strength of 334 MPa, and elongation of 46.5%. Chromium and carbon contribute to strengthening, while molybdenum and niobium provide additional strength at elevated temperatures.
Incoloy 890 Temperature Characteristics
Incoloy 890 offers resistance to oxidation, carburization, and sulfidation at temperatures up to approximately 1200°C. Molybdenum and niobium enhance its resistance to creep and stress rupture above approximately 980°C, contributing to its ability to withstand sustained loading at elevated temperatures.
The alloy has a melting range of approximately 1309°C to 1383°C. Its mean coefficient of thermal expansion increases from approximately 14.47 μm/m/°C between 26°C and 100°C to 16.88 μm/m/°C between 26°C and 700°C, reflecting progressive dimensional expansion during heating.

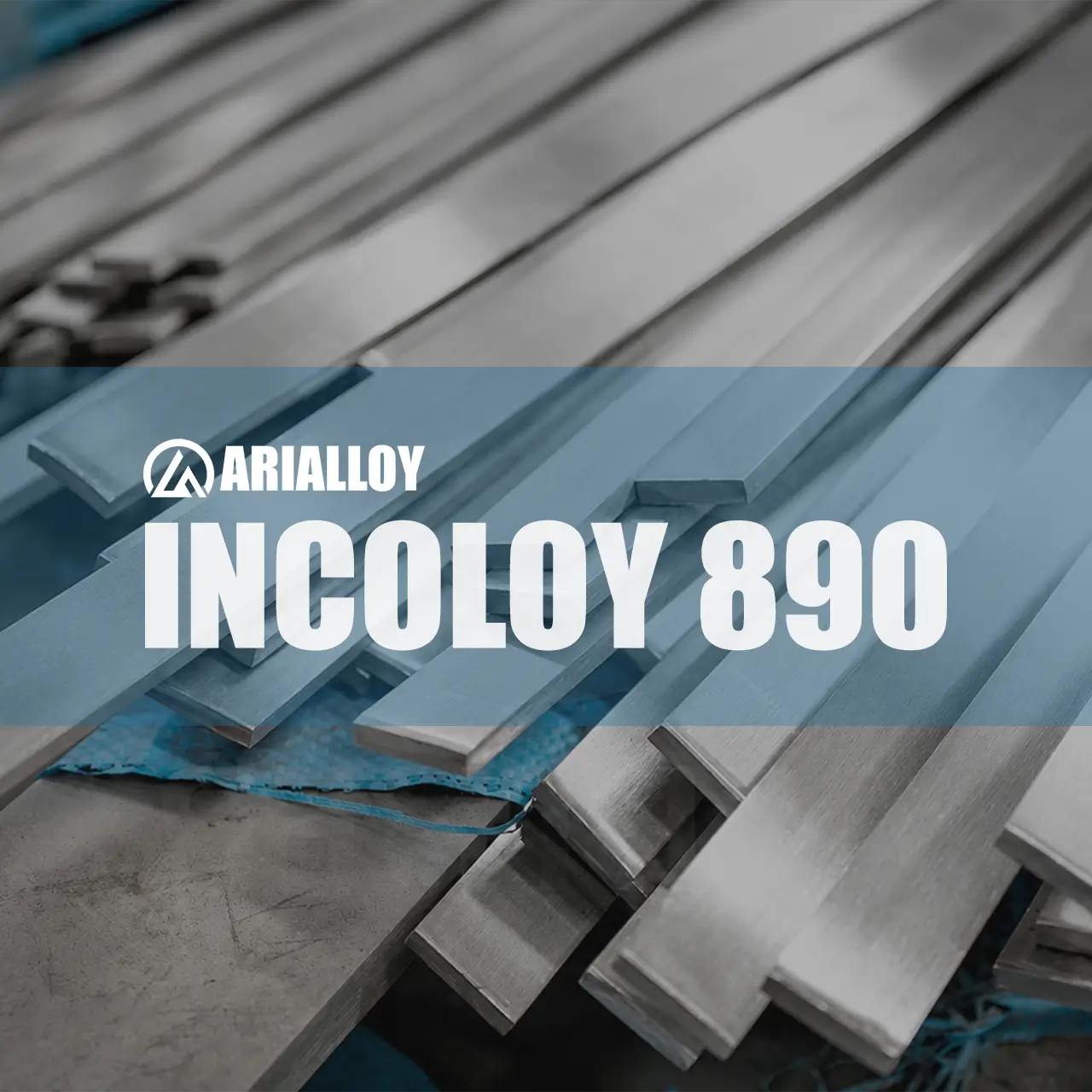

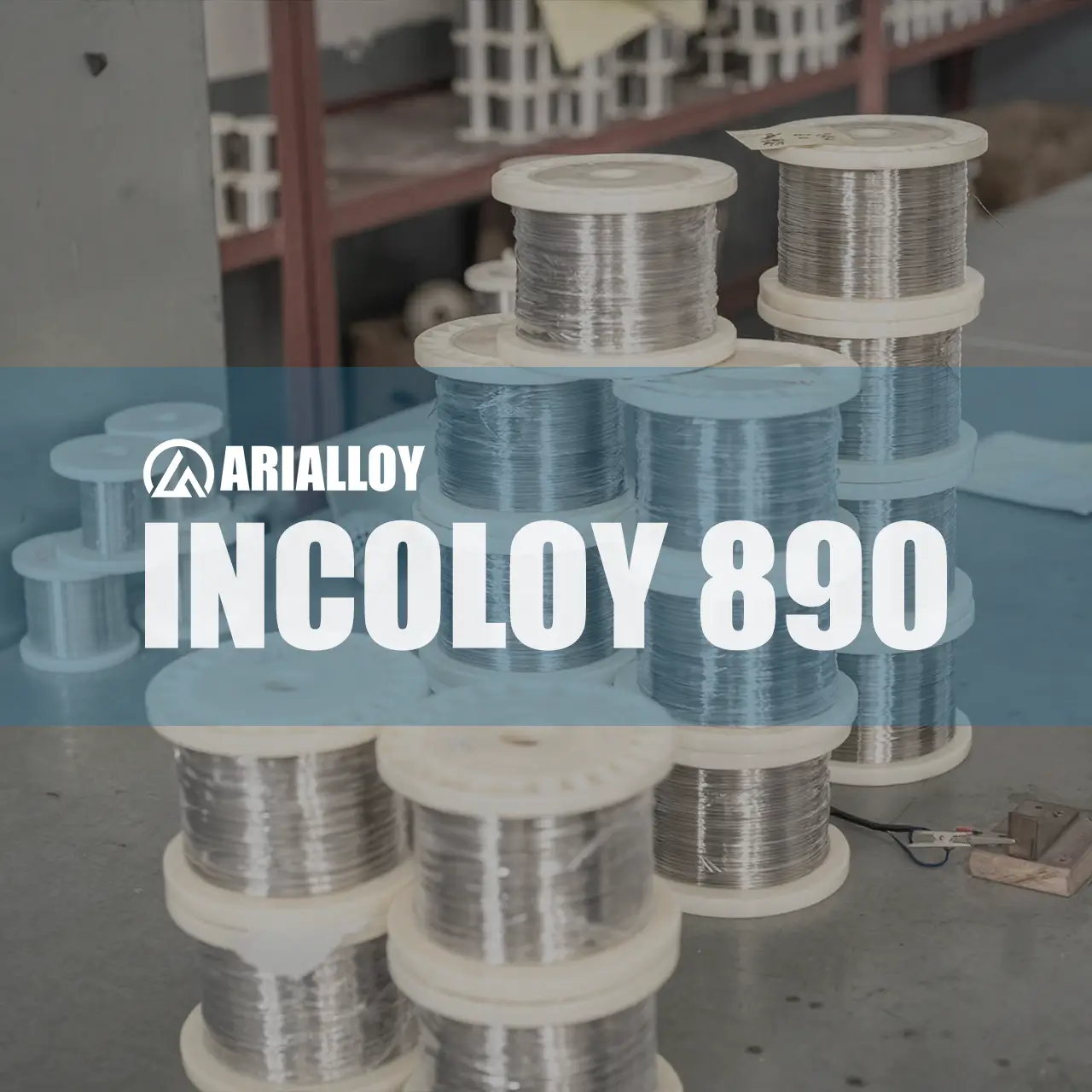

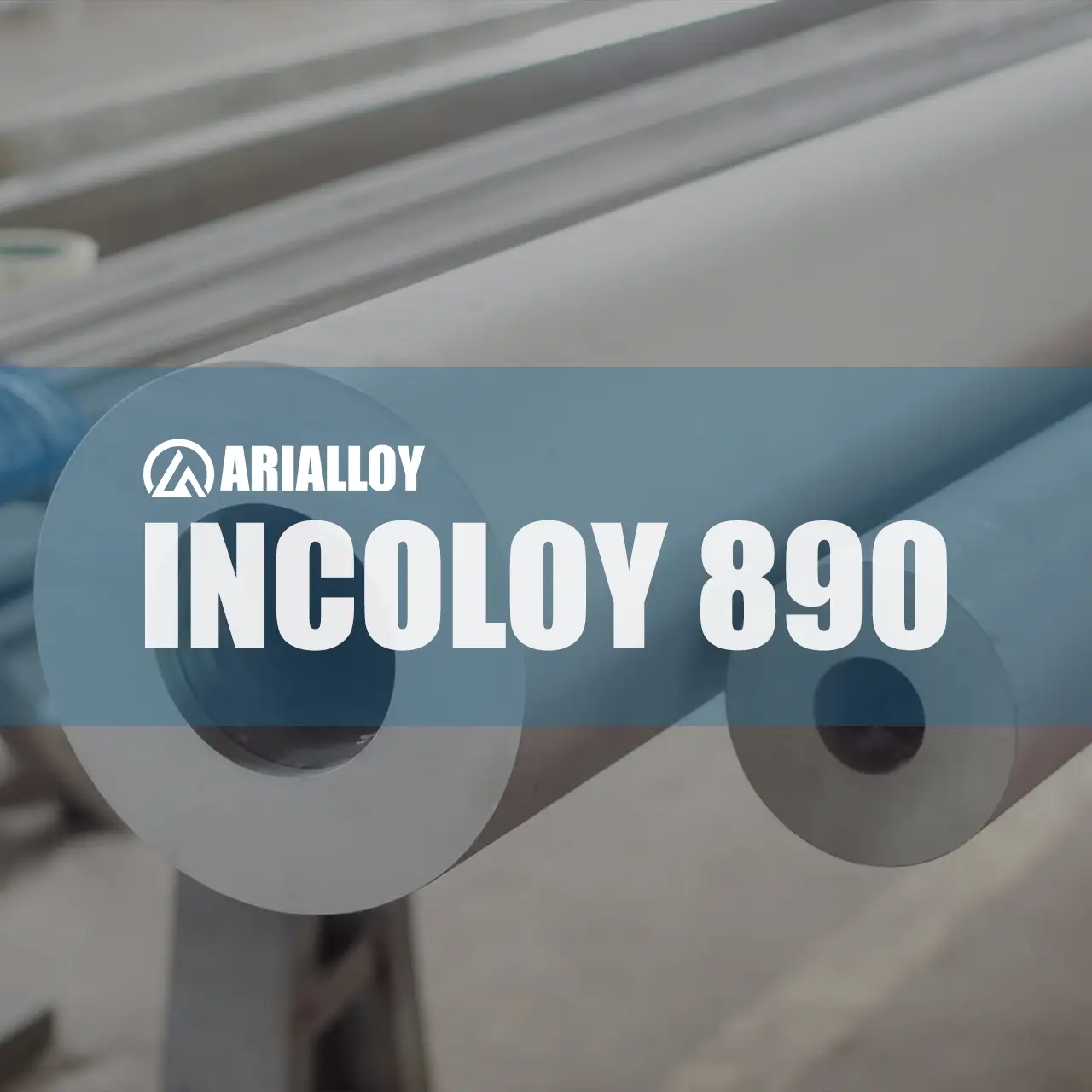

Incoloy 890 Products
Nickel Alloy 890 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 890 products tailored to each project’s needs
Incoloy 890 Data Sheet
Incoloy Alloy 890 Data Sheet
Access / download the incoloy 890 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 7.94 | |
|---|---|---|---|
| lb/in.3 | 0.287 | ||
| Melting Range | °F | 2388 - 2522 | |
| °C | 1309 - 1383 | ||
Mechanical Properties
| Product | Temper | Temperature °F (°C) | 0.2% Yield Strength, ksi (MPa) | Ultimate Tensile Strength, ksi (MPa) | Elongation | Reduction of Area, % |
|---|---|---|---|---|---|---|
| Hot-Rolled Plate | Solution-Annealed | 72 (22) | 39.4 (272) | 94.5 (652) | 46.6 | 62.7 |
| Cold-Drawn Tubing | Solution-Annealed | 72 (22) | 48.4 (334) | 94.2 (652) | 46.5 | 60.1 |
| Hot-Rolled Plate | Solution-Annealed | 1600 (870) | 16.0 (110) | 23.5 (132) | 84.8 | 71.0 |
| Hot-Rolled Plate | Solution-Annealed | 1800 (980) | 9.6 (66) | 13.4 (92) | 98.0 | 87.5 |
| Hot-Rolled Plate | Solution-Annealed | 2000 (1100) | 6.4 (44) | 9.0 (62) | 83.6 | 91.8 |
Incoloy 890 Standards
UNS N08890 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B407
Pipe and Tube
ASTM B408
Rod and Bar
ASTM B409
Plate, Sheet and Strip
ASTM B906
Plate, Sheet and Strip

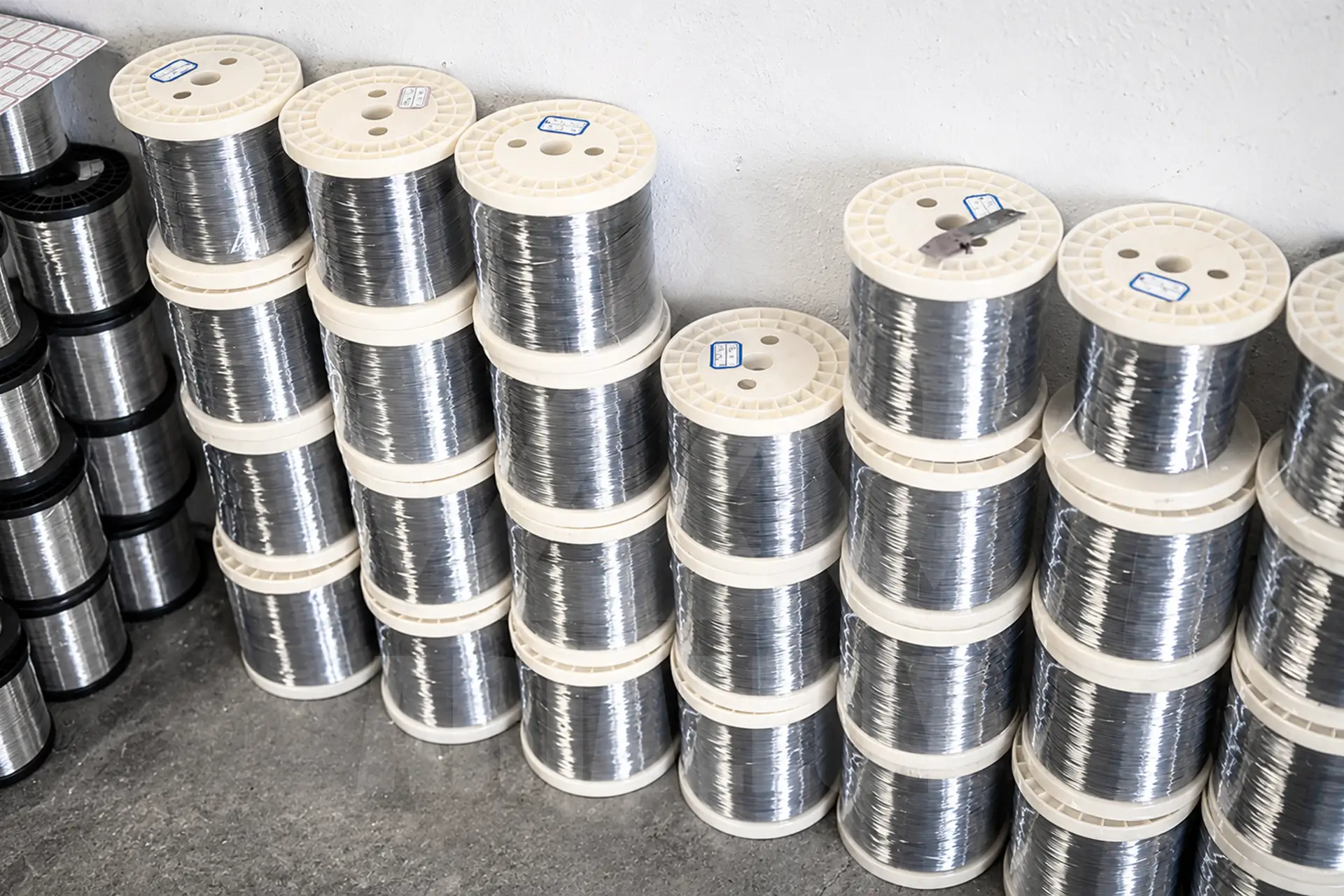

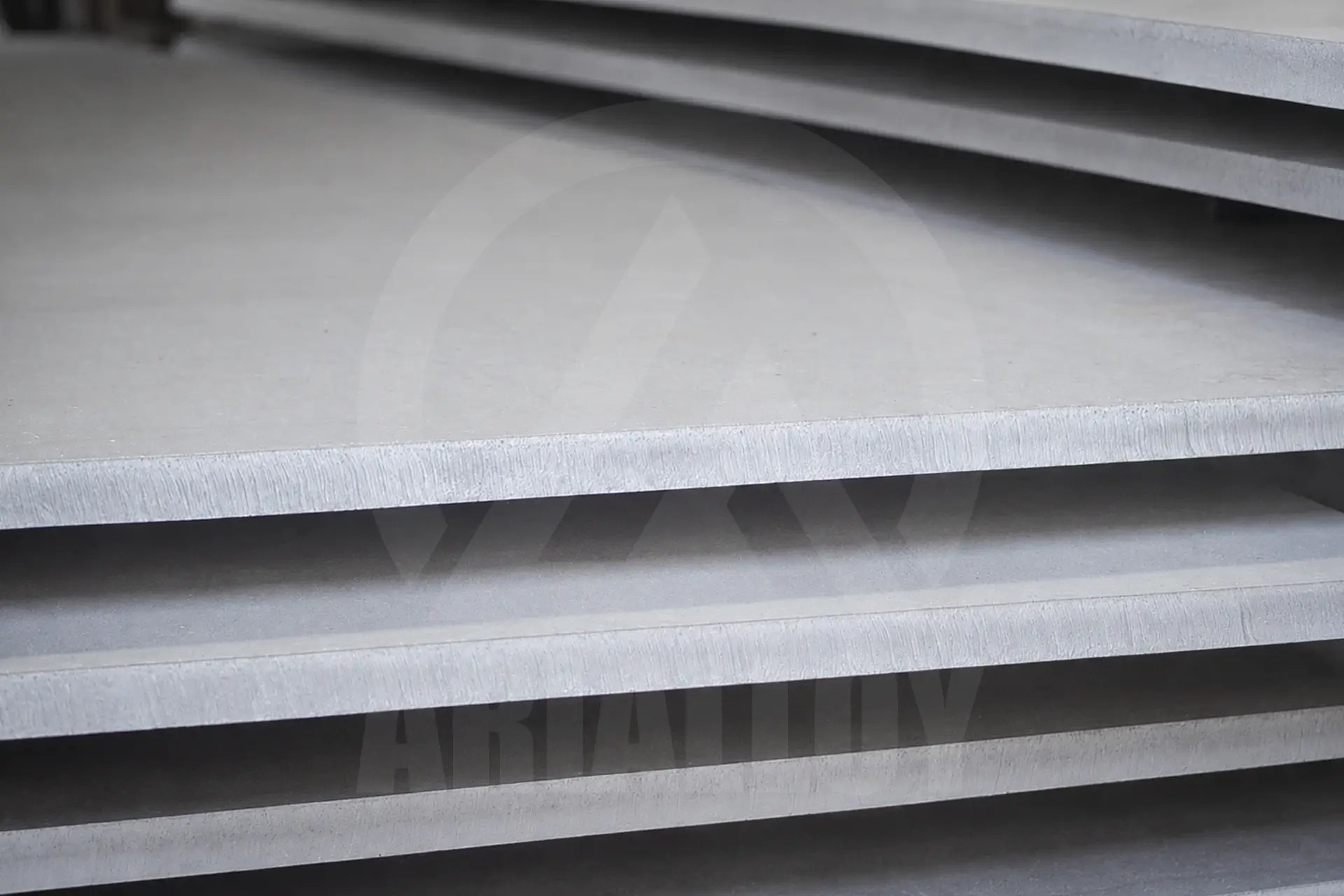

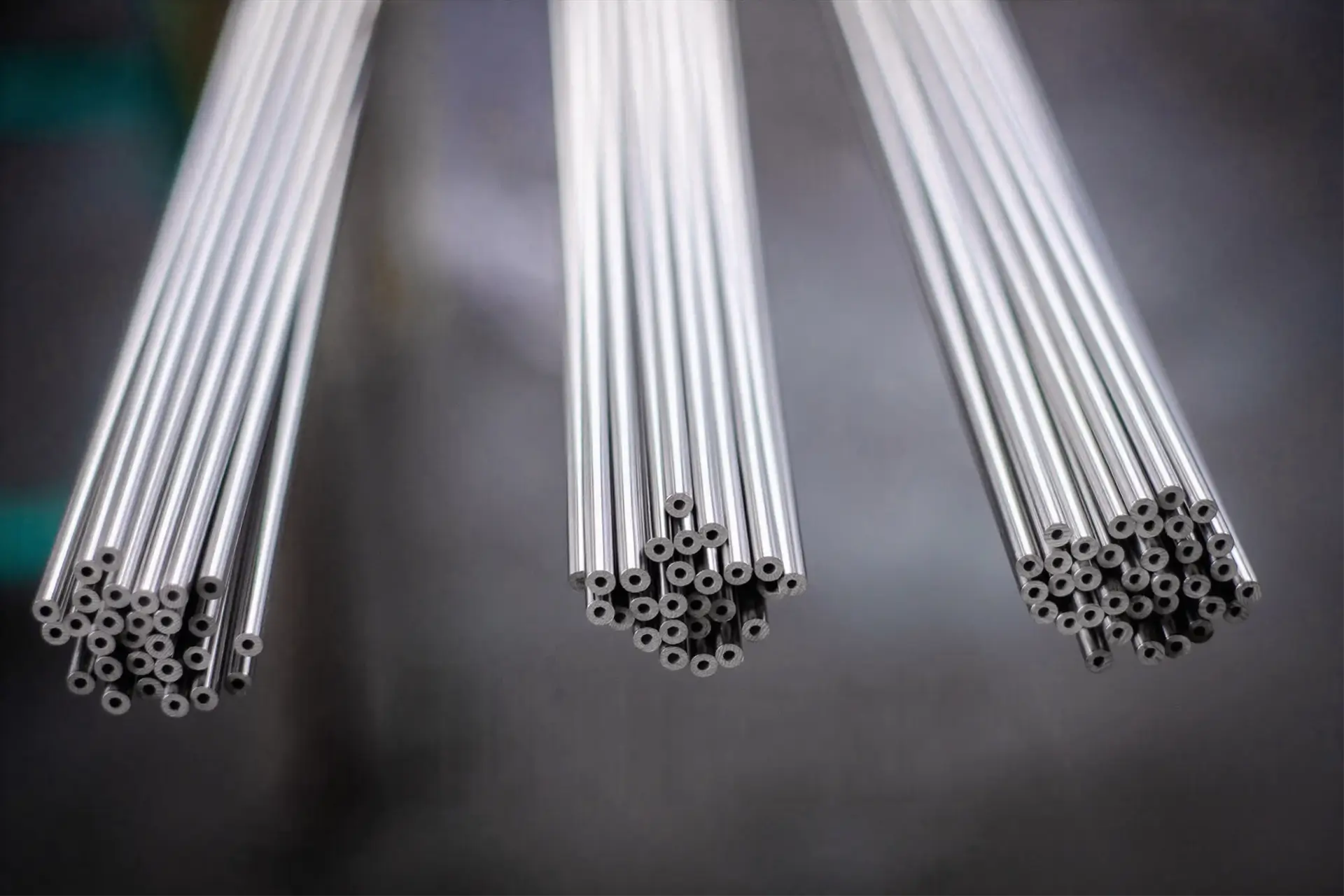

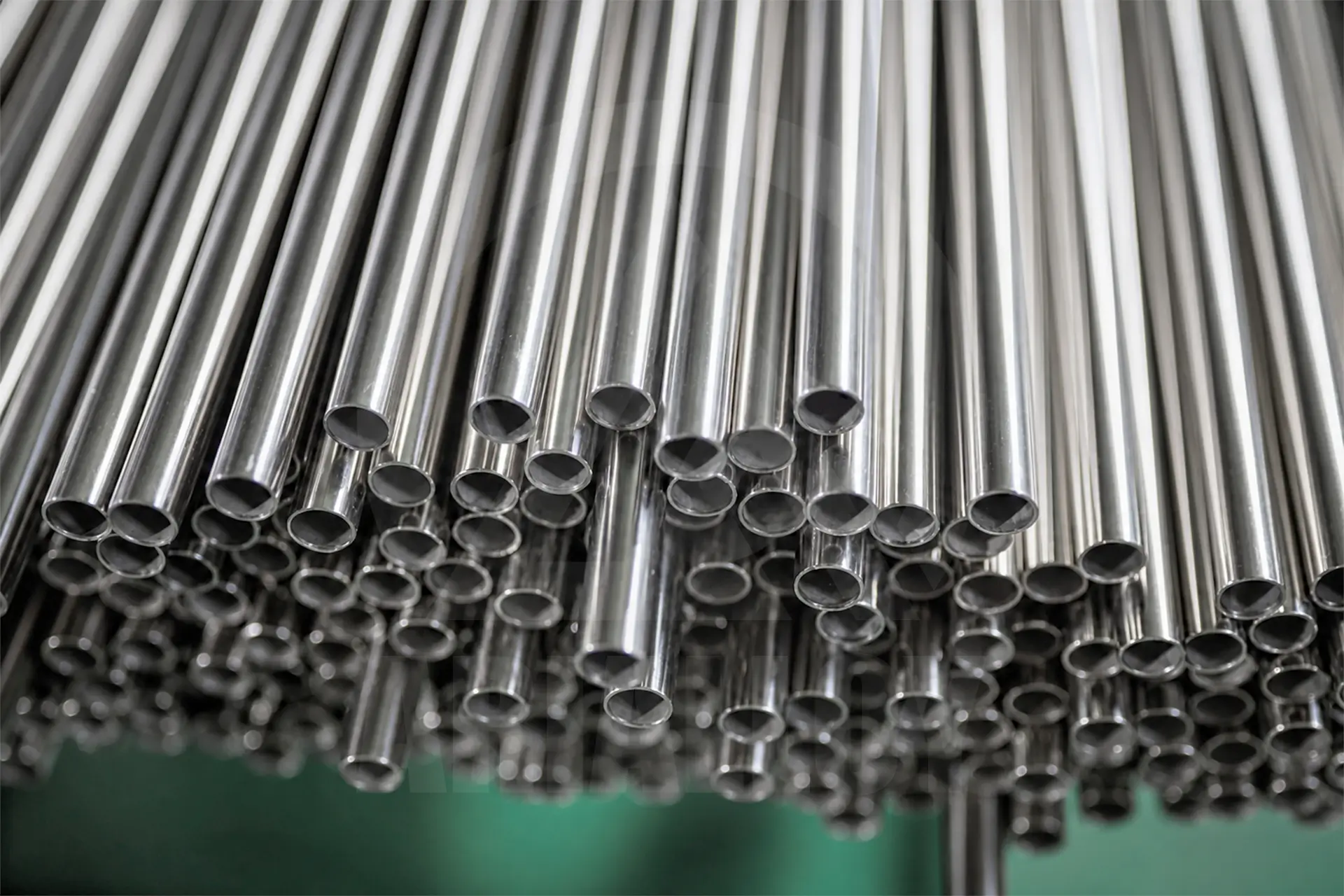

Incoloy 890 SHOW
