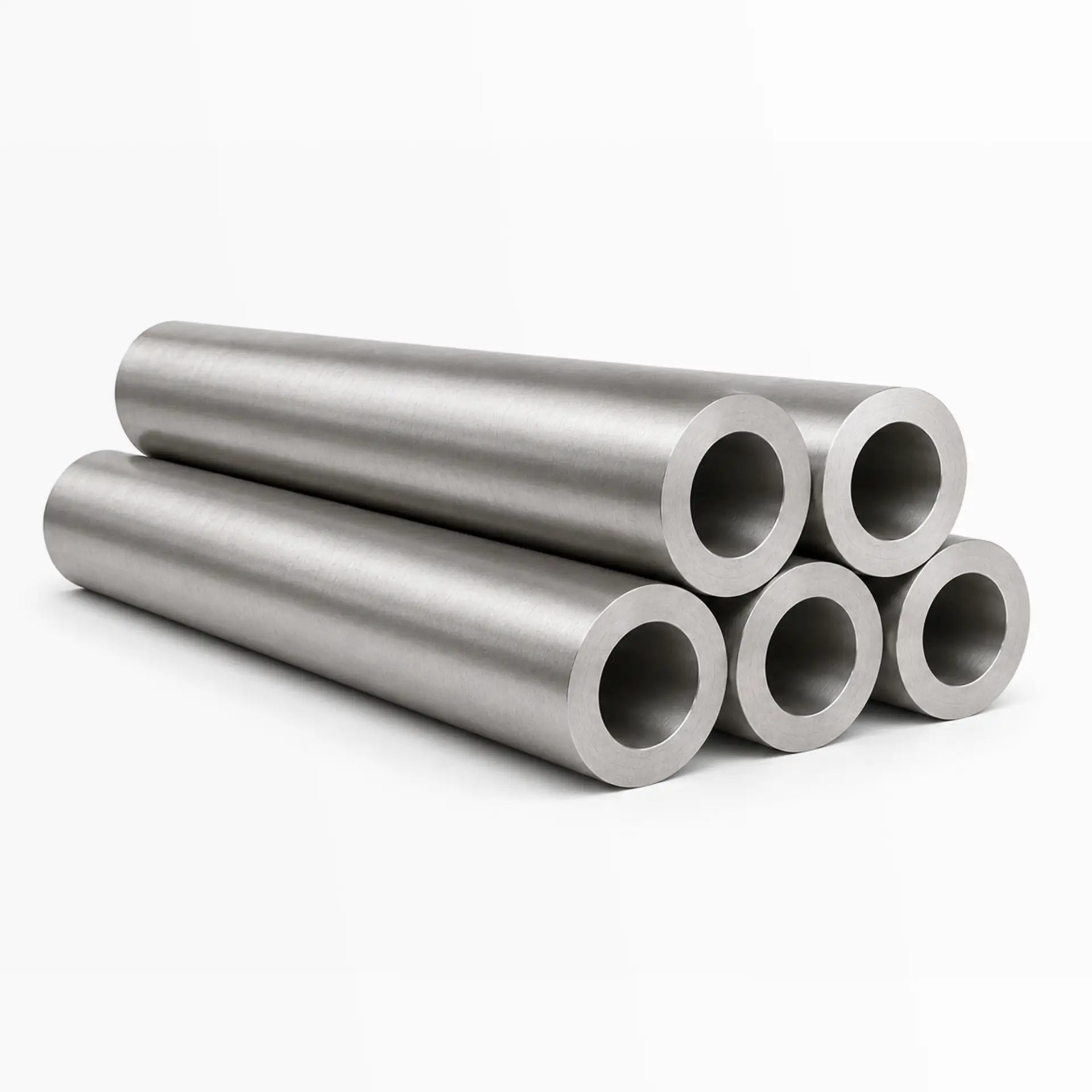

Nickel Alloy Thick Walled Pipe
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy thick walled pipe
Nickel Alloy Thick Walled Pipe Introduction
Thick Walled Nickel Alloy Pipe Overview
Nickel Alloy Thick Walled Pipe Supplier
Nickel Alloy Thick Walled Pipe Product Features
Nickel Alloy Thick Walled Pipe Manufacture
Nickel Alloy Thick Walled Pipe Inspection
Every nickel alloy thick walled pipe order is inspected according to the applicable material standard and customer requirements. Arialloy performs dimensional inspection of outside diameter, inside diameter, wall thickness, length, straightness, roundness, concentricity, end condition, and machining allowance together with visual examination of the internal and external surfaces. Mechanical testing, chemical composition verification, hydrostatic testing, ultrasonic testing, eddy current testing, and other non destructive examinations can be carried out as specified to verify material integrity throughout the heavy wall section and overall pipe quality. Each shipment is supported by traceable material records, inspection reports, material certificates, and complete quality documentation.
Nickel Alloy Thick Walled Pipe Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B161
ASTM B165
ASTM B167
ASTM B407
ASTM B423
ASTM B444
ASTM B535
ASTM B622
ASTM B677
ASTM B690
ASTM B729
ASTM B829
ASTM B983
Nickel Alloy Thick Walled Pipe Applications
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
OIL & GAS EXTRACTION
HPHT downhole tubing, sour gas well components, high pressure injection lines, wellhead and manifold spools, production tool sleeves, and corrosion resistant pressure housings.PETROCHEMICAL
Hydrocracking and hydrotreating piping, hydrogen service lines, ammonia and methanol synthesis loop piping, high pressure quench lines, reformer manifolds, and thick wall heater connections.CHEMICAL PROCESSING
High pressure reactor feed and discharge lines, autoclave piping, supercritical fluid lines, high pressure acid service piping, polymerization equipment, and thick wall process manifolds.POWER & NUCLEAR
High pressure steam piping, nuclear auxiliary system piping, steam generator nozzles, pressurizer connections, high temperature header components, and thick wall heat exchanger connections.SUBSEA & MARINE
Subsea pressure housings, high pressure hydraulic lines, riser and jumper components, desalination high pressure brine piping, marine pump barrels, and offshore manifold sections.HYDROGEN & CCUS
High pressure hydrogen transfer lines, compressor discharge piping, supercritical CO2 injection lines, carbon capture compression systems, high pressure separators, and electrolyzer balance of plant piping.HIGH PRESSURE EQUIPMENT
Pressure cylinder blanks, machined sleeves, high pressure manifolds, pump barrels, valve bodies, accumulator shells, and heavy wall components for test and autoclave systems.Available Grades
Available Grades for Nickel Alloy Thick Walled Pipe
Explore the available nickel alloy grades for thick walled pipe to find the material best suited to your project and specification requirements
Nickel Alloy Thick Walled Pipe SHOW
Supplying Nickel Alloy Thick Walled Pipe
From initial samples to large scale production, we supply high quality nickel alloy thick walled pipe and help you achieve your manufacturing goals
Manufacturing Process
Nickel Alloy Thick Walled Pipe Manufacturing Process
The production process for Arialloy nickel alloy thick walled pipe ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.
Round Bar
Inspection
Analytic
Cut to Length
Centering
Peel
Heating
Perforation
Three Skew Roll Piercing
Sizing
Inspection of Size
Annealing
Straightening
X-ray Test
Hydro Statio Test
Pickling / Passivating
Inspection
Analytic
Marking
Packing & Shipping
Customized Dimensions
Nickel Alloy Thick Walled Pipe Customization Scope
-
Outside Diameter (OD)
10-600 mm
-
Wall Thickness (THK)
SCH80S, SCH120, SCH160, XXS
-
Length (L)
≤12 m
Formula: m = (OD – THK) × THK (mm) × L (m) × ρ (g/cm³) × π ÷ 1000
OD = Outside Diameter, THK = Wall Thickness, L = Length
ρ = Density, π = 3.1415926…
Data Sheet
Nickel Alloy Thick Walled Pipe Data Sheet
Access the nickel alloy thick walled pipe data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project
Size Range
| Outside Diameter | Wall Thickness | Outside Diameter | Wall Thickness | Outside Diameter | Wall Thickness | Outside Diameter | Wall Thickness | ||||||
| 1/8 | 1 | 1 | 5 | 15/8 | 6 | 7/2 | 12 | ||||||
| 1/8 | 1.5 | 1 | 6 | 15/8 | 8 | 4 | 3 | ||||||
| 1/8 | 2 | 9/8 | 2 | 2 | 2 | 4 | 3.5 | ||||||
| 1/4 | 1 | 9/8 | 2.5 | 2 | 2.5 | 4 | 4 | ||||||
| 1/4 | 1.5 | 9/8 | 3 | 2 | 3 | 4 | 5 | ||||||
| 1/4 | 2 | 9/8 | 3.5 | 2 | 3.5 | 4 | 6 | ||||||
| 3/8 | 1 | 9/8 | 4 | 2 | 4 | 4 | 8 | ||||||
| 3/8 | 1.5 | 9/8 | 5 | 2 | 5 | 4 | 10 | ||||||
| 3/8 | 2 | 9/8 | 6 | 2 | 6 | 4 | 12 | ||||||
| 3/8 | 2.5 | 5/4 | 2 | 2 | 8 | 5 | 4 | ||||||
| 3/8 | 3 | 5/4 | 2.5 | 2 | 10 | 5 | 5 | ||||||
| 7/16 | 2 | 5/4 | 3 | 2 | 12 | 5 | 6 | ||||||
| 7/16 | 2.5 | 5/4 | 3.5 | 9/4 | 2 | 5 | 8 | ||||||
| 7/16 | 3 | 5/4 | 4 | 9/4 | 2.5 | 5 | 10 | ||||||
| 7/16 | 3.5 | 5/4 | 5 | 9/4 | 3 | 5 | 12 | ||||||
| 7/16 | 4 | 5/4 | 6 | 9/4 | 3.5 | 6 | 4 | ||||||
| 1/2 | 2 | 11/8 | 2 | 9/4 | 4 | 6 | 5 | ||||||
| 1/2 | 2.5 | 11/8 | 2.5 | 9/4 | 5 | 6 | 6 | ||||||
| 1/2 | 3 | 11/8 | 3 | 9/4 | 6 | 6 | 8 | ||||||
| 1/2 | 3.5 | 11/8 | 3.5 | 9/4 | 8 | 6 | 10 | ||||||
| 1/2 | 4 | 11/8 | 4 | 9/4 | 10 | 6 | 12 | ||||||
| 5/8 | 2 | 11/8 | 5 | 9/4 | 12 | 8 | 4 | ||||||
| 5/8 | 2.5 | 11/8 | 6 | 5/2 | 3 | 8 | 5 | ||||||
| 5/8 | 3 | 3/2 | 2 | 5/2 | 3.5 | 8 | 6 | ||||||
| 5/8 | 3.5 | 3/2 | 2.5 | 5/2 | 4 | 8 | 8 | ||||||
| 5/8 | 4 | 3/2 | 3 | 5/2 | 5 | 8 | 10 | ||||||
| 3/4 | 2 | 3/2 | 3.5 | 5/2 | 6 | 8 | 12 | ||||||
| 3/4 | 2.5 | 3/2 | 4 | 5/2 | 8 | 10 | 6 | ||||||
| 3/4 | 3 | 3/2 | 5 | 5/2 | 10 | 10 | 8 | ||||||
| 3/4 | 3.5 | 3/2 | 6 | 5/2 | 12 | 10 | 10 | ||||||
| 3/4 | 4 | 3/2 | 8 | 3 | 3 | 10 | 12 | ||||||
| 3/4 | 5 | 7/4 | 2 | 3 | 3.5 | 12 | 10 | ||||||
| 3/4 | 6 | 7/4 | 2.5 | 3 | 4 | 12 | 12 | ||||||
| 7/8 | 2 | 7/4 | 3 | 3 | 5 | 14 | 10 | ||||||
| 7/8 | 2.5 | 7/4 | 3.5 | 3 | 6 | 14 | 12 | ||||||
| 7/8 | 3 | 7/4 | 4 | 3 | 8 | 16 | 10 | ||||||
| 7/8 | 3.5 | 7/4 | 5 | 3 | 10 | 16 | 12 | ||||||
| 7/8 | 4 | 7/4 | 6 | 3 | 12 | 18 | 10 | ||||||
| 7/8 | 5 | 7/4 | 8 | 7/2 | 3 | 18 | 12 | ||||||
| 7/8 | 6 | 15/8 | 2 | 7/2 | 3.5 | 20 | 10 | ||||||
| 1 | 2 | 15/8 | 2.5 | 7/2 | 4 | 20 | 12 | ||||||
| 1 | 2.5 | 15/8 | 3 | 7/2 | 5 | 24 | 10 | ||||||
| 1 | 3 | 15/8 | 3.5 | 7/2 | 6 | 24 | 12 | ||||||
| 1 | 3.5 | 15/8 | 4 | 7/2 | 8 | ||||||||
| 1 | 4 | 15/8 | 5 | 7/2 | 10 | ||||||||
| *Customized size please confirm with us | |||||||||||||
Tolerance
| Nominal Outside Diameter, in. (mm) | Permissible Variations | |||||
|---|---|---|---|---|---|---|
| Outside Diameter, in. (mm) | Thickness of Specified Nominal Wall, % | Thickness of Specified Minimal Wall, % | ||||
| Plus | Minus | Plus | Minus | Plus | Minus | |
| 1(25) to 1.900(48), incl | 0.015(0.40) | 0.31(0.79) | 16.0 | 12.5 | 28.5 | 0 |
| over 1.900(48) to 41⁄2(114), incl | 0.031(0.79) | 0.031(0.79) | 16.0 | 12.5 | 28.5 | 0 |
| over 41⁄2(114) to 61⁄2(165), incl | 0.047(1.2) | 0.047(1.2) | 16.0 | 12.5 | 28.5 | 0 |
| over 61⁄2(165) to 91⁄4(235), incl | 0.062(1.6) | 0.062(1.6) | 16.0 | 12.5 | 28.5 | 0 |
Delivery State
| Delivery State Choice | Surface Condition |
|---|---|
| Hot Rolled | Pickled |
| Sand Blasted | |
| Annealed | Pickled |
| Sand Blasted | |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. | |
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Nickel Alloy Thick Walled Pipe Quotation Process
From detailed consultation to final delivery, we make custom nickel alloy thick walled pipe orders simple and convenient. With exceptional customer service, Arialloy anticipate your needs, provide professional solutions, and ensure on time delivery
Nickel Alloy Thick Walled Pipe FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Yes. We can polish these pipes into 200 to 600 mesh to match your requirements. We can also perform 8K polishing/mirror polishing.
Commonly supplied grades include Monel 400, Monel K500, Inconel 600, Inconel 625, Inconel 718, Incoloy 800, Incoloy 825, Hastelloy B2, Hastelloy C276, etc.
Available options include random lengths, standard lengths of 1 m, 2 m, 3 m, 4 m, 5 m, and 6 m, or custom lengths.
Finished nickel alloy thick-walled pipes are bundled in batches and protected with heavy woven plastic bags. Wooden cases are also available.
Samples of common nickel alloy thick walled pipe grades and sizes can be provided when suitable material is available. Small evaluation samples are normally free, while the buyer pays freight; large, nonstandard, or specially processed samples are quoted separately.
The estimated standard MOQ for nickel alloy thick walled pipe is 100 kg per size. The final minimum can vary with alloy grade, dimensions, manufacturing route, and material availability.
The estimated production lead time for nickel alloy thick walled pipe is about 60 days. Special grades, nonstandard dimensions, large quantities, or added testing can extend the schedule.
Inspection of nickel alloy thick walled pipe covers material identity, outside and inside dimensions, wall thickness, straightness, surface, and the inspection scope stated in the order. Only material that meets the approved specification and required inspection results is released for shipment.
