Hastelloy C-4
UNS N06455 / W.Nr. 2.4610
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with hastelloy c4 tubes / sheets / wires / bars / fittings
Hastelloy C4 Material Properties
UNS N06455 / W.Nr. 2.4610 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of hastelloy c-4 for optimal resistance, strength, and stability
Hastelloy C4 Chemical Composition
Hastelloy C-4 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies competitively priced hastelloy C4 products.
Hastelloy C4 (UNS N06455 / W.Nr. 2.4610) is an austenitic nickel alloy containing approximately 16% chromium and 16% molybdenum. Its defining characteristic is strong resistance to microstructural changes during welding and subsequent thermal exposure. This stability reduces the risk of sensitization in regions heated during welding. Chromium contributes to corrosion resistance in oxidizing media, while molybdenum improves performance in reducing acids and increases resistance to localized attack. The nickel matrix provides excellent resistance to chloride induced stress corrosion cracking. Low carbon and silicon contents help reduce harmful precipitation, while the low iron content supports structural stability. This composition combines broad chemical resistance with good ductility and weldability.
The alloy accommodates conventional hot forming, cold forming and machining, although its tendency to work harden requires suitable processing conditions. It can be joined using TIG, MIG and shielded metal arc welding, with matching filler wire and welding electrodes available. Properly produced welds generally retain good corrosion resistance without subsequent heat treatment. Solution annealing restores optimum properties after substantial forming.
Hastelloy C4 Corrosion Resistance
Hastelloy C4 offers strong resistance to general corrosion, chloride induced stress corrosion cracking, and localized pitting and crevice attack. Its resistance to sensitization helps preserve corrosion performance in the heat affected zones of welded joints.
The alloy withstands a broad range of oxidizing and reducing media, including hydrochloric acid, sulfuric acid, and solutions containing chlorides or other halides. Good resistance also extends to formic and acetic acids. Performance depends on solution temperature, acid concentration and dissolved impurities, which determine the severity of the corrosive environment.
Hastelloy C-4 Mechanical Properties
In the solution annealed condition, hastelloy C4 sheet and plate show typical room temperature tensile strengths of 767 to 805 MPa, 0.2% yield strengths of 335 to 421 MPa, and elongations of 52 to 63%. This balance of strength and ductility allows the alloy to undergo substantial deformation before fracture. Cold working increases strength and hardness but reduces ductility.
Hastelloy C4 Temperature Characteristics
Hastelloy C4 shows a reduced tendency to form harmful precipitates during thermal exposure between approximately 650°C and 1040°C. This structural stability helps preserve ductility and resistance to intergranular corrosion after heating. The extent of any property change depends on exposure temperature and duration.
Thermal conductivity and expansion increase with temperature, while elastic stiffness decreases. Solution annealing followed by rapid cooling restores a favorable material condition. The thermal stability range does not establish a universal continuous operating limit, which also depends on applied loading and environment.
Hastelloy C-4 Products
Nickel Alloy C4 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy c-4 products tailored to each project’s needs
Hastelloy C4 Data Sheet
Hastelloy Alloy C-4 Data Sheet
Access / download the hastelloy c4 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.64 | |
|---|---|---|---|
| lb/in.3 | 0.312 | ||
Mechanical Properties
| Form | Test Temperature | Thickness | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | ||||
|---|---|---|---|---|---|---|---|---|---|
| °F | °C | in | mm | ksi | MPa | ksi | MPa | % | |
| Sheet | RT | RT | 0.065 | 1.7 | 60.3 | 416 | 111.4 | 768 | 52 |
| Sheet | 400 | 204 | 0.065 | 1.7 | 58.5 | 403 | 102.4 | 706 | 49 |
| Sheet | 600 | 316 | 0.065 | 1.7 | 53.8 | 371 | 97.9 | 675 | 52 |
| Sheet | 800 | 427 | 0.065 | 1.7 | 46.4 | 320 | 95.2 | 656 | 64 |
| Sheet | RT | RT | 0.125 | 3.2 | 61 | 421 | 116.2 | 801 | 54 |
| Sheet | 400 | 204 | 0.125 | 3.2 | 46.4 | 320 | 98.3 | 678 | 54 |
| Sheet | 600 | 316 | 0.125 | 3.2 | 43.9 | 303 | 97.5 | 672 | 59 |
| Sheet | 800 | 427 | 0.125 | 3.2 | 43.9 | 303 | 93.4 | 644 | 62 |
| Sheet | 1000 | 538 | 0.125 | 3.2 | 43.4 | 299 | 93.5 | 645 | 55 |
| Sheet | RT | RT | 0.156 | 4 | 53 | 365 | 113.5 | 783 | 55 |
| Sheet | 400 | 204 | 0.156 | 4 | 39.9 | 275 | 99.9 | 689 | 55 |
| Sheet | 600 | 316 | 0.156 | 4 | 36.1 | 249 | 95.3 | 657 | 61 |
| Sheet | 800 | 427 | 0.156 | 4 | 36.2 | 250 | 95.1 | 656 | 68 |
| Plate | RT | RT | 0.25 | 6.3 | 48.8 | 336 | 111.3 | 767 | 58 |
| Plate | 400 | 204 | 0.25 | 6.3 | 42.8 | 295 | 104 | 717 | 54 |
| Plate | 600 | 316 | 0.25 | 6.3 | 40.8 | 281 | 103.3 | 712 | 55 |
| Plate | 800 | 427 | 0.25 | 6.3 | 37 | 255 | 99 | 683 | 60 |
| Plate | RT | RT | 0.375 | 9.5 | 51.6 | 356 | 114.7 | 791 | 59 |
| Plate | 400 | 204 | 0.375 | 9.5 | 43.6 | 301 | 105.4 | 727 | 56 |
| Plate | 600 | 316 | 0.375 | 9.5 | 39.1 | 270 | 102.1 | 704 | 59 |
| Plate | 800 | 427 | 0.375 | 9.5 | 37.4 | 258 | 96.3 | 657 | 62 |
| Plate | 1000 | 538 | 0.375 | 9.5 | 33 | 228 | 93.3 | 643 | 52 |
| Plate | RT | RT | 0.5 | 12.7 | 48.6 | 335 | 116.8 | 805 | 63 |
| Plate | 400 | 204 | 0.5 | 12.7 | 38.3 | 264 | 105.2 | 725 | 61 |
| Plate | 600 | 316 | 0.5 | 12.7 | 35.8 | 247 | 102.5 | 707 | 65 |
| Plate | 800 | 427 | 0.5 | 12.7 | 34.2 | 236 | 99.8 | 688 | 66 |
| Plate | 1000 | 538 | 0.5 | 12.7 | 29.8 | 205 | 92.1 | 635 | 71 |
Hastelloy C-4 Standards
UNS N06455 / W.Nr. 2.4610 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B622
Seamless Pipe & Tube

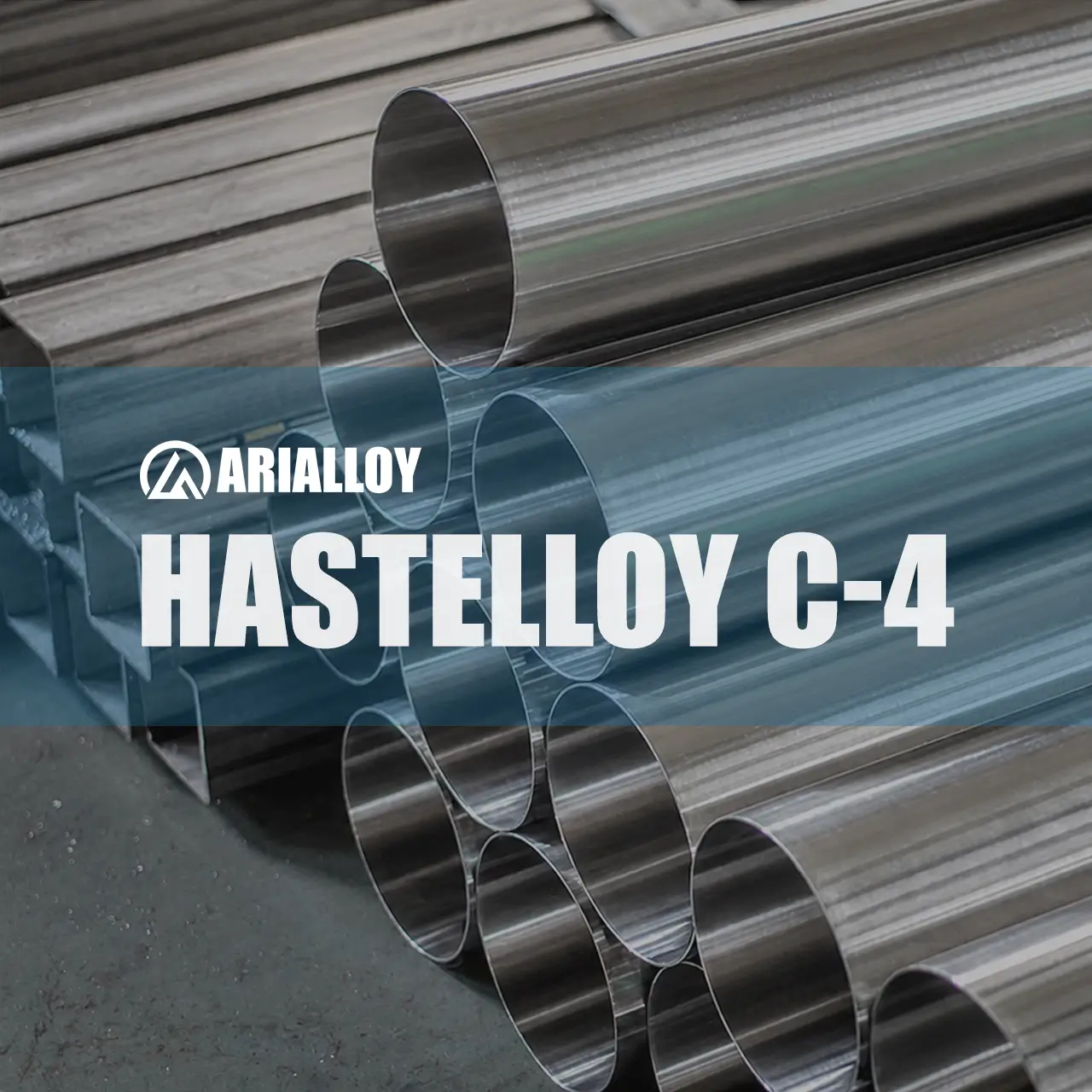

ASTM B619
Welded Pipe & Tube
ASTM B626
Welded Pipe & Tube

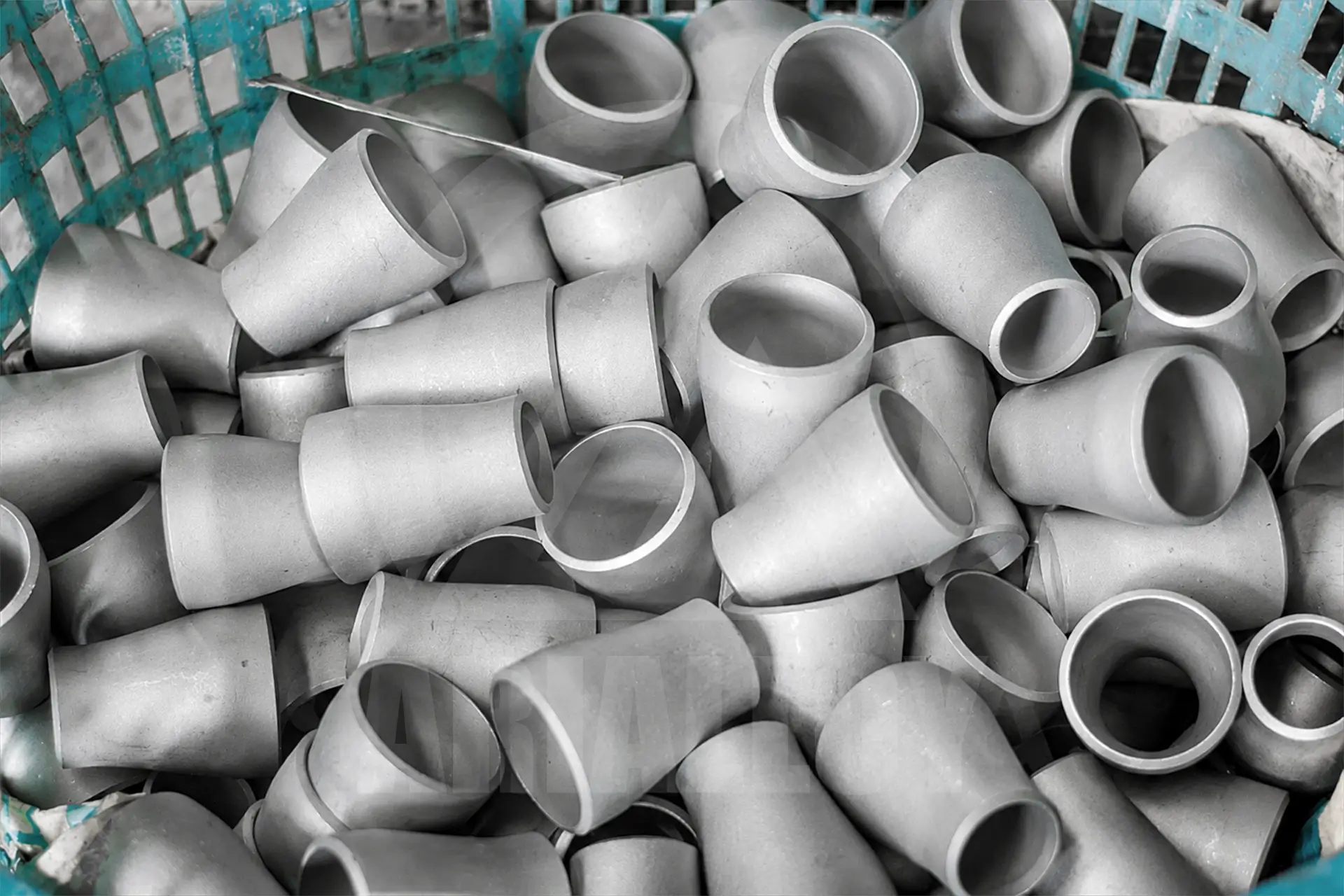

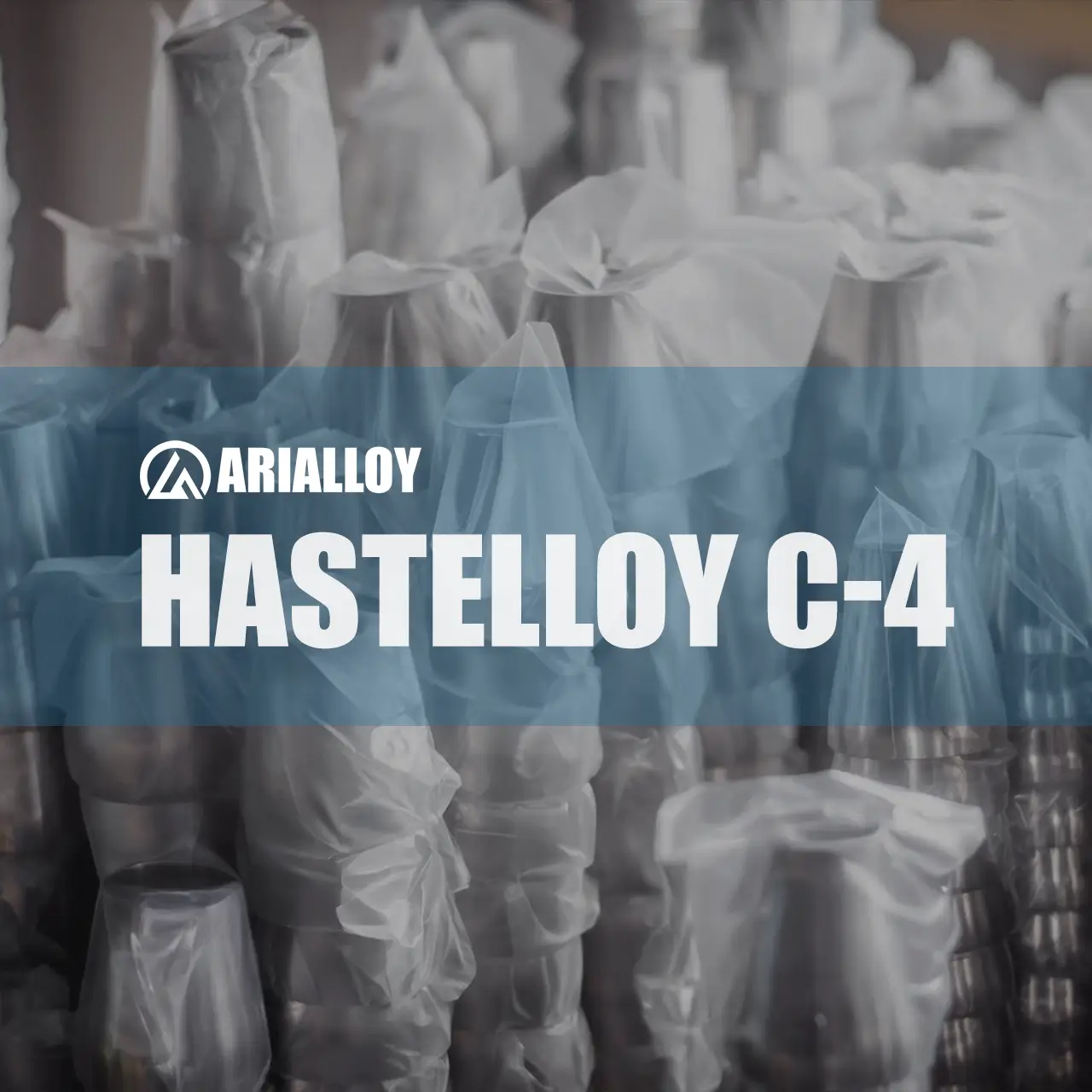

ASTM B366
Fittings

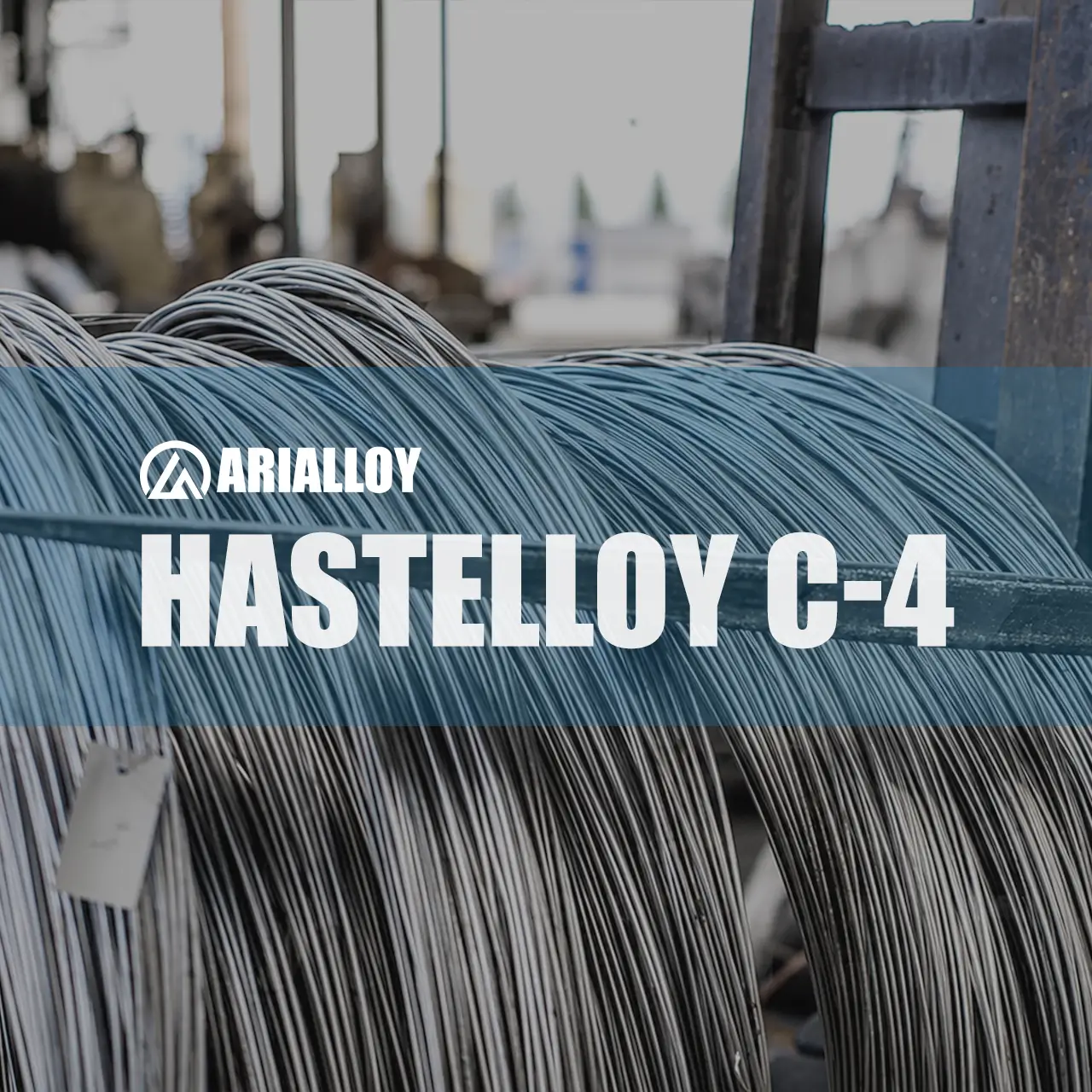

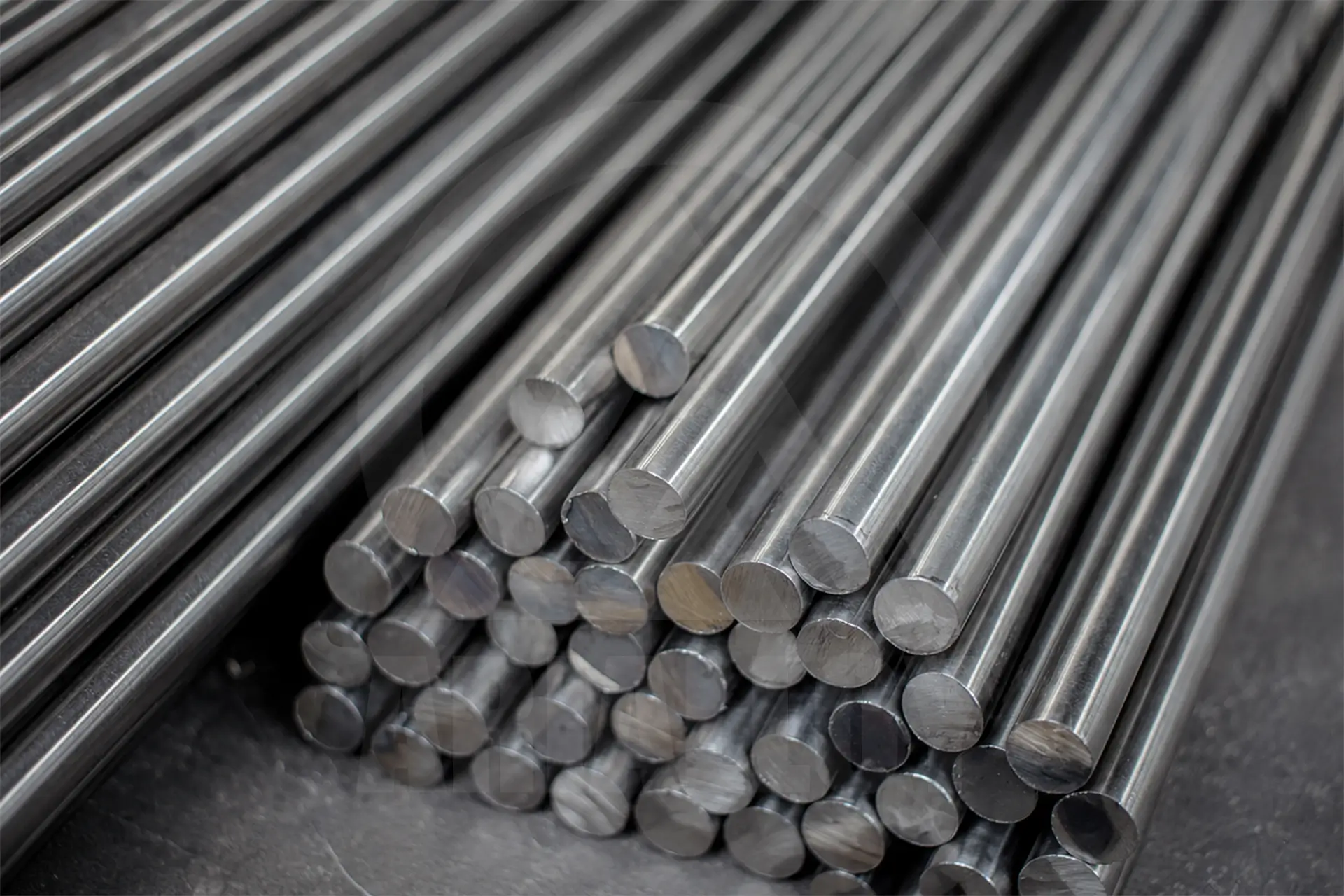

ASTM B574
Billet, Rod and Bar

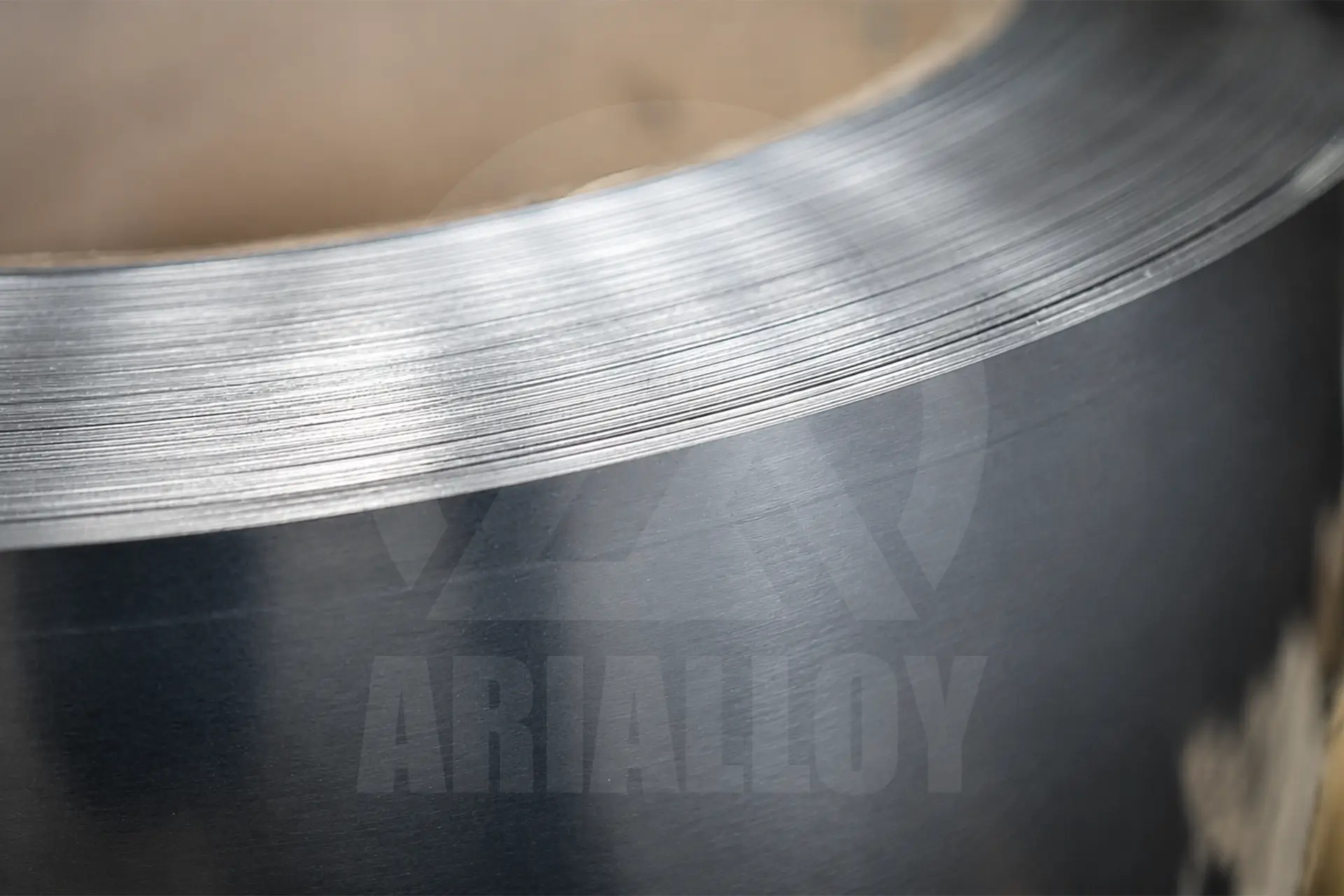

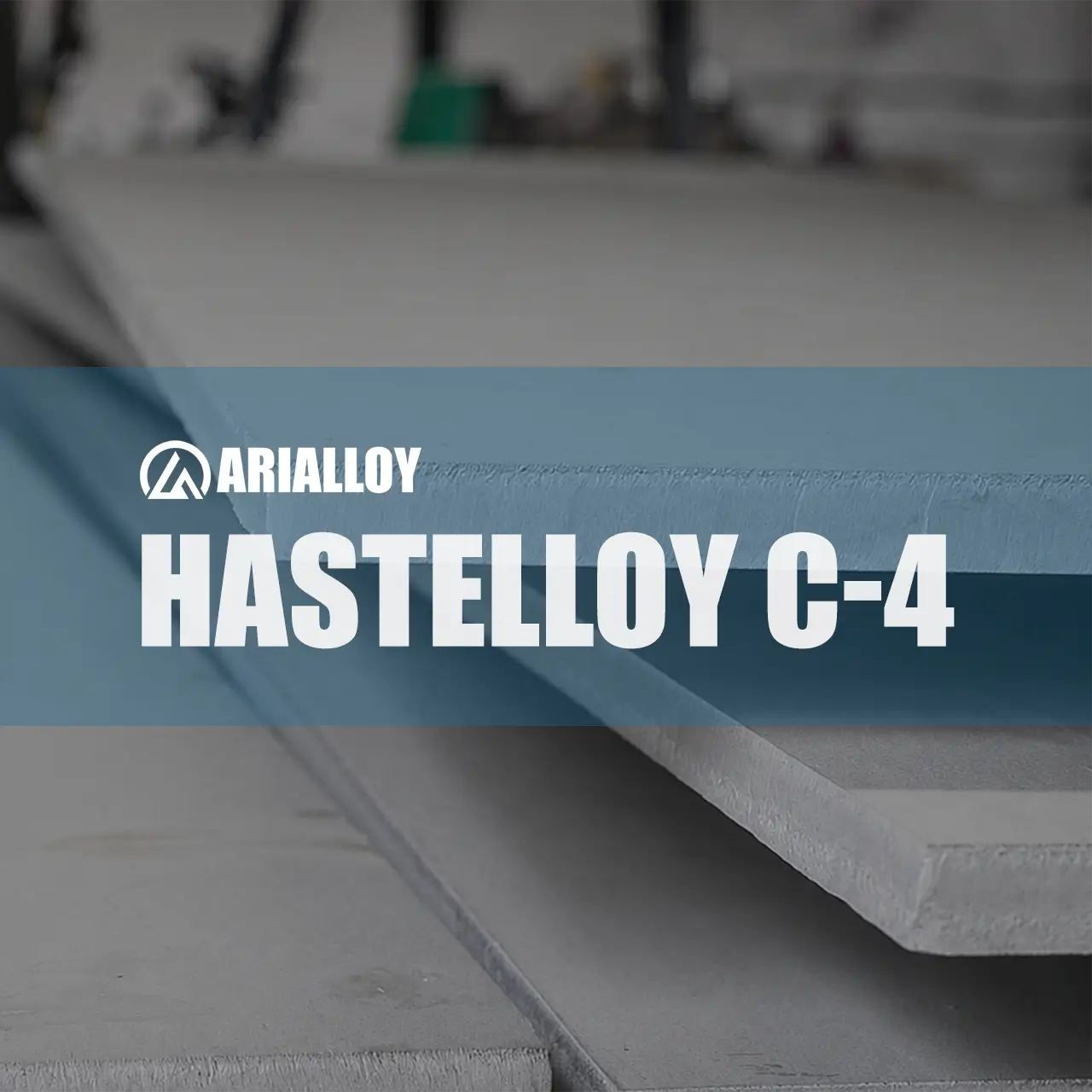

ASTM B575
Plate, Sheet and Strip

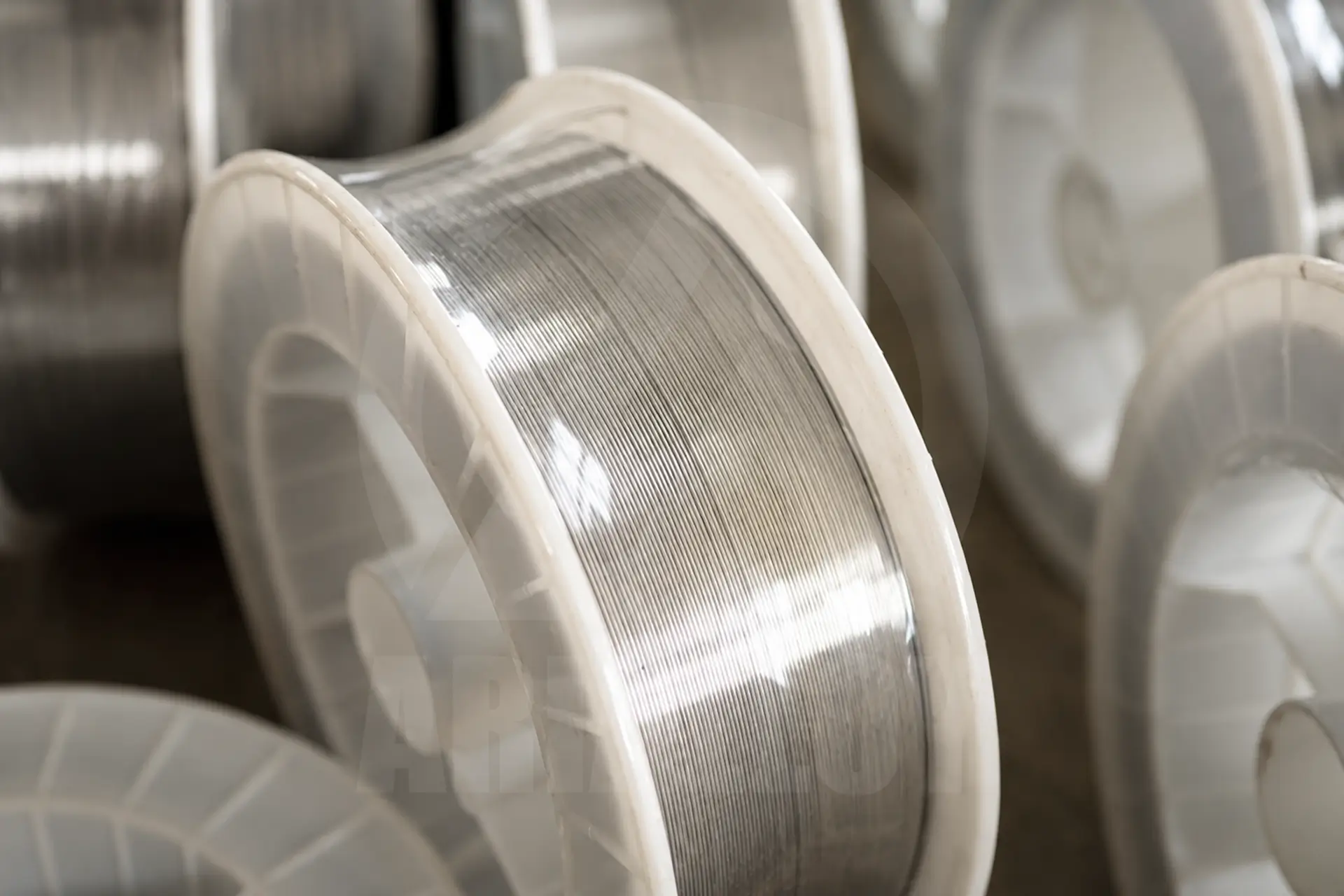

AWS A5.14 ERNiCrMo-7
Filler Metal

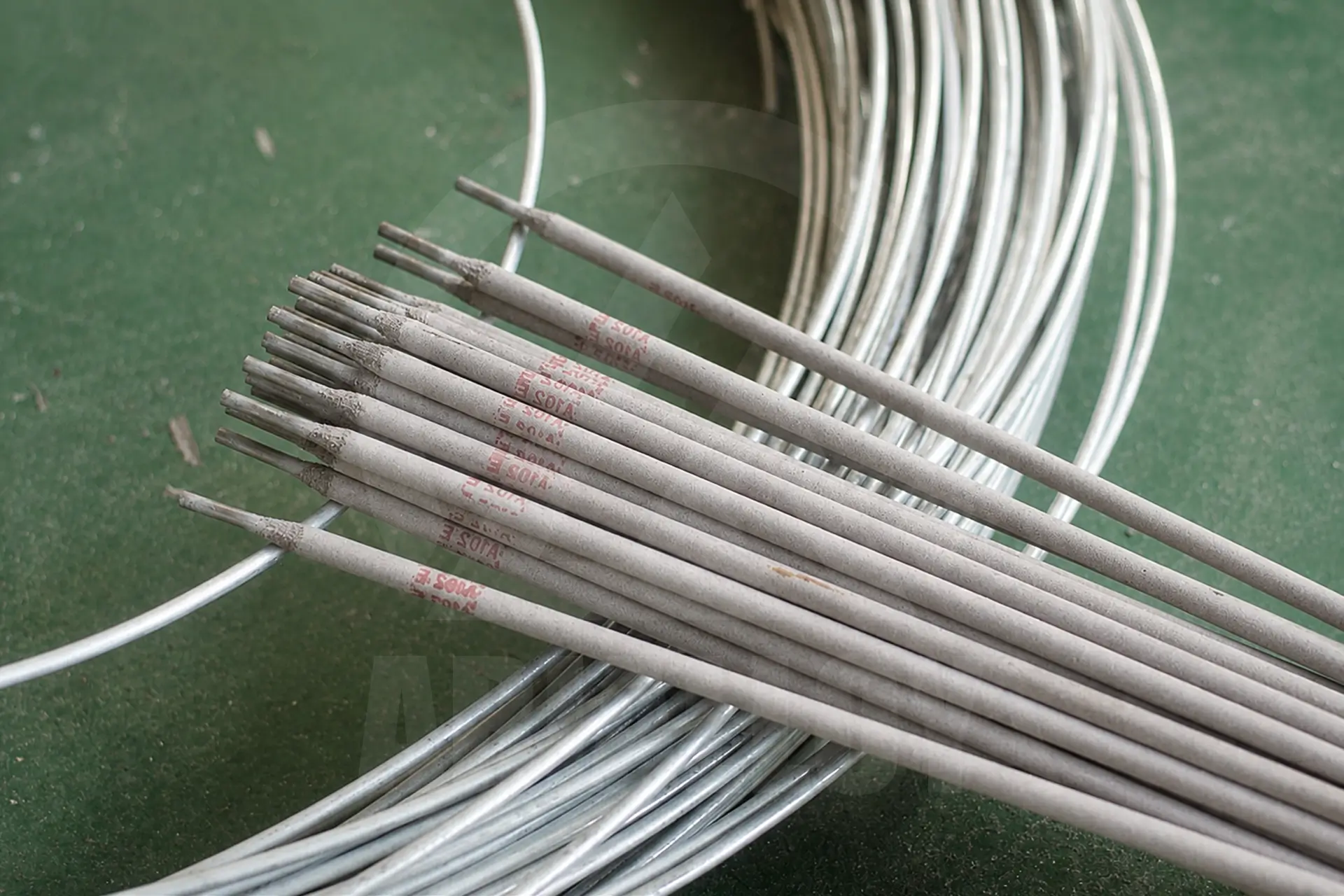

AWS A5.11 ENiCrMo-7
Welding Electrode
Hastelloy C4 SHOW
Nickel Alloy C-4 Showcase
From initial samples to large scale production, we supply high quality hastelloy c4 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Hastelloy C-4 Quotation Process
From detailed consultation to final delivery, we make custom hastelloy c4 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Hastelloy C-4 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy hastelloy alloy c4 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Hastelloy C4 Applications
UNS N06455 / W.Nr. 2.4610 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Hastelloy C-4 Knowledge
Nickel Alloy C4 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Hastelloy Grades
Hastelloy Alloy Grades
Explore the full range of hastelloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Hastelloy C-4 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
You can initiate your hastelloy c4 purchase through email at sales@arialloy.com or via the inquiry form at the bottom of this page. After receiving your requirements, our sales team will send you a quotation. If you confirm the offer, provide your PO. We will issue a PI for payment and begin production after receiving the prepayment. You will be notified once the material is ready.
Hastelloy C-4 quote requests are handled by our professional sales team, with a typical response time of 24 hours. If your inquiry requires more information or cannot be quoted, we will contact you promptly.
Hastelloy C-4 is normally supplied under FOB terms, meaning the buyer usually nominates the freight forwarder. We will work closely with the nominated forwarder to complete the local shipping procedures. If you prefer to have us manage transportation, we can arrange it and confirm the shipping charges.
The market prices of the constituent metals are major contributors to alloy pricing. For superalloys, nickel, chromium, molybdenum, and titanium can represent significant raw material costs. As these markets fluctuate, the price of the finished alloy may also fluctuate.
Our factory performs hastelloy c4 smelting internally with more than 30 vacuum and electroslag remelting furnaces. The equipment includes 50 kg, 200 kg, 1,000 kg, and 5,000 kg capacities. This diversified furnace setup allows us to offer greater MOQ flexibility.
We issue pre shipment MTRs for hastelloy c4 in accordance with applicable industry standards. Each report documents the material standard, chemical composition, mechanical characteristics, dimensions, and heat number.
The hastelloy c4 composition is monitored through controlled charging and chemical analysis during melting. Final material verification is performed with PMI testing, and third party laboratory testing can be arranged for customers seeking independent confirmation.
