Hastelloy C-22
UNS N06022 / W.Nr. 2.4602
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with hastelloy c22 tubes / sheets / wires / bars / fittings
Hastelloy C-22 Material Properties
UNS N06022 / W.Nr. 2.4602 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of hastelloy c22 for optimal resistance, strength, and stability
Hastelloy C-22 Chemical Composition
Hastelloy C22 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies cost effective hastelloy C-22 products.
Hastelloy C-22 (UNS N06022 / W.Nr. 2.4602) is an austenitic nickel alloy containing chromium, molybdenum and tungsten, combining broad corrosion resistance with good ductility and weldability. Its nominal composition includes approximately 22% chromium, 13% molybdenum and 3% tungsten, with nickel forming the balance. Chromium improves resistance to oxidizing chemicals, while molybdenum and tungsten contribute to protection against reducing media and localized attack. Low carbon and silicon contents help limit harmful precipitation during welding, supporting corrosion resistance around welded joints. The alloy derives its strength primarily from solid solution strengthening and can be further strengthened through cold working. Products are normally supplied in the solution annealed condition to provide a favorable balance of corrosion resistance and formability.
The alloy can be joined using gas tungsten arc, gas metal arc and shielded metal arc welding. Matching C-22 filler metals support corrosion resistance in the deposited weld metal. Appropriate welding procedures remain essential because weld chemistry and microstructure can influence performance, particularly where aggressive solutions attack the weld differently from the base metal.
Hastelloy C-22 Corrosion Resistance
Hastelloy C-22 offers strong resistance to general corrosion, chloride induced stress corrosion cracking, pitting and crevice attack. Its resistance to precipitation during welding helps preserve corrosion resistance in the heat affected zones of properly made joints.
The alloy resists many oxidizing and reducing solutions, including wet chlorine, ferric chloride, cupric chloride and mixed acids containing chlorides. It also performs well in many organic acids. Actual corrosion rates depend on temperature, acid concentration and impurities, so resistance should be assessed for the specific chemical conditions.
Hastelloy C22 Mechanical Properties
In the solution annealed condition, hastelloy C-22 combines tensile strength with substantial ductility. Published room temperature averages for sheet, plate and bar show tensile strengths of 765 to 800 MPa, 0.2% yield strengths of 359 to 407 MPa, and elongations of 57 to 70%. Cold working increases strength and hardness while reducing ductility.
These figures are typical test averages, not guaranteed minimum values. Acceptance requirements depend on the applicable product specification, dimensions and delivery condition.
Hastelloy C-22 Temperature Characteristics
Hastelloy C-22 exhibits decreasing tensile strength and elastic modulus as temperature rises, while retaining substantial ductility in elevated temperature tensile tests. Sustained exposure above approximately 677°C (1250°F) is generally avoided because detrimental phases can form and impair material properties.
Its melting range of approximately 1357 to 1399°C does not represent an allowable service range. Solution annealing is normally performed at approximately 1121°C (2050°F), followed by rapid cooling to restore the desired microstructure. Permissible operating temperatures depend on exposure duration, corrosive conditions and mechanical loading.
Hastelloy C22 Products
Nickel Alloy C-22 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy c22 products tailored to each project’s needs
Hastelloy C-22 Data Sheet
Hastelloy Alloy C22 Data Sheet
Access / download the hastelloy c-22 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.69 | |
|---|---|---|---|
| lb/in.3 | 0.314 | ||
| Melting Range | °F | 2475 - 2550 | |
| °C | 1357 - 1399 | ||
Mechanical Properties
| Form | Test Temperature | Thickness / Bar Diameter | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | ||||
|---|---|---|---|---|---|---|---|---|---|
| °F | °C | in | mm | ksi | MPa | ksi | MPa | % | |
| Sheet | RT | RT | 0.028-0.125 | 0.7-3.2 | 59 | 407 | 116 | 800 | 57 |
| Sheet | 200 | 93 | 0.028-0.125 | 0.7-3.2 | 54 | 372 | 110 | 758 | 58 |
| Sheet | 400 | 204 | 0.028-0.125 | 0.7-3.2 | 44 | 303 | 102 | 703 | 57 |
| Sheet | 600 | 316 | 0.028-0.125 | 0.7-3.2 | 42 | 286 | 98 | 676 | 62 |
| Sheet | 800 | 427 | 0.028-0.125 | 0.7-3.2 | 41 | 283 | 95 | 655 | 67 |
| Sheet | 1000 | 538 | 0.028-0.125 | 0.7-3.2 | 40 | 276 | 91 | 627 | 61 |
| Sheet | 1200 | 649 | 0.028-0.125 | 0.7-3.2 | 36 | 248 | 85 | 586 | 65 |
| Sheet | 1400 | 760 | 0.028-0.125 | 0.7-3.2 | 35 | 241 | 76 | 524 | 63 |
| Plate | RT | RT | 0.25-0.75 | 6.4-19.1 | 54 | 372 | 114 | 786 | 62 |
| Plate | 200 | 93 | 0.25-0.75 | 6.4-19.1 | 49 | 338 | 107 | 738 | 65 |
| Plate | 400 | 204 | 0.25-0.75 | 6.4-19.1 | 41 | 283 | 98 | 676 | 66 |
| Plate | 600 | 316 | 0.25-0.75 | 6.4-19.1 | 36 | 248 | 95 | 655 | 68 |
| Plate | 800 | 427 | 0.25-0.75 | 6.4-19.1 | 35 | 241 | 92 | 634 | 68 |
| Plate | 1000 | 538 | 0.25-0.75 | 6.4-19.1 | 34 | 234 | 88 | 607 | 67 |
| Plate | 1200 | 649 | 0.25-0.75 | 6.4-19.1 | 32 | 221 | 83 | 572 | 69 |
| Plate | 1400 | 760 | 0.25-0.75 | 6.4-19.1 | 31 | 214 | 76 | 524 | 68 |
| Bar | RT | RT | 0.5-2.0 | 12.7-50.8 | 52 | 359 | 111 | 765 | 70 |
| Bar | 200 | 93 | 0.5-2.0 | 12.7-50.8 | 45 | 310 | 105 | 724 | 73 |
| Bar | 400 | 204 | 0.5-2.0 | 12.7-50.8 | 38 | 262 | 96 | 662 | 74 |
| Bar | 600 | 316 | 0.5-2.0 | 12.7-50.8 | 34 | 234 | 92 | 634 | 79 |
| Bar | 800 | 427 | 0.5-2.0 | 12.7-50.8 | 31 | 214 | 89 | 614 | 79 |
| Bar | 1000 | 538 | 0.5-2.0 | 12.7-50.8 | 29 | 200 | 84 | 579 | 80 |
| Bar | 1200 | 649 | 0.5-2.0 | 12.7-50.8 | 28 | 193 | 80 | 552 | 80 |
| Bar | 1400 | 760 | 0.5-2.0 | 12.7-50.8 | 29 | 200 | 72 | 496 | 77 |
Hastelloy C22 Standards
UNS N06022 / W.Nr. 2.4602 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B622

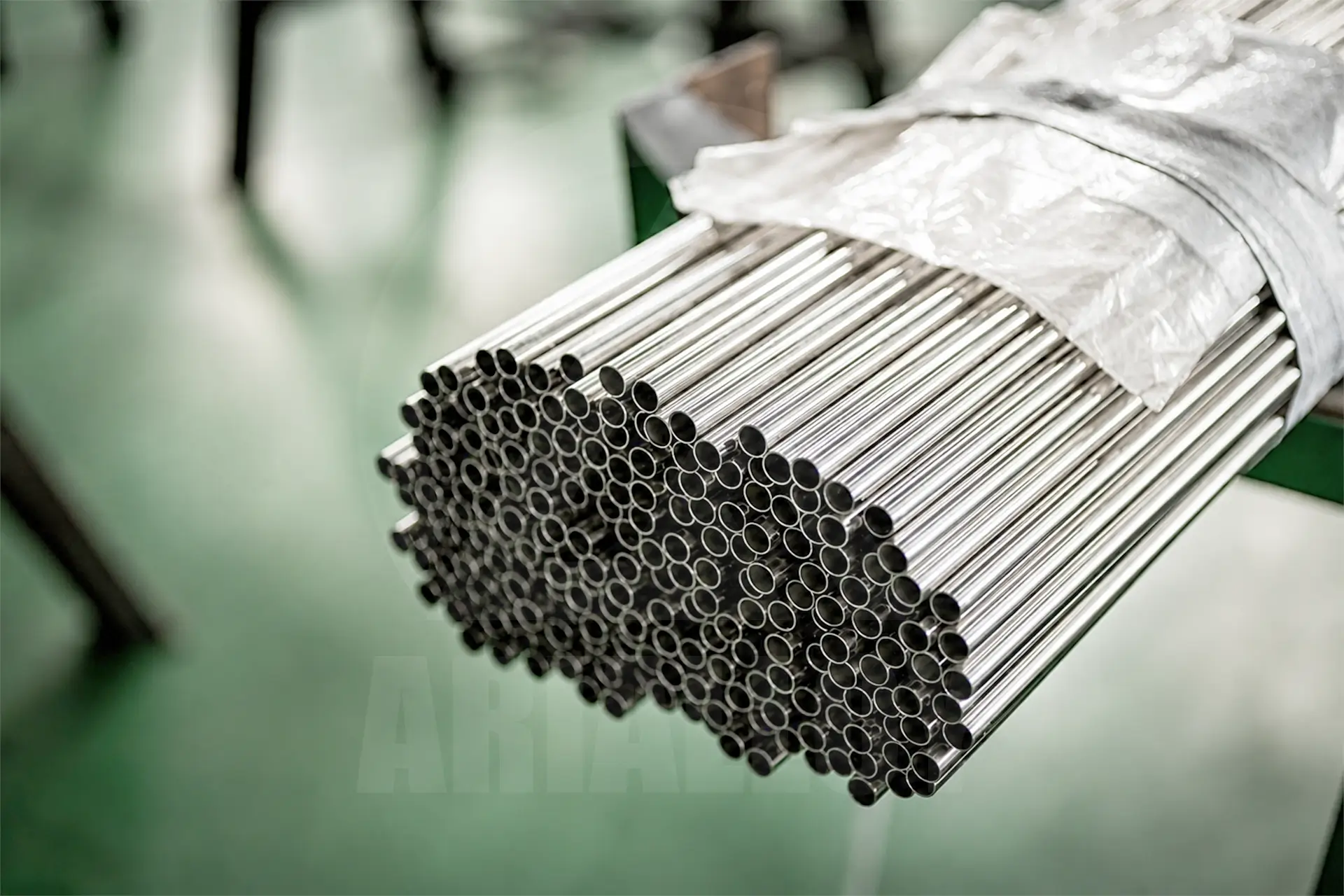

Seamless Pipe & Tube
ASTM B619
Welded Pipe & Tube
ASTM B626
Welded Pipe & Tube
ASTM B366
Fittings
ASTM B462
Fittings
ASTM B574
Billet, Rod and Bar
ASTM B564
Forgings
ASTM B462
Forgings
ASTM B575

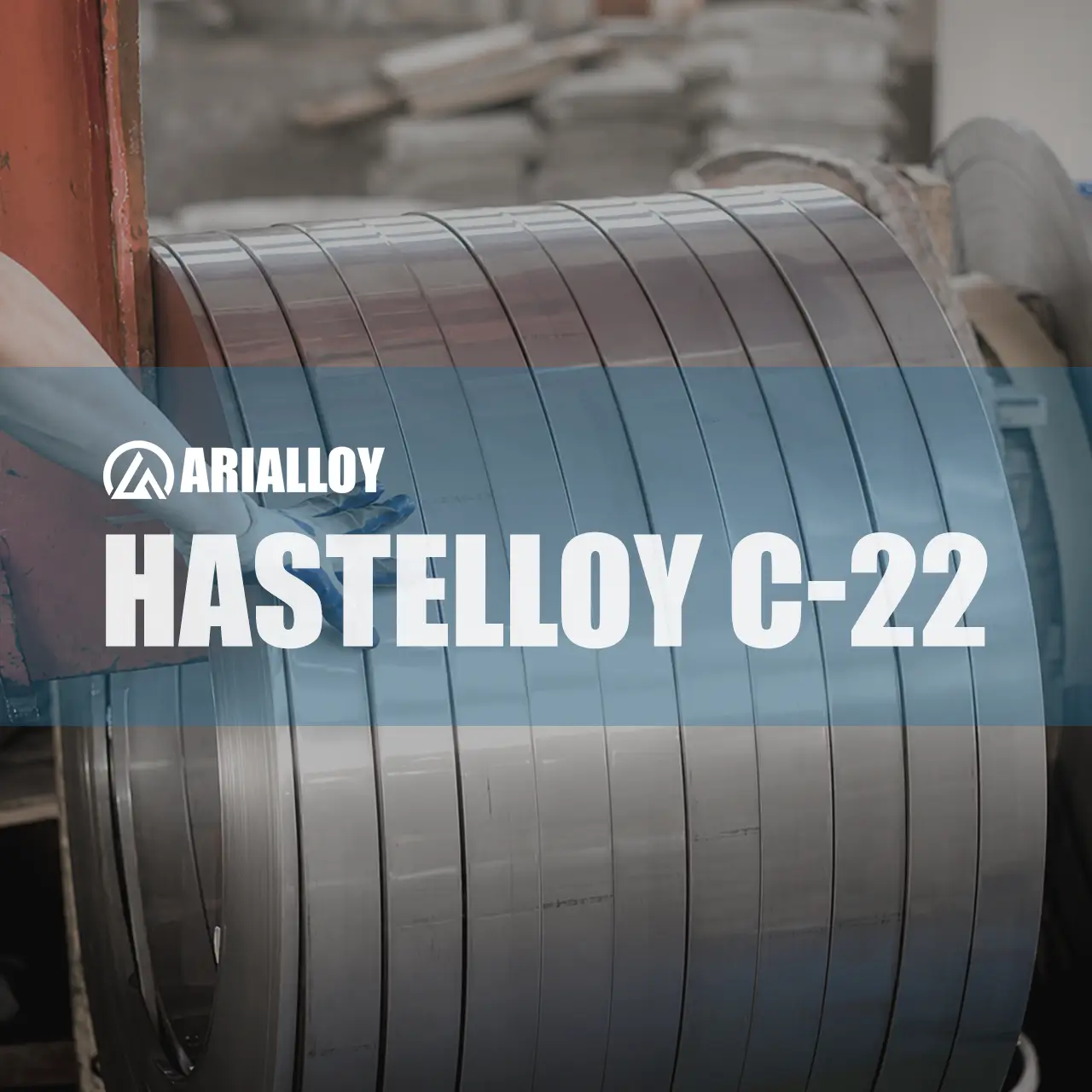

Plate, Sheet and Strip
AWS A5.14 ERNiCrMo-10

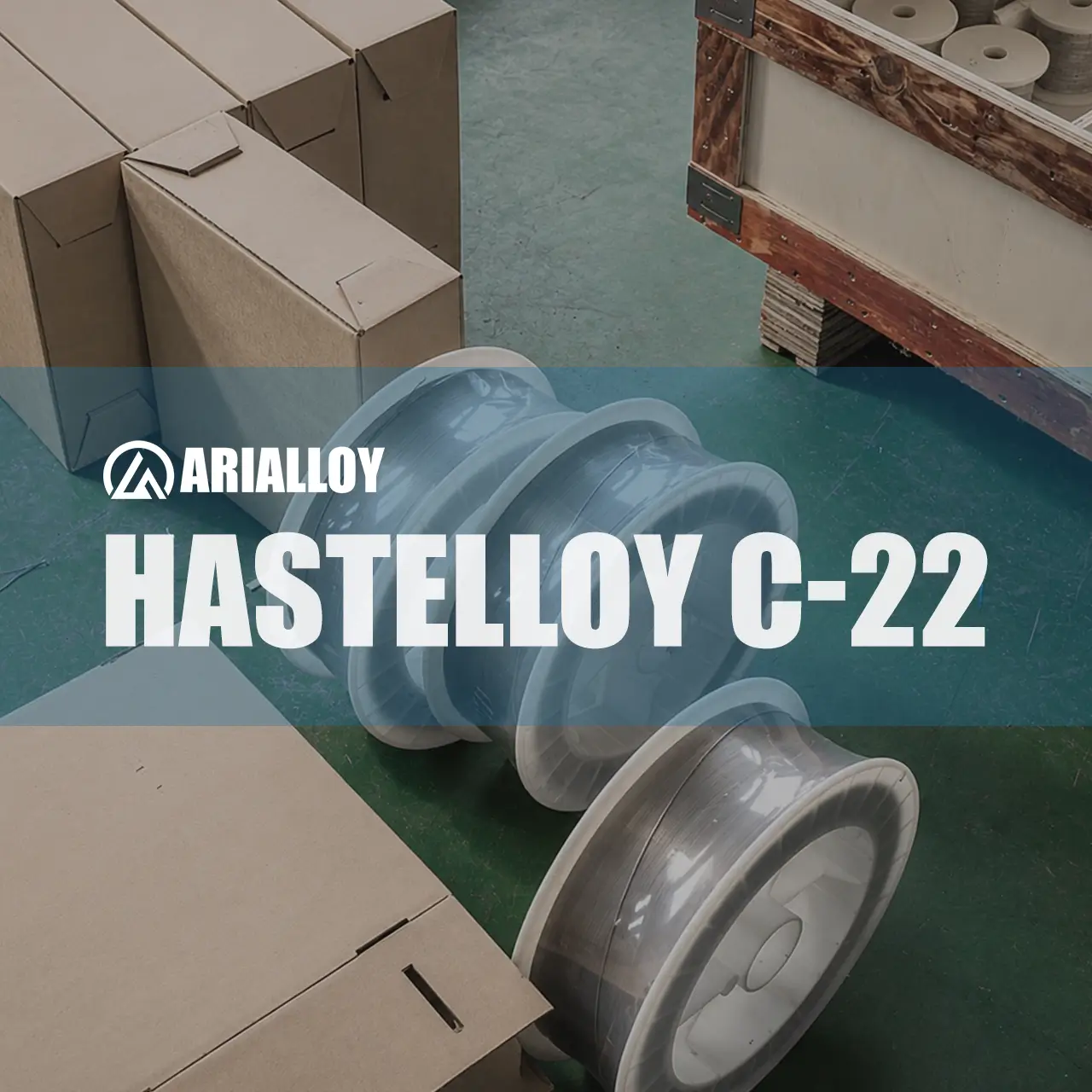

Filler Metal
AWS A5.11 ENiCrMo-10
Welding Electrode
Hastelloy C-22 SHOW
Nickel Alloy C22 Showcase
From initial samples to large scale production, we supply high quality hastelloy c-22 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Hastelloy C22 Quotation Process
From detailed consultation to final delivery, we make custom hastelloy c-22 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Hastelloy C22 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy hastelloy alloy c-22 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Hastelloy C-22 Applications
UNS N06022 / W.Nr. 2.4602 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Hastelloy C22 Knowledge
Nickel Alloy C-22 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Hastelloy Grades
Hastelloy Alloy Grades
Explore the full range of hastelloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Hastelloy C22 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Simply tell us your hastelloy c22 requirements by email at sales@arialloy.com or through the form below. We will take it from there by preparing a detailed quotation. If you are satisfied with the offer, send us your PO. We will issue the PI for payment, start production once the prepayment is received, and let you know when the material is complete.
Our quotation team generally provides an hastelloy c22 offer within 24 hours of receiving your requirements. If we are unable to quote based on the request, we will promptly advise you of the situation.
Under our standard FOB quotation for hastelloy c22, the customer normally appoints the logistics provider. We then cooperate with that provider to complete all necessary local operations. If you would like us to simplify the process, we can arrange the transportation ourselves and inquire about the freight cost.
Changes in the prices of key metallic inputs can have a direct effect on hastelloy c22 pricing. Nickel, chromium, molybdenum, and tungsten and other alloying elements all contribute to the material’s cost, so movements in their market values can influence the final price.
We have our own facilities for melting hastelloy c22, supported by more than 30 vacuum smelting and electroslag remelting furnaces. Because the furnaces are available in four capacity ranges, we can select equipment appropriate to the customer’s required volume, including relatively small batches.
Certainly, the supplied hastelloy c22 is accompanied by a material test report prepared before shipment. The report identifies the applicable standard and records chemistry, mechanical properties, dimensions, and heat number.

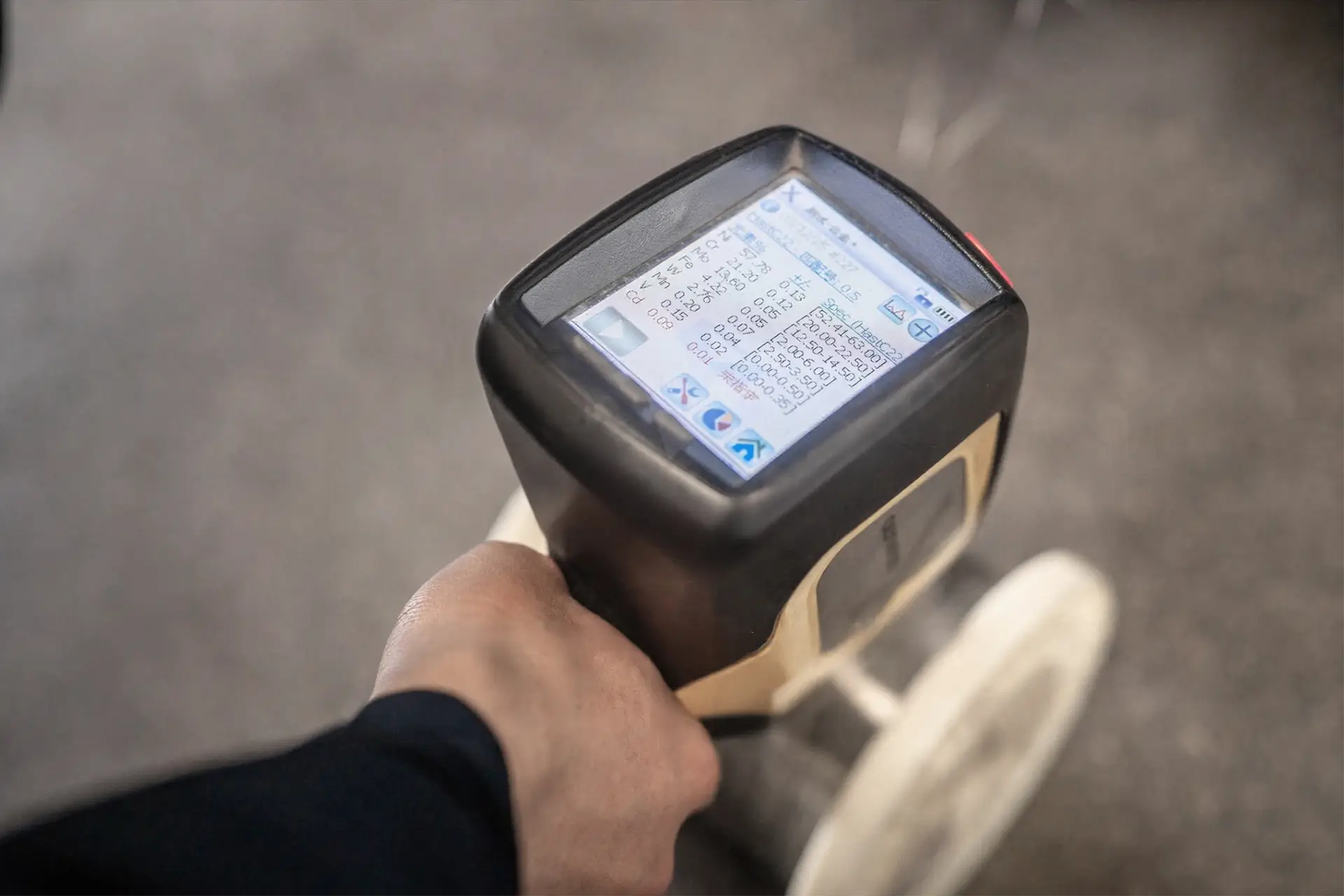

We keep the hastelloy c22 melt chemistry under control by managing the material proportions and conducting chemical analysis during production. PMI testing is then performed on the finished material, with external lab analysis available as an additional check.
