Monel 502
UNS N05502
Catalog

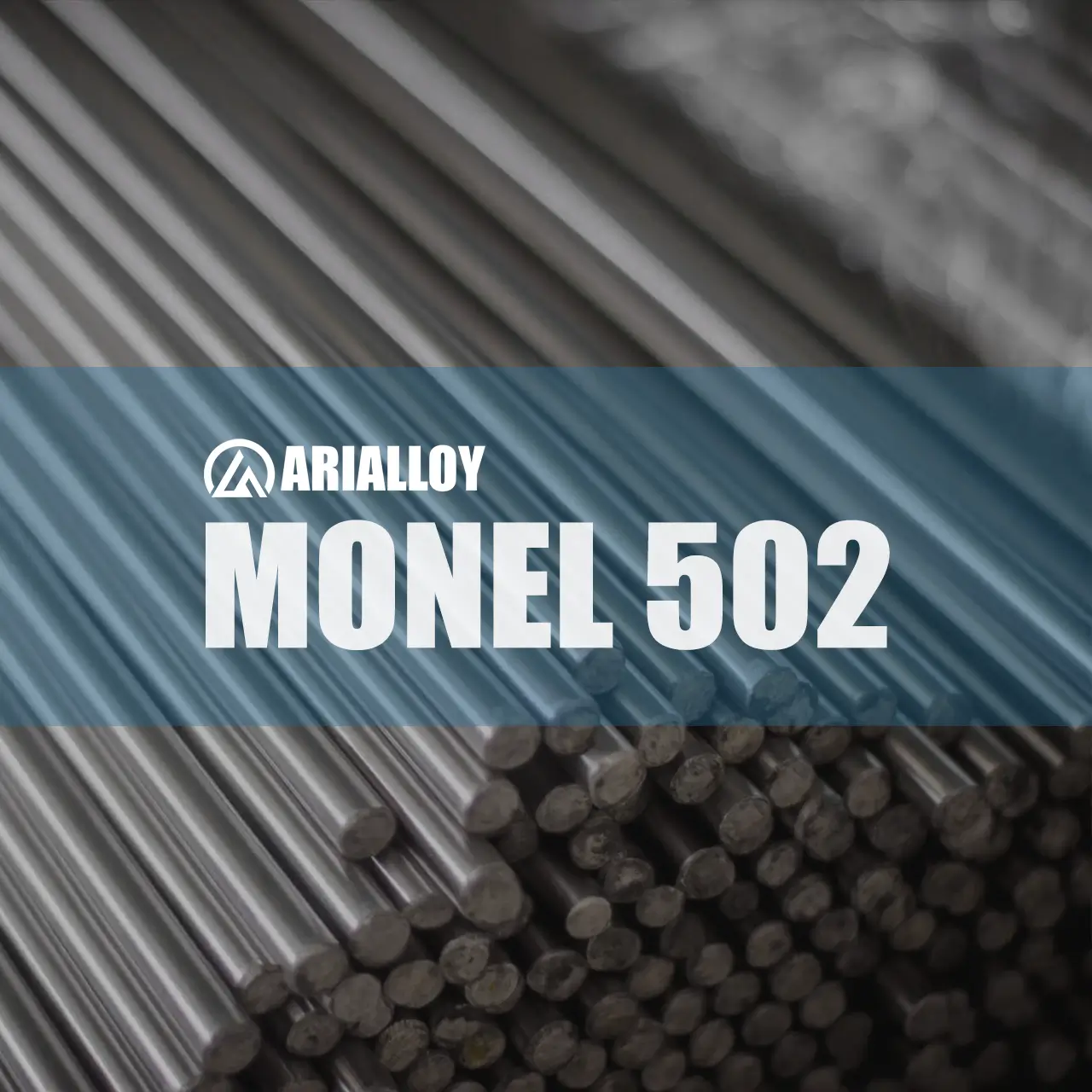

Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with monel 502 bars
Monel 502 Material Properties
UNS N05502 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of monel 502 for optimal resistance, strength, and stability
Monel 502 Chemical Composition
Monel 502 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies cost effective monel 502 products.
Monel 502 (UNS N05502) is a nickel and copper alloy that combines corrosion resistance with the ability to develop high strength through precipitation hardening. Its composition includes 63 to 70% nickel and 2.5 to 3.5% aluminum, with copper forming the balance and smaller amounts of iron, manganese, titanium, and silicon. The nickel and copper matrix provides the foundation for its corrosion behavior, while aluminum supports the formation of strengthening precipitates during aging. This response to thermal treatment allows strength and hardness to increase beyond the levels obtained in the annealed condition.
A distinguishing feature of monel 502 is its improved machinability. Cutting practices are broadly comparable to those used for austenitic stainless steels, although tool rigidity, cutting conditions, and material hardness remain important. The alloy can be shaped by conventional hot and cold working methods. Annealing softens the material for further processing, while subsequent aging develops the required mechanical properties.
The final balance of strength, ductility, and hardness depends on the processing sequence, section size, and heat treatment. These factors make the specified delivery condition an essential part of material selection and the interpretation of mechanical test results.
Monel 502 Corrosion Resistance
Monel 502 can offer corrosion resistance associated with its nickel and copper base, particularly in suitable seawater, salt solution, and reducing chemical environments. Actual resistance depends on solution composition, temperature, dissolved oxygen, and the condition of the material.
Oxidizing acids and oxidizing contaminants can increase attack, while stagnant conditions and deposits may promote localized corrosion. Increased hardness after aging should not be interpreted as improved corrosion resistance. Assessment of stress corrosion cracking requires consideration of the environment, applied stress, residual stress, and final heat treatment.
Monel 502 Mechanical Properties
Monel 502 develops increased strength and hardness through precipitation hardening. Published reference values include a tensile strength of approximately 1158 MPa, a yield strength of 1034 MPa, and an elongation of 15%. These figures should not be treated as guaranteed properties for every product form or delivery condition.
Cold working and aging affect the balance between strength and ductility. Acceptance requirements should therefore specify the product dimensions, heat treatment condition, test method, and applicable minimum values.
Monel 502 Temperature Characteristics
Monel 502 can retain high strength at temperatures up to approximately 427°C (800°F). Its performance at elevated temperatures depends on the initial heat treatment, applied stress, and duration of exposure. Prolonged heating can alter the strengthening precipitates and reduce the hardness obtained by aging.
Typical aging treatments use temperatures around 594 to 608°C (1100 to 1125°F), followed by furnace cooling. These processing temperatures are distinct from permissible operating temperatures. Creep behavior, oxidation, and microstructural stability must be evaluated separately when establishing limits for sustained exposure.
Monel 502 Products
Nickel Alloy 502 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 502 products tailored to each project’s needs
Monel 502 Data Sheet
Monel Alloy 502 Data Sheet
Access / download the monel 502 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 1158 MPa | 167954 psi |
| Yield strength | 1034 MPa | 149969 psi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation | 15% | 15% |
| Reduction of area | 53% | 53% |
| Hardness | 335 | 335 |
Monel 502 Standards
UNS N05502 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
Monel 502 SHOW
Nickel Alloy 502 Showcase
From initial samples to large scale production, we supply high quality monel 502 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Monel 502 Quotation Process
From detailed consultation to final delivery, we make custom monel 502 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Monel 502 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy monel alloy 502 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Monel 502 Applications
UNS N05502 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Monel 502 Knowledge
Nickel Alloy 502 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Monel Grades
Monel Alloy Grades
Explore the full range of monel alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Monel 502 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Simply send your monel 502 requirements to sales@arialloy.com or complete the inquiry form below. Once we receive your request, our sales team will prepare a detailed quotation. If you would like to move forward, send us your PO and we will issue a PI. Manufacturing begins after the prepayment is received, and we will inform you when the materials are ready.
In general, our sales representatives will send your monel 502 quotation within 24 hours. If we require further information or cannot meet the quotation request, we will notify you in a timely manner.
We normally quote monel 502 on an FOB basis, with transportation arranged by the buyer through a designated freight forwarder. Our team will provide the necessary cooperation for local handling. If you do not want to coordinate the shipment yourself, we can take care of the transportation and check the shipping expense accordingly.
A major reason for changes in monel 502 prices is the movement of raw metal costs. The alloy contains valuable metallic elements, and the prices of key metals such as nickel, copper, and silicon can strongly influence the final cost. When those markets fluctuate, alloy prices may fluctuate as well.
We have complete in-house smelting capability for monel 502. More than 30 vacuum smelting and electroslag remelting furnaces are installed at our factory, with capacities of 50 kg, 200 kg, 1,000 kg, and 5,000 kg. This range allows us to match furnace capacity to the required production volume and keep our MOQ flexible.
Certainly. Every applicable monel 502 material test report is prepared to industry standards and made available before shipment. It documents the material grade, chemical analysis, mechanical properties, dimensions, and corresponding heat number.
We monitor monel 502 chemistry from melting through final production by controlling material ratios and conducting chemical analyses. PMI testing is performed on the finished material, and third party laboratory analysis can be provided when requested.
