Incoloy 945
UNS N09945
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with incoloy 945 tubes / bars
Incoloy 945 Material Properties
UNS N09945 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of incoloy 945 for optimal resistance, strength, and stability
Incoloy 945 Chemical Composition
Incoloy 945 Material Properties Overview
As a leading supplier and manufacturer in China, Arialloy supplies cost effective incoloy 945 products.
Incoloy 945 (UNS N09945) is a precipitation hardenable nickel, iron, chromium alloy containing Mo, Cu, Nb, Ti, and Al. Its high Ni content provides good resistance to chloride induced stress corrosion cracking, while Ni, Mo, and Cu work together to improve general corrosion resistance in reducing media. Cr strengthens resistance to oxidizing media, and Mo improves resistance to pitting and crevice corrosion. Nb, Ti, and Al form fine γ′ and γ″ precipitates during aging, giving incoloy 945 high yield strength, tensile strength, hardness, and fatigue resistance while maintaining good ductility and impact toughness. In the annealed and aged condition, the alloy reaches a minimum yield strength of 862 MPa and a minimum tensile strength of 1034 MPa, while retaining good strength as temperature increases.
Its combination of corrosion resistance, high strength, fatigue resistance, and thermal stability defines the principal material properties of incoloy 945. Arialloy recommends incoloy 945 for customers seeking a strong combination of high mechanical strength, chloride corrosion resistance, and resistance to cracking in hydrogen sulfide containing environments.
Incoloy 945 Corrosion Resistance
Incoloy 945 offers excellent resistance to general corrosion, localized corrosion, and stress corrosion cracking. Its high Ni content improves resistance to chloride induced stress corrosion cracking, while Ni works together with Mo and Cu to strengthen corrosion resistance in reducing media. Cr improves resistance to oxidizing media, and Mo further increases resistance to pitting and crevice corrosion.
The alloy also provides strong resistance in environments containing chlorides and hydrogen sulfide, together with good resistance to sulfide stress cracking and hydrogen stress cracking. In ASTM G123 chloride stress corrosion testing, incoloy 945 showed no cracking after 720 hours, while its critical pitting temperature in ASTM G48 testing reached 50°C.
Incoloy 945 Mechanical Properties
Incoloy 945 develops high strength through the age hardening effects of Nb, Ti, and Al, which form fine and uniformly distributed γ′ and γ″ precipitates within the austenitic matrix. This strengthening mechanism gives the alloy high yield strength, tensile strength, hardness, and fatigue resistance.
In the annealed and aged condition, its minimum yield strength is 125 ksi, or 862 MPa, its minimum tensile strength is 150 ksi, or 1034 MPa, and its minimum elongation is 18%, with hardness ranging from 32 to 42 HRC. Typical round bar properties show yield strength of about 914 to 981 MPa and tensile strength of about 1163 to 1214 MPa, while retaining good ductility and impact toughness.
Incoloy 945 Temperature Characteristics
Incoloy 945 retains high mechanical strength as temperature increases. At approximately 232°C, its yield strength remains around 896 MPa, demonstrating good strength retention during thermal exposure. The elastic modulus is approximately 195 GPa at 23°C and changes gradually with increasing temperature.
Thermal conductivity increases from about 10.9 W/m·K at 23°C, while the coefficient of thermal expansion also rises progressively as temperature increases. The alloy has a melting range of approximately 1270°C to 1377°C. Its γ′ and γ″ precipitation strengthened structure contributes to microstructural stability and the retention of mechanical properties during thermal exposure.
Incoloy 945 Products
Nickel Alloy 945 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 945 products tailored to each project’s needs
Incoloy 945 Data Sheet
Incoloy Alloy 945 Data Sheet
Access / download the incoloy 945 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.2 | |
|---|---|---|---|
| lb/in.3 | 0.296 | ||
| Melting Range | °F | 2317 - 2510 | |
| °C | 1270 - 1377 | ||
| Electrical Resistivity | ohm circ mil/ft | 663 | |
| μΩ-m | 1.10 | ||
| Permeability at 200 oersted (15.9 kA/m) | 1.003 | ||
| Young’s Modulus (70°F) | 103 ksi | 29.1 | |
| GPa | 200.8 | ||
Mechanical Properties
| Typical mechanical properties of annealed and aged round bar of INCOLOY alloy 945. Impact strength was determined at -75ºF. Impact strength for the rod 3.5 inch and larger is determined in the transverse orientation. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rod Size | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | Reduction of Area | Impact Strength | Hardness | Grain Size | ||||
| in | mm | ksi | MPa | ksi | MPa | % | % | ft•lb | joules | Rc | ASTM # |
| 1.0 | 25 | 133.4 | 920 | 173.2 | 1194 | 27.8 | 48.0 | 76 | 103 | 40 | 2 |
| 2.0 | 51 | 132.5 | 914 | 170.2 | 1174 | 28.2 | 47.6 | 70 | 95 | 40 | 3 |
| 3.5 | 89 | 135.5 | 934 | 172.0 | 1186 | 25.5 | 40.5 | 58.2 | 79 | 43 | 2 |
| 4.5 | 114 | 134.2 | 925 | 168.6 | 1163 | 28.6 | 46.7 | 62 | 84 | 42 | 2.5 |
| 6.0 | 152 | 141.0 | 972 | 176.0 | 1214 | 22.0 | 34.6 | 55.3 | 75 | 42 | 2.5 |
| 12.0 | 305 | 142.3 | 981 | 171.7 | 1184 | 26.3 | 43.6 | 61.2 | 83 | 40 | 2 |
| 14.0 | 356 | 140.3 | 967 | 169.3 | 1167 | 26.6 | 30.7 | 77 | 105 | 39 | 2 |
Incoloy 945 Standards
UNS N09945 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B983

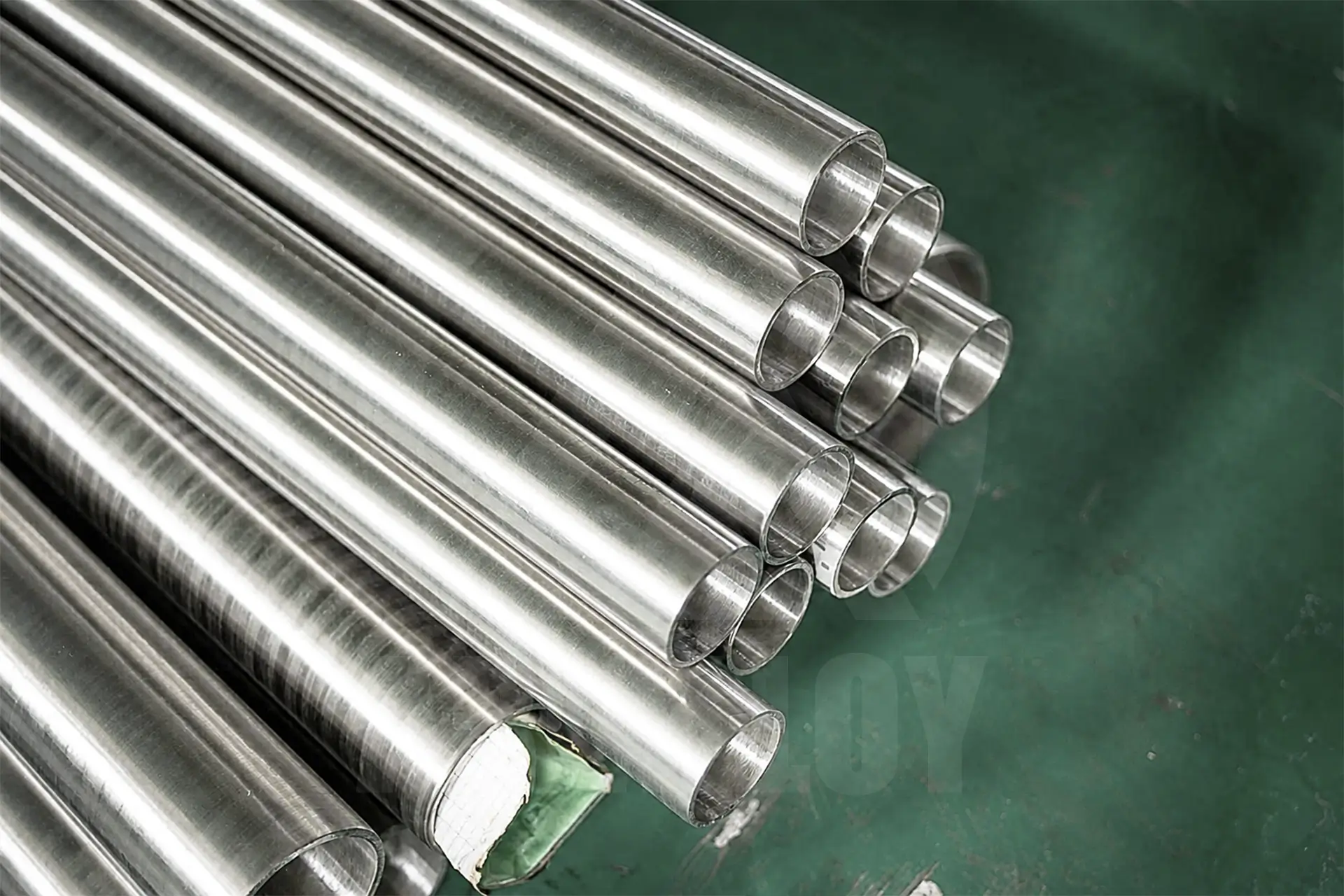

Seamless Pipe & Tube
Incoloy 945 SHOW
Nickel Alloy 945 Showcase
From initial samples to large scale production, we supply high quality incoloy 945 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Incoloy 945 Quotation Process
From detailed consultation to final delivery, we make custom incoloy 945 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Incoloy 945 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy incoloy alloy 945 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Incoloy 945 Applications
UNS N09945 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Incoloy 945 Knowledge
Nickel Alloy 945 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Incoloy Grades
Incoloy Alloy Grades
Explore the full range of incoloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Incoloy 945 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
The process starts when you send your incoloy 945 requirements to sales@arialloy.com or submit the form at the bottom of this page. We will review your needs and issue a detailed quotation. If you accept our offer, send your PO. We will then provide a PI for payment. After the prepayment is received, production will begin and we will notify you once the material is finished.
Our experienced sales team is available to process your incoloy 945 quotation request, usually within 24 hours. If your inquiry cannot be quoted or requires additional information, we will notify you promptly.
Our normal incoloy 945 quotation includes FOB terms. Accordingly, buyers generally select a freight forwarder to handle the onward transportation, while we cooperate with them on local matters. If requested, we can also take care of the shipping arrangement and check the applicable freight rate.
The pricing of incoloy 945 is closely related to the cost of its constituent metals. Key raw materials used in superalloys, including nickel, iron, chromium, molybdenum, and copper, can experience market fluctuations, and these changes can have a direct impact on alloy prices.
Our incoloy 945 is melted by our own factory team. The facility contains over 30 vacuum smelting and electroslag remelting furnaces, with capacities from 50 kg through 5,000 kg. This allows us to choose the appropriate production scale instead of limiting our orders to large batches.
We provide incoloy 945 material test reports before shipment to demonstrate that the supplied material meets the applicable requirements. The reports include the material standard, chemical composition, mechanical properties, dimensions, and heat number.
We monitor incoloy 945 chemistry at both the smelting and finished-product stages. Material proportions are controlled during melting, chemical analysis tracks composition, and PMI testing is conducted after production. Independent laboratory testing is available as an added verification step.
