Inconel 690
UNS N06690 / W.Nr. 2.4642
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with inconel 690 tubes / sheets / wires / bars / fittings
Inconel 690 Material Properties
UNS N06690 / W.Nr. 2.4642 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of inconel 690 for optimal resistance, strength, and stability
Inconel 690 Chemical Composition
Inconel 690 Material Properties Overview
As a leading supplier and manufacturer in China, Arialloy supplies cost effective inconel 690 products.
Inconel 690 (UNS N06690 / W.Nr. 2.4642) is an austenitic nickel chromium iron alloy containing 27.0 to 31.0 percent chromium, at least 58.0 percent nickel, and 7.0 to 11.0 percent iron. The high chromium level supports resistance to oxidizing media and hot gases, while nickel contributes to resistance against stress corrosion cracking in chloride solutions and alkaline media. The alloy combines corrosion resistance with useful strength, ductility, and metallurgical stability. It has a face centered cubic solid solution structure, and carbon is limited to 0.05 percent. Its properties vary with product form, dimensions, heat treatment, and cold reduction. Solution annealing supports ductility and corrosion performance, while selected stabilization treatments can adjust carbide distribution at grain boundaries.
Arialloy supplies inconel 690 tube, pipe, sheet, plate, strip, bar, rod, wire, and forgings to specified dimensions, standards, delivery conditions, and inspection requirements.
Inconel 690 Corrosion Resistance
Inconel 690 resists many oxidizing acids, particularly nitric acid and mixtures containing nitric and hydrofluoric acids. Its high chromium content promotes surface passivation, while nickel contributes to resistance against stress corrosion cracking in aqueous environments.
In nitric acid, laboratory tests report rates below 1 mpy through 70 percent concentration at temperatures up to 80°C. The alloy also resists phosphoric acid through 85 percent at 80°C and cracking in hot water, chloride solutions, and alkaline media. Sodium hydroxide performance depends on concentration, temperature, and material condition.
Inconel 690 Mechanical Properties
In the annealed condition, inconel 690 combines tensile strength with substantial ductility. Typical room temperature results for the various product forms show tensile strengths of 648 to 758 MPa, 0.2 percent offset yield strengths of 282 to 461 MPa, and elongations of 39 to 52 percent. Cold working increases strength and hardness but reduces ductility.
Inconel 690 Temperature Characteristics
Inconel 690 combines resistance to oxidation and sulfidation with useful strength and good metallurgical stability at elevated temperatures. Cyclic oxidation tests at 1095°C demonstrate resistance to attack in hot air. Annealed specimens exposed at 565 to 760°C for approximately 12,000 hours retained substantial ductility and impact toughness when subsequently tested at room temperature.
Strength decreases as temperature rises, while creep behavior depends on stress and exposure duration. Operating temperatures therefore require evaluation of the atmosphere, loading, and material condition rather than oxidation resistance alone.
Inconel 690 Products
Nickel Alloy 690 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 690 products tailored to each project’s needs
Inconel 690 Data Sheet
Inconel Alloy 690 Data Sheet
Access / download the inconel 690 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.19 | |
|---|---|---|---|
| lb/in.3 | 0.296 | ||
| Melting Range | °F | 2450 - 2510 | |
| °C | 1343 - 1377 | ||
| Specific Heat | Btu/lb-°F | 0.107 | |
| J/kg-°C | 450 | ||
| Electrical Resistivity | ohm-circ mil/ft | 691 | |
| μΩ-m | 1.148 | ||
| Permeability at 200 oersted | 15.9 kA/m | 1.001 | |
| Young’s Modulus | 103 ksi | 30.6 | |
| GPa | 211 | ||
| Poisson’s Ratio | 0.289 | ||
Mechanical Properties
| Exposure Temperature | Exposure Time, h | Yield Strength (0.2% Offset) | Tensile Strength | Elongation % | Impact Strength | ||||
|---|---|---|---|---|---|---|---|---|---|
| °F | °C | ksi | MPa | ksi | MPa | ft-lb | J | ||
| No exposure | - | 41.0 | 283 | 103.5 | 714 | 48 | 140 | 190 | |
| 1050 | 565 | 1000 | 48.5 | 334 | 105.5 | 727 | 45 | 115 | 156 |
| 4000 | 47 | 324 | 105 | 724 | 45 | 126 | 171 | ||
| 12000 | 45.5 | 314 | 105.5 | 727 | 44 | 121 | 164 | ||
| 1100 | 595 | 1000 | 62.5 | 431 | 107 | 738 | 45 | 144 | 195 |
| 4000 | 46.5 | 321 | 106 | 731 | 43 | 125 | 170 | ||
| 13428 | 45.5 | 314 | 105.5 | 727 | 44 | 125 | 170 | ||
| 1200 | 650 | 1000 | 46.8 | 323 | 105.5 | 727 | 46 | 146 | 198 |
| 4000 | 48.5 | 334 | 106 | 731 | 54 | 132 | 179 | ||
| 12000 | 46.1 | 318 | 108.5 | 748 | 41 | 127 | 172 | ||
| 1400 | 760 | 1000 | 50 | 345 | 107 | 738 | 44 | 158 | 214 |
| 4000 | 44.4 | 306 | 103.5 | 714 | 44 | 148 | 201 | ||
| 12000 | 46.5 | 321 | 103.5 | 714 | 46 | 136 | 184 | ||
Inconel 690 Standards
UNS N06690 / W.Nr. 2.4642 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B163
Condensor and Heat Exchanger Tube
ASTM B167
Seamless Pipe & Tube
ASTM B829
Seamless Pipe & Tube
ASTM B366
Welded Fittings
ASTM B166
Rod, Bar and Wire
ASTM B564
Forgings
ASTM B168
Plate, Sheet and Strip
ASTM B906
Plate, Sheet and Strip
AWS A5.14 ERNiCr-7
Filler Metal
AWS A5.11 ENiCrFe-7
Welding Electrode
Inconel 690 SHOW
Nickel Alloy 690 Showcase
From initial samples to large scale production, we supply high quality inconel 690 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Inconel 690 Quotation Process
From detailed consultation to final delivery, we make custom inconel 690 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Inconel 690 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy inconel alloy 690 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Inconel 690 Applications
UNS N06690 / W.Nr. 2.4642 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Inconel 690 Knowledge
Nickel Alloy 690 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Inconel Grades
Inconel Alloy Grades
Explore the full range of Inconel alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Inconel 690 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
To proceed with an inconel 690 purchase, send your requirements to sales@arialloy.com or complete the form at the bottom of this page. Our team will issue a quotation based on your specifications. Once you confirm the quotation, send us your PO. We will prepare the PI, and production will commence after the prepayment is received. We will notify you when the material is completed.
Our FOB based inconel 690 pricing normally assumes that the customer will appoint a freight forwarder. We will cooperate with your nominated forwarder to ensure the necessary local arrangements are completed. If you need a more convenient option, we can also arrange shipping directly and quote the related freight charges.
The cost of inconel 690 is influenced by fluctuations in the markets for its raw metals. Nickel and chromium and other alloying elements all contribute to the material cost. Significant changes in these metal prices can consequently lead to changes in the alloy price.
Our inconel 690 is melted within our own production facilities. We have installed more than 30 vacuum and electroslag remelting furnaces in four different sizes. Their capacities range from 50 kg to 5,000 kg, giving us the ability to adjust production to different batch requirements and accept smaller MOQs.
We issue an inconel 690 material test report before shipment to document conformity with the required standards. It includes chemical composition, mechanical properties, dimensions, material standard information, and the relevant heat number.

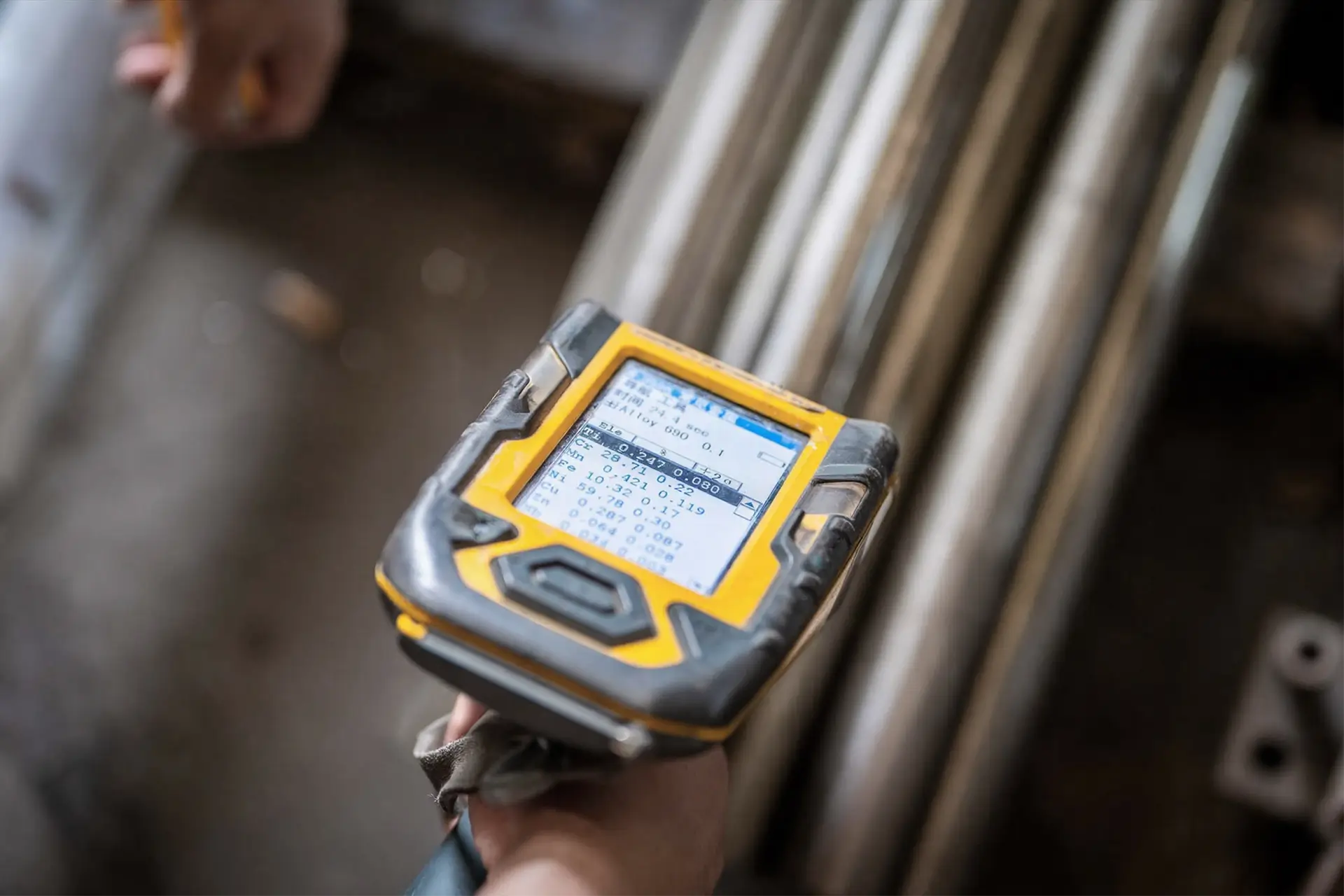

The chemistry of inconel 690 is monitored throughout production by controlling the material ratios and performing chemical analysis. Once manufacturing is complete, PMI testing is used for verification, with third party testing offered when additional evidence is required.
