Nickel Alloy Flat Bar

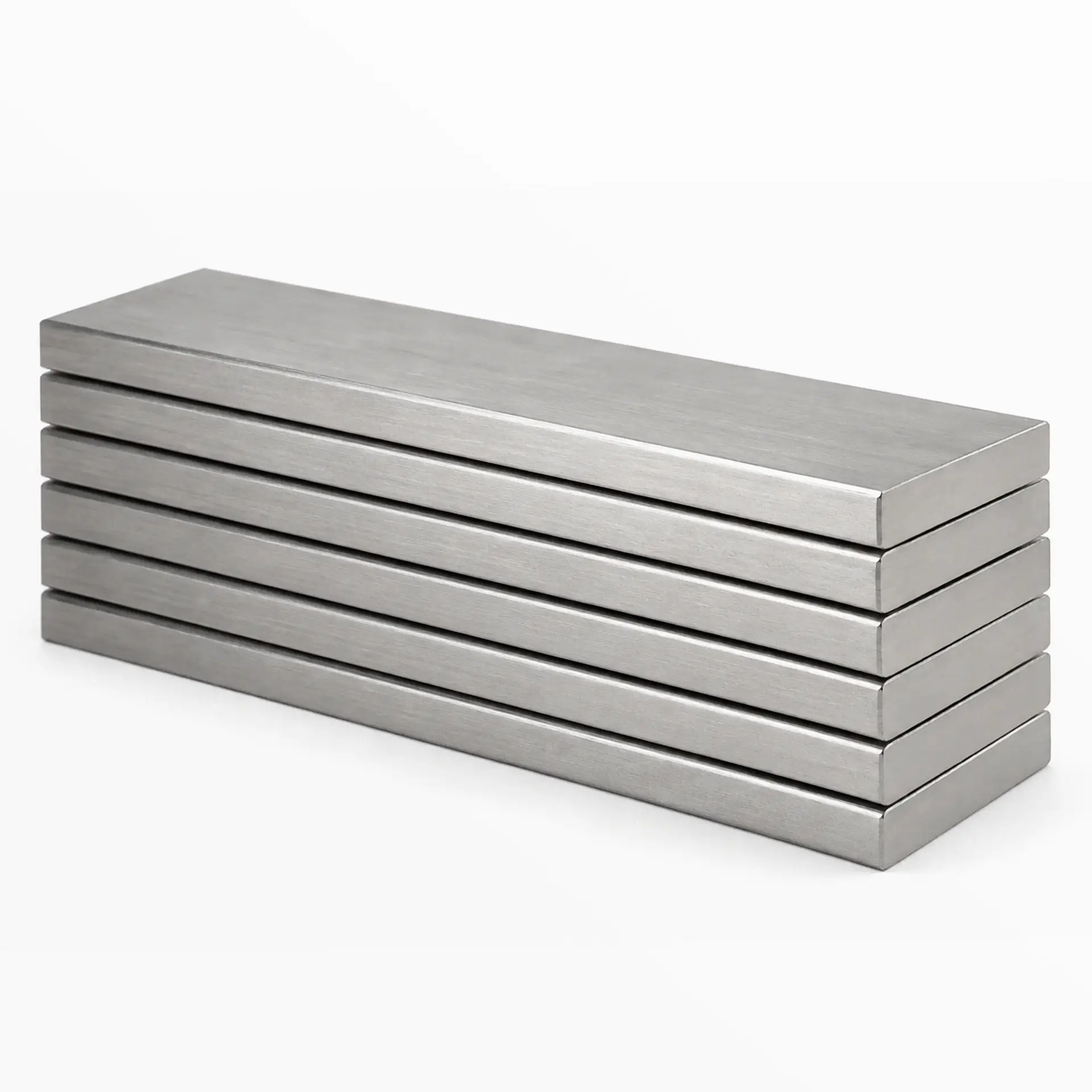

nickel alloy flat bar by Arialloy

Catalog

Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy flat bar

Go to Quote

Nickel Alloy Flat Bar Introduction

Nickel Alloy Flat Bar Overview

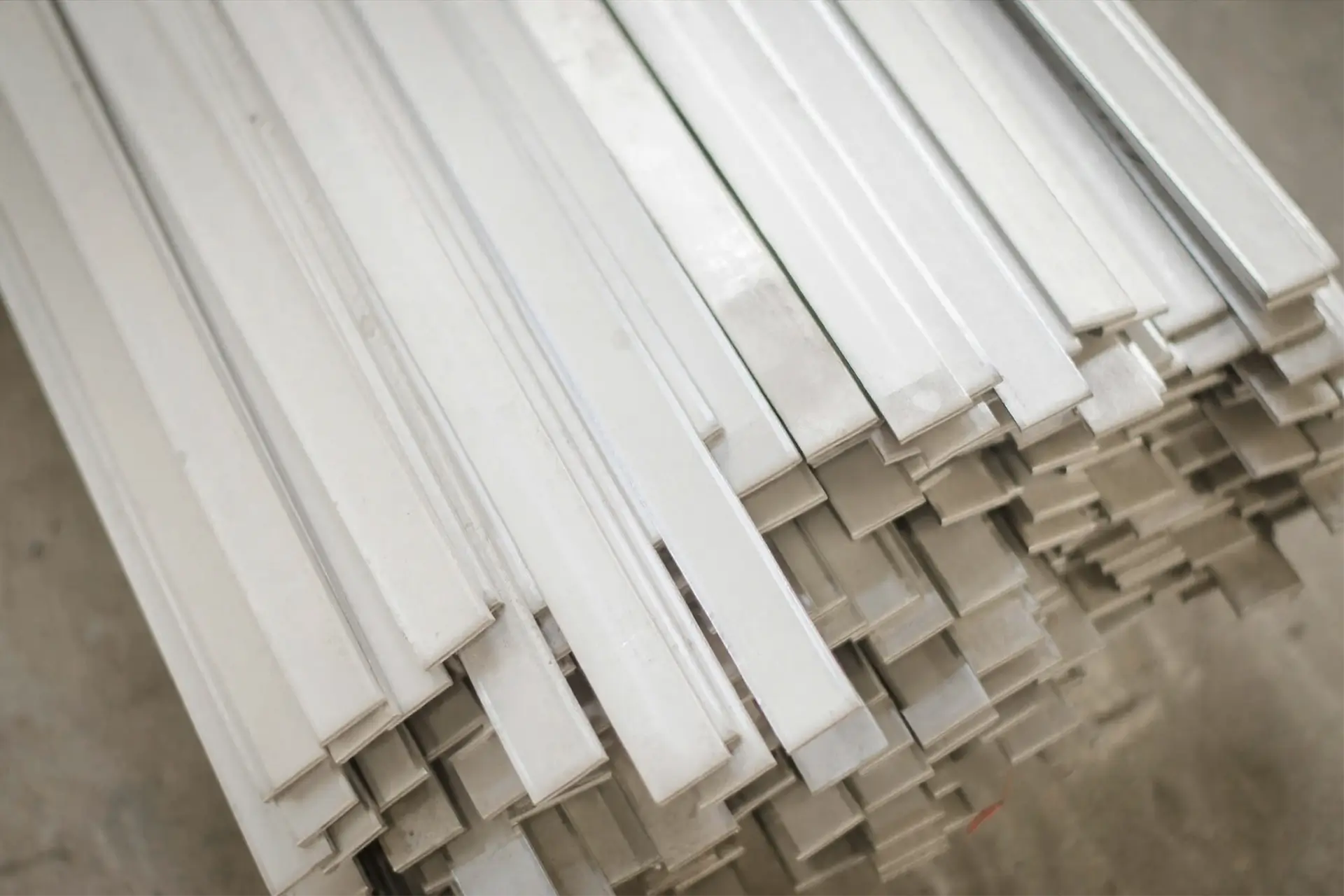

Nickel Alloy Flat Bar Supplier

As a professional nickel alloy flat bar manufacturer in China, Arialloy offers a broad selection of nickel alloy grades, widths, thicknesses, lengths, dimensional tolerances, material conditions, edge profiles, and surface finishes to meet different material and specification requirements. Depending on the selected grade, nickel alloys may contain chromium, molybdenum, copper, iron, cobalt, aluminum, titanium, or niobium, providing a balanced combination of corrosion resistance, mechanical strength, toughness, and thermal stability.

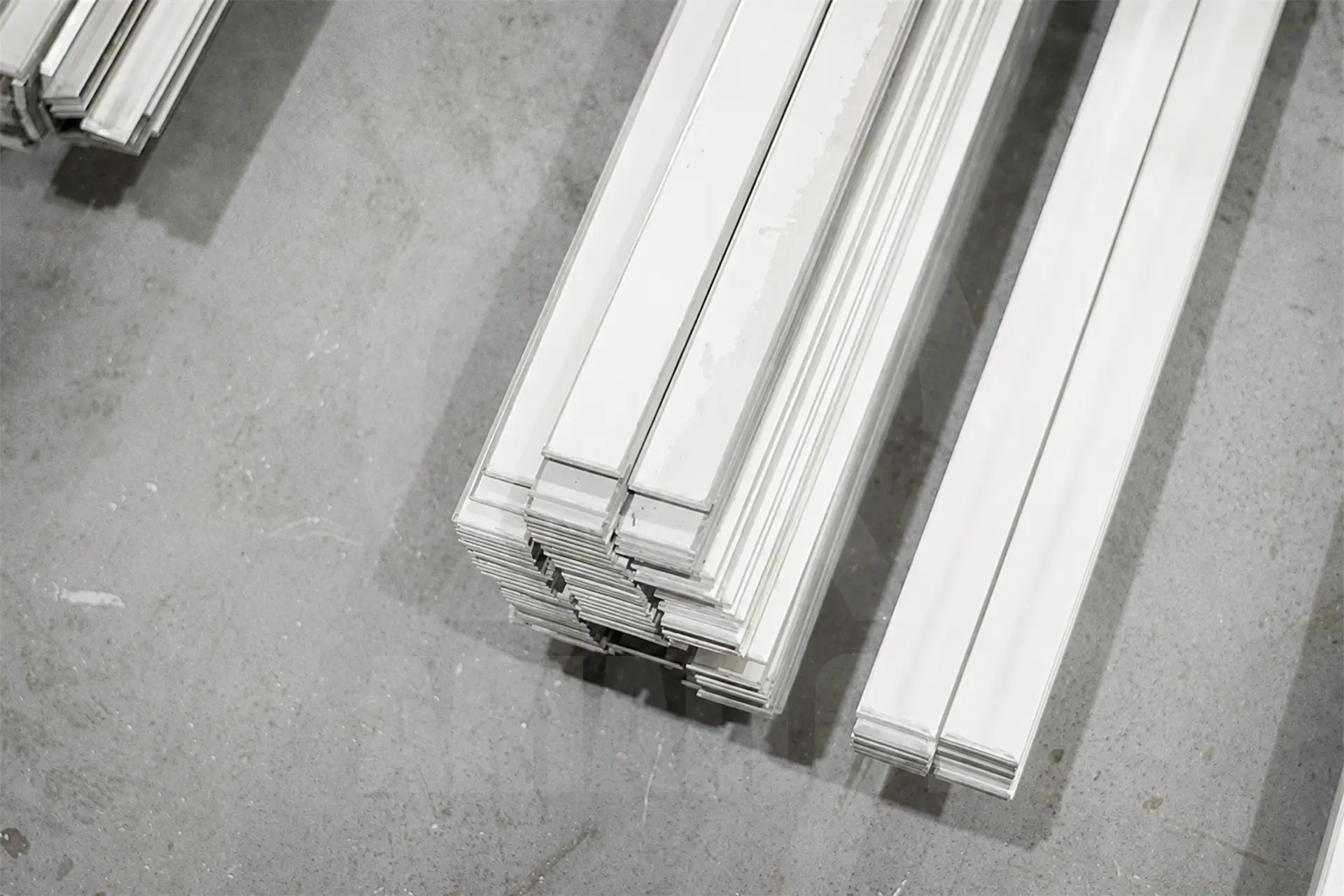

Nickel Alloy Flat Bar Product Features

Arialloy nickel alloy flat bars are manufactured with a solid rectangular cross section, providing consistent width and thickness, controlled geometry, and reliable mechanical performance. Accurate flatness, straightness, edge condition, corner geometry, and surface quality help maintain dimensional consistency throughout each supplied length.

Nickel Alloy Flat Bar Manufacture

Depending on the required grade and dimensions, production may involve forging, hot rolling, cold drawing, solution heat treatment, age hardening, straightening, milling, grinding, polishing, and precision cutting. Flat sections require careful control of heating, reduction, width spread, cooling, and finishing to limit bowing, twisting, edge distortion, and thickness variation while maintaining a consistent metallurgical condition.

Nickel Alloy Flat Bar Inspection

Every nickel alloy flat bar order is inspected according to the applicable material standard and customer requirements. Width, thickness, and length measurement, straightness and flatness checks, visual examination, chemical analysis, tensile testing, hardness testing, and ultrasonic testing can be carried out as specified to verify dimensional accuracy, edge geometry, surface condition, material conformity, mechanical properties, internal soundness, and overall product quality. Each order is supplied with traceable material records, inspection reports, and complete quality documentation.

Nickel Alloy Flat Bar Standards

From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs

ASTM B160

ASTM B164

ASTM B166

ASTM B408

ASTM B425

ASTM B446

ASTM B472

ASTM B473

ASTM B484

ASTM B484M

ASTM B511

ASTM B512

ASTM B638

ASTM B638M

ASTM B649

ASTM B691

ASTM B805

Nickel Alloy Flat Bar Applications

We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail

THERMAL PROCESSING

Furnace rails, skid bars, heat treatment racks, basket frames, retort supports, burner brackets, conveyor guides, and high temperature fixture members.

CHEMICAL PROCESSING

Reactor internal supports, tank straps, agitator blades, pump and valve blanks, guide bars, baffle supports, scraper bars, and corrosion resistant structural members.

POLLUTION & WASTE

Scrubber support frames, mist eliminator frames, duct stiffeners, spray grid supports, incinerator fixtures, quench system brackets, and wastewater equipment supports.

POWER GENERATION

Boiler support hardware, tube support bars, turbine casing keys, FGD framing, heat recovery equipment supports, generator components, and nuclear handling fixtures.

MARINE & OFFSHORE

Wear strips, support brackets, pump and valve blanks, guide rails, deck hardware, clamp bars, seawater system supports, and offshore equipment frames.

OIL & GAS EXTRACTION

Valve and pump blanks, equipment skid members, guide bars, clamp bars, manifold supports, downhole tool parts, corrosion resistant brackets, and wellhead hardware.

INDUSTRIAL FABRICATION

Machined keys, wear bars, base plates, flange segments, support brackets, fixture bars, equipment frames, and custom corrosion or heat resistant structural parts.

Available Grades

Available Grades for Nickel Alloy Flat Bar

Explore the full range of nickel alloy flat bar grades to expand your material choices and ensure you find the perfect nickel alloy

400
N04400 2.4360
Monel 400 Composition
Ni ≥ 63.0%
≥ 63.0%
Cu 28.0%~34.0%
28.0%~34.0%
Fe ≤ 2.5%
≤ 2.5%
Mn: ≤ 2.00% Si: ≤ 0.50% C: ≤ 0.30%
R-405
N04405
Monel R-405 Composition
Ni ≥ 63.0%
≥ 63.0%
Cu 28.0%~34.0%
28.0%~34.0%
Fe ≤ 2.5%
≤ 2.5%
Mn: ≤ 2.00% Si: ≤ 0.50% C: ≤ 0.30%
K-500
N05500 2.4375
Monel K-500 Composition
Ni ≥ 63.0%
≥ 63.0%
Cu 27.0%~33.0%
27.0%~33.0%
Ai 2.30%~3.15%
2.30%~3.15%
Fe: ≤ 2% Mn: ≤ 1.5% Ti: 0.35%~0.85%
502
N05502
Monel 502 Composition
Ni 63.0%~70.0%
63.0%~70.0%
Cu 21.9%~29.9%
21.9%~29.9%
Ai 2.50%~3.50%
2.50%~3.50%
Fe: ≤ 2.0% Mn: ≤ 1.50% Si: ≤ 0.50%
600
N06600 2.4816
Inconel 600 Composition
Ni ≥ 72.0%
≥ 72.0%
Cr 14.0%~17.0%
14.0%~17.0%
Fe 6.0%~10.0%
6.0%~10.0%
Mn: ≤ 1.00% Si: ≤ 0.50% Cu: ≤ 0.50%
601
N06601 2.4851
Inconel 601 Composition
Ni 58.0%~63.0%
58.0%~63.0%
Cr 21.0%~25.0%
21.0%~25.0%
Fe 7.7%~17.4%
7.7%~17.4%
Ai: 1.0%~1.7% Mn: ≤ 1.00% Cu: ≤ 1.00%
602CA
N06025 2.4633
Inconel 602CA Composition
Ni 59.2%~65.9%
59.2%~65.9%
Cr 24.0%~26.0%
24.0%~26.0%
Fe 8.0%~11.0%
8.0%~11.0%
Ai: 1.8%~2.4% Si: ≤ 0.5% C: 0.15%~0.25%
603XL
Inconel 603XL Composition
Ni 69.3%~77.3%
69.3%~77.3%
Cr 15.0%~23.0%
15.0%~23.0%
Mo ≤ 4.0%
≤ 4.0%
Si: ≤ 2.00% Ai: ≤ 0.50% Ti: ≤ 0.50%
617
N06617 2.4663a
Inconel 617 Composition
Ni ≥ 44.5%
≥ 44.5%
Cr 20.0%~24.0%
20.0%~24.0%
Co 10.0%~15.0%
10.0%~15.0%
Mo: 8%~10% Fe: ≤ 3.0% Ai: 0.8%~1.5%
625
N06625 2.4856
Inconel 625 Composition
Ni ≥ 58.0%
≥ 58.0%
Cr 20.0%~23.0%
20.0%~23.0%
Mo 8.0%~10.0%
8.0%~10.0%
Fe: ≤ 5% Nb+Ta: 3.15%~4.15% Co: ≤ 1%
686
N06686 2.4606
Inconel 686 Composition
Ni 49.5%~62.9%
49.5%~62.9%
Cr 19.0%~23.0%
19.0%~23.0%
Mo 15.0%~17.0%
15.0%~17.0%
Fe: ≤ 5.0% W: 3.0%~4.4% Mn: ≤ 0.75%
690
N06690 2.4642
Inconel 690 Composition
Ni ≥ 58.0%
≥ 58.0%
Cr 27.0%~31.0%
27.0%~31.0%
Fe 7.0%~11.0%
7.0%~11.0%
Si: ≤ 0.50% Mn: ≤ 0.50% Cu: ≤ 0.50%
693
N06693
Inconel 693 Composition
Ni 53.3%~64.3%
53.3%~64.3%
Cr 27.0%~31.0%
27.0%~31.0%
Fe 2.5%~6.0%
2.5%~6.0%
Ai: 2.5%~4% Nb: 0.5%~2.5% Mn: ≤ 1.0%
706
N09706
Inconel 706 Composition
Ni 39.0%~44.0%
39.0%~44.0%
Fe ≥ 32.5%
≥ 32.5%
Cr 14.5%~17.5%
14.5%~17.5%
Nb: 2.5%~3.3% Ti: 1.5%~2.0% Co: ≤ 1.0%
718
N07718 2.4668
Inconel 718 Composition
Ni 50.0%~55.0%
50.0%~55.0%
Fe 11.1%~22.5%
11.1%~22.5%
Cr 17.0%~21.0%
17.0%~21.0%
Nb+Ta: 4.75%~5.5% Mo: 2.8%~3.3% Ti: 0.65%~1.15%
725
N07725
Inconel 725 Composition
Ni 55.0%~59.0%
55.0%~59.0%
Cr 19.0%~22.5%
19.0%~22.5%
Fe 2.3%~14.3%
2.3%~14.3%
Mo: 7%~9.5% Nb: 2.75%~4% Ti: 1%~1.7%
X-750
N07750 2.4669
Inconel X-750 Composition
Ni ≥ 70.0%
≥ 70.0%
Cr 14.0%~17.0%
14.0%~17.0%
Fe 5.0%~9.0%
5.0%~9.0%
Ti: 2.25%~2.75% Nb+Ta: 0.7%~1.2% Mn: ≤ 1%
MA754
N07754
Inconel MA754 Composition
Ni ≈ 78.0%
≈ 78.0%
Cr ≈ 20.0%
≈ 20.0%
Fe ≤ 1.0%
≤ 1.0%
Y2O3: ≈ 0.60% Ti: ≤ 0.50% Ai: ≤ 0.30%
MA758
Inconel MA758 Composition
Ni ≈ 67.6%
≈ 67.6%
Cr ≈ 30.0%
≈ 30.0%
Fe ≤ 1.0%
≤ 1.0%
Y2O3: ≈ 0.6% Ti: ≤ 0.5% Ai: ≤ 0.3%
783
R30783
Inconel 783 Composition
Ni 26.0%~30.0%
26.0%~30.0%
Co ≥ 28.0%
≥ 28.0%
Fe 24.0%~27.0%
24.0%~27.0%
Ai: 5%~6% Nb: 2.5%~3.5% Cr: 2.5%~3.5%
800
N08800 1.4876
Incoloy 800 Composition
Fe ≥ 39.5%
≥ 39.5%
Ni 30.0%~35.0%
30.0%~35.0%
Cr 19.0%~23.0%
19.0%~23.0%
Mn: ≤ 1.50% Si: ≤ 1.00% Cu: ≤ 0.75%
800H
N08810 1.4958
Incoloy 800H Composition
Fe ≥ 39.5%
≥ 39.5%
Ni 30.0%~35.0%
30.0%~35.0%
Cr 19.0%~23.0%
19.0%~23.0%
Mn: ≤ 1.50% Si: ≤ 1.00% Cu: ≤ 0.75%
800HT
N08811
Incoloy 800HT Composition
Fe ≥ 39.5%
≥ 39.5%
Ni 30.0%~35.0%
30.0%~35.0%
Cr 19.0%~23.0%
19.0%~23.0%
Mn: ≤ 1.5% Ai+Ti: 0.85%~1.2% Si: ≤ 1.0%
825
N08825 2.4858
Incoloy 825 Composition
Ni 38.0%~46.0%
38.0%~46.0%
Cr 19.5%~23.5%
19.5%~23.5%
Fe ≥ 22.0%
≥ 22.0%
Mo: 2.5%~3.5% Cu: 1.5%~3% Ti: 0.6%~1.2%
890
N08890
Incoloy 890 Composition
Ni 40.0%~45.0%
40.0%~45.0%
Cr 23.5%~28.5%
23.5%~28.5%
Fe ≥ 17.3%
≥ 17.3%
Si: 1.0%~2.0% Mo: 1%~2% Mn: ≤ 1.50%
903
N19903
Incoloy 903 Composition
Fe 36.5%~47.3%
36.5%~47.3%
Ni 36.0%~40.0%
36.0%~40.0%
Co 13.0%~17.0%
13.0%~17.0%
Nb: 2.4%~3.5% Ti: 1.0%~1.85% Ai: 0.3%~1.15%
909
N19909
Incoloy 909 Composition
Fe 36.3%~46.9%
36.3%~46.9%
Ni 35.0%~40.0%
35.0%~40.0%
Co 12.0%~16.0%
12.0%~16.0%
Nb: 4.3%~5.2% Ti: 1.3%~1.8% Mn: ≤ 1.0%
925
N09925
Incoloy 925 Composition
Ni 42.0%~46.0%
42.0%~46.0%
Cr 19.5%~22.5%
19.5%~22.5%
Fe ≥ 22.0%
≥ 22.0%
Mo: 2.5%~3.5% Cu: 1.5%~3.0% Ti: 1.9%~2.4%
926
N08926 1.4529
Incoloy 926 Composition
Fe 41.7%~47.8%
41.7%~47.8%
Ni 24.0%~26.0%
24.0%~26.0%
Cr 19.0%~21.0%
19.0%~21.0%
Mo: 6.0%~7.0% Mn: ≤ 2.0% Cu: 0.5%~1.5%
MA956
S67956
Incoloy MA956 Composition
Fe 70.1%~75.9%
70.1%~75.9%
Cr 18.5%~21.5%
18.5%~21.5%
Ai 3.75%~5.75%
3.75%~5.75%
Y2O3: 0.3%~0.7% Ti: 0.2%~0.6% Ni: ≤ 0.5%
A-286
S66286 1.4980
Incoloy A-286 Composition
Fe 49.1%~56.0%
49.1%~56.0%
Ni 24.0%~27.0%
24.0%~27.0%
Cr 13.5%~16.0%
13.5%~16.0%
Ti: 1.9%~2.35% Mn: ≤ 2.0% Mo: 1.0%~1.5%
020
N08020 2.4660
Incoloy 020 Composition
Fe 29.9%~44.0%
29.9%~44.0%
Ni 32.0%~38.0%
32.0%~38.0%
Cr 19.0%~21.0%
19.0%~21.0%
Cu: 3.0%~4.0% Mo: 2.0%~3.0% Mn: ≤ 2.0%
028
N08028 1.4563
Incoloy 028 Composition
Fe 29.0%~36.8%
29.0%~36.8%
Ni 30.0%~34.0%
30.0%~34.0%
Cr 26.0%~28.0%
26.0%~28.0%
Mo: 3.0%~4.0% Mn: ≤ 2.5% Cu: 0.6%~1.4%
DS
1.4862
Incoloy DS Composition
Fe 35.1%~45.0%
35.1%~45.0%
Ni+Co 34.5%~41.0%
34.5%~41.0%
Cr 17.0%~19.0%
17.0%~19.0%
Si: 1.9%~2.6% Mn: 0.8%~1.5% Cu: ≤ 0.5%
330
N08330 1.4886
Incoloy 330 Composition
Fe 39.4%~46.1%
39.4%~46.1%
Ni 34.0%~37.0%
34.0%~37.0%
Cr 17.0%~20.0%
17.0%~20.0%
Mn: ≤ 2.0% Si: 0.75%~1.5% Cu: ≤ 1.0%
25-6HN
N08367
Incoloy 25-6HN Composition
Fe 41.4%~50.3%
41.4%~50.3%
Ni 23.5%~25.5%
23.5%~25.5%
Cr 20.0%~22.0%
20.0%~22.0%
Mo: 6.0%~7.0% Mn: ≤ 2.0% Si: ≤ 1.0%
27-7MO
S31277
Incoloy 27-7MO Composition
Fe 35.5%~42.6%
35.5%~42.6%
Ni 26.0%~28.0%
26.0%~28.0%
Cr 20.5%~23.0%
20.5%~23.0%
Mo: 6.5%~8.0% Mn: ≤ 3.0% Cu: 0.5%~1.5%
B
N10001
Hastelloy B Composition
Ni 58.0%~64.2%
58.0%~64.2%
Mo 26.0%~30.0%
26.0%~30.0%
Fe 4.0%~6.0%
4.0%~6.0%
Co: ≤ 2.5% Si: ≤ 1.0% Mn: ≤ 1.0%
B-2
N10665 2.4617
Hastelloy B-2 Composition
Ni 65.0%~74.0%
65.0%~74.0%
Mo 26.0%~30.0%
26.0%~30.0%
Fe ≤ 2.0%
≤ 2.0%
Mn: ≤ 1.00% Co: ≤ 1.00% Cr: ≤ 1.0%
B-3
N10675 2.4600
Hastelloy B-3 Composition
Ni 65.0%~71.0%
65.0%~71.0%
Mo 27.0%~32.0%
27.0%~32.0%
Mn ≤ 3.00%
≤ 3.00%
Co: ≤ 3.0% W: ≤ 3.0% Fe: 1.0%~3.0%
C
Hastelloy C Composition
Ni 50.0%~58.0%
50.0%~58.0%
Mo 15.0%~17.0%
15.0%~17.0%
Cr 14.5%~16.5%
14.5%~16.5%
Fe: 4%~7% W: 3.0%~4.4% Co: ≤ 2.5%
C-4
N06455 2.4610
Hastelloy C-4 Composition
Ni 58.2%~72.0%
58.2%~72.0%
Cr 14.0%~18.0%
14.0%~18.0%
Mo 14.0%~17.0%
14.0%~17.0%
Fe: ≤ 3.0% Co: ≤ 2.0% Mn: ≤ 1.0%
C-22
N06022 2.4602
Hastelloy C-22 Composition
Ni 50.1%~63.0%
50.1%~63.0%
Cr 20.0%~22.5%
20.0%~22.5%
Mo 12.5%~14.5%
12.5%~14.5%
Fe: 2.0%~6.0% W: 2.5%~3.5% Co: ≤ 2.5%
C-22HS
N07022
Hastelloy C-22HS Composition
Ni 56.6%~64.5%
56.6%~64.5%
Cr 20.0%~21.4%
20.0%~21.4%
Mo 15.5%~17.4%
15.5%~17.4%
Fe: ≤ 1.8% Co: ≤ 1.0% W: ≤ 0.8%
C-276
N10276 2.4819
Hastelloy C-276 Composition
Ni 51.0%~63.5%
51.0%~63.5%
Mo 15.0%~17.0%
15.0%~17.0%
Cr 14.5%~16.5%
14.5%~16.5%
Fe: 4.0%~7.0% W: 3.0%~4.5% Co: ≤ 2.5%
C-2000
N06200 2.4675
Hastelloy C-2000 Composition
Ni 51.0%~61.7%
51.0%~61.7%
Cr 22.0%~24.0%
22.0%~24.0%
Mo 15.0%~17.0%
15.0%~17.0%
Fe: ≤ 3.0% Co: ≤ 2.0% Cu: 1.3%~1.9%
G-3
N06985
Hastelloy G-3 Composition
Ni 36.9%~45.4%
36.9%~45.4%
Cr 21.0%~23.5%
21.0%~23.5%
Fe 18.0%~21.0%
18.0%~21.0%
Mo: 6%~8% Co: ≤ 5.0% Cu: 1.5%~2.5%
G-30
N06030 2.4603
Hastelloy G-30 Composition
Ni 30.2%~47.2%
30.2%~47.2%
Cr 28.0%~31.5%
28.0%~31.5%
Fe 13.0%~17.0%
13.0%~17.0%
Mo: 4.0%~6.0% Co: ≤ 5.0% W: 1.5%~4.0%
G-35
N06035
Hastelloy G-35 Composition
Ni 51.5%~60.1%
51.5%~60.1%
Cr 32.25%~34.25%
32.25%~34.25%
Mo 7.6%~9.0%
7.6%~9.0%
Fe: ≤ 2.0% Co: ≤ 1.00% Si: ≤ 0.6%
N
N10003
Hastelloy N Composition
Ni 64.9%~78.9%
64.9%~78.9%
Mo 15.0%~18.0%
15.0%~18.0%
Cr 6.0%~8.0%
6.0%~8.0%
Fe: ≤ 5.0% Si: ≤ 1.00% Mn: ≤ 1.00%
S
N06635
Hastelloy S Composition
Ni ≥ 67.0%
≥ 67.0%
Cr ≈ 16.0%
≈ 16.0%
Mo ≈ 15.0%
≈ 15.0%
Fe: ≤ 3.0% Co: ≤ 2.00% W: ≤ 1.00%
W
N10004
Hastelloy W Composition
Ni 55.8%~69.0%
55.8%~69.0%
Mo 23.0%~26.0%
23.0%~26.0%
Fe 4.0%~7.0%
4.0%~7.0%
Cr: 4.0%~6.0% Co: ≤ 2.5% Si: ≤ 1.0%
X
N06002 2.4665
Hastelloy X Composition
Ni 41.3%~53.7%
41.3%~53.7%
Cr 20.5%~23.0%
20.5%~23.0%
Fe 17.0%~20.0%
17.0%~20.0%
Mo: 8.0%~10% Co: 0.5%~2.5% Si: ≤ 1.0%

Nickel Alloy Flat Bar SHOW

Supplying Nickel Alloy Flat Bar

From initial samples to large scale production, we supply high quality nickel alloy flat bar and help you achieve your manufacturing goals.

Arialloy manufacturer of nickel alloy flat bar
rectangular bar from Arialloy nickel alloy supplier
custom nickel alloy flat bar from Arialloy
Arialloy nickel based alloy flat metal bar
nickel alloy flat bar by Arialloy
Arialloy nickel based alloy flat bar
Arialloy manufacturer of nickel alloy flat metal bar
flat bar by Arialloy nickel alloy manufacturer
nickel alloy flat bar supplier Arialloy
Arialloy nickel alloy manufacturer rectangular bar

Manufacturing Process

Nickel Alloy Flat Bar Manufacturing Process

The production process for Arialloy nickel alloy flat bar ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.

Steel Making Steel Making
Ingot Casting Ingot Casting
Ingot Ingot
Heating Heating
Continuous Hot Rolling Continuous Hot Rolling
Square Billet Square Billet
Heat Treatment Heat Treatment
Hot Rolling Hot Rolling
Flat Bar Flat Bar
Cooling Cooling
Cold Drawing Cold Drawing
Straightening Straightening
Polishing Polishing
Inspection Inspection
Analytic Analytic
Marking Marking
Packing & Shipping Packing & Shipping

Customized Dimensions

Nickel Alloy Flat Bar Customization Scope
  • Thickness

    0.5-200 mm

  • Width

    1.5-250 mm

  • Delivery State
    Cold Drawn, Hot Rolled, Flat Bar Cut from Strip or Plates, Grinding, Forged, Centerless Grinding
  • Finish
    Pickled, Bright, Polishing, Mirror, Hairline
Customized size please confirm with us
nickel alloy flat bar customized dimensions

Formula: m = A (mm) × THK (mm) × L (m) × ρ ÷ 1000
A = Side width, THK = Thickness, L = Length, ρ = Density

Data Sheet

Nickel Alloy Nickel Alloy Flat Bar Data Sheet

Access the nickel alloy flat bar data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project

Tolerance

Cold Drawn
Specified Dimension, in. (mm)Permissible Variations from Specified Size, in. (mm)
OverUnder
Over 1/2(12.70) to 1(25.40), incl00.004(0.10)
Over 1(25.40) to 2(50.80), incl00.006(0.15)
Over 2(50.80) to 3(76.20), incl00.008(0.20)
Over 3(76.20)00.010(0.25)
Hot Rolled
Specified Width, in. (mm)Permissible Variations in Thickness for Thicknesses Given, in. (mm)
1/8(3.18) to 1/2(12.70), inclOver 1/2(12.70) to 1(25.40), inclOver 1(25.40) to 2(50.80), incl
OverUnderOverUnderOverUnder
To 1(25.40), incl0.008(0.20)0.008(0.20)0.010(0.25)0.010(0.25)......
Over 1(25.40) to 2(50.80), incl0.012(0.30)0.012(0.30)0.015(0.38)0.015(0.38)0.031(0.79)0.031(0.79)
Over 2(50.80) to 4(101.60), incl0.015(0.38)0.015(0.38)0.020(0.51)0.020(0.51)0.031(0.79)0.031(0.79)
Over 4(101.60) to 6(152.40), incl0.015(0.38)0.015(0.38)0.020(0.51)0.020(0.51)0.031(0.79)0.031(0.79)
Over 6(152.40) to 8(203.20), incl0.016(0.41)0.016(0.41)0.025(0.64)0.025(0.64)0.031(0.79)0.031(0.79)
Over 8(203.20) to 10(254.00), incl0.021(0.53)0.021(0.53)0.031(0.79)0.031(0.79)0.031(0.79)0.031(0.79)
Over 2(50.80) to 4(101.60), inclOver 4(101.60) to 6(152.40), inclOver 6(152.40) to 8(203.20), incl
OverUnderOverUnderOverUnder
To 1(25.40), incl..................
Over 1(25.40) to 2(50.80), incl..................
Over 2(50.80) to 4(101.60), incl0.062(1.57)0.031(0.79)............
Over 4(101.60) to 6(152.40), incl0.062(1.57)0.031(0.79)0.093(2.36)0.062(1.57)......
Over 6(152.40) to 8(203.20), incl0.062(1.57)0.031(0.79)0.093(2.36)0.062(1.57)0.125(3.18)0.156(3.96)
Over 8(203.20) to 10(254.00), incl0.062(1.57)0.031(0.79)0.093(2.36)0.062(1.57)0.125(3.18)0.156(3.96)
Specified Width, in. (mm)Permissible Variations in Width, in. (mm)
OverUnder
To 1(25.40), incl0.015(0.38)0.015(0.38)
Over 1(25.40) to 2(50.80), incl0.031(0.79)0.031(0.79)
Over 2(50.80) to 4(101.60), incl0.062(1.57)0.031(0.79)
Over 4(101.60) to 6(152.40), incl0.093(2.36)0.062(1.57)
Over 6(152.40) to 8(203.20), incl0.125(3.18)0.156(3.96)
Over 8(203.20) to 10(254.00), incl0.156(3.96)0.187(4.75)

Delivery State

Delivery State ChoiceSurface Condition
Hot RolledPickled
Sand Blasted
Cold DrawnPolished
Bright
Note:
1. If you require different deliver state than the above listed, kindly confirm with us.
2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here.

Upload Your Requirements

To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them

Receive a Quote & Design Review

Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved

Confirm Your Order & Begin Production

Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation

Shipping & Delivery

On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours

Just 4 Steps
Custom Nickel Alloy Flat Bar Quotation Process

From detailed consultation to final delivery, we make custom nickel alloy flat bar orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery

Drag & Drop Files, Choose Files to Upload
Please use the following formats: .stl, .obj, .wrl, .step (.stp), .iges (.igs), .3mf, .dxf and .zip, 100mb max file size (per file). If you have a file type not listed, please contact us to discuss first!

Nickel Alloy Flat Bar FAQs

Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support

Yes. Nickel alloy flat bar can be polished to 180#, 320#, or hairline finish.

The standard minimum order quantity for nickel alloy flat bar is 200 kg. Larger volumes generally qualify for more favorable pricing.

The typical lead time is 45 days under normal production conditions. Large production quantities can require additional time.

Free samples of regular small size parts can be supplied, while the buyer covers freight. Larger samples are charged through the order amount.

Yes. Engineers and customer representatives are welcome to visit our factory for an on site inspection.

Quality control covers every stage, from raw-material selection through final packaging. Only products that pass all required inspections are released for export.

Standard export packing for nickel alloy flat bar follows this arrangement: bars are bundled with moisture resistant protection, with pallets or wooden cases selected according to length and shipment weight. The packing plan also considers dimensions, unit weight, surface protection, and transport conditions.

A complete nickel alloy flat bar inquiry should state thickness, width, length, edge condition, straightness, tolerance, and finish. Complete size data prevents ambiguity in production, inspection, and quotation.
