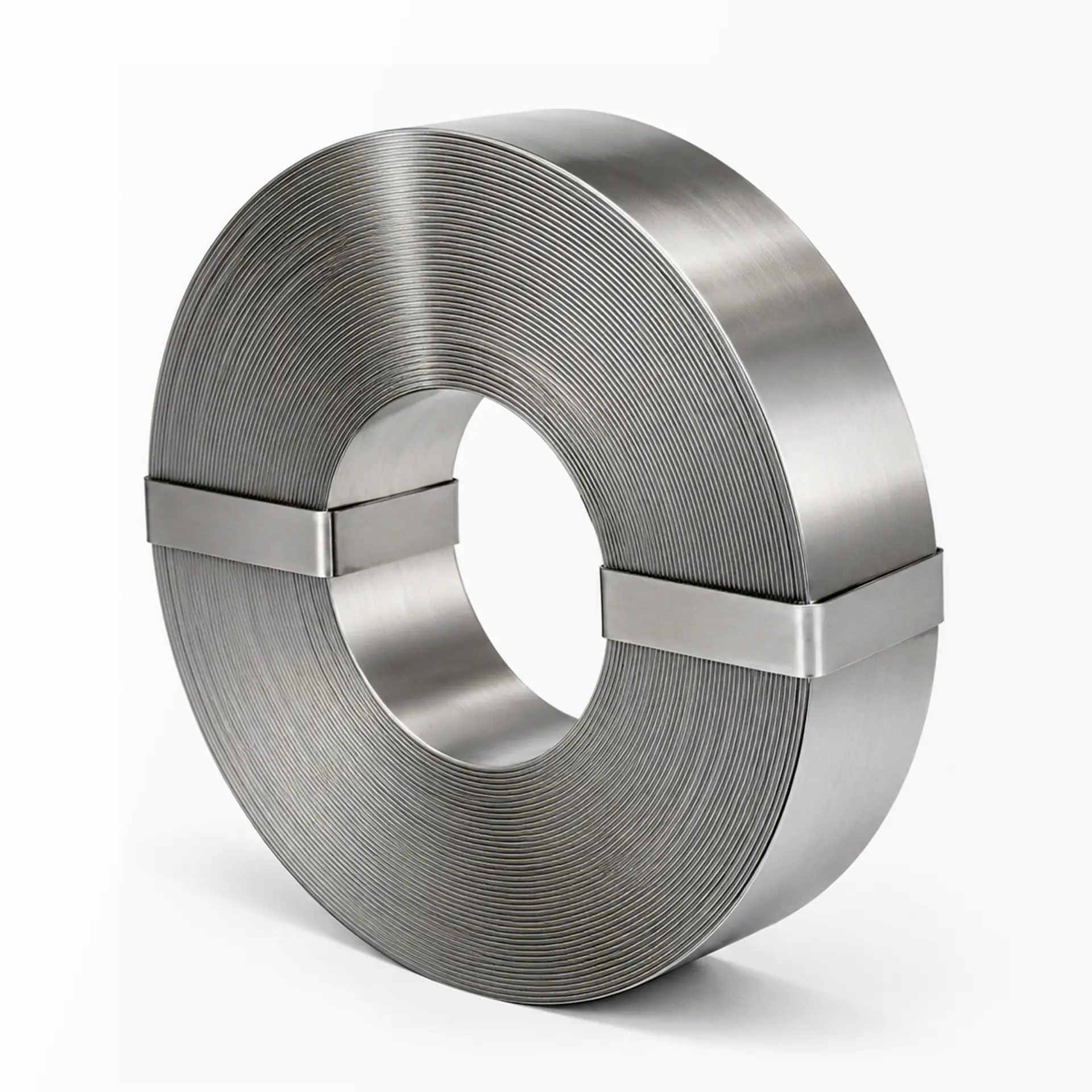

Nickel Alloy Strip
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy strip
Nickel Alloy Strip Introduction
Nickel Alloy Strip Overview
Nickel Alloy Strip Overview
Nickel alloy coil tube is supplied in long, continuous lengths wound into compact coils for convenient handling, storage, and transportation. Compared with multiple sections of straight tubing, continuous coiled tubing reduces the number of intermediate connections and helps create a more consistent fluid path. The coil format also allows the required length to be cut or formed during subsequent processing while minimizing material waste.
Arialloy provides nickel alloy coil tubing in a broad selection of alloy grades, outside diameters, wall thicknesses, continuous lengths, coil diameters, and surface conditions. Depending on the chosen grade, the tubing can offer different combinations of corrosion resistance, strength, ductility, and temperature stability. Straight ends, specific coil dimensions, and customized packaging can also be supplied according to project and purchasing requirements.
Manufacturing may include tube forming, cold drawing, intermediate annealing, solution heat treatment, pickling, surface finishing, and controlled coiling. During winding, the tube is carefully guided to limit flattening, twisting, and surface damage while maintaining dimensional consistency throughout its length. Appropriate heat treatment and forming control also help preserve the required mechanical properties and flexibility.
Each nickel alloy coil tube is checked for outside diameter, wall thickness, ovality, surface condition, and coil dimensions. Non-destructive testing, pressure testing, and additional inspections can be arranged according to the applicable standard or customer specification. Arialloy supplies traceable nickel alloy coil tubing with verified material properties and complete quality documentation. Contact us with your required grade, tube dimensions, continuous length, coil size, and testing requirements.
Nickel Alloy Strip Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B127
ASTM B162
ASTM B168
ASTM B240
ASTM B333
ASTM B409
ASTM B424
ASTM B434
ASTM B435
ASTM B443
ASTM B463
ASTM B480
ASTM B536
ASTM B575
ASTM B582
ASTM B599
ASTM B620
ASTM B625
ASTM B670
ASTM B688
ASTM B693
ASTM B709
ASTM B718
ASTM B755
ASTM B814
ASTM B818
ASTM B872
ASTM B906
Nickel Alloy Strip Applications
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
ELECTRONICS
Electrical contacts, connector springs, relay parts, shielding strips, lead frames, precision terminals, battery tabs, and stamped conductive components.AEROSPACE
Honeycomb seals, shims, spring clips, diaphragms, bellows, sensor elements, engine sealing strips, and thin gauge high temperature formed parts.AUTOMOTIVE
Turbocharger sealing strips, exhaust sensor parts, battery connectors, springs and clips, flexible gasket stock, catalytic converter supports, and EGR components.THERMAL PROCESSING
Electrical heating elements, furnace seals, thermocouple parts, radiant screen strips, burner components, high temperature springs, muffle supports, and heat treatment clips.CHEMICAL PROCESSING
Pump and valve diaphragms, gaskets, spring elements, valve trim strips, lined equipment flashing, corrosion resistant shims, filter supports, and analyzer parts.PRECISION INSTRUMENTATION
Pressure sensing diaphragms, Bourdon tube strip, meter springs, calibration shims, sensor clips, flexures, precision contacts, and measurement device components.POWER & CLEAN ENERGY
Turbine sealing strips, generator spring clips, fuel cell interconnects, battery tabs, sensor diaphragms, FGD flashing, high temperature gaskets, and electrical contact strips.Available Grades
Available Grades for Nickel Alloy Strip
Explore the full range of nickel alloy strip grades to expand your material choices and ensure you find the perfect nickel alloy

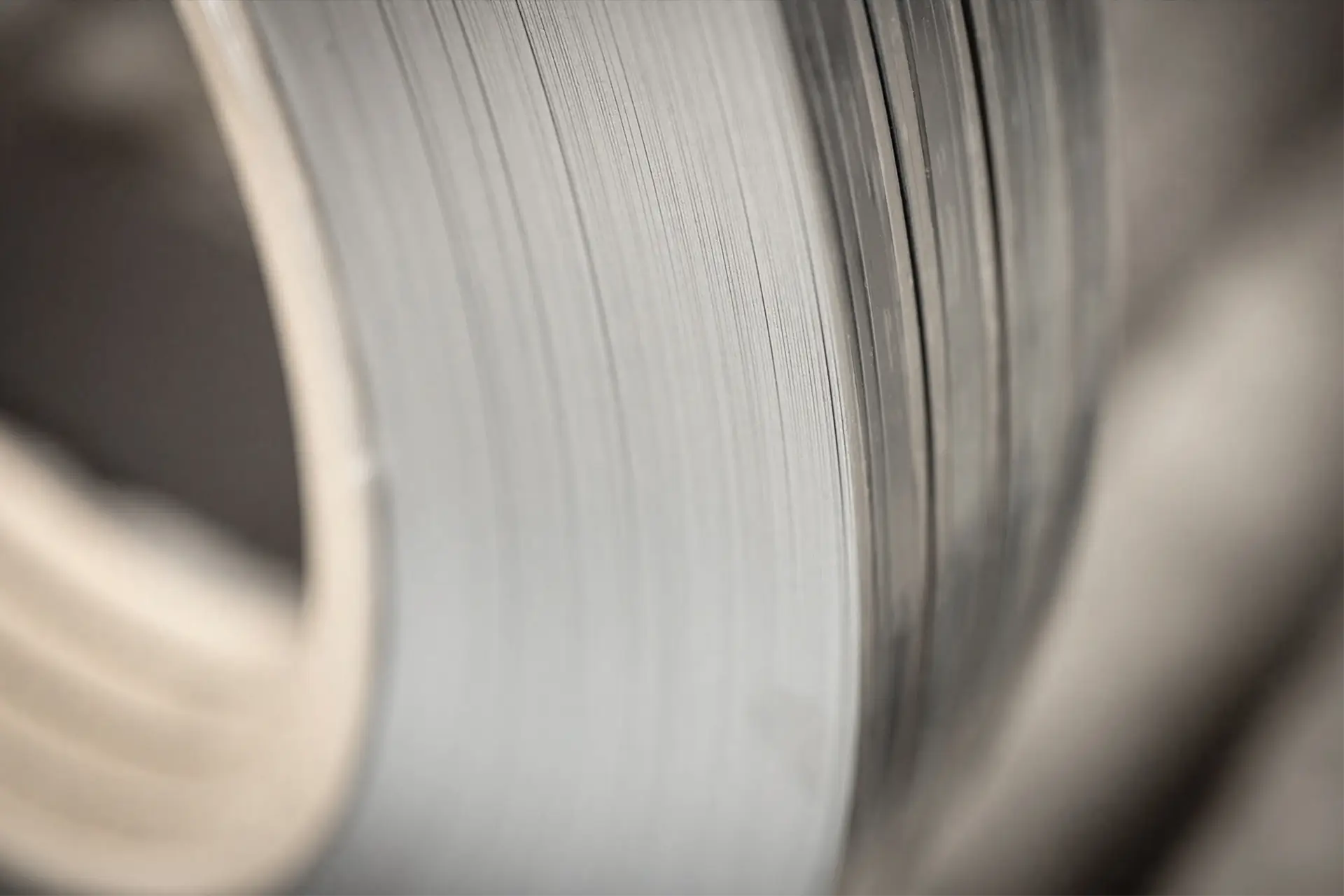

Nickel Alloy Strip SHOW

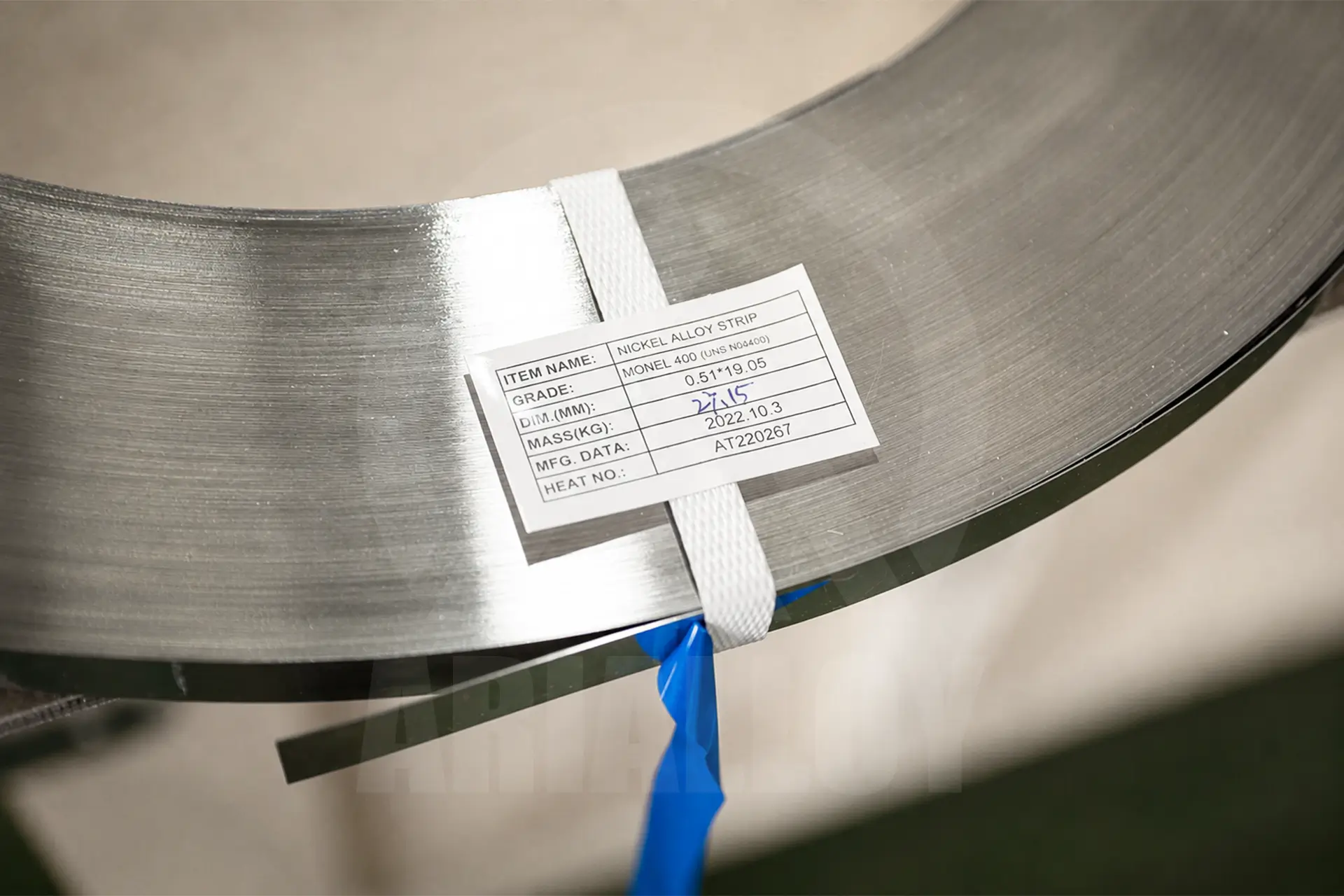

Supplying Nickel Alloy Strip
From initial samples to large scale production, we supply high quality nickel alloy strip and help you achieve your manufacturing goals.
Manufacturing Process
Nickel Alloy Strip Manufacturing Process
The production process for Arialloy nickel alloy strip ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.
Steel Making
Ingot Casting
Continuous Casting
Hot Rolling
Pickling
Cold Rolling
Annealing
Cold Rolling
Annealing
Splitting
2B or Polished
Strip
Inspection
Analytic
Marking
Packing & Shipping
Customized Dimensions
Nickel Alloy Strip Customization Scope
-
Thickness
0.05-3 mm
-
Width
5-250 mm
-
Delivery State
Soft, ¼ hard, ½ hard, ¾ hard, hard
-
Finish
2B, BA, frosting, Mirror Finished, 8K, Hair Line with PVC, checkered plates, titanium
Formula: m = A (m) × THK (mm) × L (m) × ρ (g/cm³)
A = Width, THK = Thickness, L = Length, ρ = Density
Data Sheet
Nickel Alloy Strip Data Sheet
Access the nickel alloy strip data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project
Tolerance in Thickness
| ASTM B463, B536, B599, B625, B688, B709 and B718 | ||||
|---|---|---|---|---|
| Specified Thickness, in. (mm) | Thickness Tolerances, for the Thickness and Widths Given, Over and Under, in. (mm) | |||
| Width, in. (mm) | ||||
| 3/16(4.76) to 6(152), incl | Over 6(152) to 12(305), incl | Over 12(305) to 24(610), excl | ||
| Thickness Tolerances | ||||
| 0.005(0.13) to 0.010(0.25), incl | 10% | 10% | 10% | |
| Over 0.010(0.25) to 0.011(0.28), incl | 0.0015(0.04) | 0.0015(0.04) | 0.0015(0.04) | |
| Over 0.011(0.28) to 0.013(0.33), incl | 0.0015(0.04) | 0.0015(0.04) | 0.002(0.05) | |
| Over 0.013(0.33) to 0.017(0.43), incl | 0.0015(0.04) | 0.002(0.05) | 0.002(0.05) | |
| Over 0.017(0.43) to 0.020(0.51), incl | 0.0015(0.04) | 0.002(0.05) | 0.0025(0.06) | |
| Over 0.020(0.51) to 0.029(0.74), incl | 0.002(0.05) | 0.0025(0.06) | 0.0025(0.06) | |
| Over 0.029(0.74) to 0.035(0.89), incl | 0.002(0.05) | 0.003(0.08) | 0.003(0.08) | |
| Over 0.035(0.89) to 0.050(1.27), incl | 0.0025(0.06) | 0.0035(0.09) | 0.0035(0.09) | |
| Over 0.050(1.27) to 0.069(1.75), incl | 0.003(0.08) | 0.0035(0.09) | 0.0035(0.09) | |
| Over 0.069(1.75) to 0.100(2.54), incl | 0.003(0.08) | 0.004(0.10) | 0.005(0.13) | |
| Over 0.100(2.54) to 0.125(2.98), incl | 0.004(0.10) | 0.0045(0.11) | 0.005(0.13) | |
| Over 0.125(2.98) to 0.161(4.09), incl | 0.0045(0.11) | 0.0045(0.11) | 0.005(0.13) | |
| Over 0.161(4.09) to under 3/16(4.76) | 0.005(0.13) | 0.005(0.13) | 0.006(0.15) | |
| ASTM B333, B434, B435, B575, B582, B620, B814 and B818 | ||||
| Specified Thickness, in. (mm) | Permissible Variations in Thickness, in (mm) (All Widths) | |||
| + | - | |||
| 0.020 to 0.034(0.51 to 0.86), incl | 0.004(0.10) | 0.004(0.10) | ||
| Over 0.034 to 0.056(0.86 to 1.42), incl | 0.005(0.13) | 0.005(0.13) | ||
| Over 0.056 to 0.070(1.42 to 1.78), incl | 0.006(0.15) | 0.006(0.15) | ||
| Over 0.070 to 0.078(1.78 to 1.98), incl | 0.007(0.18) | 0.007(0.18) | ||
| Over 0.078 to 0.093(1.98 to 2.36), incl | 0.008(0.20) | 0.008(0.20) | ||
| Over 0.093 to 0.109(2.36 to 2.77), incl | 0.009(0.23) | 0.009(0.23) | ||
| Over 0.109 to 0.125(2.77 to 3.18), incl | 0.010(0.25) | 0.010(0.25) | ||
| Over 0.125 to 0.140(3.18 to 3.56), incl | 0.013(0.33) | 0.010(0.25) | ||
| Over 0.140 to 0.171(3.56 to 4.34), incl | 0.016(0.41) | 0.010(0.25) | ||
| Over 0.171 to 0.187(4.34 to 4.75), incl | 0.018(0.46) | 0.010(0.25) | ||
| ASTM B127, B162, B168, B409, B424, B443, B670, B755 and B872 | ||||
| Specified Thickness, in. (mm), incl | Hot-Rolled | Cold-Rolled | ||
| 48(1220) and Under | Over 48 to 60(1220 to 1520), incl | 48(1220) and Under | Over 48 to 60(1220 to 1520), incl | |
| 0.018 to 0.025(0.5 to 0.6) | 0.003(0.08) | 0.004(0.10) | 0.002(0.05) | 0.003(0.08) |
| Over 0.025 to 0.034(0.6 to 0.9) | 0.004(0.10) | 0.005(0.13) | 0.003(0.08) | 0.004(0.10) |
| Over 0.034 to 0.043(0.9 to 1.1) | 0.005(0.13) | 0.006(0.15) | 0.004(0.10) | 0.005(0.13) |
| Over 0.043 to 0.056(1.1 to 1.4) | 0.005(0.13) | 0.006(0.15) | 0.004(0.10) | 0.005(0.13) |
| Over 0.056 to 0.070(1.4 to 1.8) | 0.006(0.15) | 0.007(0.18) | 0.005(0.13) | 0.006(0.15) |
| Over 0.070 to 0.078(1.8 to 1.9) | 0.007(0.18) | 0.008(0.20) | 0.006(0.15) | 0.007(0.18) |
| Over 0.078 to 0.093(1.9 to 2.4) | 0.008(0.20) | 0.009(0.23) | 0.007(0.18) | 0.008(0.20) |
| Over 0.093 to 0.109(2.4 to 2.8) | 0.009(0.23) | 0.010(0.25) | 0.007(0.18) | 0.009(0.23) |
| Over 0.109 to 0.125(2.8 to 3.2) | 0.010(0.25) | 0.012(0.31) | 0.008(0.20) | 0.010(0.25) |
| Over 0.125 to 0.140(3.2 to 3.6) | 0.012(0.31) | 0.014(0.36) | 0.008(0.20) | 0.010(0.25) |
| Over 0.140 to 0.171(3.6 to 4.3) | 0.014(0.36) | 0.016(0.41) | 0.009(0.23) | 0.012(0.31) |
| Over 0.171 to 0.187(4.3 to 4.8) | 0.015(0.38) | 0.017(0.43) | 0.010(0.25) | 0.013(0.33) |
| Over 0.187 to 0.218(4.8 to 5.5) | 0.017(0.43) | 0.019(0.48) | 0.011(0.28) | 0.015(0.38) |
| Over 0.218 to 0.234(5.5 to 5.9) | 0.018(0.46) | 0.020(0.51) | 0.012(0.31) | 0.016(0.41) |
| Over 0.234 to 0.250(5.9 to 6.4) | 0.020(0.51) | 0.022(0.56) | 0.013(0.33) | 0.018(0.46) |
Tolerance in Width
| ASTM B463, B536, B599, B625, B688, B709 and B718 | ||||
|---|---|---|---|---|
| Specified Edge No. | Width, in. (mm) | Thickness, in. (mm) | Width Tolerance for Thickness and Width Given, in. (mm) | |
| Over | Under | |||
| 1 and 5 | 9/32 (7.14) and under | 1/16 (1.59) and under | 0.005 (0.13) | 0.005 (0.13) |
| 1 and 5 | over 9/32 (7.14) to 3/4 (19.05), incl | 3/32 (2.38) and under | 0.005 (0.13) | 0.005 (0.13) |
| 1 and 5 | over 3/4 (19.05) to 5 (127), incl | 1/8 (3.18) and under | 0.005 (0.13) | 0.005 (0.13) |
| 5 | over 5 (127.00) to 9 (228.60), incl | 1/8 (3.18) to 0.008 (0.20), incl | 0.010 (0.25) | 0.010 (0.25) |
| 5 | over 9 (228.60) to 20 (508.00), incl | 0.105 (2.67) to 0.015 (0.38) | 0.010 (0.25) | 0.010 (0.25) |
| 5 | over 20 (508.00) | 0.080 (2.03) to 0.023 (0.58) | 0.015 (0.38) | 0.015 (0.38) |
| ASTM B333, B434, B435, B575, B582, B620, B814 and B818 | ||||
| Specified Thickness, in. (mm) | Specified Width, in. (mm) | Permissible Variations in Specified Width, in. (mm) | ||
| + | - | |||
| 0.187(4.76) and under | 2(50.8) and over | 0.125(3.18) | 0 | |
| ASTM B127, B162, B168, B409, B424, B443, B670, B755 and B872 | ||||
| Specified Thickness, in. (mm) | Specified Width, in. (mm) | Permissible Variations in Specified Width, in. (mm) | ||
| Plus | Minus | |||
| Up to 0.250(6.35) | All | 0.125(3.18) | 0 | |
Delivery State
| Delivery State Choice | Surface Condition |
|---|---|
| Cold Rolled | 2B |
| 2D | |
| BA | |
| Hairline | |
| No.3 | |
| No.4 | |
| 6K | |
| 8K | |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. | |
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Nickel Alloy Strip Quotation Process
From detailed consultation to final delivery, we make custom nickel alloy strip orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Nickel Alloy Strip FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
For industrial applications, the standard finish for nickel alloy welded pipe and tube is No.1 or pickled. Polished options are also available in 320#, 400#, 600#, or mirror finish. Please specify whether internal, external, or both-side polishing is required.
Standard lengths are 5.8 m and 6 m. Lengths of 12 m and 13 m can also be produced on request. We can cut the tubes to the required length by laser, plasma, or waterjet cutting; cutting and material loss may add cost.
The typical lead time is 10 weeks for nickel alloy welded-pipe orders below two container loads. Special grades, nonstandard sizes, or other unusual requirements may extend the schedule. Large production quantities can require additional time. Delivery timing is also subject to force-majeure conditions.
We have nickel alloy elbows, flanges, reducers etc. For more details, please refer to our products.

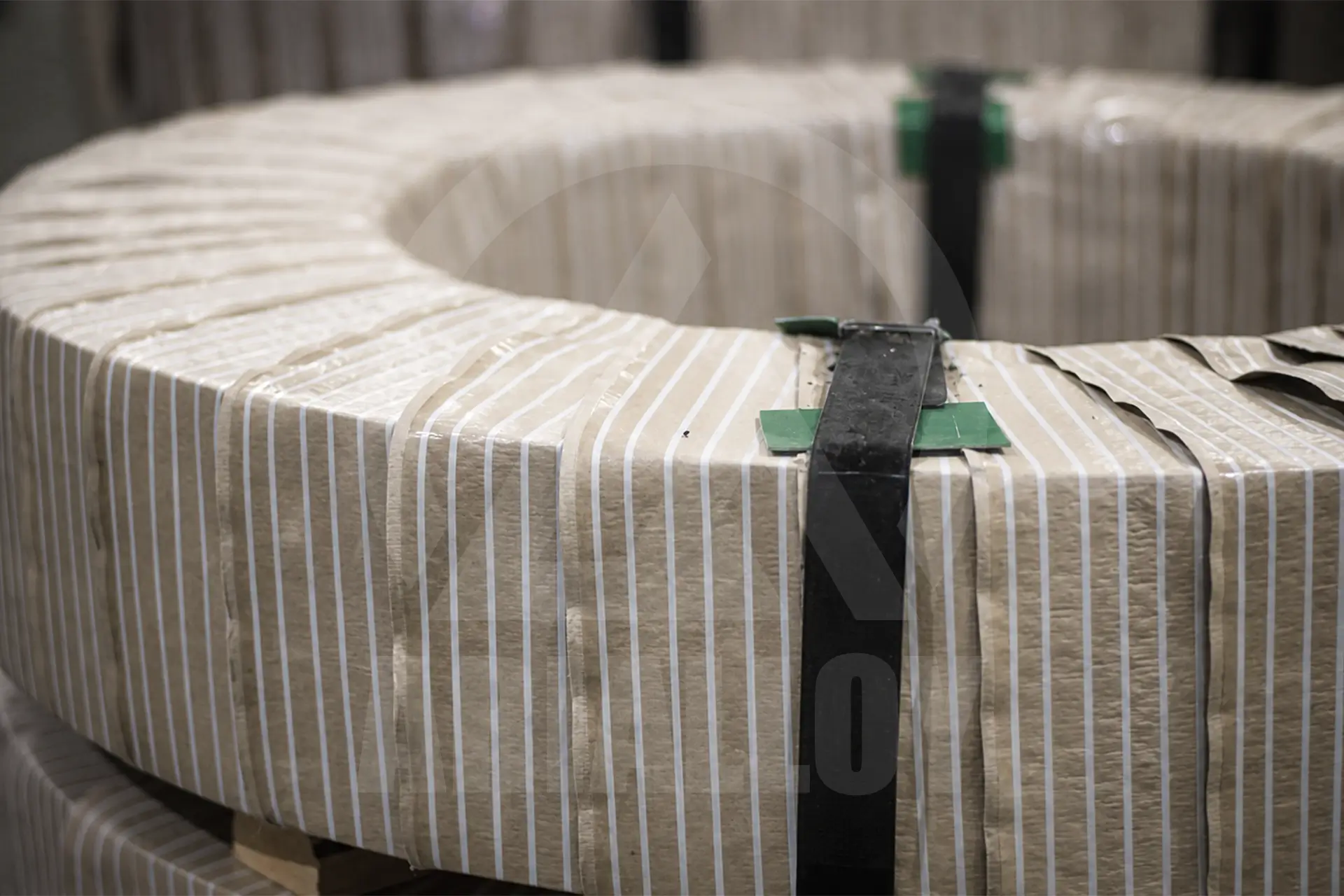

By default, we will use thick woven plastic bags for package. We can also do customized package like wooden case as per your demand. You can also refer to our photos for better understanding.
Samples of common nickel alloy welded pipe and tube grades and sizes can be provided when suitable material is available. Small evaluation samples are normally free, while the buyer pays freight; large, nonstandard, or specially processed samples are quoted separately.
The estimated standard MOQ for nickel alloy welded pipe and tube is 500 kg per size. The final minimum can vary with alloy grade, dimensions, manufacturing route, and material availability.
Inspection of nickel alloy welded pipe and tube covers material identity, dimensions, weld quality, wall thickness, straightness, surface, and the nondestructive or pressure-test scope stated in the order. Only material that meets the approved specification and required inspection results is released for shipment.
