Nickel Alloy Coil
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy coil
Nickel Alloy Coil Introduction
Coil Nickel Alloy Overview
Nickel Alloy Coil Supplier
As a professional nickel alloy coil manufacturer and supplier in China, Arialloy offers a broad selection of nickel alloy grades, thicknesses, widths, inside diameters, outside diameters, coil weights, heat treatment conditions, surface finishes, and edge conditions to meet different material and specification requirements. Master coils, slit coils, and custom width coils can be supplied with processing and packaging options matched to each order. Depending on the selected grade, alloying elements such as chromium, molybdenum, copper, iron, cobalt, niobium, or tungsten provide different combinations of corrosion resistance, mechanical strength, toughness, and thermal stability.
Nickel Alloy Coil Product Features

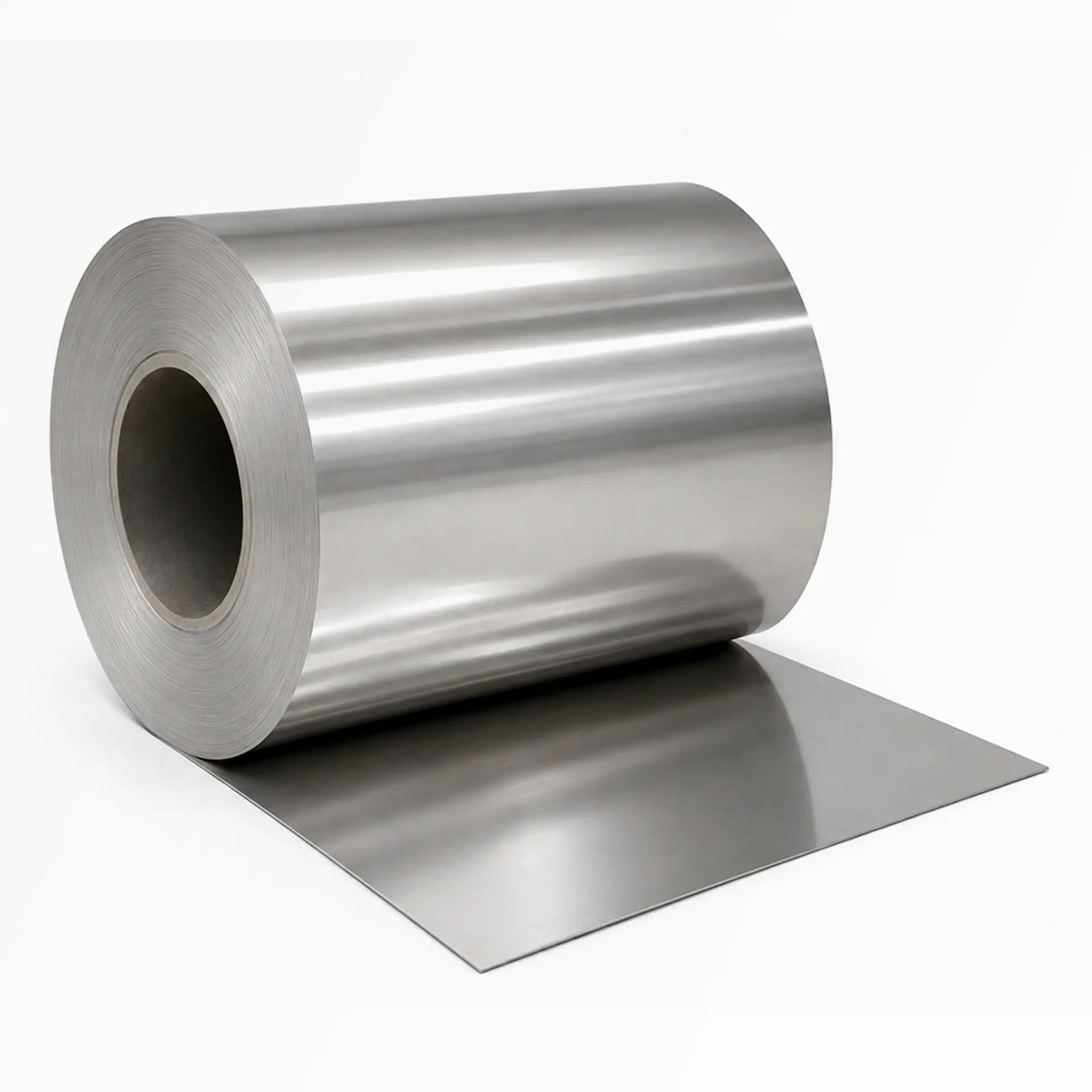

Arialloy nickel alloy coil is supplied as continuous flat rolled sheet or strip wound into a compact coil form. Controlled thickness, width, flatness, camber, edge condition, and winding quality help maintain consistent geometry throughout the coil. Stable tension and orderly winding reduce telescoping, loose wraps, edge damage, and surface marking, while a uniform material condition supports consistent processing along the full coil length.
Nickel Alloy Coil Manufacture
Depending on the grade, thickness, width, and required condition, production may involve hot rolling, cold rolling, solution annealing, descaling, pickling, surface grinding, tension leveling, slitting, edge finishing, and recoiling. Rolling reduction, annealing temperature, line speed, and cooling are controlled to maintain the required thickness and metallurgical condition. During final recoiling, strip tension and alignment are carefully managed to produce a compact and even coil while limiting telescoping, edge damage, and surface marking.
Nickel Alloy Coil Inspection
Every Arialloy nickel alloy coil order is inspected according to the applicable material standard and customer requirements. Chemical composition verification, thickness and width measurement, surface examination, flatness and camber checks, edge inspection, coil inside and outside diameter measurement, coil weight verification, tensile testing, hardness testing, and grain size evaluation can be carried out as specified. Winding condition, coil alignment, identification, and packaging are also checked before shipment. Each order is supported by traceable heat numbers, material test certificates, inspection reports, and complete quality documentation.
Nickel Alloy Coil Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B127
ASTM B162
ASTM B168
ASTM B240
ASTM B333
ASTM B409
ASTM B424
ASTM B434
ASTM B435
ASTM B443
ASTM B463
ASTM B480
ASTM B536
ASTM B575
ASTM B582
ASTM B599
ASTM B620
ASTM B625
ASTM B670
ASTM B688
ASTM B693
ASTM B709
ASTM B718
ASTM B755
ASTM B814
ASTM B818
ASTM B872
ASTM B906
Nickel Alloy Coil Applications
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
WELDED TUBE & PIPE PRODUCTION
Feedstock for longitudinally welded pipe and tube, heat exchanger tubes, condenser tubes, formed ducting, roll formed channels, and continuous seam welded components.AUTOMOTIVE
Stamped exhaust heat shields, flexible connectors and bellows, EGR components, turbocharger seals, catalytic converter parts, battery connection parts, and high temperature clips.CHEMICAL PROCESSING
Continuous formed vessel liners, baffles, trays, gaskets, expansion joints, corrosion resistant panels, small diameter welded tubing, and process equipment covers.AEROSPACE
Formed engine ducting, heat shields, bellows, honeycomb and seal stock, spring clips, exhaust system parts, sensor housings, and lightweight high temperature fabrications.ELECTRONICS & CLEAN ENERGY
Battery tabs and bus strips, fuel cell interconnect parts, electrical contacts, sensor housings, relay components, shielding parts, and formed conductive components.THERMAL PROCESSING
Furnace seals, radiant shields, combustion liners, expansion joints, stamped high temperature clips, conveyor components, burner parts, and heat treatment equipment panels.POLLUTION & WASTE
Roll formed scrubber panels, duct liners, expansion joints, damper components, spray shields, incinerator panels, mist eliminator frames, and corrosion resistant equipment covers.Available Grades
Available Grades for Nickel Alloy Coil
Explore the full range of nickel alloy coil grades to expand your material choices and ensure you find the perfect nickel alloy
Nickel Alloy Coil SHOW
Supplying Nickel Alloy Coil
From initial samples to large scale production, we supply high quality nickel alloy coil and help you achieve your manufacturing goals.
Manufacturing Process
Nickel Alloy Welded Pipe & Tube Manufacturing Process
The production process for Arialloy nickel alloy welded pipes and tubes ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.
Steel Making
Ingot Casting
Continuous Casting
Roughing Rolling
Steckel Mill
Annealing
Pickling
Cold Rolling
Bright Annealing
Skin Pass Mill
Cold Rolled Coil
Inspection
Analytic
Marking
Packing & Shipping
Steel Making
Ingot Casting
Continuous Casting
Roughing Rolling
Steckel Mill
Annealing
Pickling
Hot Rolled Coil
Cold Rolled Coil
Inspection
Analytic
Marking
Packing & Shipping
Customized Dimensions
Nickel Alloy Coil Customization Scope
-
Thickness
0.5-50 mm
-
Width
500-1200 mm
-
Delivery State
Cold Rolled, Hot Rolled
-
Finish
2B, No.1, 1D, No.2, No.4, BA, 6K, Mirror Finished, 8K, Hair Line with PVC
Formula: m = A (m) × THK (mm) × L (m) × ρ (g/cm³)
A = Width, THK = Thickness, L = Length, ρ = Density
Data Sheet
Nickel Alloy Coil Data Sheet
Access the nickel alloy coil data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project
Tolerance in Thickness
| ASTM B463, B536, B599, B625, B688, B709 and B718 | ||||
|---|---|---|---|---|
| Specified Thickness, in. (mm) | Permissible Variations, Over and Under | |||
| in. | mm | |||
| Over 0.145(3.68) to less than 3/16(4.76) | 0.014 | 0.36 | ||
| Over 0.130(3.30) to 0.145(3.68), incl | 0.012 | 0.30 | ||
| Over 0.114(2.90) to 0.130(3.30), incl | 0.010 | 0.25 | ||
| Over 0.098(2.49) to 0.114(2.90), incl | 0.009 | 0.23 | ||
| Over 0.083(2.11) to 0.098(2.49), incl | 0.008 | 0.20 | ||
| Over 0.072(1.83) to 0.083(2.11), incl | 0.007 | 0.18 | ||
| Over 0.058(1.47) to 0.072(1.83), incl | 0.006 | 0.15 | ||
| Over 0.040(1.02) to 0.058(1.47), incl | 0.005 | 0.13 | ||
| Over 0.026(0.66) to 0.040(1.02), incl | 0.004 | 0.10 | ||
| Over 0.016(0.41) to 0.026(0.66), incl | 0.003 | 0.08 | ||
| Over 0.007(0.18) to 0.016(0.41), incl | 0.002 | 0.05 | ||
| Over 0.005(0.13) to 0.007(0.18), incl | 0.0015 | 0.04 | ||
| 0.005(0.13) | 0.001 | 0.03 | ||
| ASTM B333, B434, B435, B575, B582, B620, B814 and B818 | ||||
| Specified Thickness, in. (mm) | Permissible Variations in Thickness, in (mm) (All Widths) | |||
| + | - | |||
| 0.020 to 0.034(0.51 to 0.86), incl | 0.004(0.10) | 0.004(0.10) | ||
| Over 0.034 to 0.056(0.86 to 1.42), incl | 0.005(0.13) | 0.005(0.13) | ||
| Over 0.056 to 0.070(1.42 to 1.78), incl | 0.006(0.15) | 0.006(0.15) | ||
| Over 0.070 to 0.078(1.78 to 1.98), incl | 0.007(0.18) | 0.007(0.18) | ||
| Over 0.078 to 0.093(1.98 to 2.36), incl | 0.008(0.20) | 0.008(0.20) | ||
| Over 0.093 to 0.109(2.36 to 2.77), incl | 0.009(0.23) | 0.009(0.23) | ||
| Over 0.109 to 0.125(2.77 to 3.18), incl | 0.010(0.25) | 0.010(0.25) | ||
| Over 0.125 to 0.140(3.18 to 3.56), incl | 0.013(0.33) | 0.010(0.25) | ||
| Over 0.140 to 0.171(3.56 to 4.34), incl | 0.016(0.41) | 0.010(0.25) | ||
| Over 0.171 to 0.187(4.34 to 4.75), incl | 0.018(0.46) | 0.010(0.25) | ||
| ASTM B127, B162, B168, B409, B424, B443, B670, B755 and B872 | ||||
| Specified Thickness, in. (mm), incl | Hot-Rolled | Cold-Rolled | ||
| 48(1220) and Under | Over 48 to 60(1220 to 1520), incl | 48(1220) and Under | Over 48 to 60(1220 to 1520), incl | |
| 0.018 to 0.025(0.5 to 0.6) | 0.003(0.08) | 0.004(0.10) | 0.002(0.05) | 0.003(0.08) |
| Over 0.025 to 0.034(0.6 to 0.9) | 0.004(0.10) | 0.005(0.13) | 0.003(0.08) | 0.004(0.10) |
| Over 0.034 to 0.043(0.9 to 1.1) | 0.005(0.13) | 0.006(0.15) | 0.004(0.10) | 0.005(0.13) |
| Over 0.043 to 0.056(1.1 to 1.4) | 0.005(0.13) | 0.006(0.15) | 0.004(0.10) | 0.005(0.13) |
| Over 0.056 to 0.070(1.4 to 1.8) | 0.006(0.15) | 0.007(0.18) | 0.005(0.13) | 0.006(0.15) |
| Over 0.070 to 0.078(1.8 to 1.9) | 0.007(0.18) | 0.008(0.20) | 0.006(0.15) | 0.007(0.18) |
| Over 0.078 to 0.093(1.9 to 2.4) | 0.008(0.20) | 0.009(0.23) | 0.007(0.18) | 0.008(0.20) |
| Over 0.093 to 0.109(2.4 to 2.8) | 0.009(0.23) | 0.010(0.25) | 0.007(0.18) | 0.009(0.23) |
| Over 0.109 to 0.125(2.8 to 3.2) | 0.010(0.25) | 0.012(0.31) | 0.008(0.20) | 0.010(0.25) |
| Over 0.125 to 0.140(3.2 to 3.6) | 0.012(0.31) | 0.014(0.36) | 0.008(0.20) | 0.010(0.25) |
| Over 0.140 to 0.171(3.6 to 4.3) | 0.014(0.36) | 0.016(0.41) | 0.009(0.23) | 0.012(0.31) |
| Over 0.171 to 0.187(4.3 to 4.8) | 0.015(0.38) | 0.017(0.43) | 0.010(0.25) | 0.013(0.33) |
| Over 0.187 to 0.218(4.8 to 5.5) | 0.017(0.43) | 0.019(0.48) | 0.011(0.28) | 0.015(0.38) |
| Over 0.218 to 0.234(5.5 to 5.9) | 0.018(0.46) | 0.020(0.51) | 0.012(0.31) | 0.016(0.41) |
| Over 0.234 to 0.250(5.9 to 6.4) | 0.020(0.51) | 0.022(0.56) | 0.013(0.33) | 0.018(0.46) |
Tolerance in Width
| ASTM B463, B536, B599, B625, B688, B709 and B718 | |||
|---|---|---|---|
| Specified Thickness, in. (mm) | Tolerances for Specified Width, in. (mm) | ||
| 24 (610) to 48 (1219), excl | 48 (1219) and Over | ||
| Less than 3/16(4.76) | 1/16(1.59) over, 0 under | 1/8(3.18) over, 0 under | |
| ASTM B333, B434, B435, B575, B582, B620, B814 and B818 | |||
| Specified Thickness, in. (mm) | Specified Width, in. (mm) | Permissible Variations in Specified Width, in. (mm) | |
| + | - | ||
| 0.187(4.76) and under | 2(50.8) and over | 0.125(3.18) | 0 |
| ASTM B127, B162, B168, B409, B424, B443, B670, B755 and B872 | |||
| Specified Thickness, in. (mm) | Specified Width, in. (mm) | Permissible Variations in Specified Width, in. (mm) | |
| Plus | Minus | ||
| Up to 0.250(6.35) | All | 0.125(3.18) | 0 |
Delivery State
| Delivery State Choice | Surface Condition |
|---|---|
| Cold Rolled | 2B |
| 2D | |
| BA | |
| Hairline | |
| No.3 | |
| No.4 | |
| 6K | |
| 8K | |
| Hot Rolled | No.1 |
| No.3 | |
| No.4 | |
| 6K | |
| 8K | |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. | |
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Nickel Alloy Coil Quotation Process
From detailed consultation to final delivery, we make custom nickel alloy coil orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Nickel Alloy Coil FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
We manufacture the nickel alloy products listed in this range. Available surface options comprise BA, 2B, and No.4. Complete coils can be divided into smaller coils of specified weight. The typical inner diameter is 150–510 mm, and the outer diameter is 300–1200 mm.
This can be included in the order. We provide white and black film, blue film and transparent film for flexible ordering.
We can provide matching categories such as nickel alloy sheet, nickel alloy plate and nickel alloy strip. Please check the associated pages for complete details.
We typically schedule about 65 days for production for regular orders. Lead time may increase when the order includes special materials or dimensions.
Preparation of a nickel alloy coil sample depends on whether matching material is available for the specified grade and size. Special size or specially finished nickel alloy coil samples are not covered by the standard sample terms and are quoted on request.
Alloy grade, size, stock, manufacturing route, tolerance, and processing requirements determine the final MOQ for nickel alloy coil. The current planning estimate is 500 kg per size.
The nickel alloy coil inspection scope, acceptance criteria, results, and batch identity are recorded in the applicable order documents.
The nickel alloy coil purchase order should repeat every dimension and tolerance confirmed in the quotation. Machining allowance must be included if the supplied size is not the final component size.
