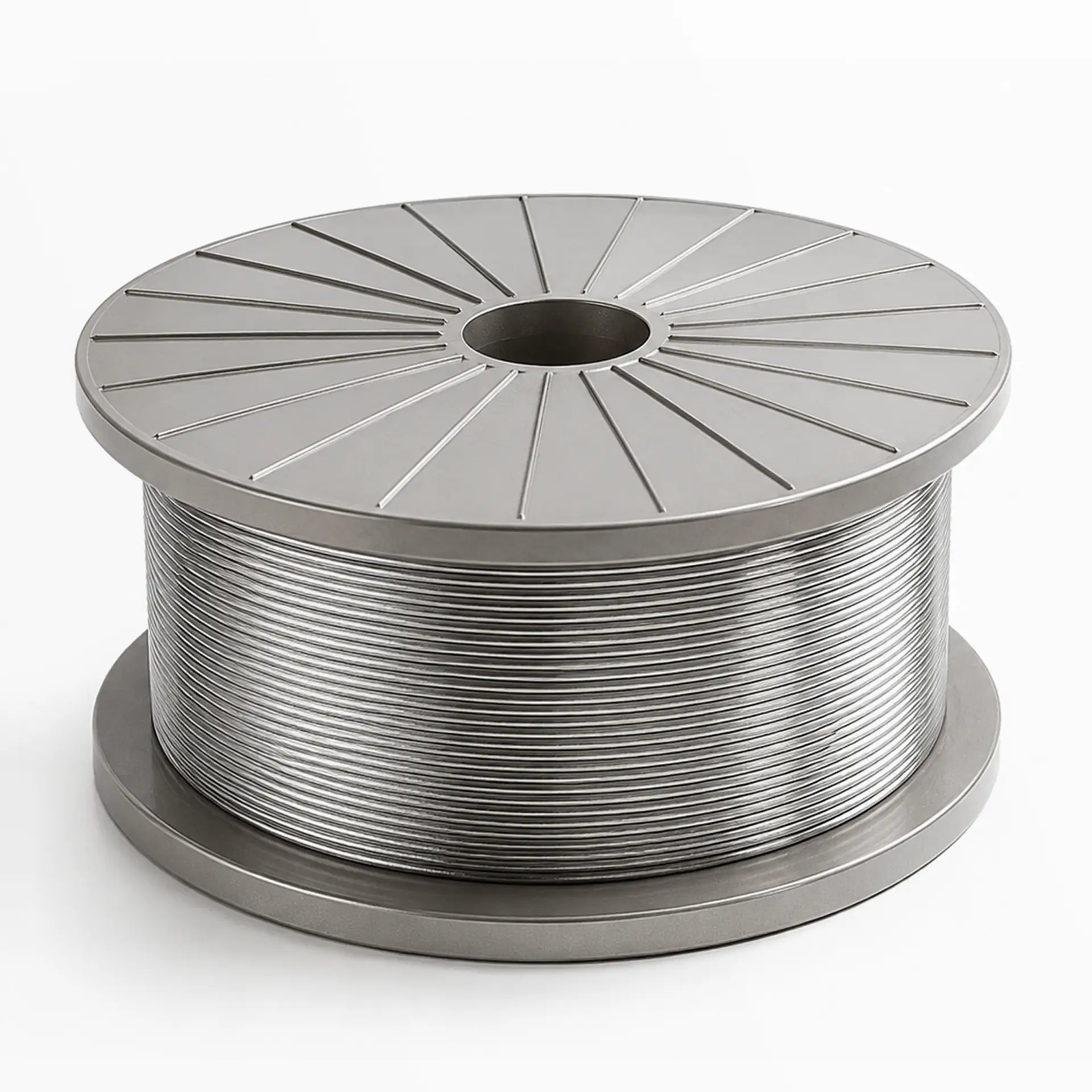

Nickel Alloy Filler Metal
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy filler metal
Nickel Alloy Filler Metal Introduction
Nickel Alloy Filler Metal Overview
Nickel Alloy Filler Metal Overview
Nickel alloy coil tube is supplied in long, continuous lengths wound into compact coils for convenient handling, storage, and transportation. Compared with multiple sections of straight tubing, continuous coiled tubing reduces the number of intermediate connections and helps create a more consistent fluid path. The coil format also allows the required length to be cut or formed during subsequent processing while minimizing material waste.
Arialloy provides nickel alloy coil tubing in a broad selection of alloy grades, outside diameters, wall thicknesses, continuous lengths, coil diameters, and surface conditions. Depending on the chosen grade, the tubing can offer different combinations of corrosion resistance, strength, ductility, and temperature stability. Straight ends, specific coil dimensions, and customized packaging can also be supplied according to project and purchasing requirements.
Manufacturing may include tube forming, cold drawing, intermediate annealing, solution heat treatment, pickling, surface finishing, and controlled coiling. During winding, the tube is carefully guided to limit flattening, twisting, and surface damage while maintaining dimensional consistency throughout its length. Appropriate heat treatment and forming control also help preserve the required mechanical properties and flexibility.
Each nickel alloy coil tube is checked for outside diameter, wall thickness, ovality, surface condition, and coil dimensions. Non-destructive testing, pressure testing, and additional inspections can be arranged according to the applicable standard or customer specification. Arialloy supplies traceable nickel alloy coil tubing with verified material properties and complete quality documentation. Contact us with your required grade, tube dimensions, continuous length, coil size, and testing requirements.
Nickel Alloy Filler Metal Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
AWS A5.02
AWS A5.14
Nickel Alloy Filler Metal Applications
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
CHEMICAL PROCESSING
GTAW, GMAW, and SAW joining of process piping, pressure vessels, reactors, heat exchangers, pumps, and valves; corrosion resistant overlay and dissimilar metal joints.OIL & GAS EXTRACTION
CRA pipe welding, clad linepipe overlay, subsea spool and manifold joints, wellhead repairs, sour service piping, riser fabrication, and dissimilar joining to carbon or low alloy steel.PETROCHEMICAL
Welding of hydroprocessing piping, reformer and furnace components, pressure vessels, heater tubes, high temperature manifolds, refinery repair work, and corrosion resistant weld overlay.POWER & NUCLEAR
Boiler superheater and reheater joints, steam generator tubesheet overlay, turbine component repair, nuclear piping welds, heat recovery equipment, dissimilar joints, and high temperature valve repairs.AEROSPACE & GAS TURBINE
Combustor and exhaust duct fabrication, hot section repair, turbine seals and shrouds, engine manifolds, aerospace tubing joints, dissimilar alloy welding, and high temperature brazed assemblies where applicable.MARINE & OFFSHORE
Seawater piping welds, ship exhaust system fabrication, desalination equipment, offshore platform piping, marine heat exchangers, subsea equipment repairs, and corrosion resistant overlay.POLLUTION & WASTE
Scrubber and stack liner welding, FGD equipment fabrication, waste incinerator repair, flue gas ducting, quench systems, wastewater equipment, and corrosion resistant cladding of carbon steel components.Available Grades
Available Grades for Nickel Alloy Filler Metal
Explore the full range of nickel alloy filler metal grades to expand your material choices and ensure you find the perfect nickel alloy

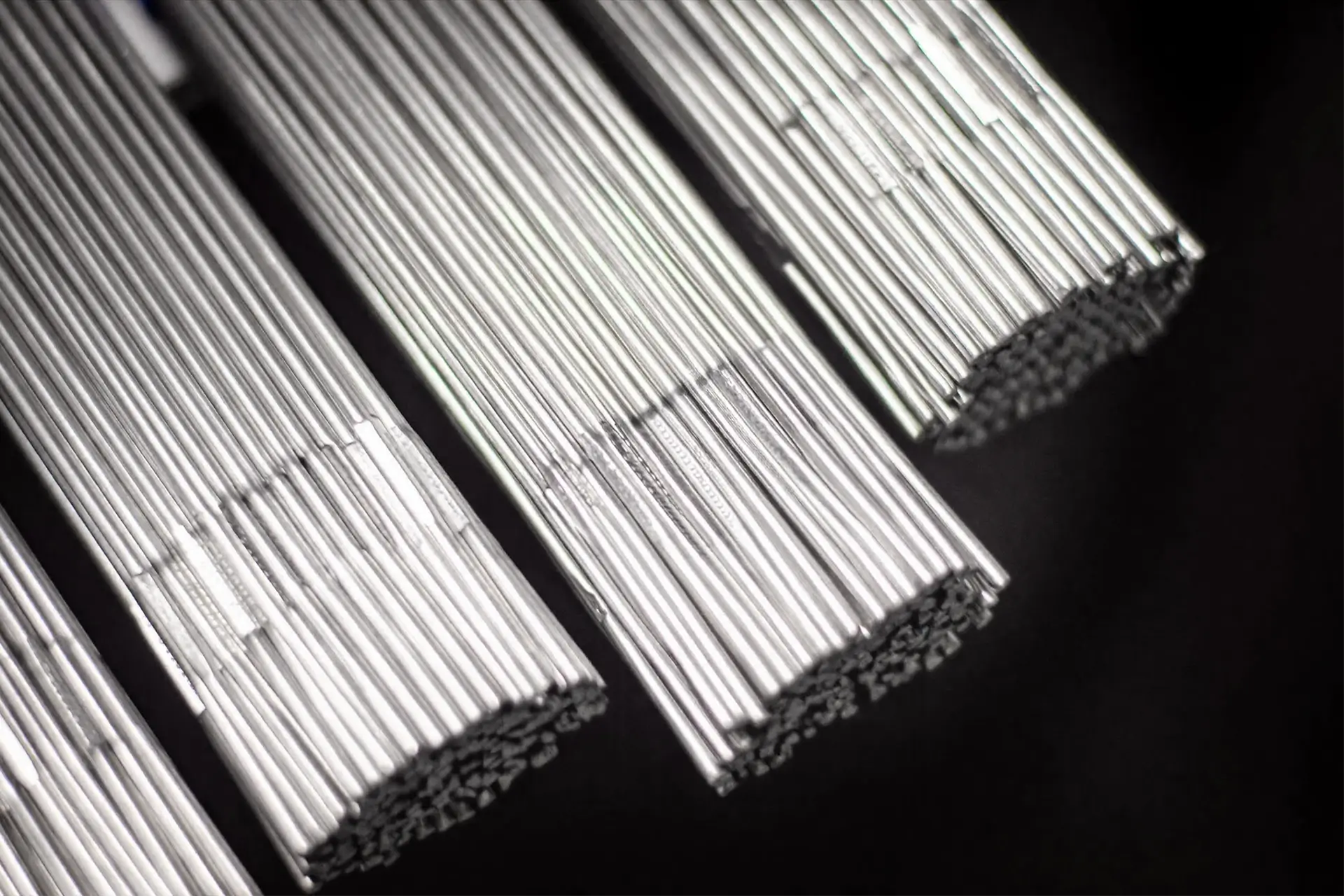

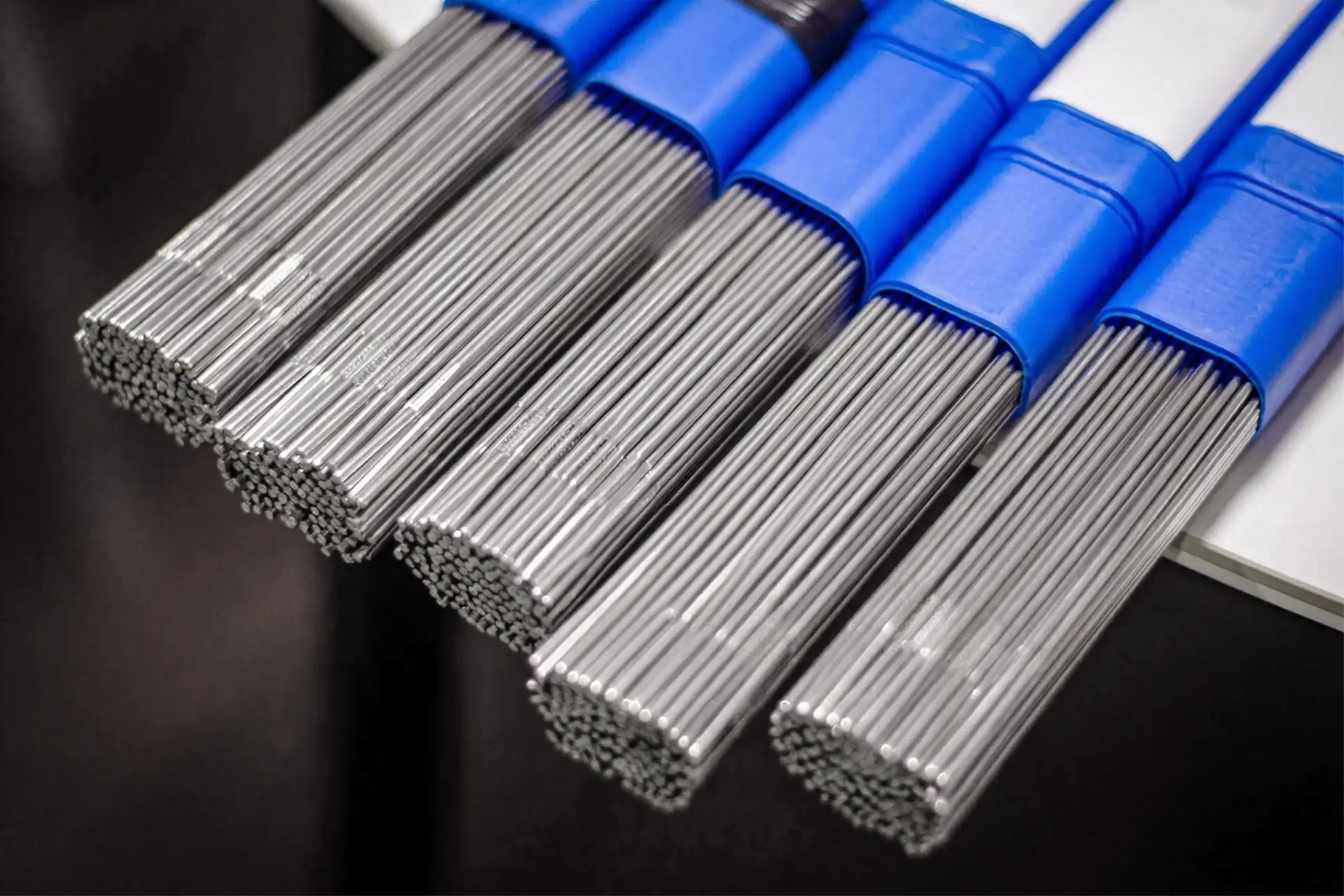

Nickel Alloy Filler Metal SHOW
Supplying Nickel Alloy Filler Metal
From initial samples to large scale production, we supply high quality nickel alloy filler metal and help you achieve your manufacturing goals.
Manufacturing Process
Nickel Alloy Filler Metal Manufacturing Process
The production process for Arialloy nickel alloy filler metal ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.
Steel Making
Ingot Casting
Ingot
Heating
Hot Rolling
Hot Rolled Wire Rod
Annealing
Pickling
Cold Drawing
Hydrogen Annealing
Cold Drawing
Polishing
Filler Metal
Inspection
Analytic
Marking
Packing & Shipping
Customized Dimensions
Nickel Alloy Filler Metal Customization Scope
-
Diameter
0.5-6.4 mm
Formula: m = D (mm) × D (mm) × L (m) × ρ (g/cm³) × π ÷ 4000
D = Diameter, L = Length, ρ = Density, π = 3.1415926…
Data Sheet
Nickel Alloy Filler Metal Data Sheet
Access the nickel alloy filler metal data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project
Size & Tolerance
| Nominal Diameter | Solid Wire Tolerance | Tubular Cored Wire Tolerance | |||||
|---|---|---|---|---|---|---|---|
| GMAW/GTAW | SAW/EGW/ESW | ||||||
| in | mm | in | mm | in | mm | in | mm |
| 0.020 | 0.5 | ±0.001 | +0.01/–0.03 | — | — | — | — |
| 0.6 | |||||||
| 0.025 | |||||||
| 0.030 | ±0.002 | ||||||
| 0.8 | +0.01/–0.04 | +0.02/–0.05 | |||||
| 0.035 | 0.9 | ||||||
| 1.0 | ±0.04 | ||||||
| 0.045 | |||||||
| 3/64 | 1.2 | ±0.002 | |||||
| 0.052 | |||||||
| 1.4 | |||||||
| 1/16 | 1.6 | ±0.002 | +0.02/–0.06 | ||||
| 0.068 | ±0.003 | ||||||
| 0.072 | 1.8 | ||||||
| 5/64 | 2.0 | ||||||
| 3/32 | 2.4, 2.5 | ||||||
| 7/64 | 2.8 | ±0.003 | +0.01/–0.07 | ±0.003 | |||
| 3.0 | ±0.06 | +0.02/–0.07 | |||||
| 1/8 | 3.2 | ||||||
| 5/32 | 4.0 | — | ±0.004 | ±0.004 | |||
| 3/16 | 4.8 | — | |||||
| 5.0 | +0.02/–0.08 | ||||||
| 7/32 | 5.6 | ||||||
| 6.0 | |||||||
| 1/4 | 6.4 | ||||||
| 5/16 | 8.0 | ||||||
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Nickel Alloy Filler Metal Quotation Process
From detailed consultation to final delivery, we make custom nickel alloy filler metal orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Nickel Alloy Filler Metal FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
For industrial applications, the standard finish for nickel alloy welded pipe and tube is No.1 or pickled. Polished options are also available in 320#, 400#, 600#, or mirror finish. Please specify whether internal, external, or both-side polishing is required.
Standard lengths are 5.8 m and 6 m. Lengths of 12 m and 13 m can also be produced on request. We can cut the tubes to the required length by laser, plasma, or waterjet cutting; cutting and material loss may add cost.
The typical lead time is 10 weeks for nickel alloy welded-pipe orders below two container loads. Special grades, nonstandard sizes, or other unusual requirements may extend the schedule. Large production quantities can require additional time. Delivery timing is also subject to force-majeure conditions.
We have nickel alloy elbows, flanges, reducers etc. For more details, please refer to our products.

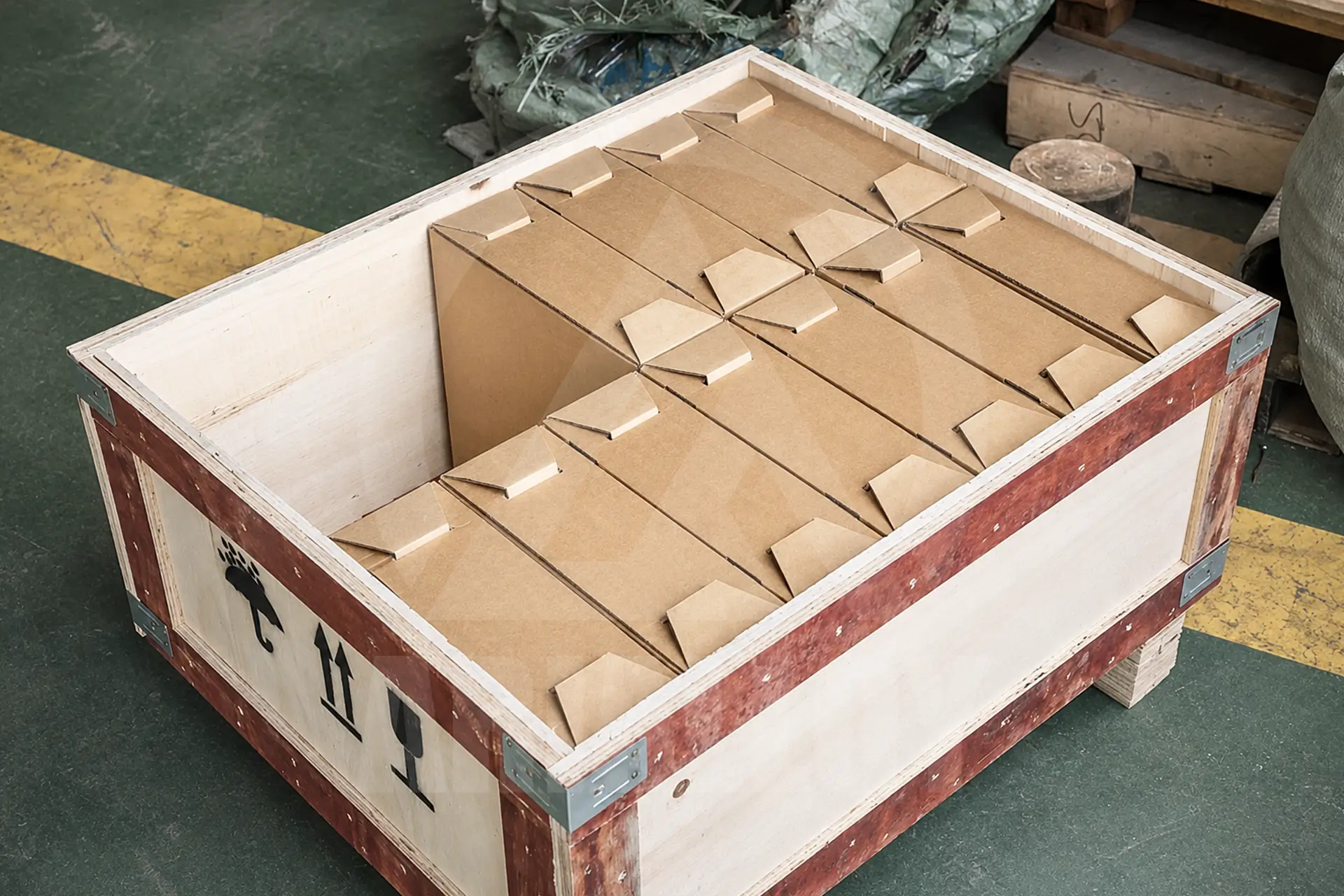

By default, we will use thick woven plastic bags for package. We can also do customized package like wooden case as per your demand. You can also refer to our photos for better understanding.
Samples of common nickel alloy welded pipe and tube grades and sizes can be provided when suitable material is available. Small evaluation samples are normally free, while the buyer pays freight; large, nonstandard, or specially processed samples are quoted separately.
The estimated standard MOQ for nickel alloy welded pipe and tube is 500 kg per size. The final minimum can vary with alloy grade, dimensions, manufacturing route, and material availability.
Inspection of nickel alloy welded pipe and tube covers material identity, dimensions, weld quality, wall thickness, straightness, surface, and the nondestructive or pressure-test scope stated in the order. Only material that meets the approved specification and required inspection results is released for shipment.
