Hastelloy X
UNS N06002 / W.Nr. 2.4665
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with hastelloy x tubes / sheets / wires / bars / fittings
Hastelloy X Material Properties
UNS N06002 / W.Nr. 2.4665 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of hastelloy x for optimal resistance, strength, and stability
Hastelloy X Chemical Composition
Hastelloy X Material Properties Overview
As a manufacturer and supplier in China, Arialloy provides cost effective hastelloy X products.
Hastelloy X (UNS N06002 / W.Nr. 2.4665) is an austenitic nickel alloy containing substantial additions of chromium, iron and molybdenum. Its composition typically includes approximately 22% chromium, 18% iron and 9% molybdenum, with nickel forming the balance. Chromium promotes resistance to oxidation, while molybdenum contributes to solid solution strengthening and helps sustain strength at elevated temperatures. The alloy combines resistance to hot gaseous environments with good ductility and practical fabrication characteristics. Wrought products are generally supplied in the solution annealed condition. Heating to approximately 2150°F (1177°C), followed by rapid cooling, helps establish a useful balance of strength and ductility. Subsequent processing and thermal exposure can influence the final mechanical properties.
The alloy can be formed by hot or cold working and joined using gas tungsten arc, gas metal arc, shielded metal arc and resistance welding. Matching hastelloy X filler metal is commonly selected for compatible weld deposits. Thorough cleaning before welding helps prevent contamination, while suitable welding parameters support sound joints and consistent fabrication quality.

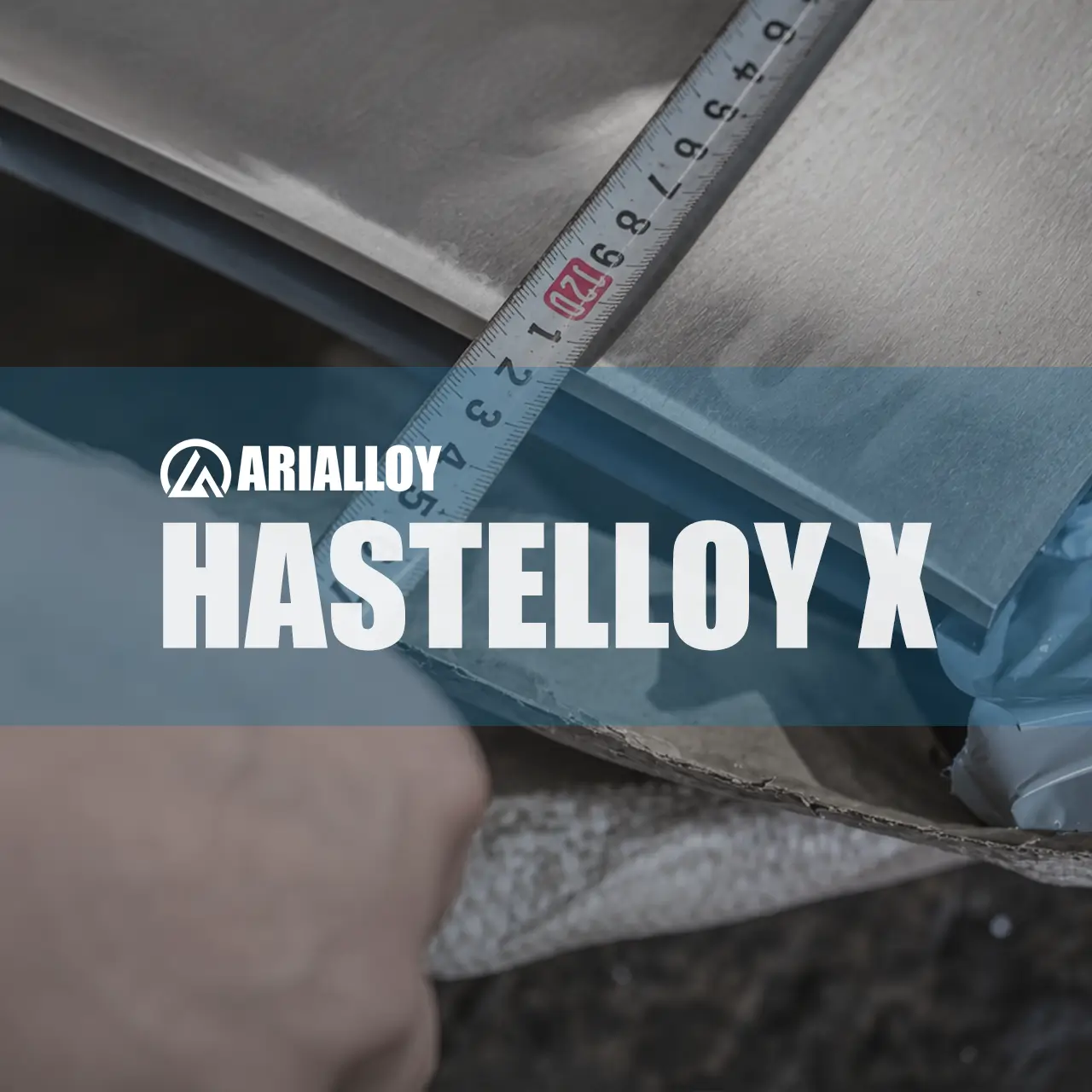

Arialloy supplies hastelloy X Sheet, Plate, Strip, Bar, Rod, Wire, Pipe and Tube, with dimensions and delivery conditions matched to purchasing requirements.
Hastelloy X Corrosion Resistance
Hastelloy X provides resistance to oxidation and attack in oxidizing, reducing and neutral gaseous atmospheres. Its chromium content supports a protective oxide film that adheres to the surface and limits further oxidation at elevated temperatures.
The alloy also resists carburization and nitriding, helping limit carbon and nitrogen penetration that can alter mechanical properties. Resistance to stress corrosion cracking complements these properties, although performance varies with the chemical environment. Temperature, exposure duration and the presence of contaminants or deposits also influence the extent of attack.
Hastelloy X Mechanical Properties
In the solution annealed condition, hastelloy X Plate exhibits a typical room temperature tensile strength of approximately 760 MPa (110,200 psi), a 0.2% yield strength of 340 MPa (49,300 psi), and an elongation of about 49%. This combination provides substantial strength while retaining ductility for forming. Cold working increases strength and hardness while reducing available ductility.
These typical values are provided for reference only. Actual properties depend on product form, dimensions, processing history and the applicable specification.
Hastelloy X Temperature Characteristics
Hastelloy X combines oxidation resistance with useful creep and stress rupture strength at elevated temperatures. Oxidation resistance extends to approximately 2200°F (1204°C), although permissible operating temperatures depend on stress, atmosphere and exposure duration.
Prolonged exposure at temperatures between approximately 1200°F and 1600°F (650°C and 870°C) can promote precipitation of secondary phases and reduce room temperature ductility and impact toughness. Its melting range is approximately 2300°F to 2470°F (1260°C to 1355°C). As temperature and exposure time increase, allowable stresses decrease and creep becomes progressively more important.
Hastelloy X Products
Nickel Alloy X Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy x products tailored to each project’s needs
Hastelloy X Data Sheet
Hastelloy Alloy X Data Sheet
Access / download the hastelloy x data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.22 | |
|---|---|---|---|
| lb/in.3 | 0.297 | ||
| Melting Range | °F | 2300 - 2470 | |
| °C | 1260 - 1355 | ||
| Poisson’s Ratio | 0.32 | ||
| Magnetic Permeability | 200 oersted | 1.002 | |
Mechanical Properties
| Test Temperature | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | |||
|---|---|---|---|---|---|---|
| °F | °C | ksi | MPa | ksi | MPa | % |
| Plate | ||||||
| 70 | 21 | 49.3 | 340 | 110.2 | 760 | 48.9 |
| 1000 | 538 | 32.5 | 224 | 87.6 | 604 | 60.2 |
| 1200 | 649 | 30.7 | 212 | 80.9 | 558 | 63.5 |
| 1400 | 760 | 31.6 | 218 | 61 | 421 | 74.5 |
| 1600 | 871 | 27.4 | 189 | 37 | 255 | 98.1 |
| 1800 | 982 | 13.6 | 94 | 20 | 138 | 98.1 |
| 2000 | 1093 | 6.5 | 45 | 10.4 | 72 | 95.3 |
| Sheet | ||||||
| 70 | 21 | 54.5 | 376 | 113.5 | 783 | 46.5 |
| 1000 | 538 | 36.7 | 253 | 91 | 628 | 53.6 |
| 1200 | 649 | 34.9 | 241 | 84.2 | 580 | 65.5 |
| 1400 | 760 | 33.8 | 233 | 61.6 | 424 | 95.6 |
| 1600 | 871 | 28 | 193 | 36.5 | 251 | 117.9 |
| 1800 | 982 | 12.8 | 88 | 18.9 | 130 | 81.5 |
| 2000 | 1093 | 6.2 | 43 | 9.5 | 65 | 50.6 |
Hastelloy X Standards
UNS N06002 / W.Nr. 2.4665 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B622
Seamless Pipe & Tube
ASTM B619
Welded Pipe
ASTM B626
Welded Tube
ASTM B366

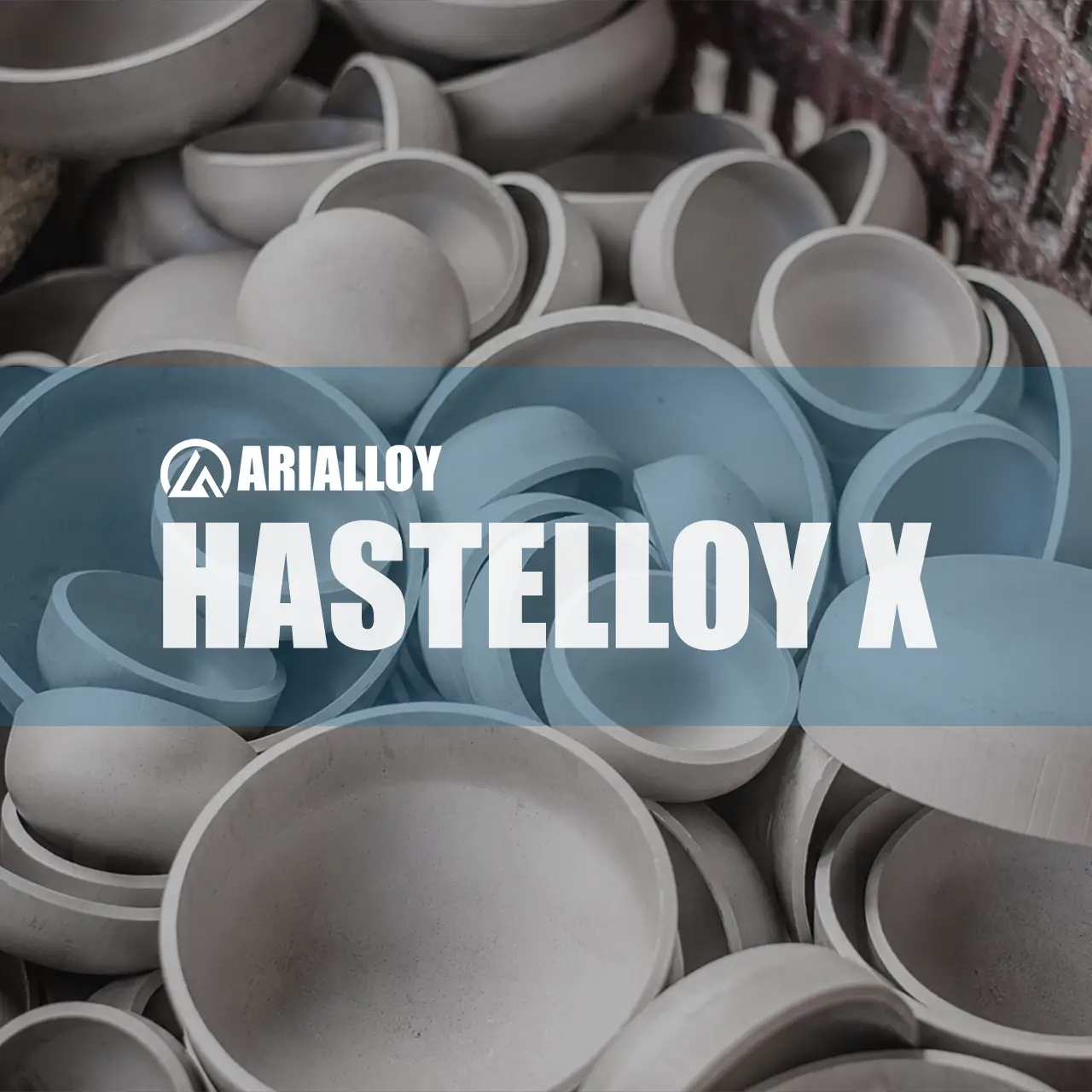

Welded Fittings
ASTM B472

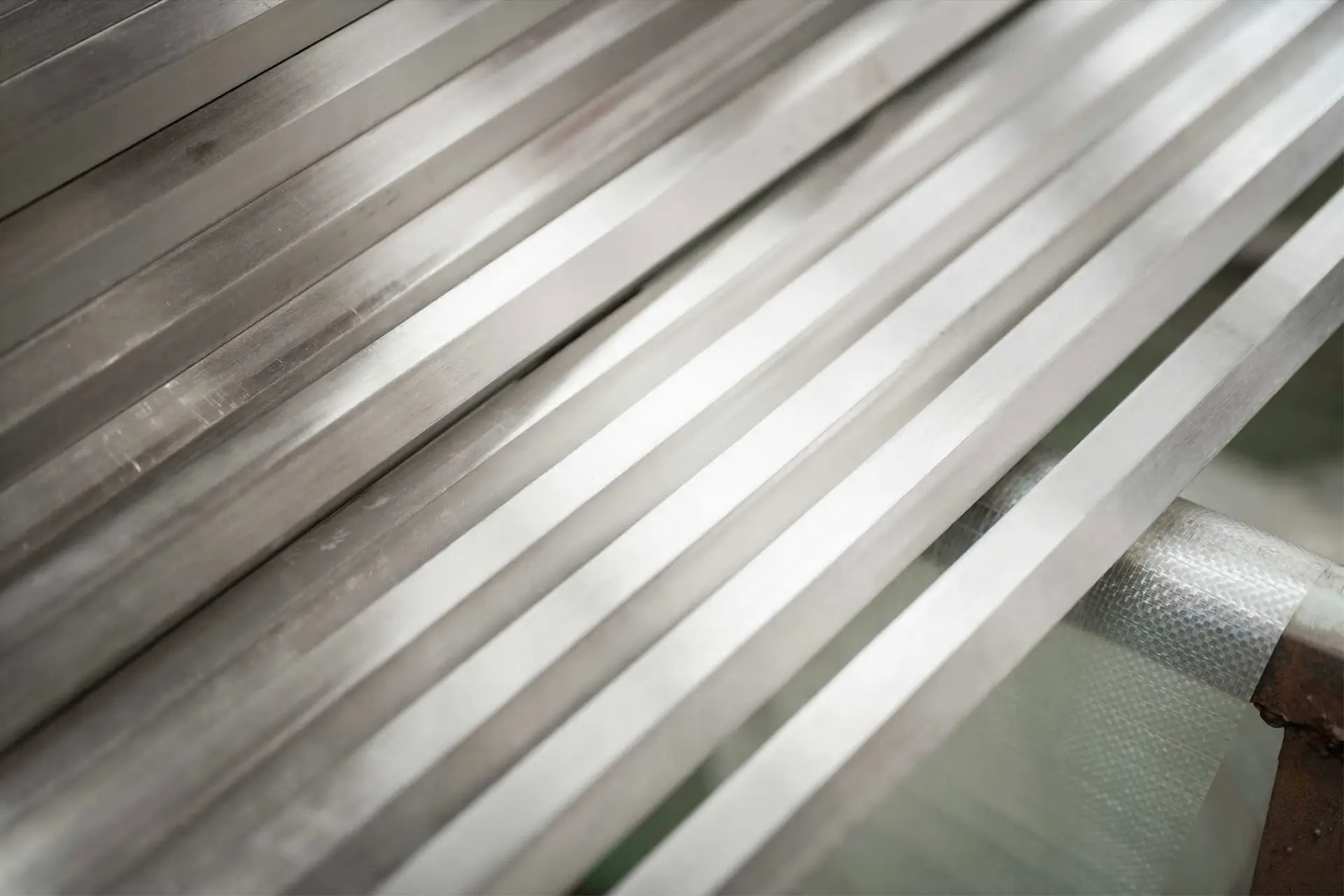

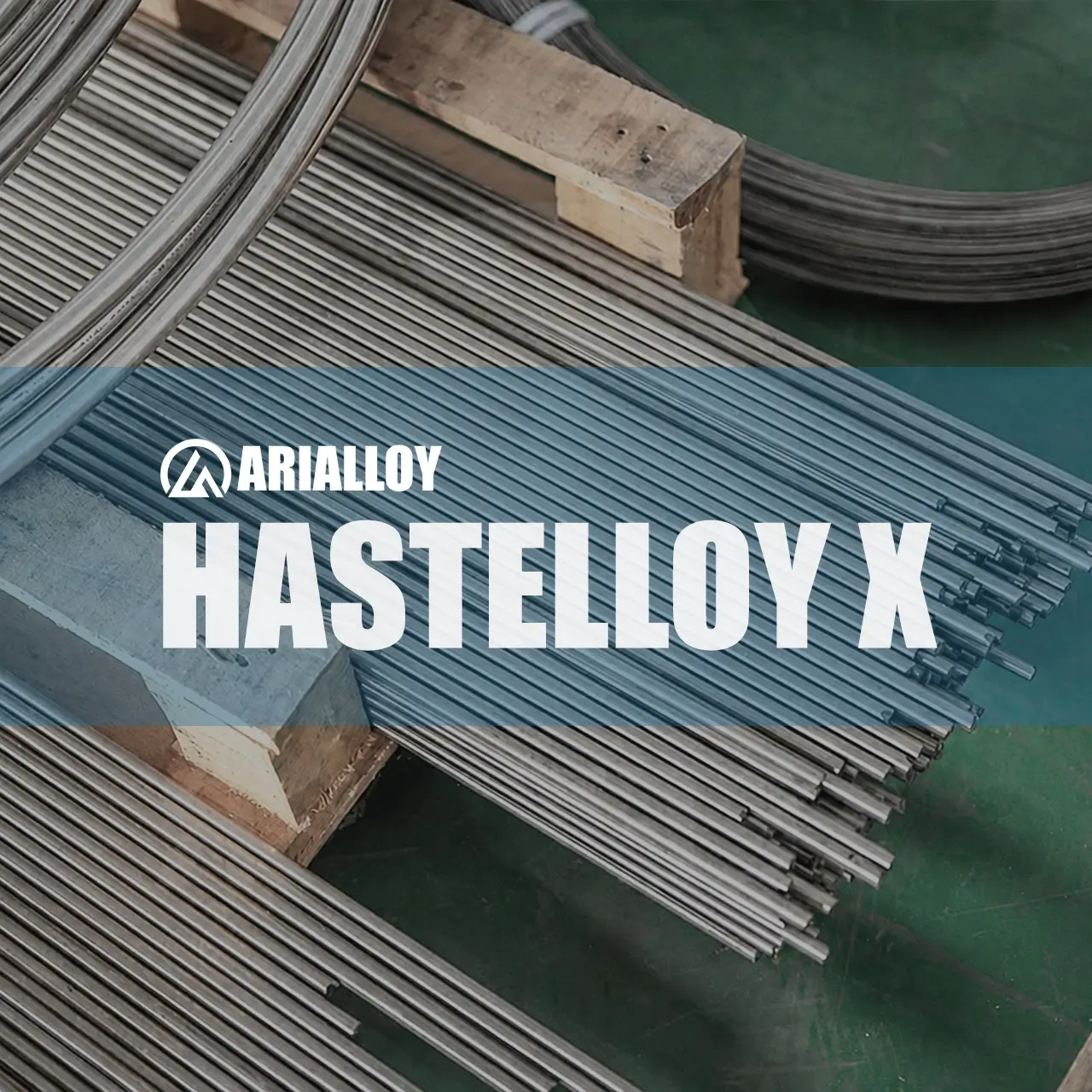

Billet, Rod and Bar
ASTM B572
Billet, Rod and Bar
ASTM B435

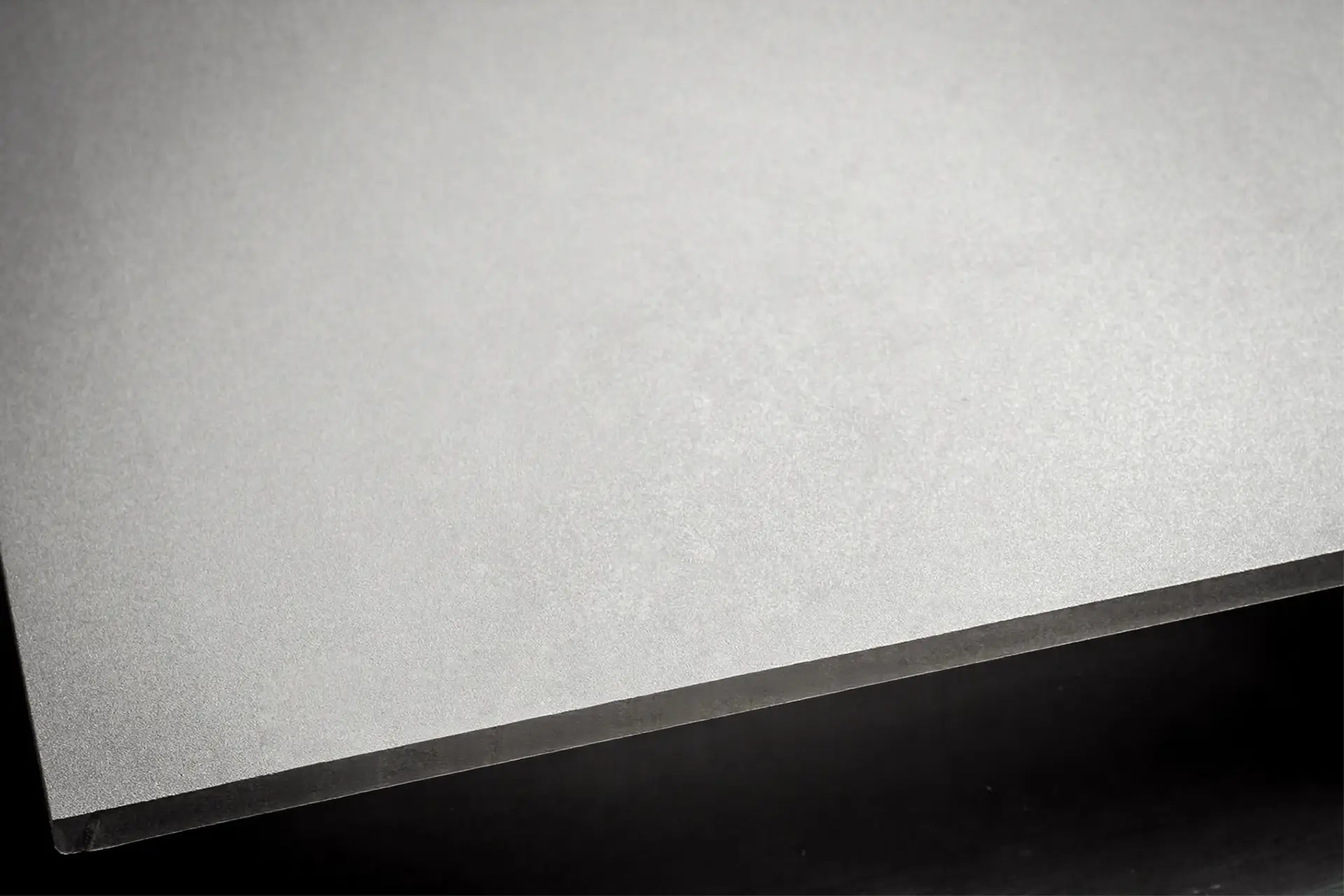

Plate, Sheet and Strip
SAE AMS 5754
Billet, Rod, Bar and Forging
SAE AMS 5536
Plate, Sheet and Strip
AWS A5.14 ERNiCrMo-2
Filler Metal
AWS A5.11 ENiCrMo-2
Welding Electrode
Hastelloy X SHOW
Nickel Alloy X Showcase
From initial samples to large scale production, we supply high quality hastelloy x products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Hastelloy X Quotation Process
From detailed consultation to final delivery, we make custom hastelloy x product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Hastelloy X Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy hastelloy alloy x manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Hastelloy X Applications
UNS N06002 / W.Nr. 2.4665 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Hastelloy X Knowledge
Nickel Alloy X Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Hastelloy Grades
Hastelloy Alloy Grades
Explore the full range of hastelloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Hastelloy X FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
To purchase hastelloy x from us, submit your requirements by email to sales@arialloy.com or through the form at the bottom of the page. We will prepare a detailed quotation according to your needs. If you are satisfied with our offer, send us your PO. We will then issue a PI for payment. Production will begin after the prepayment is received, and we will notify you as soon as the materials are ready.
We generally guarantee a quotation response within 24 hours for hastelloy x inquiries. If your request is missing the information required for pricing or we cannot provide a quotation, our sales team will notify you promptly.
Our standard hastelloy x quotation is FOB, so the normal approach is for you to designate a freight forwarder and have them arrange the transportation. We will cooperate with your forwarder to complete the necessary local procedures. If you prefer a more convenient service, we can also arrange the shipment for you and check the applicable freight charges.
Hastelloy X pricing is closely connected to fluctuations in the raw metal market. The cost of key metallic elements such as nickel, chromium, iron, and molybdenum has a significant influence on the alloy price, meaning changes in these metal markets can lead to corresponding price changes for hastelloy x.
The hastelloy x material is smelted in-house using our own furnace resources. Our factory is equipped with over 30 vacuum smelting and electroslag remelting furnaces, covering 50 kg, 200 kg, 1,000 kg, and 5,000 kg capacities. This combination of in-house smelting and multiple furnace sizes gives us the flexibility to accept smaller MOQs.
Yes, we provide hastelloy x material test reports prior to shipment in accordance with applicable industry standards. Each report documents the material standard, chemical composition, mechanical properties, dimensions, and heat number, serving as evidence that the supplied material complies with the specified requirements.

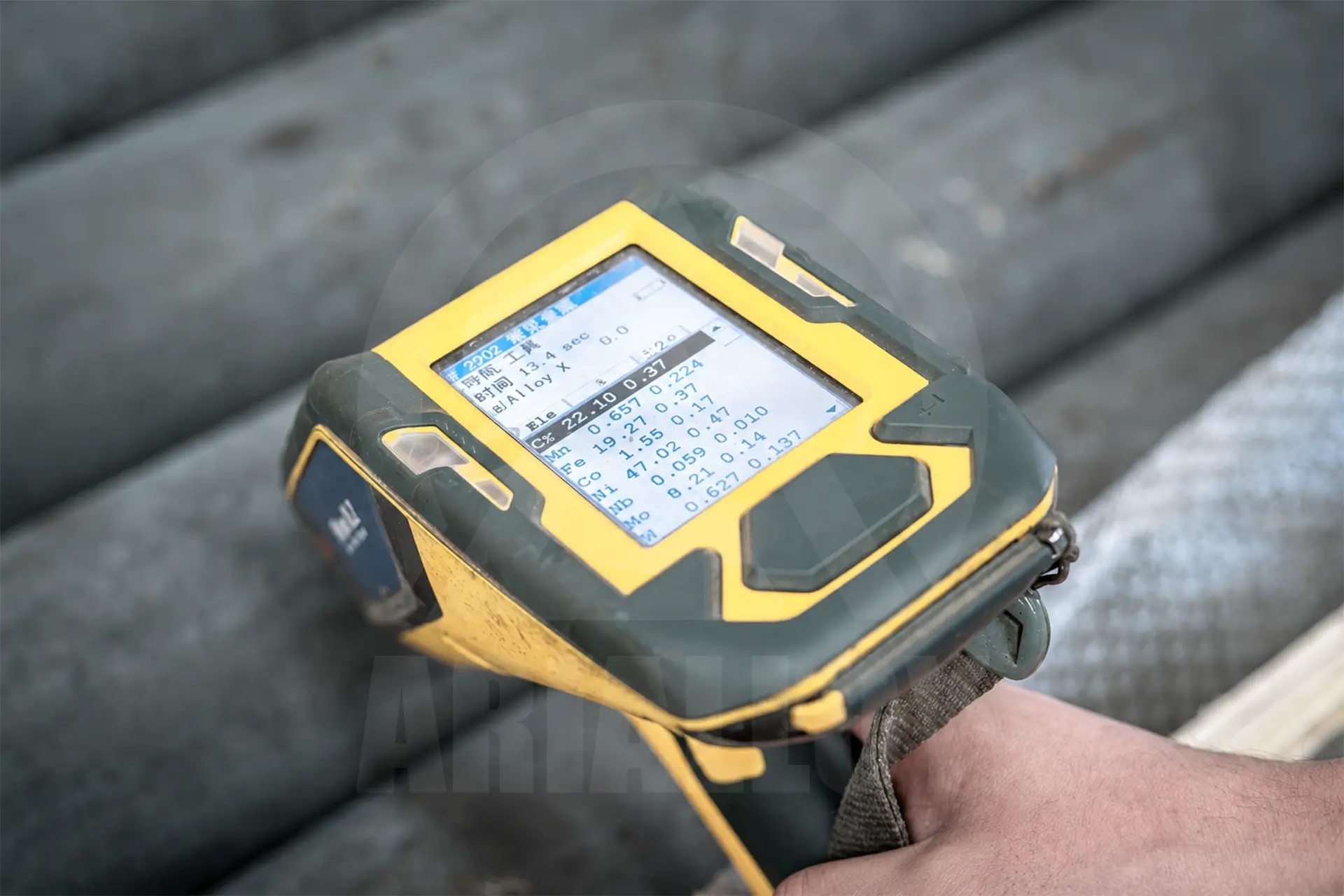

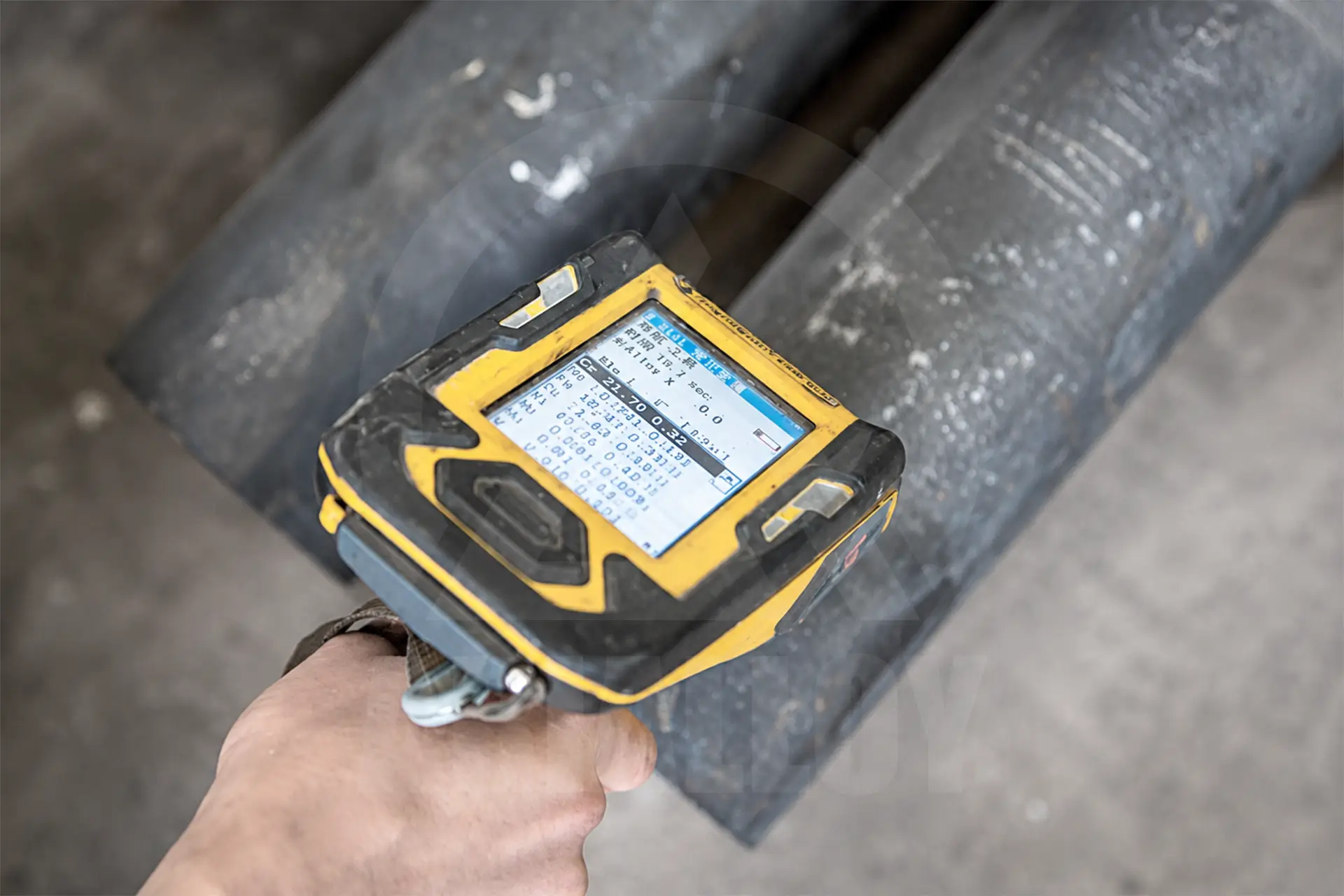

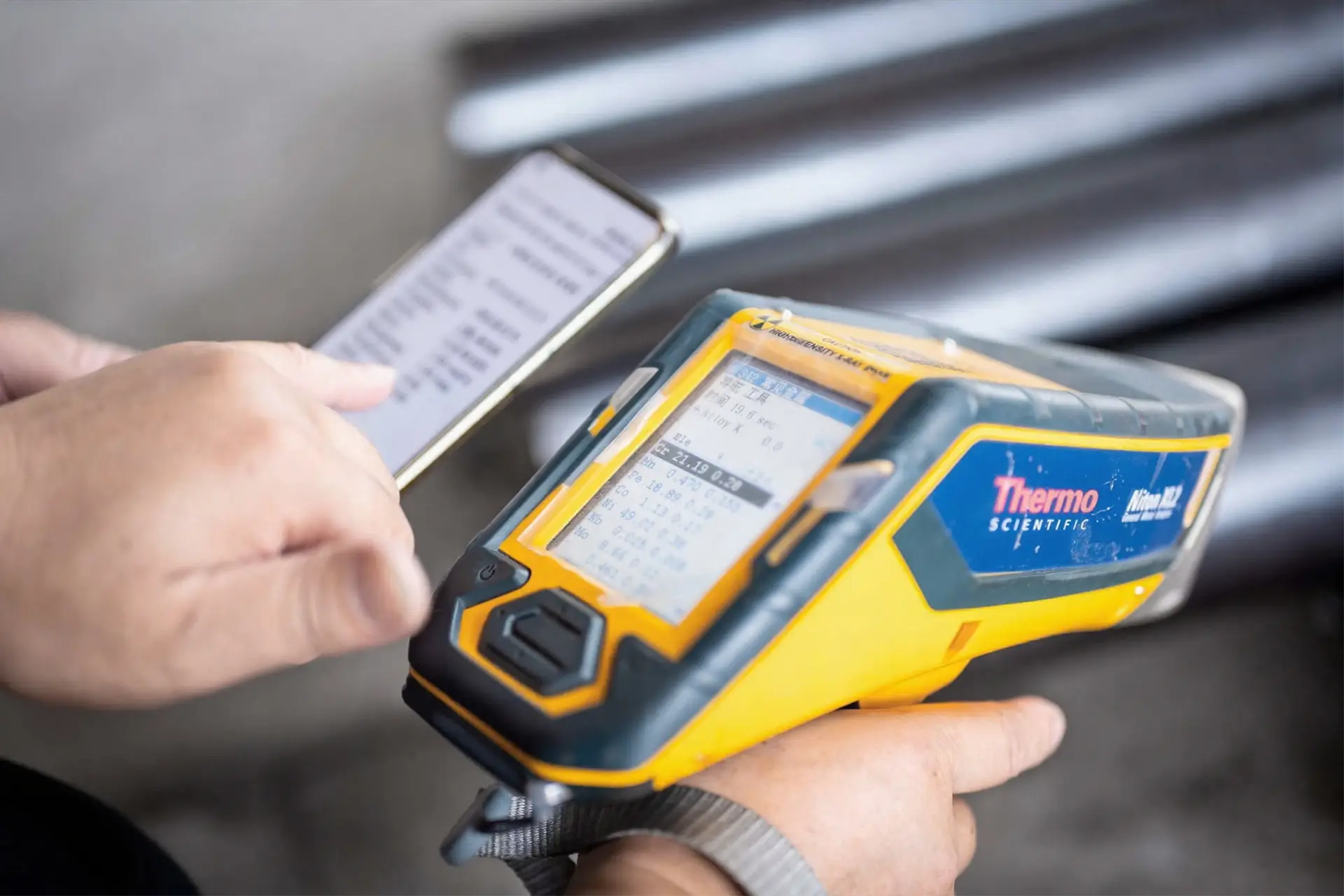

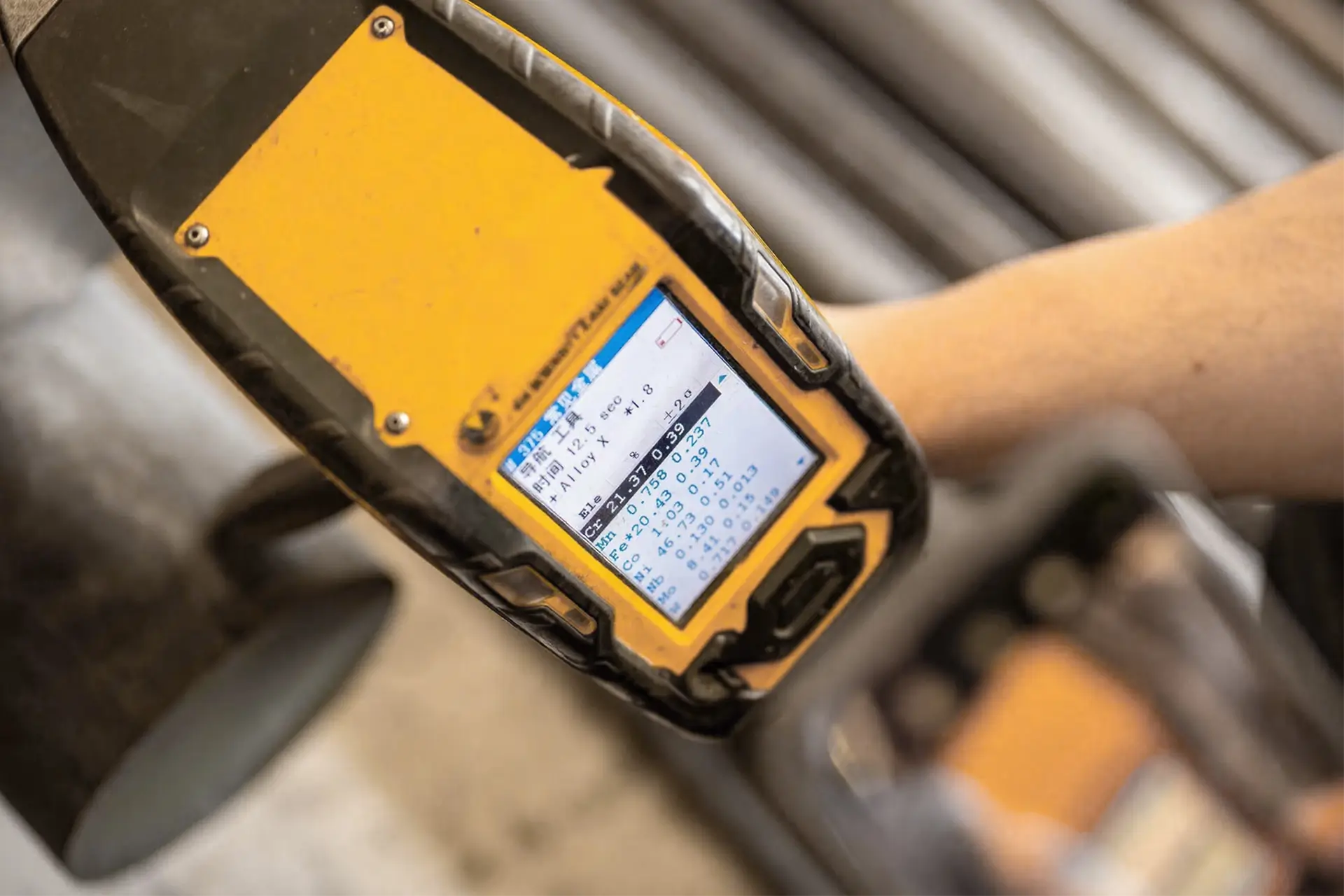

For hastelloy x, we strictly manage the material ratios during smelting and use chemical analysis to monitor composition throughout production. Once the finished material is ready, PMI testing is performed. If greater assurance is required, we can submit the material to a third party laboratory for final chemical analysis and provide the test results.
