Hastelloy B-3
UNS N10675 / W.Nr. 2.4600
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with hastelloy b3 tubes / sheets / wires / bars / fittings
Hastelloy B3 Material Properties
UNS N10675 / W.Nr. 2.4600 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of hastelloy b-3 for optimal resistance, strength, and stability
Hastelloy B3 Chemical Composition
Hastelloy B-3 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies competitively priced hastelloy B-3 products.
Hastelloy B-3 (UNS N10675 / W.Nr. 2.4600) is a nickel and molybdenum alloy combining strong resistance to reducing acids with improved structural stability. Its composition contains at least 65% nickel and approximately 28.5% molybdenum, together with small additions of chromium and iron. The high molybdenum content contributes to its resistance to hydrochloric acid and other nonoxidizing media. Low carbon and silicon levels help limit detrimental precipitation associated with welding and thermal exposure.
Compared with hastelloy B-2, the alloy develops harmful intermetallic phases more slowly, allowing greater retention of ductility during fabrication. This improvement reduces sensitivity to brief thermal cycles, while appropriate heat treatment remains important for maintaining corrosion resistance and mechanical properties.
The material can be hot worked, cold formed, and welded using established procedures for nickel alloys. Matching welding consumables support the production of joints that retain strong resistance to reducing acids in the as welded condition. Cold forming increases strength and may require intermediate annealing because the alloy work hardens readily.
Hastelloy B3 Corrosion Resistance
Hastelloy B-3 provides excellent resistance to hydrochloric acid and strong resistance to sulfuric, phosphoric, acetic, and formic acids under suitable reducing conditions. It also resists stress corrosion cracking caused by chlorides and retains good corrosion resistance after welding.
Performance depends on acid concentration, temperature, and contamination. Ferric and cupric salts can sharply accelerate corrosion, so their presence requires particular attention. The alloy is generally unsuitable for strongly oxidizing media, including nitric acid. Resistance in pure acids should not be assumed to apply to contaminated mixtures.
Hastelloy B-3 Mechanical Properties
At room temperature, solution annealed hastelloy B-3 sheet approximately 3.2 mm thick has typical tensile strength of 862 MPa, 0.2% yield strength of 421 MPa, and elongation of 53%. These values indicate a useful combination of strength and ductility. Cold working raises strength but can reduce formability and resistance to stress corrosion cracking.
Mechanical properties vary with product form, dimensions, and processing history. These typical values are informative and should not replace the requirements of the applicable material specification.
Hastelloy B3 Temperature Characteristics
Hastelloy B-3 has greater resistance to thermal embrittlement than hastelloy B-2 because harmful intermetallic phases develop more slowly. Nevertheless, prolonged exposure within approximately 500°C to 900°C can still reduce ductility and resistance to stress corrosion cracking.
Solution annealing is normally performed at approximately 1066°C (1950°F), followed by rapid cooling, preferably water quenching. This treatment temperature is not a continuous service rating. Thermal stability must be assessed together with exposure duration, material condition, and corrosion environment when determining an appropriate operating temperature.
Hastelloy B-3 Products
Nickel Alloy B3 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy b-3 products tailored to each project’s needs
Hastelloy B3 Data Sheet
Hastelloy Alloy B-3 Data Sheet
Access / download the hastelloy b3 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 9.22 | |
|---|---|---|---|
| lb/in.3 | 0.333 | ||
| Melting Range | °F | 2500 - 2585 | |
| °C | 1370 - 1418 | ||
Mechanical Properties
| Form | Thickness | Test Temperature | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | ||||
|---|---|---|---|---|---|---|---|---|---|
| in | mm | °F | °C | ksi | MPa | ksi | MPa | % | |
| Sheet | 0.125 | 3.2 | RT | RT | 61 | 421 | 125 | 862 | 53 |
| Sheet | 0.125 | 3.2 | 200 | 93 | 55 | 379 | 121 | 834 | 57 |
| Sheet | 0.125 | 3.2 | 400 | 204 | 47 | 324 | 110 | 758 | 60 |
| Sheet | 0.125 | 3.2 | 600 | 316 | 44 | 303 | 104 | 717 | 63 |
| Sheet | 0.125 | 3.2 | 800 | 427 | 42 | 290 | 102 | 703 | 62 |
| Sheet | 0.125 | 3.2 | 1000 | 538 | 39 | 269 | 98 | 676 | 59 |
| Sheet | 0.125 | 3.2 | 1200 | 649 | 46 | 317 | 104 | 717 | 56 |
| Plate | Multiple | RT | RT | 58 | 400 | 128 | 883 | 58 | |
| Plate | Multiple | 200 | 93 | 54 | 372 | 122 | 841 | 58 | |
| Plate | Multiple | 400 | 204 | 48 | 331 | 115 | 793 | 61 | |
| Plate | Multiple | 600 | 316 | 44 | 303 | 111 | 765 | 62 | |
| Plate | Multiple | 800 | 427 | 41 | 283 | 108 | 745 | 62 | |
| Plate | Multiple | 1000 | 538 | 40 | 276 | 106 | 731 | 62 | |
| Plate | Multiple | 1200 | 649 | 42 | 290 | 107 | 738 | 65 | |
Hastelloy B-3 Standards
UNS N10675 / W.Nr. 2.4600 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B622
Seamless Pipe & Tube
ASTM B619
Welded Pipe
ASTM B626
Welded Tube
ASTM B366

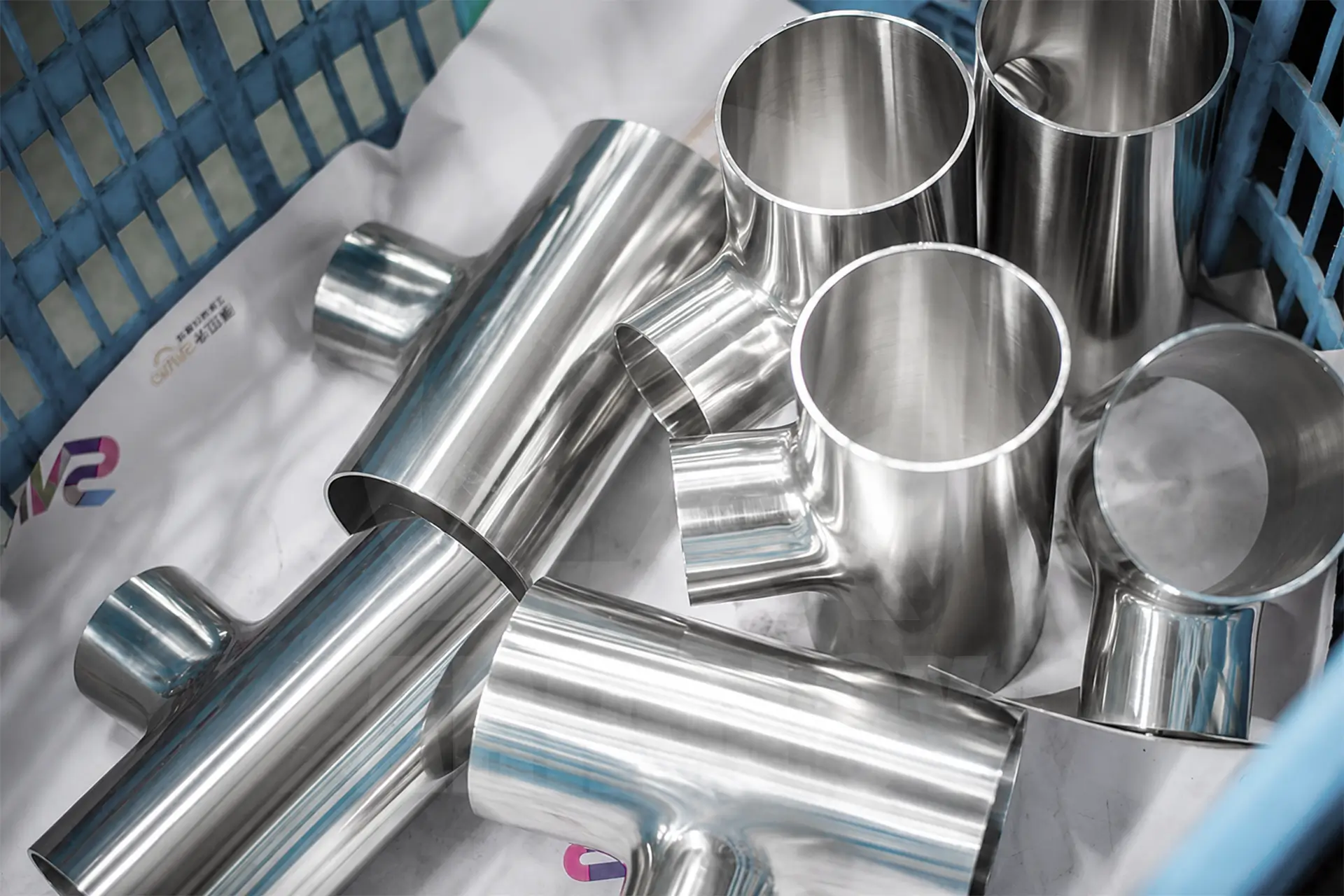

Fittings
ASTM B335

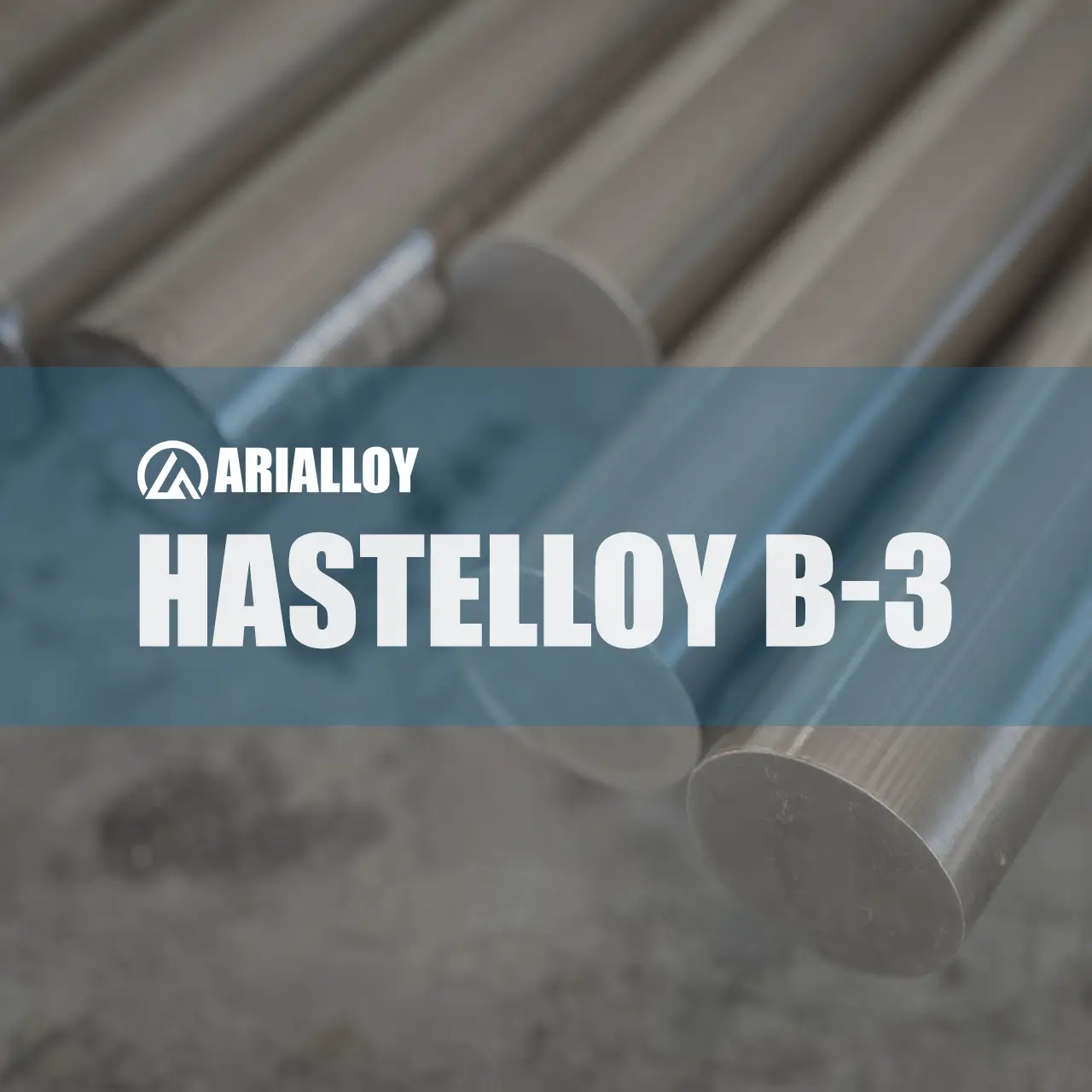

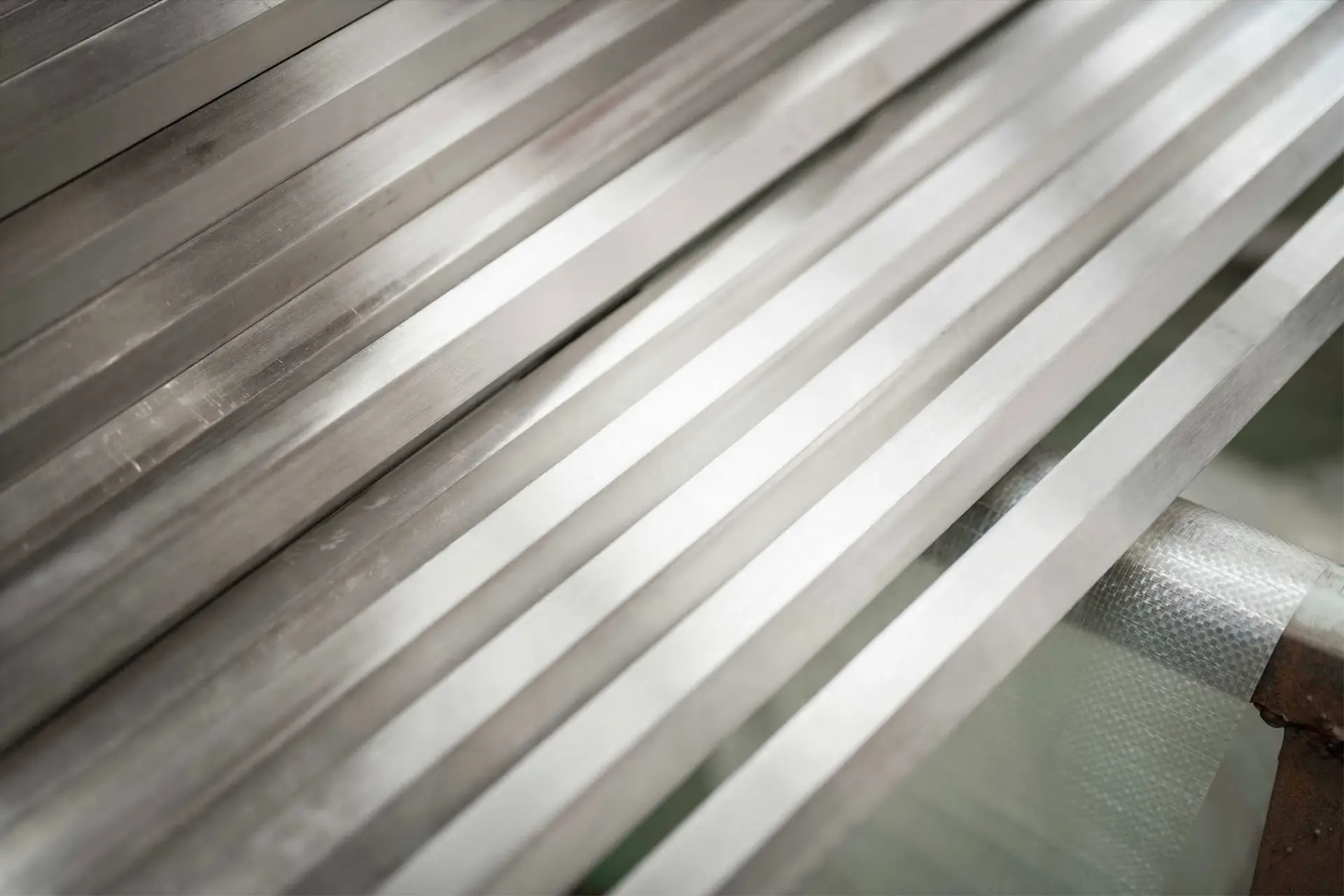

Billet, Rod and Bar
ASTM B564
Forgings
ASTM B462
Forgings
ASTM B333

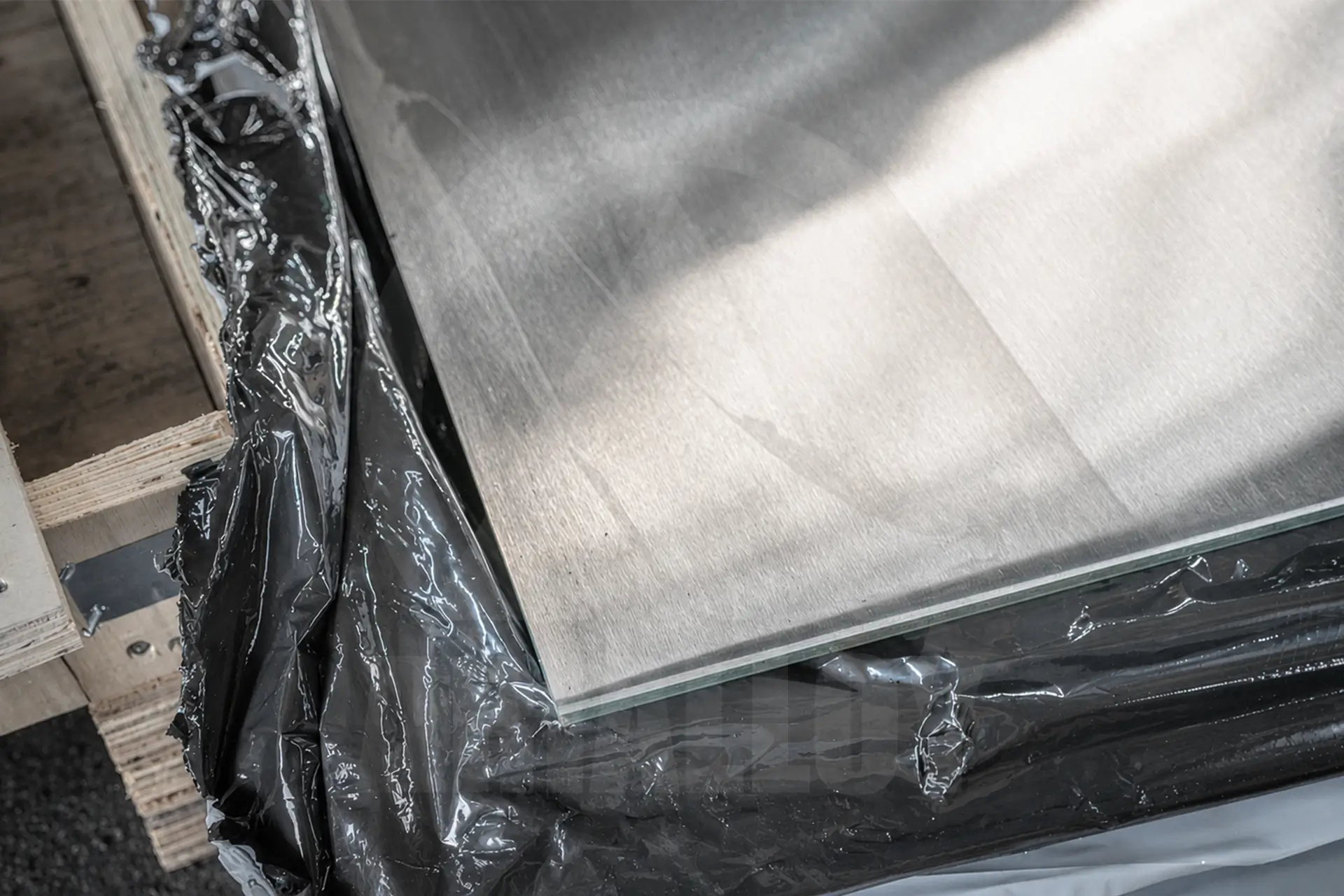

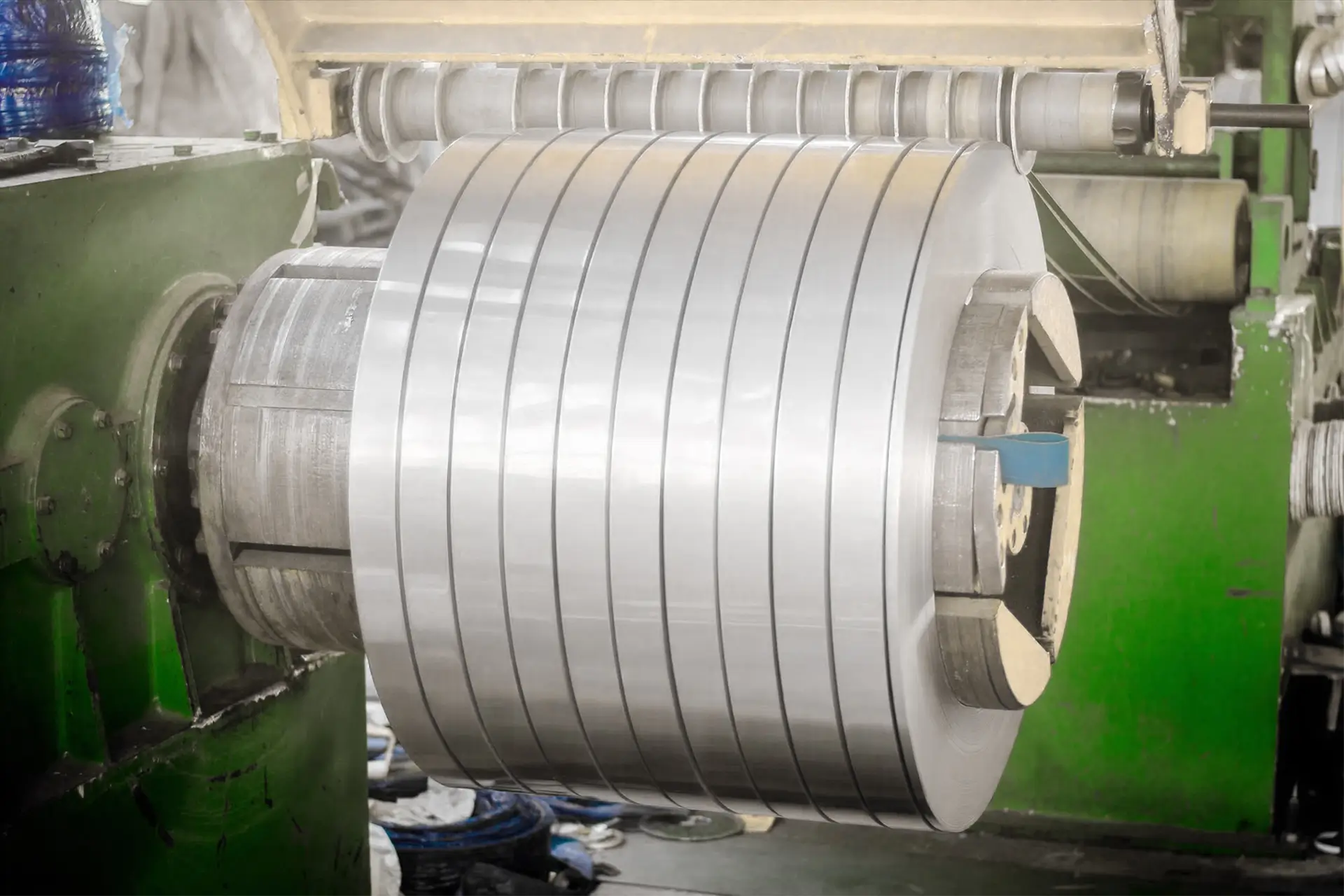

Plate, Sheet and Strip
AWS A5.14 ERNiMo-10
Filler Metal
AWS A5.11 ENiMo-10
Welding Electrode
Hastelloy B3 SHOW
Nickel Alloy B-3 Showcase
From initial samples to large scale production, we supply high quality hastelloy b3 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Hastelloy B-3 Quotation Process
From detailed consultation to final delivery, we make custom hastelloy b3 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Hastelloy B-3 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy hastelloy alloy b3 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Hastelloy B3 Applications
UNS N10675 / W.Nr. 2.4600 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Hastelloy B-3 Knowledge
Nickel Alloy B3 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Hastelloy Grades
Hastelloy Alloy Grades
Explore the full range of hastelloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Hastelloy B3 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
The easiest way to start an hastelloy b3 order is to email your requirements to sales@arialloy.com or submit the online inquiry form. Our sales team will send you a detailed quotation. Once you approve the pricing and specifications, send us your PO. We will issue the PI for payment, and production will begin after receipt of the prepayment. We will contact you when the material is ready.
Our sales team normally gets back to hastelloy b3 inquiries with pricing within 24 hours. If we need additional details or cannot provide a quotation for your request, we will let you know as soon as possible.
For FOB hastelloy b3 shipments, the customer generally decides which freight forwarder to use. Once the forwarder is appointed, we work with them on the required local arrangements. If you would rather have us coordinate transportation, we can arrange the shipment and check the corresponding freight.
An alloy’s selling price is strongly influenced by the prices of the metals required to produce it. Hastelloy B-3 relies on multiple metallic elements, and movements in the markets for nickel and molybdenum and other inputs can affect its overall cost.
We can smelt hastelloy b3 ourselves because our factory has extensive in house furnace capacity. More than 30 vacuum smelting and electroslag remelting furnaces are available in four sizes, allowing us to handle batches from 50 kg to 5,000 kg. This is also why we can support smaller orders.
Certainly, we provide material certification for hastelloy b3 before shipment. The certificate contains the relevant standard, chemical composition, mechanical properties, dimensions, and heat number and can be used to verify conformity.

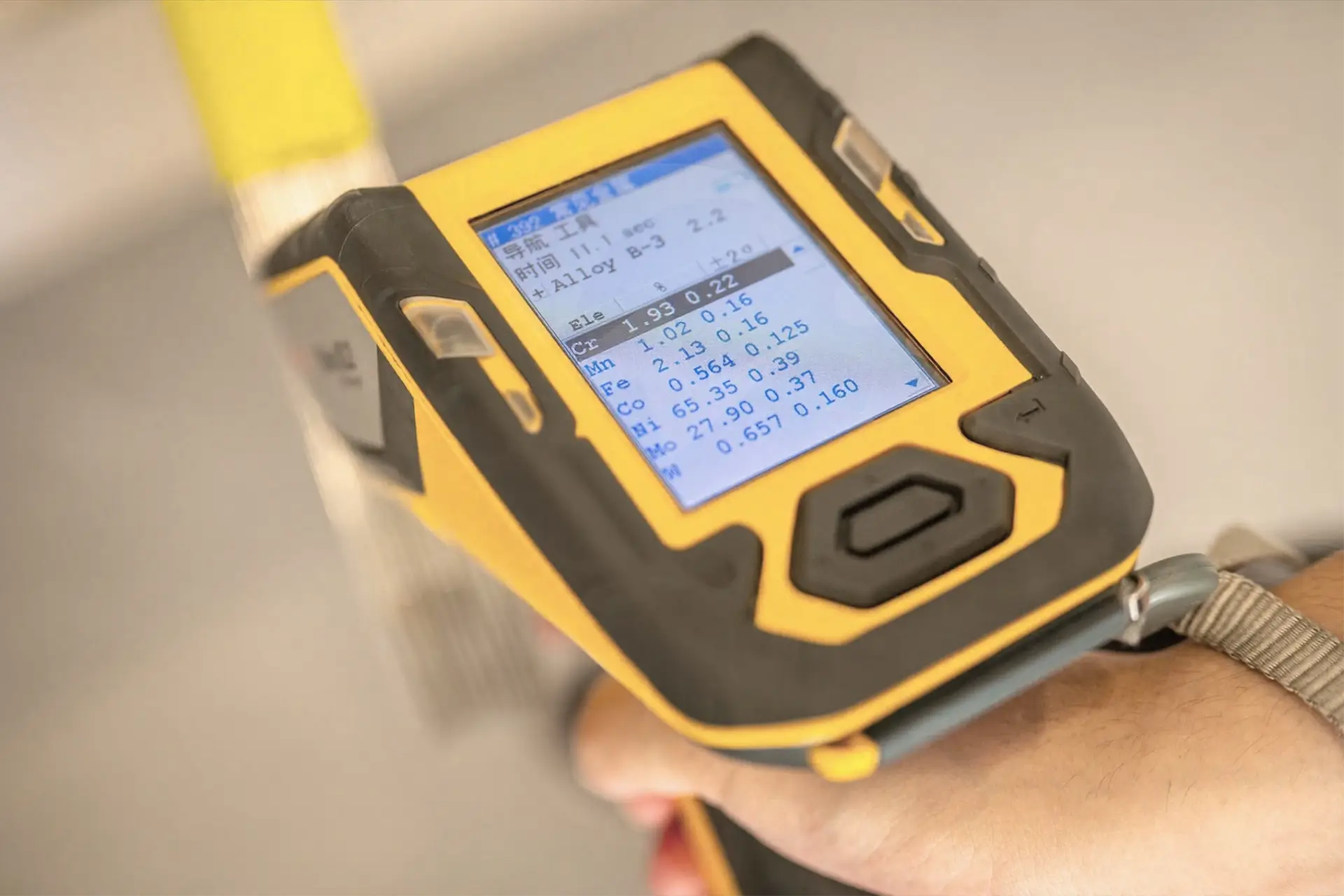

During the manufacture of hastelloy b3, we monitor composition through controlled material ratios and chemical analysis. Once the material is complete, PMI testing is performed, and a third-party laboratory can conduct final chemical analysis if required.
