Incoloy 020
UNS N08020 / W.Nr. 2.4660
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with incoloy 020 tubes / sheets / wires / bars / fittings
Incoloy 020 Material Properties
UNS N08020 / W.Nr. 2.4660 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of incoloy 020 for optimal resistance, strength, and stability
Incoloy 020 Chemical Composition
Incoloy 020 Material Properties Overview
As a leading supplier and manufacturer in China, Arialloy supplies cost effective incoloy 020 products.
Incoloy alloy 020 (UNS N08020, W.Nr. 2.4660), also known as alloy 20, is a low carbon, niobium stabilized, austenitic nickel iron chromium alloy containing copper and molybdenum. Nickel provides an austenitic structure, toughness and resistance to chloride ion stress corrosion cracking, while chromium supports passivity in oxidizing environments. Copper improves resistance in reducing acids, especially sulfuric acid, and molybdenum contributes to resistance against pitting and crevice corrosion. Niobium binds carbon and reduces chromium carbide precipitation during welding, helping preserve resistance to intergranular corrosion in welded areas.
The alloy combines corrosion resistance, strength, ductility and fabricability, and can be supplied in pipe, tube, sheet, plate, strip, bar, wire, forging and fitting forms. It is normally furnished in the annealed or stabilized annealed condition. incoloy alloy 020 can be hot formed, cold formed, machined and welded using established nickel alloy procedures. It is widely used for equipment and components exposed to sulfuric acid, phosphoric acid, nitric acid, chloride bearing solutions and other aggressive chemical media, including chemical processing, pharmaceutical, food processing, pickling and pollution control service. Its balanced chemistry provides a practical alternative to higher nickel alloys when the operating conditions are properly evaluated.
Incoloy 020 Corrosion Resistance
Incoloy alloy 020 provides excellent resistance to general corrosion in sulfuric acid and useful resistance in phosphoric acid, nitric acid, chloride bearing and aqueous salt environments. Copper improves performance in reducing acids, while chromium supports resistance in oxidizing media.
Molybdenum contributes to resistance against pitting and crevice corrosion, and the nickel rich matrix reduces susceptibility to chloride ion stress corrosion cracking. Niobium stabilization limits chromium carbide precipitation during welding and helps preserve intergranular corrosion resistance. Actual corrosion rates depend on acid concentration, impurities, temperature and flow conditions.
Incoloy 020 Mechanical Properties
In the annealed condition, incoloy alloy 020 typically has a tensile strength of about 90,000 psi (620 MPa), a 0.2% yield strength of about 45,000 psi (300 MPa), and elongation near 40%. Its fully austenitic structure provides good ductility, toughness and formability for conventional hot and cold working.
The alloy is not strengthened by precipitation heat treatment. Cold working can substantially increase yield and tensile strength, although elongation decreases as reduction increases. Reported values are typical and should not replace the requirements of the applicable product standard.
Incoloy 020 Temperature Characteristics
Incoloy alloy 020 retains useful strength, ductility and corrosion resistance at moderate elevated temperatures, but it is primarily a corrosion resistant alloy rather than a high temperature strength grade. Its niobium stabilized austenitic structure helps limit sensitization during thermal exposure.
Hot forming is generally carried out at 1400 to 2150°F (760 to 1175°C), followed by annealing at 1800 to 1850°F (982 to 1010°C) when required. For pressure service, allowable temperature depends on product form, stress, code requirements and corrosive medium. Many code based references use about 1000°F (538°C) as an upper service reference.
Incoloy 020 Products
Nickel Alloy 020 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 020 products tailored to each project’s needs
Incoloy 020 Data Sheet
Incoloy Alloy 020 Data Sheet
Access / download the incoloy 020 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.08 | |
|---|---|---|---|
| lb/in.3 | 0.292 | ||
| Specific Heat | Btu/lb-°F | 0.12 | |
| J/kg-°C | 500 | ||
| Thermal Conductivity at 200°F (93°C) | Btu-in/ft2-h-°F | 85 | |
| W/m-°C | 12.3 | ||
| Electrical Resistivity | ohm circ mil/ft | 651 | |
| μΩ-m | 1.08 | ||
| Young’s Modulus (70°F) | 103 ksi | 28 | |
| GPa | 193 | ||
| Shear Modulus (70°F) | 103 ksi | 11 | |
| GPa | 76 | ||
| Coefficient of Expansion | 77-212°F, 10-6 in/in•°F | 8.2 | |
| 25-100°C, μm/m•°C | 14.7 | ||
Mechanical Properties
| Tensile Strength | ksi | 90 |
|---|---|---|
| MPa | 620 | |
| Yield Strength (0.2% Offset) | ksi | 45 |
| MPa | 300 | |
| Elongation | % | 40 |
Incoloy 020 Standards
UNS N08020 / W.Nr. 2.4660 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B729
Seamless Pipe & Tube
ASTM B829
Seamless Pipe & Tube
ASTM B464
Welded Pipe
ASTM B775
Welded Pipe
ASTM B468
Welded Tube
ASTM B751
Welded Tube
ASTM B751
Electric Fusion Welded Pipe

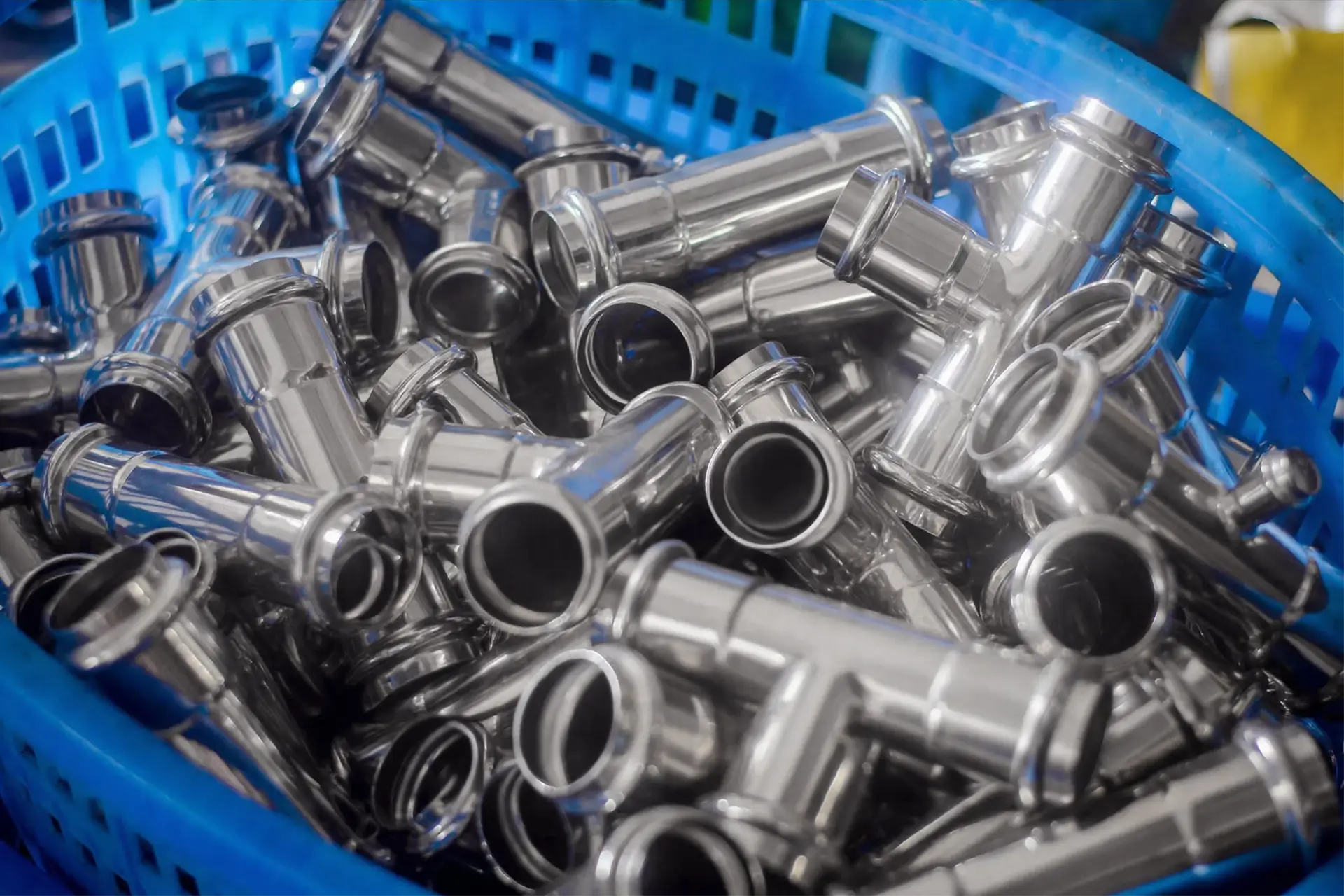

ASTM B366
Welded Fittings
ASTM B462
Flange and Forged Fittings
ASTM B472
Billets and Bars
ASTM B473
Bar and Wire
ASTM B475
Round Weaving Wire
ASTM B463
Plate, Sheet and Strip
ASTM B906
Plate, Sheet and Strip
ASTM A240
Plate, Sheet and Strip
ASTM A480
Plate, Sheet and Strip
Incoloy 020 SHOW
Nickel Alloy 020 Showcase
From initial samples to large scale production, we supply high quality incoloy 020 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Incoloy 020 Quotation Process
From detailed consultation to final delivery, we make custom incoloy 020 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Incoloy 020 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy incoloy alloy 020 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Incoloy 020 Applications
UNS N08020 / W.Nr. 2.4660 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Incoloy 020 Knowledge
Nickel Alloy 020 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Incoloy Grades
Incoloy Alloy Grades
Explore the full range of incoloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Incoloy 020 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
You can place your incoloy 020 order by sending your requirements to sales@arialloy.com or submitting an inquiry through our website form. Our sales team will review your request and provide a detailed offer. Once the offer is accepted, send us your PO. We will issue the PI, begin production after receipt of the prepayment, and notify you when the material is finished.
You can rely on our professional sales team for a quick response, with incoloy 020 quotations generally issued within 24 hours. If a quotation cannot be prepared, we will promptly explain this to you.
Our incoloy 020 pricing is based on FOB as standard, so buyers normally nominate the freight forwarder who will handle transportation. We will support the forwarder with all necessary local arrangements. If you would like us to coordinate the shipment, we can do so and confirm the relevant freight expense.
Superalloy prices are closely connected to the cost of their metallic raw materials. Nickel, iron, chromium, copper, and molybdenum are among the metals that can significantly affect the final price, so volatility in these raw material markets can be reflected in alloy quotations.
Our incoloy 020 production includes in house smelting. We have over 30 vacuum smelting and electroslag remelting furnaces, with individual capacities of 50 kg, 200 kg, 1,000 kg, and 5,000 kg. The ability to work with smaller furnaces gives us greater freedom when setting minimum order quantities.
Certainly, an incoloy 020 material test report is supplied before the order is shipped. It contains the applicable material standard, chemical composition, mechanical properties, dimensions, and heat number as proof of conformity.
We maintain control over incoloy 020 composition by regulating the material mix during melting and conducting chemical tests along the way. Final products are checked by PMI, and independent laboratory analysis is available when customers need further assurance.
