Incoloy 800
UNS N08800 / W.Nr. 1.4876
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with incoloy 800 tubes / sheets / wires / bars / fittings
Incoloy 800 Material Properties
UNS N08800 / W.Nr. 1.4876 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of incoloy 800 for optimal resistance, strength, and stability
Incoloy 800 Chemical Composition
Incoloy 800 Material Properties Overview
As a professional supplier and manufacturer in China, Arialloy supplies competitively priced incoloy 800 products.
Incoloy 800 (UNS N08800 / W.Nr. 1.4876) is an austenitic alloy of nickel, iron, and chromium that combines corrosion resistance, mechanical strength, and stability at elevated temperatures. Its composition contains 30.0% to 35.0% nickel and 19.0% to 23.0% chromium, with at least 39.5% iron and small additions of aluminum and titanium. Carbon content is limited to a maximum of 0.10%. Nickel helps preserve a ductile austenitic structure and improves resistance to chloride stress corrosion cracking. Chromium contributes to resistance against oxidation and aqueous corrosion, while iron helps limit internal oxidation. The alloy retains an austenitic matrix during prolonged thermal exposure, although carbide precipitation can occur and influence its response to subsequent corrosive conditions.
Conventional hot working, cold forming, machining, and welding processes can be used to fabricate incoloy 800. Its ductility supports forming operations, while cold deformation raises strength and hardness. Heat treatment influences grain size and final mechanical properties, making the specified delivery condition an important part of material selection and production.
Incoloy 800 Corrosion Resistance
Incoloy 800 resists general corrosion in many aqueous environments, including nitric acid under suitable conditions. Its chromium content supports passivation, while nickel improves resistance to chloride stress corrosion cracking. This resistance does not imply complete immunity.
Exposure to approximately 540°C to 760°C can cause sensitization, increasing susceptibility to intergranular corrosion in certain aggressive media. Performance therefore depends on thermal history as well as solution chemistry and temperature. Resistance to stress corrosion cracking should also be distinguished from resistance to pitting and crevice corrosion.
Incoloy 800 Mechanical Properties
At room temperature, annealed incoloy 800 offers moderate strength and good ductility. Representative data at 25°C show a tensile strength of approximately 590 MPa (85,500 psi) and a 0.2% offset yield strength of approximately 250 MPa (36,200 psi). Cold working increases strength and hardness, while annealing restores ductility for further forming.
Actual values depend on product form, dimensions, processing history, and heat treatment. These figures are typical reference data and should not be interpreted as guaranteed specification limits.
Incoloy 800 Temperature Characteristics
Incoloy 800 combines resistance to oxidation and carburization with structural stability at elevated temperatures. Its strength and heat resistance support service up to approximately 816°C under suitable conditions, depending on stress, atmosphere, and exposure duration. Its melting range is approximately 1357°C to 1385°C, well above practical operating temperatures.
Strength decreases as temperature rises, and resistance to oxidation alone does not establish an allowable load. Where prolonged loading makes creep and rupture strength decisive, incoloy 800H or incoloy 800HT generally provides better performance.
Incoloy 800 Products
Nickel Alloy 800 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 800 products tailored to each project’s needs
Incoloy 800 Data Sheet
Incoloy Alloy 800 Data Sheet
Access / download the incoloy 800 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 7.94 | |
|---|---|---|---|
| lb/in.3 | 0.287 | ||
| Melting Range | °F | 2475 - 2525 | |
| °C | 1357 - 1385 | ||
| Specific Heat | 32-212°F | Btu/lb•°F | 0.11 |
| 0-100°C | J/kg•°C | 460 | |
| Permeability at 70°F (21°C) and 200 oersted (15.9 kA/m) | Annealed | 1.014 | |
| Hot-Rolled | 1.009 | ||
| Curie Temperature | °F | -175 | |
| °C | -115 | ||
Mechanical Properties
| Test Temperature | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | |||
|---|---|---|---|---|---|---|---|
| °F | °C | ksi | MPa | ksi | MPa | % | % |
| Tensile Properties of INCOLOY alloy 800 As-extruded Tubing | |||||||
| 85 | 30 | 76.0 | 524 | 26.6 | 183 | 60.0 | – |
| 1200 | 650 | 52.5 | 362 | 18.0 | 124 | 47.0 | 59.0 |
| 1400 | 760 | 30.3 | 209 | 15.7 | 108 | 85.0 | 73.0 |
| 1500 | 815 | 23.6 | 163 | 17.3 | 119 | 98.0 | 79.5 |
| 1600 | 870 | 16.0 | 110 | 13.5 | 93 | 109.5 | 92.5 |
| 1700 | 925 | 11.8 | 81 | 9.2 | 63 | 111.5 | 93.0 |
| 1800 | 980 | 8.9 | 61 | 7.2 | 50 | 131.5 | 94.0 |
| Tensile Properties of INCOLOY alloy 800 Cold-Drawn Rod | |||||||
| 85 | 30 | 111.8 | 771 | 100.0 | 690 | 17.0 | 64.0 |
| 200 | 95 | 107.5 | 741 | 95.0 | 655 | 16.0 | 63.3 |
| 400 | 205 | 102.5 | 707 | 94.2 | 650 | 13.0 | 58.8 |
| 600 | 315 | 99.5 | 686 | 93.0 | 641 | 12.0 | 56.6 |
| 700 | 370 | 96.3 | 664 | 91.5 | 631 | 15.0 | 53.2 |
| 900 | 480 | 96.3 | 664 | 90.0 | 621 | 15.0 | 52.5 |
| 1000 | 540 | 93.0 | 641 | 86.3 | 595 | 16.5 | 54.0 |
| 1100 | 595 | 87.3 | 602 | 80.7 | 556 | 15.0 | 50.0 |
| 1200 | 650 | 78.5 | 541 | 66.8 | 461 | 19.5 | 44.5 |
| 1300 | 705 | 64.4 | 444 | 61.4 | 423 | 28.0 | 42.5 |
Incoloy 800 Standards
UNS N08800 / W.Nr. 1.4876 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B163
Condensor and Heat Exchanger Tube
ASTM B407

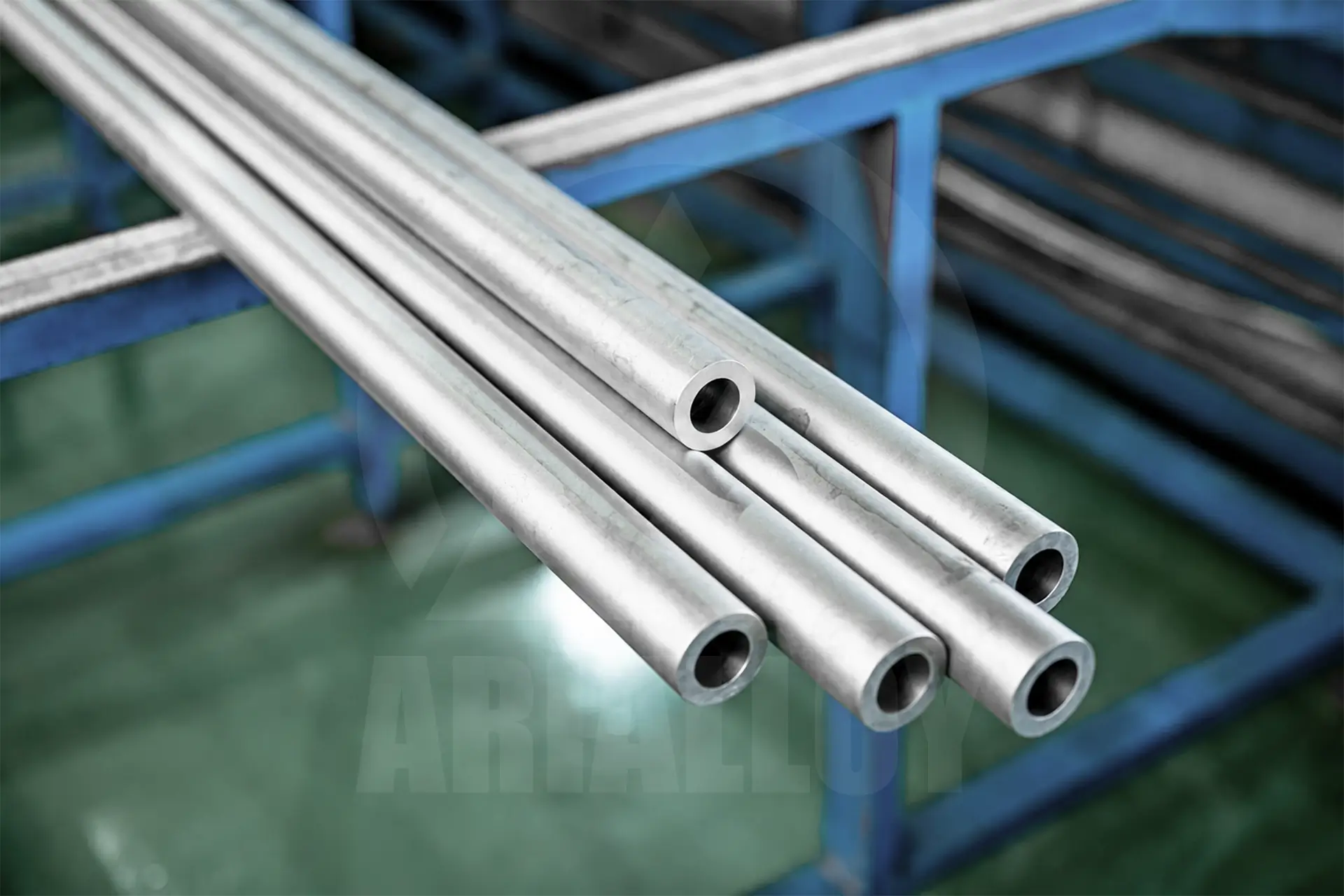

Seamless Pipe & Tube
ASTM B829
Seamless Pipe & Tube
ASTM B514
Welded Pipe
ASTM B775
Welded Pipe
ASTM B515
Welded Tube
ASTM B751
Welded Tube
ASTM B366
Welded Fittings
ASTM B408
Rod and Bar
ASTM B564
Forgings
ASTM B409
Plate, Sheet and Strip
ASTM B906
Plate, Sheet and Strip
ASTM A240
Plate, Sheet and Strip
ASTM A480
Plate, Sheet and Strip
Incoloy 800 SHOW
Nickel Alloy 800 Showcase
From initial samples to large scale production, we supply high quality incoloy 800 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Incoloy 800 Quotation Process
From detailed consultation to final delivery, we make custom incoloy 800 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Incoloy 800 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy incoloy alloy 800 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Incoloy 800 Applications
UNS N08800 / W.Nr. 1.4876 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Incoloy 800 Knowledge
Nickel Alloy 800 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Incoloy Grades
Incoloy Alloy Grades
Explore the full range of incoloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Incoloy 800 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
For an incoloy 800 purchase, please contact sales@arialloy.com with your requirements or use the form at the bottom of the page. Our sales representatives will prepare a quotation for your review. Once you accept the offer, we will need your PO before issuing the PI. Manufacturing starts after receipt of the prepayment, and we will notify you when the materials are finished.
We generally respond to incoloy 800 inquiries within 24 hours with a detailed quotation. If your inquiry is missing important specifications or cannot be quoted, we will promptly communicate this to you.
We usually quote incoloy 800 on an FOB basis, so customers typically have their own freight forwarder handle the transportation. We will coordinate with that forwarder to complete the local shipping work. If you would like us to handle this part, we can arrange the shipment and check the freight charges.
The final price of incoloy 800 is influenced by the value of the metals that make up the material. Nickel, iron, and chromium are significant cost factors in superalloys. As their market prices fluctuate, the cost of the alloy can also vary.
Incoloy 800 is melted under our own production system. Our factory has a fleet of more than 30 vacuum smelting and electroslag remelting furnaces in four capacity ranges. By selecting equipment appropriate to the order volume, we can efficiently accommodate smaller batches and MOQs.
Certainly. Our incoloy 800 test documentation is completed before shipment and follows applicable industry standards. It details the material standard, chemical composition, mechanical properties, dimensions, and heat number.

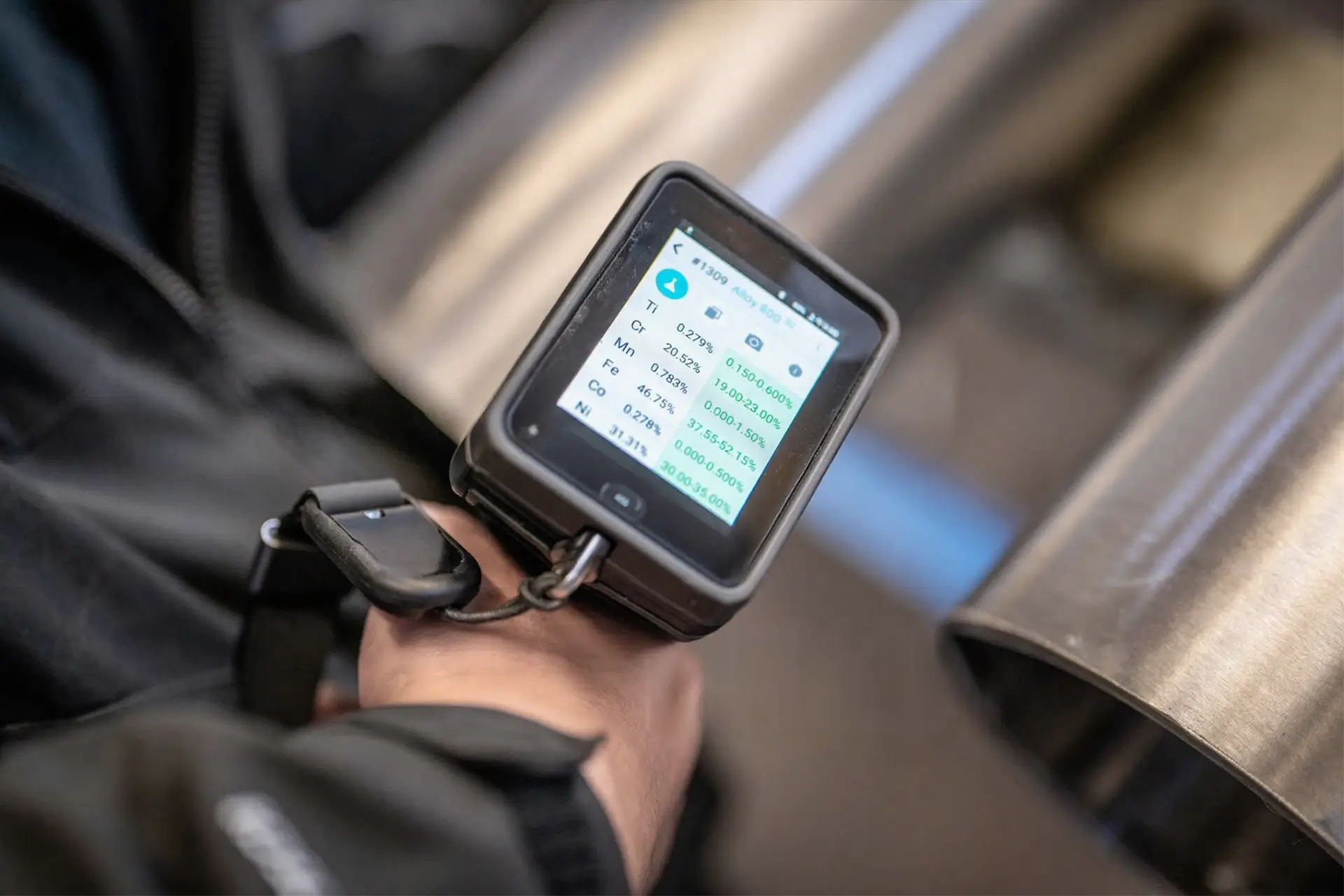

Throughout incoloy 800 melting, we carefully control the proportions of the materials and analyze the chemistry to ensure composition remains monitored. The finished product is then subjected to PMI, and external laboratory analysis can be provided when requested.
