Nickel Alloy Square Bar
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with nickel alloy square bar
Nickel Alloy Square Bar Introduction
Square Nickel Alloy Bar Overview

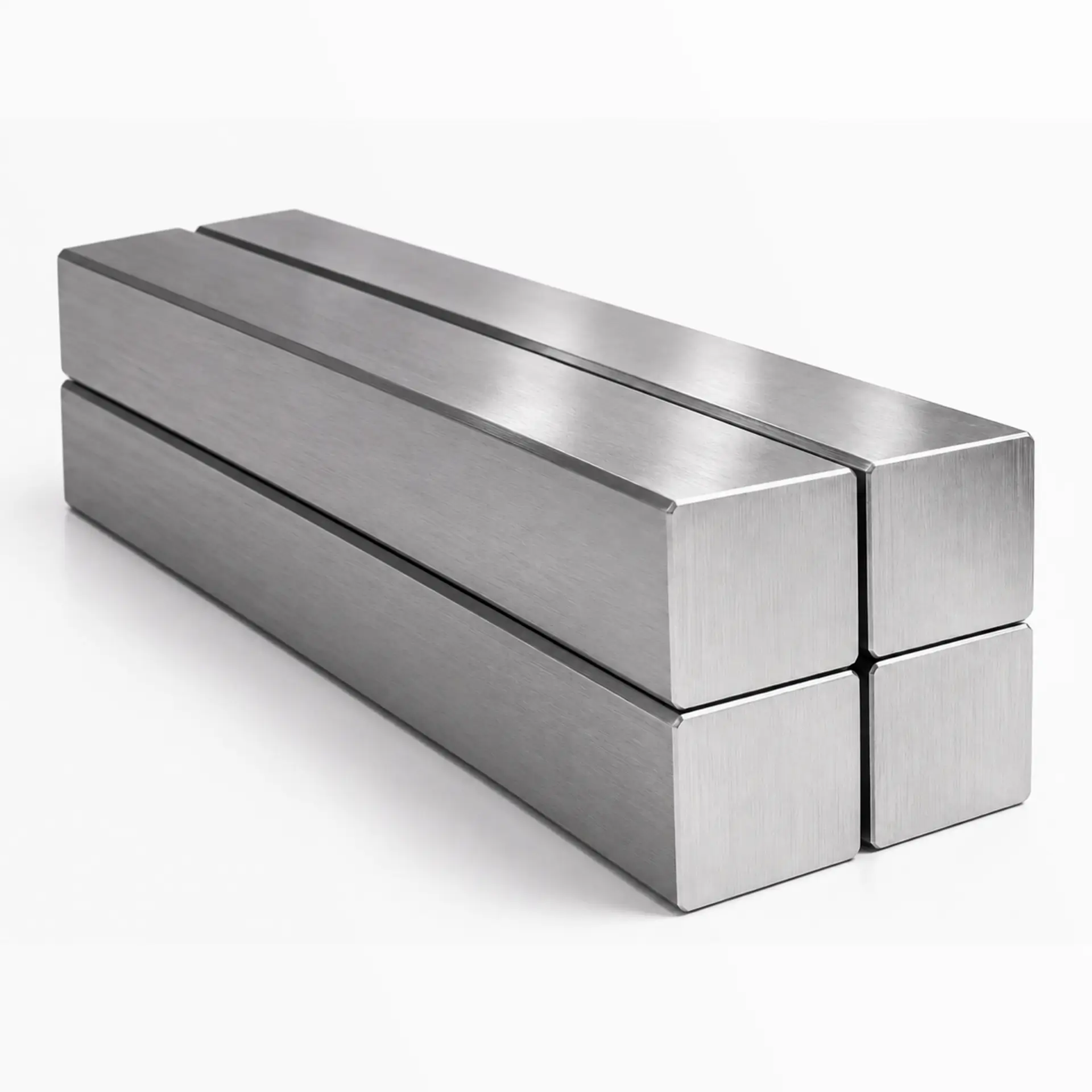

Nickel Alloy Square Bar Supplier
As a professional nickel alloy square bar manufacturer in China, Arialloy offers a broad selection of nickel alloy grades, side dimensions, lengths, dimensional tolerances, material conditions, corner profiles, surface finishes, and end conditions to meet different material and specification requirements. Depending on the selected grade, nickel alloys may contain chromium, molybdenum, copper, iron, cobalt, aluminum, titanium, or niobium, providing a balanced combination of corrosion resistance, mechanical strength, toughness, and thermal stability.
Nickel Alloy Square Bar Product Features
Arialloy nickel alloy square bars are manufactured with a solid square cross section, providing equal side dimensions, consistent geometry, and reliable mechanical performance. Controlled side dimensions, face parallelism, squareness, corner geometry, straightness, and surface quality help maintain a uniform section throughout each supplied length.
Nickel Alloy Square Bar Manufacture
Depending on the required grade and dimensions, production may involve forging, hot rolling, cold drawing, solution heat treatment, age hardening, straightening, grinding, polishing, and precision cutting. Square sections require careful control of heating, deformation, reduction, roll alignment, cooling, and finishing to limit twisting, bowing, unequal sides, corner distortion, and dimensional variation.
Nickel Alloy Square Bar Inspection
Every nickel alloy square bar order is inspected according to the applicable material standard and customer requirements. Side dimension and length measurement, face parallelism, squareness, and straightness checks, visual examination, chemical analysis, tensile testing, hardness testing, and ultrasonic testing can be carried out as specified to verify dimensional accuracy, corner geometry, surface condition, material conformity, mechanical properties, internal soundness, and overall product quality. Each order is supplied with traceable material records, inspection reports, and complete quality documentation.
Nickel Alloy Square Bar Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
ASTM B160
ASTM B164
ASTM B166
ASTM B408
ASTM B425
ASTM B446
ASTM B472
ASTM B473
ASTM B484
ASTM B484M
ASTM B511
ASTM B512
ASTM B638
ASTM B638M
ASTM B649
ASTM B691
ASTM B805
Nickel Alloy Square Bar Applications
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
FASTENERS & MACHINING
Square head bolts and plugs, drive keys, coupling blocks, machine tool parts, fixture blocks, threaded components, and precision machined hardware.CHEMICAL PROCESSING
Valve and pump components, agitator parts, reactor hardware, guide blocks, corrosive service fasteners, scraper components, and machined support pieces.OIL & GAS EXTRACTION
Wellhead blocks, valve parts, downhole tool components, guide keys, high strength fasteners, sensor housings, manifold hardware, and sour service machined parts.MARINE
Deck hardware, coupling keys, pump parts, valve components, brackets, fasteners, guide blocks, and seawater service machined fittings.THERMAL PROCESSING
Furnace fixture bars, grid members, rack supports, tray frames, burner hardware, conveyor guides, retort supports, and high temperature machine components.POWER GENERATION
Valve components, tube support keys, nuclear handling fixture parts, generator hardware, boiler supports, turbine auxiliary parts, and high temperature fastening blocks.AEROSPACE & DEFENSE
Machined structural fittings, actuator parts, high temperature fastener blanks, engine fixture parts, control system blocks, mounting hardware, and precision drive components.Available Grades
Available Grades for Nickel Alloy Square Bar
Explore the full range of nickel alloy square bar grades to expand your material choices and ensure you find the perfect nickel alloy
Nickel Alloy Square Bar SHOW
Supplying Nickel Alloy Square Bar
From initial samples to large scale production, we supply high quality nickel alloy square bar and help you achieve your manufacturing goals.
Manufacturing Process
Nickel Alloy Square Bar Manufacturing Process
The production process for Arialloy nickel alloy square bar ensures precision, quality, and efficiency at every stage — From production to delivery, we translate your requirements into reliable manufacturing solutions.
Steel Making
Ingot Casting
Ingot
Heating
Continuous Hot Rolling
Square Billet
Heat Treatment
Hot Rolling
Square Bar
Cooling
Cold Drawing
Straightening
Polishing
Inspection
Analytic
Marking
Packing & Shipping
Customized Dimensions
Nickel Alloy Square Bar Customization Scope
-
Dimensions
2*2 - 200*200 mm
-
Delivery State
Cold Drawn, Hot Rolled, Grinding, Forged, Centerless Grinding
-
Finish
Pickled, Bright, Polishing, Mirror, Hairline
Formula: m = A (mm) × A (mm) × L (m) × ρ (g/cm³) ÷ 1000
A = Side width, L = Length, ρ = Density
Data Sheet
Nickel Alloy Square Bar Data Sheet
Access the nickel alloy square bar data sheet to gain in depth insights into size range, tolerance and delivery state, ensuring the selection of the optimal nickel alloy material for your project
Tolerance
| Cold Drawn | |||
|---|---|---|---|
| Specified Dimension, in. (mm) | Permissible Variations from Specified Size, in. (mm) | ||
| Over | Under | ||
| Over 1/2(12.70) to 1(25.40), incl | 0 | 0.004(0.10) | |
| Over 1(25.40) to 2(50.80), incl | 0 | 0.006(0.15) | |
| Over 2(50.80) to 3(76.20), incl | 0 | 0.008(0.20) | |
| Over 3(76.20) | 0 | 0.010(0.25) | |
| Hot Rolled | |||
| Permissible Variations from Specified Size, in. (mm) | Out-of-Square in. (mm) | ||
| Over | Under | ||
| Over 5/16(7.94) to 7/16(11.11), incl | 0.006(0.15) | 0.006(0.15) | 0.009(0.23) |
| Over 7/16(11.11) to 5/8(15.88), incl | 0.007(0.18) | 0.007(0.18) | 0.010(0.25) |
| Over 5/8(15.88) to 7/8(22.22), incl | 0.008(0.20) | 0.008(0.20) | 0.012(0.30) |
| Over 7/8(22.22) to 1(25.40), incl | 0.009(0.23) | 0.009(0.23) | 0.013(0.33) |
| Over 1(25.40) to 9/8(28.58), incl | 0.010(0.25) | 0.010(0.25) | 0.015(0.38) |
| Over 9/8(28.58) to 5/4(31.75), incl | 0.011(0.28) | 0.011(0.28) | 0.016(0.41) |
| Over 5/4(31.75) to 11/8(34.92), incl | 0.012(0.30) | 0.012(0.30) | 0.018(0.46) |
| Over 11/8(34.92) to 3/2(38.10), incl | 0.014(0.36) | 0.014(0.36) | 0.021(0.53) |
| Over 3/2(38.10) to 2(50.80), incl | 1/64(0.40) | 1/64(0.40) | 0.023(0.58) |
| Over 2(50.80) to 2 1/2(63.50), incl | 1/32(0.79) | 0 | 0.023(0.58) |
| Over 2 1/2(63.50) to 3 1/2(88.90), incl | 3/64(1.19) | 0 | 0.035(0.89) |
| Over 3 1/2(88.90) to 4 1/2(114.30), incl | 1/16(1.59) | 0 | 0.046(1.17) |
| Over 4 1/2(114.30) to 5 1/2(139.70), incl | 5/64(1.98) | 0 | 0.058(1.47) |
| Over 5 1/2(139.70) to 6 1/2(165.10), incl | 1/8(3.18) | 0 | 0.070(1.78) |
| Over 6 1/2(165.10) to 8(203.20), incl | 5/32(3.97) | 0 | 0.085(2.18) |
Delivery State
| Delivery State Choice | Surface Condition |
|---|---|
| Hot Rolled | Pickled |
| Sand Blasted | |
| Cold Drawn | Polished |
| Bright | |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. | |
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Nickel Alloy Square Bar Quotation Process
From detailed consultation to final delivery, we make custom nickel alloy square bar orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Nickel Alloy Square Bar FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Yes. We produce cold drawn nickel alloy square bars with a high quality surface finish. Compared with hot rolled square bar, the cold drawn product costs more but offers better mechanical properties and tighter dimensional accuracy.
The estimated standard MOQ for nickel alloy square bar is 500 kg. The final minimum can vary with alloy grade, dimensions, manufacturing route, and material availability.
The estimated production lead time for nickel alloy square bar is about 45 days. Special grades, nonstandard dimensions, large quantities, or additional testing can extend the schedule.
Yes. Nickel alloy square bar samples can be provided for evaluation when suitable material is available. Availability depends on suitable stock or preliminary material.
Yes. Buyers may send engineers or representatives to inspect nickel alloy square bar at our factory. The visit date, inspection scope, participants, and required records should be agreed in advance.
Inspection of nickel alloy square bar covers raw material selection, production stage checks, final inspection, and packing review. Only material that meets the approved specification and required results is released for shipment.
Standard export packing for nickel alloy square bar follows this arrangement: bars are bundled and protected from moisture, with wooden cases or pallets selected according to length and shipment weight. The packing plan also considers dimensions, unit weight, surface protection, and transport conditions.
A complete nickel alloy square bar inquiry should state side dimension, length, corner profile, straightness, tolerance, and surface condition. Complete size data prevents ambiguity in production, inspection, and quotation.
