Incoloy 909
UNS N19909
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with incoloy 909 sheets / bars
Incoloy 909 Material Properties
UNS N19909 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of incoloy 909 for optimal resistance, strength, and stability
Incoloy 909 Chemical Composition
Incoloy 909 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies cost effective incoloy 909 products.
Incoloy 909 (UNS N19909) is an alloy of nickel, iron and cobalt that combines high strength with low thermal expansion and stable elastic properties. Niobium and titanium support precipitation hardening, producing fine strengthening particles during aging. A small silicon addition improves resistance to notch rupture and changes the precipitation behavior within the microstructure. These features give the alloy a favorable balance of tensile strength, rupture performance and dimensional stability.
The alloy retains substantial strength at temperatures up to approximately 650°C, while its elastic modulus changes relatively little across this range. Low expansion and good thermal conductivity contribute to resistance against thermal fatigue and thermal shock. Its composition excludes chromium to preserve the characteristic expansion behavior. The absence of chromium increases oxidation susceptibility, and protective coatings help shield the surface from oxygen exposure. Resistance to hydrogen embrittlement provides another distinctive material characteristic.
Arialloy recommends incoloy 909 for customers who place greater priority on controlled thermal expansion, mechanical strength, fatigue resistance, and dimensional stability than on broad corrosion resistance.
Incoloy 909 Corrosion Resistance
Incoloy 909 contains essentially no chromium, giving it lower general oxidation resistance than chromium rich nickel alloys. Its silicon addition improves resistance to stress accelerated grain boundary oxidation and supports lower creep crack growth together with better notch rupture behavior.
The alloy also resists embrittlement in high pressure hydrogen. Its corrosion characteristics are distinguished by resistance to grain boundary oxidation and hydrogen embrittlement, while its overall resistance to aggressive acids, chlorides, and strongly oxidizing media is lower than that of chromium rich corrosion resistant incoloy grades.
Incoloy 909 Mechanical Properties
After solution treatment and aging, incoloy 909 combines high strength with useful ductility. Typical values at 20°C are 1276 MPa tensile strength, 1034 MPa yield strength at 0.2% offset and 15% elongation. At 650°C, corresponding values are 1034 MPa, 862 MPa and 25%, respectively.
Niobium and titanium contribute to precipitation strengthening, while silicon improves notch rupture performance. The alloy also exhibits greater fatigue strength and slower creep crack growth than incoloy 903 during testing at elevated temperatures.
Incoloy 909 Temperature Characteristics
Incoloy 909 has a thermal expansion coefficient of approximately 7.7 µm/m/°C from room temperature to the Curie region near 425°C. Above this transition, expansion increases as the alloy changes from ferromagnetic to paramagnetic behavior. Its elastic modulus remains nearly constant up to approximately 650°C, helping preserve stiffness and limit elastic deformation during heating.
The combination of low expansion, stable elastic properties and relatively high thermal conductivity provides strong resistance to thermal fatigue and thermal shock. Substantial mechanical strength is retained at temperatures approaching 650°C (1200°F).

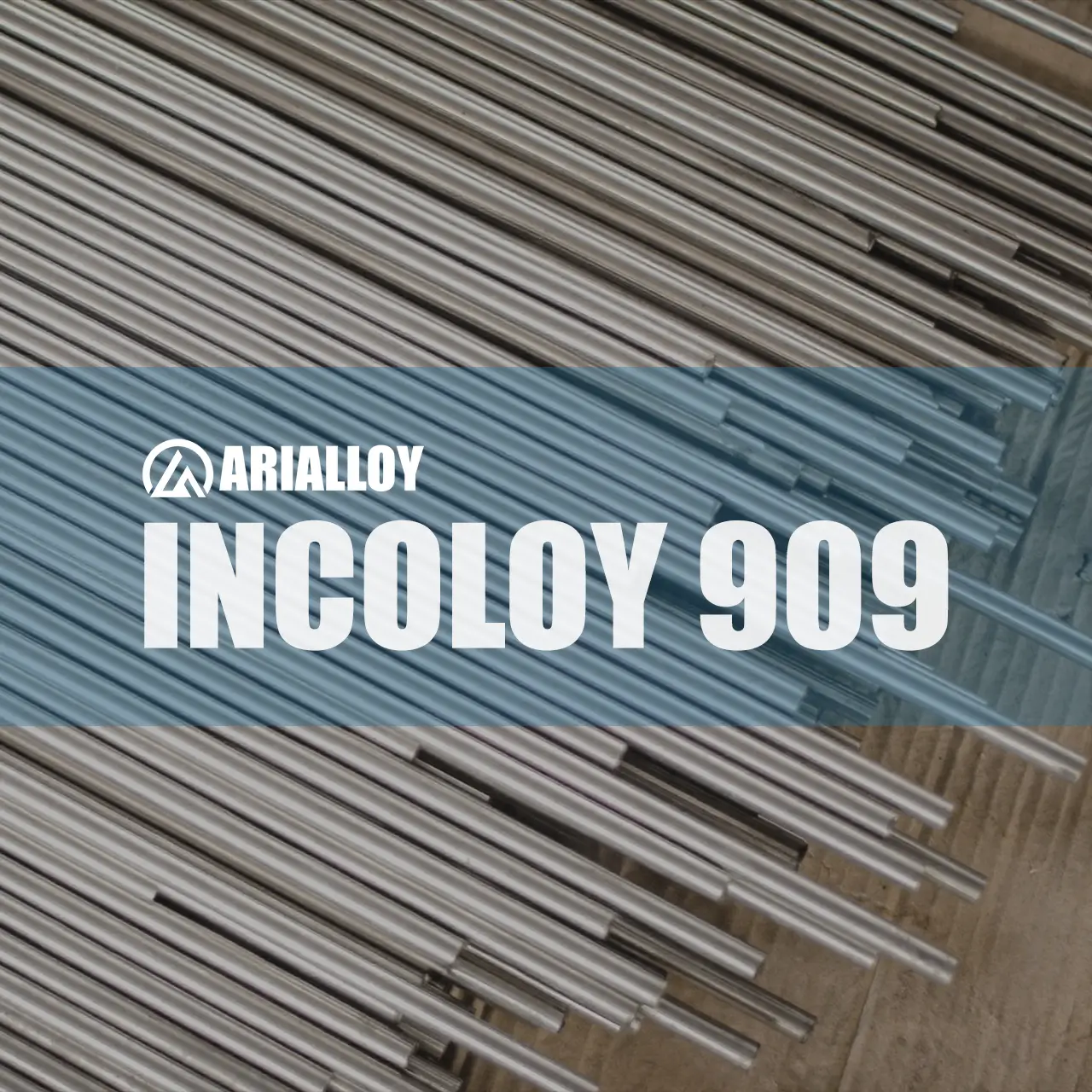

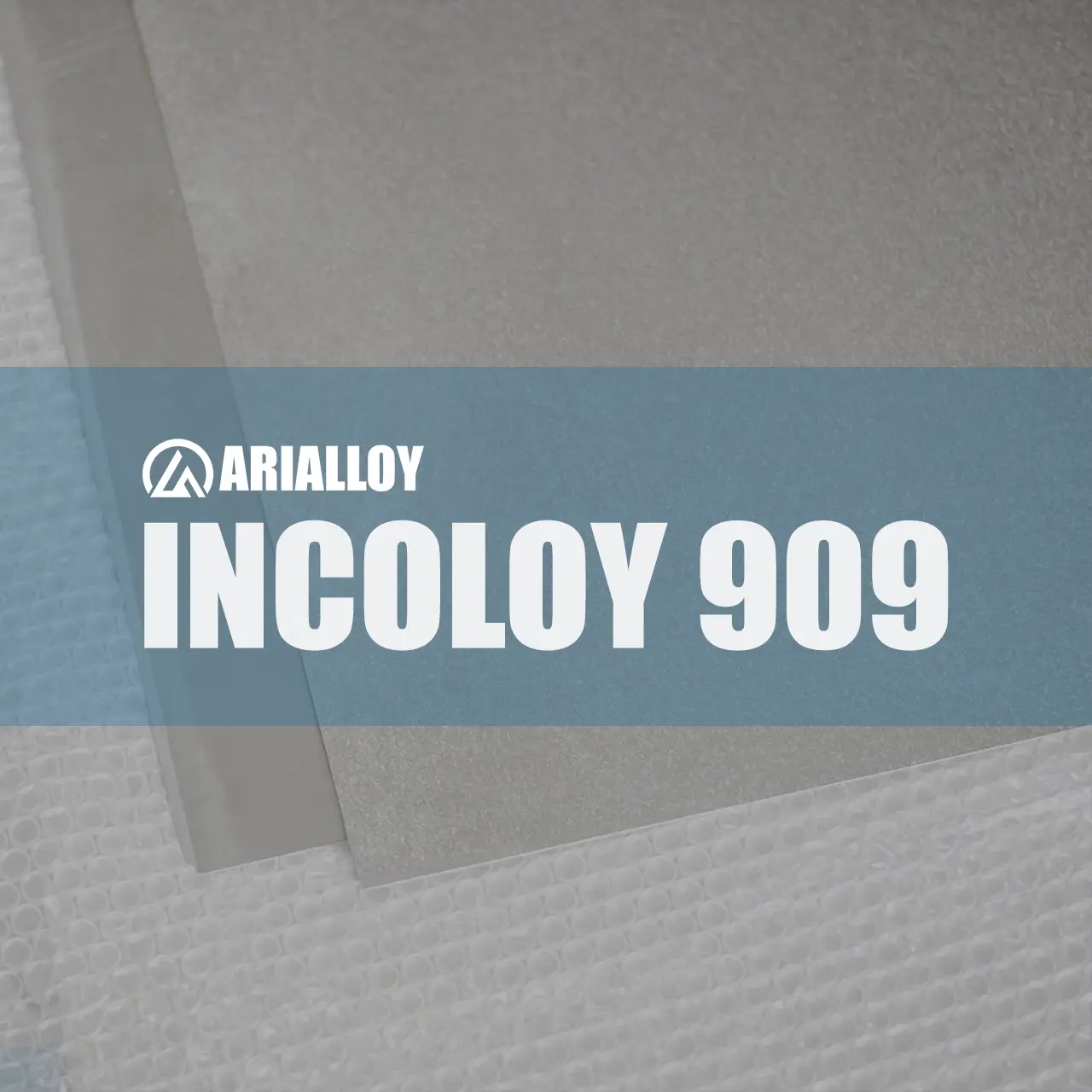

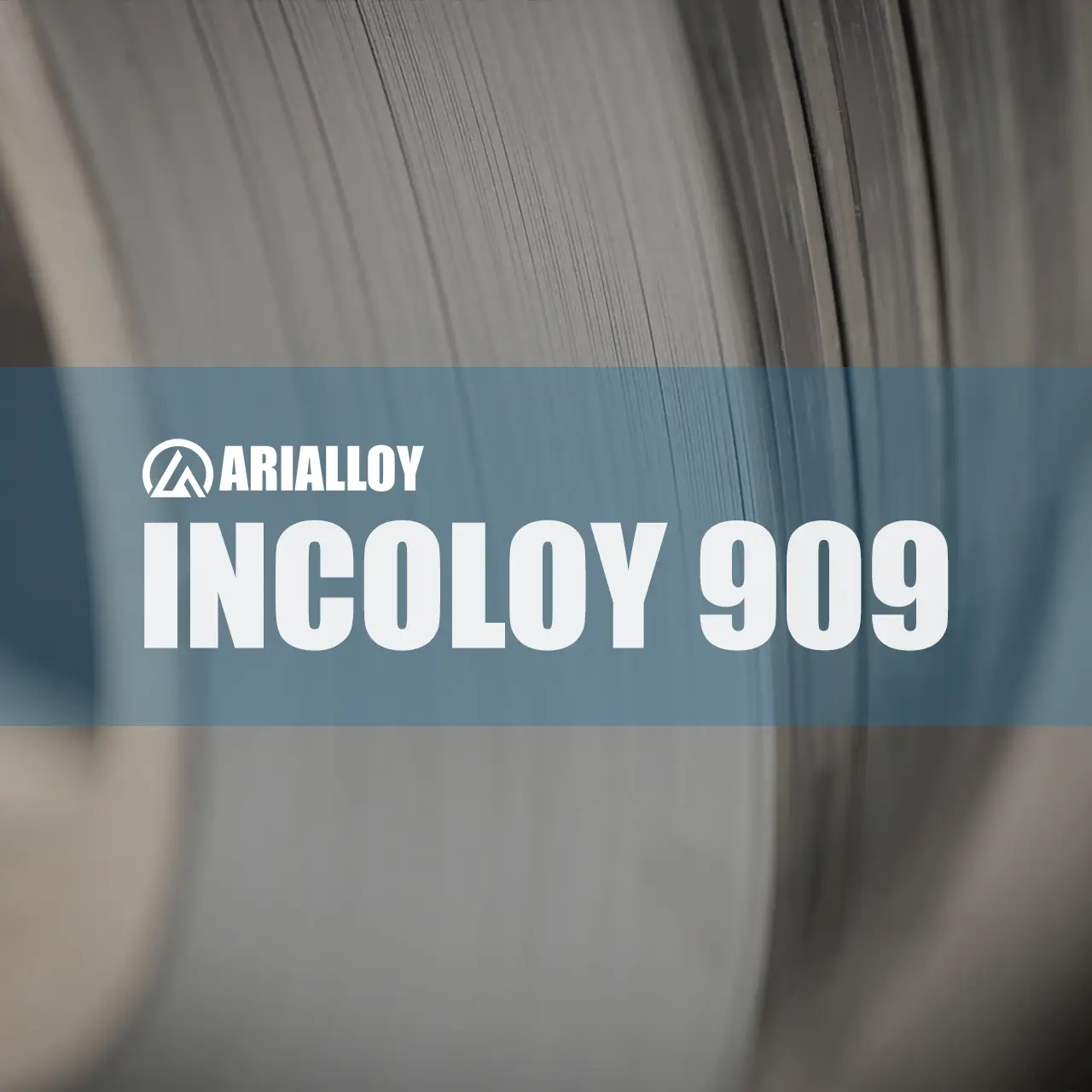

Incoloy 909 Products
Nickel Alloy 909 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 909 products tailored to each project’s needs
Incoloy 909 Data Sheet
Incoloy Alloy 909 Data Sheet
Access / download the incoloy 909 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 1158 MPa | 167954 psi |
| Yield strength | 1034 MPa | 149969 psi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation | 15% | 15% |
| Reduction of area | 53% | 53% |
| Hardness | 335 | 335 |
Incoloy 909 Standards
UNS N19909 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs
SAE AMS 5884
Billets
SAE AMS 5892
Bars & Forgings
SAE AMS 5893
Sheet & Strip
Incoloy 909 SHOW
Nickel Alloy 909 Showcase
From initial samples to large scale production, we supply high quality incoloy 909 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation

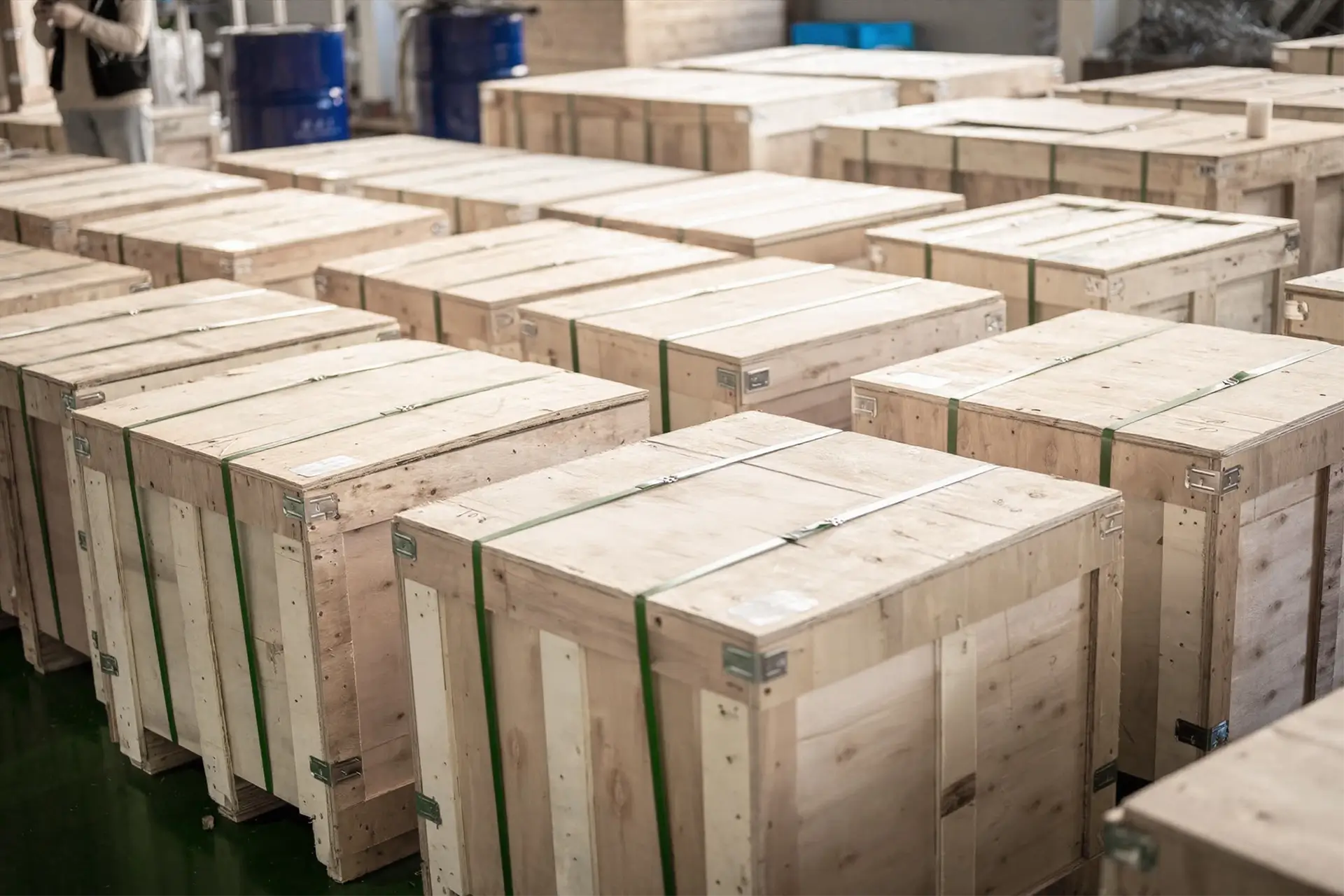

Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Incoloy 909 Quotation Process
From detailed consultation to final delivery, we make custom incoloy 909 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Incoloy 909 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy incoloy alloy 909 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Incoloy 909 Applications
UNS N19909 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Incoloy 909 Knowledge
Nickel Alloy 909 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Incoloy Grades
Incoloy Alloy Grades
Explore the full range of incoloy alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Incoloy 909 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
Our team can assist you with the complete incoloy 909 purchasing process. Send your requirements to sales@arialloy.com or use the inquiry form below. We will prepare a quotation for your review. Once you approve it, send your PO. We will issue the PI for payment and begin production after the prepayment is received. We will contact you when the material is ready.
Our normal quotation response time is within 24 hours. For incoloy 909 inquiries, our sales team will provide the corresponding quotation or promptly notify you if more information is needed or a quote cannot be provided.
Our standard incoloy 909 terms are FOB, under which the buyer usually designates the freight forwarder. We will cooperate with your selected logistics provider for the necessary local handling. Should you prefer us to arrange the shipment, we can do so and quote the applicable transportation cost.
When the market prices of key alloying metals move, the price of the alloy can move as well. Nickel, iron, cobalt, chromium, and titanium are important raw material cost drivers for superalloys, which is why their fluctuations can be reflected in incoloy 909 pricing.
We maintain our own incoloy 909 smelting facilities, so the material does not have to be sourced as a pre smelted product. With over 30 furnaces across four capacities, we can handle everything from 50 kg batches to 5,000 kg batches. This production flexibility helps us keep minimum order requirements relatively low.
Our incoloy 909 material certification is provided before shipment and follows the required industry standards. It includes the material standard, chemical analysis, mechanical properties, dimensions, and heat number.
During production of incoloy 909, we monitor chemistry by controlling the material ratios and conducting analytical checks. The completed material is verified through PMI testing, while third-party laboratory analysis is available for customers requiring additional confirmation.
