Inconel 725
UNS N07725
Catalog
Arialloy are carefully crafted using only the finest materials. Our production team offers superior craftsmanship with over 10 years of experience working with inconel 725 tubes / wires / bars
Inconel 725 Material Properties
UNS N07725 Overview
Explore the chemical composition, corrosion resistance, mechanical properties, and temperature characteristics of inconel 725 for optimal resistance, strength, and stability
Inconel 725 Chemical Composition
Inconel 725 Material Properties Overview
As a manufacturer and supplier in China, Arialloy supplies cost effective inconel 725 products.
Inconel alloy 725 (UNS N07725) is a precipitation hardenable nickel alloy containing chromium, molybdenum and niobium, with titanium additions that support strengthening during aging. Its composition includes 55.0 to 59.0% nickel (Ni), 19.0 to 22.5% chromium (Cr), 7.0 to 9.5% molybdenum (Mo), 2.75 to 4.0% niobium (Nb) and 1.0 to 1.7% titanium (Ti) by weight. Nickel and chromium support resistance to reducing and oxidizing conditions, while molybdenum improves resistance to localized corrosion. The alloy combines overall corrosion performance comparable to annealed inconel 625 with substantially higher strength after aging. Strengthening through heat treatment allows thick sections and complex shapes to achieve high strength while retaining useful ductility and toughness, without depending on extensive cold deformation.
For material selection, Arialloy recommends reviewing the corrosive medium, required yield strength and operating temperature together. Solution annealing and aging conditions should match the specified strength and corrosion requirements. Where welding is necessary, careful filler selection and subsequent heat treatment require particular attention because the final weld properties depend on the complete processing sequence.
Inconel 725 Corrosion Resistance
Inconel 725 resists general corrosion, pitting and crevice attack in chloride solutions and seawater. Its high nickel, chromium and molybdenum content supports corrosion resistance in both reducing and oxidizing environments, including selected mineral acid solutions.
The alloy also offers resistance to sulfide stress cracking and other forms of stress corrosion cracking in suitable material conditions. Performance in media containing hydrogen sulfide, carbon dioxide and chlorides depends on temperature, pH, concentration, sustained applied stress and heat treatment. Environmental qualification should therefore reflect the actual exposure conditions.
Inconel 725 Mechanical Properties
At room temperature, annealed inconel 725 round bar shows typical 0.2% offset yield strength of 427 MPa, tensile strength of 855 MPa and 57% elongation. Aging raises representative values to 917 MPa yield strength and 1241 MPa tensile strength, with 30% elongation and a hardness of approximately 36 HRC. These values refer to transverse specimens.
Inconel 725 Temperature Characteristics
Inconel 725 retains substantial tensile strength at elevated temperatures after solution annealing and aging. At 538°C (1000°F), representative bar tests show approximately 778 MPa yield strength, 1058 MPa tensile strength and 31% elongation. Thermal conductivity and the mean thermal expansion coefficient increase with temperature, while elastic modulus decreases.
Prolonged heating can alter the strengthening precipitates and affect mechanical stability. The allowable operating temperature therefore depends on exposure duration, sustained stress, corrosive conditions and the final heat treatment, and requires assessment beyond a single tensile test.
Inconel 725 Products
Nickel Alloy 725 Product Types
With advanced equipment and expert craftsmanship, we create durable, high performance nickel alloy 725 products tailored to each project’s needs
Inconel 725 Data Sheet
Inconel Alloy 725 Data Sheet
Access / download the inconel 725 data sheet to gain in depth insights into precise physical and processing parameters
ensuring the selection of the optimal nickel alloy material for your project
Physical Properties
| Density | g/cm3 | 8.31 | |
|---|---|---|---|
| lb/in.3 | 0.300 | ||
| Melting Range | °F | 2320 - 2449 | |
| °C | 1271 - 1343 | ||
| Permeability at 200 oersted | 15.9 kA/m | < 1.001 | |
| Young’s Modulus (70°F) | 103 ksi | 29.6 | |
| GPa | 204 | ||
| Shear Modulus (70°F) | 103 ksi | 11.3 | |
| GPa | 78 | ||
| Poisson’s Ratio (70°F) | 0.31 | ||
Mechanical Properties
| Condition | Yield Strength (0.2% Offset) | Tensile Strength | Elongation | Hardness | Charpy Impact | |||
|---|---|---|---|---|---|---|---|---|
| ksi | MPa | ksi | MPa | % | Rc | ft-lbf | J | |
| Round, Transverse specimens from hot-finished rounds of 4.0 to 7.5 in (102 to 190 mm) diameter. | ||||||||
| Annealed | 62 | 427 | 124 | 855 | 57 | 5 | - | - |
| Age Hardened | 133 | 917 | 180 | 1241 | 30 | 36 | 68 | 92 |
| Round, Longitudinal specimens from hot-finished rounds of 0.5 to 7.5 in (13 to 190 mm) diameter. | ||||||||
| Age Hardened | 131 | 903 | 180 | 1241 | 31 | 36 | 97 | 132 |
| Tube | ||||||||
| Annealed | 48.4 | 334 | 113.6 | 783 | 60 | 5 | - | - |
| Age Hardened | 133.6 | 921 | 183.9 | 1268 | 27 | 39 | - | - |
Inconel 725 Standards
UNS N07725 Specifications & Standards
From production to inspection, we meet strict quality standards, addressing tolerance and chemical composition needs

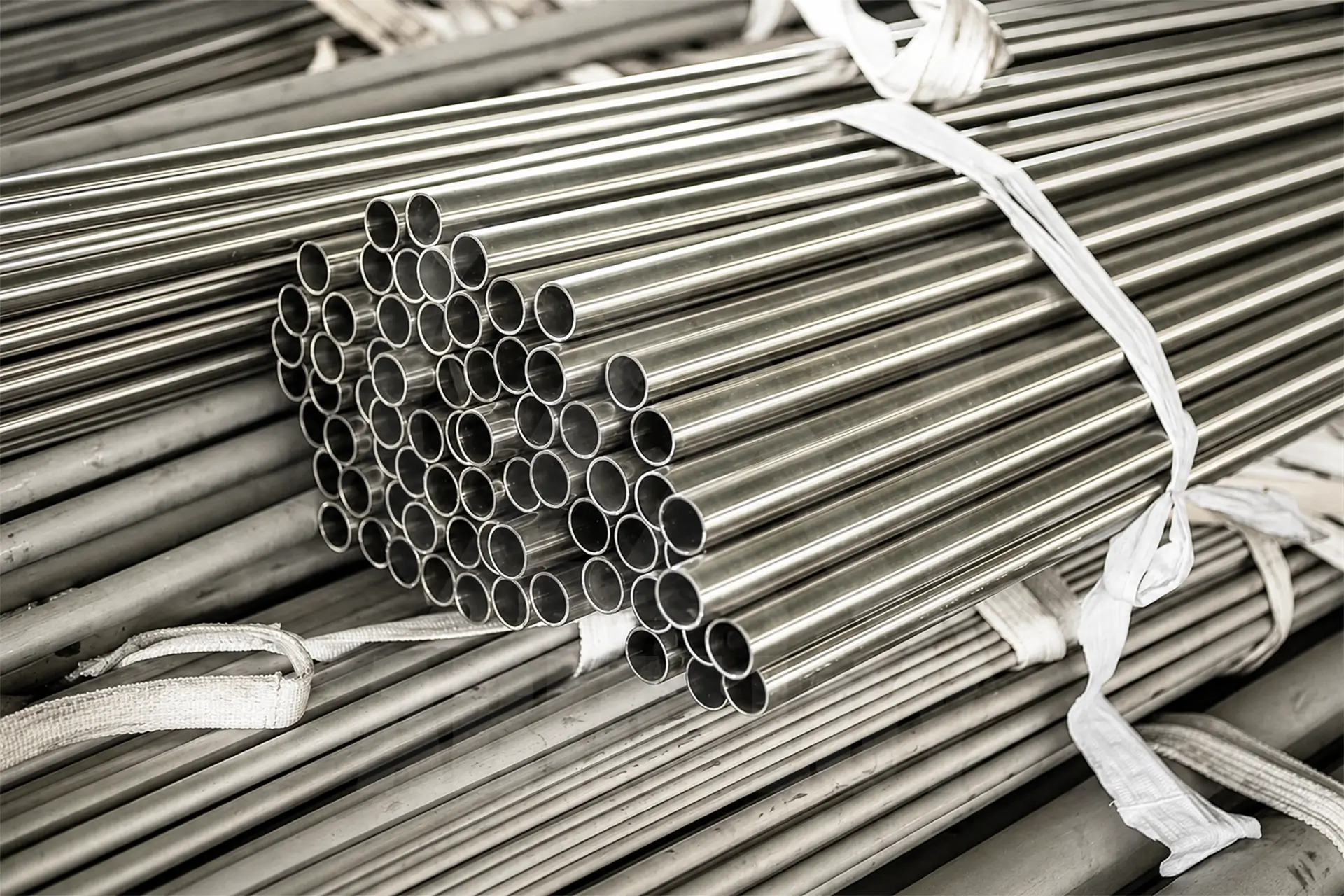

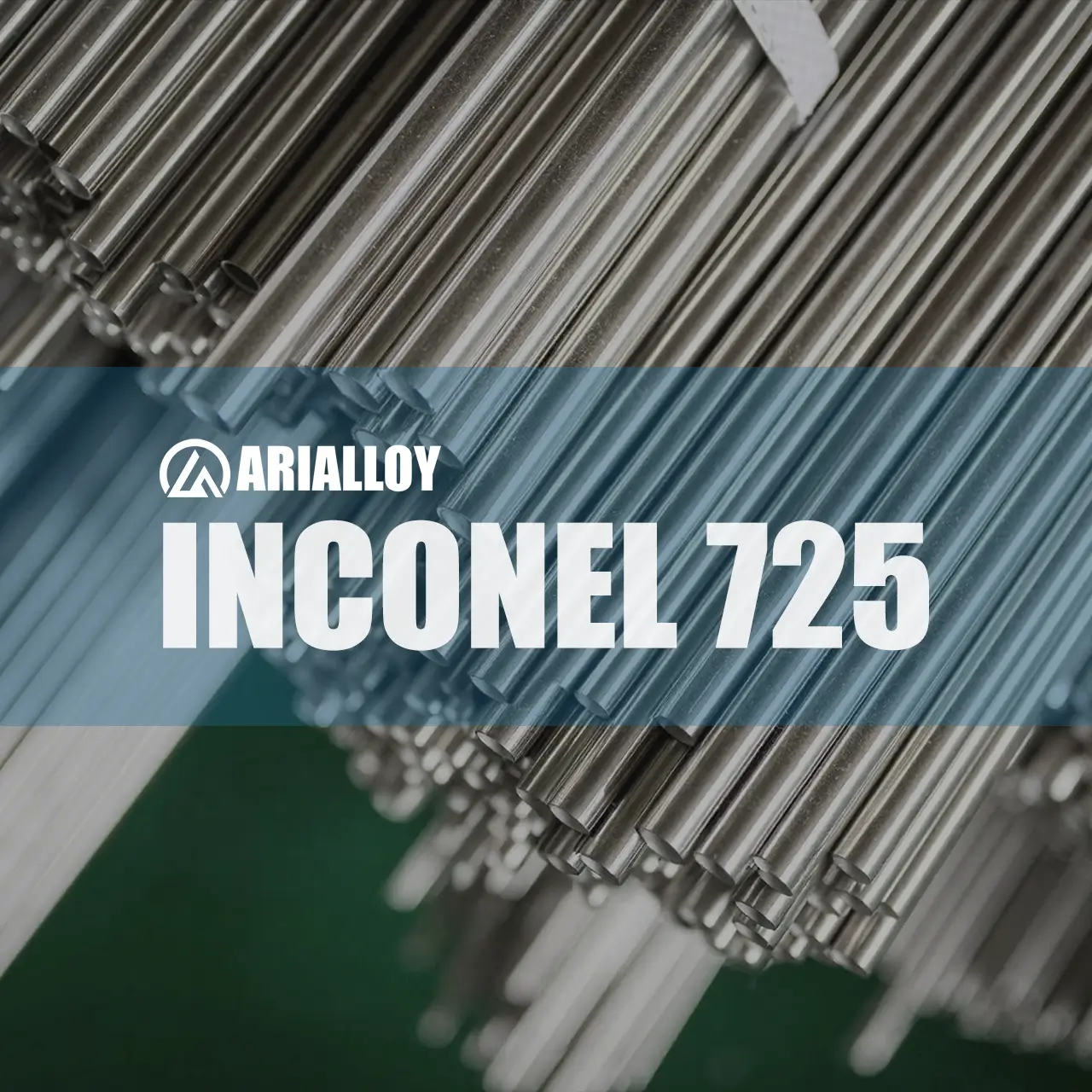

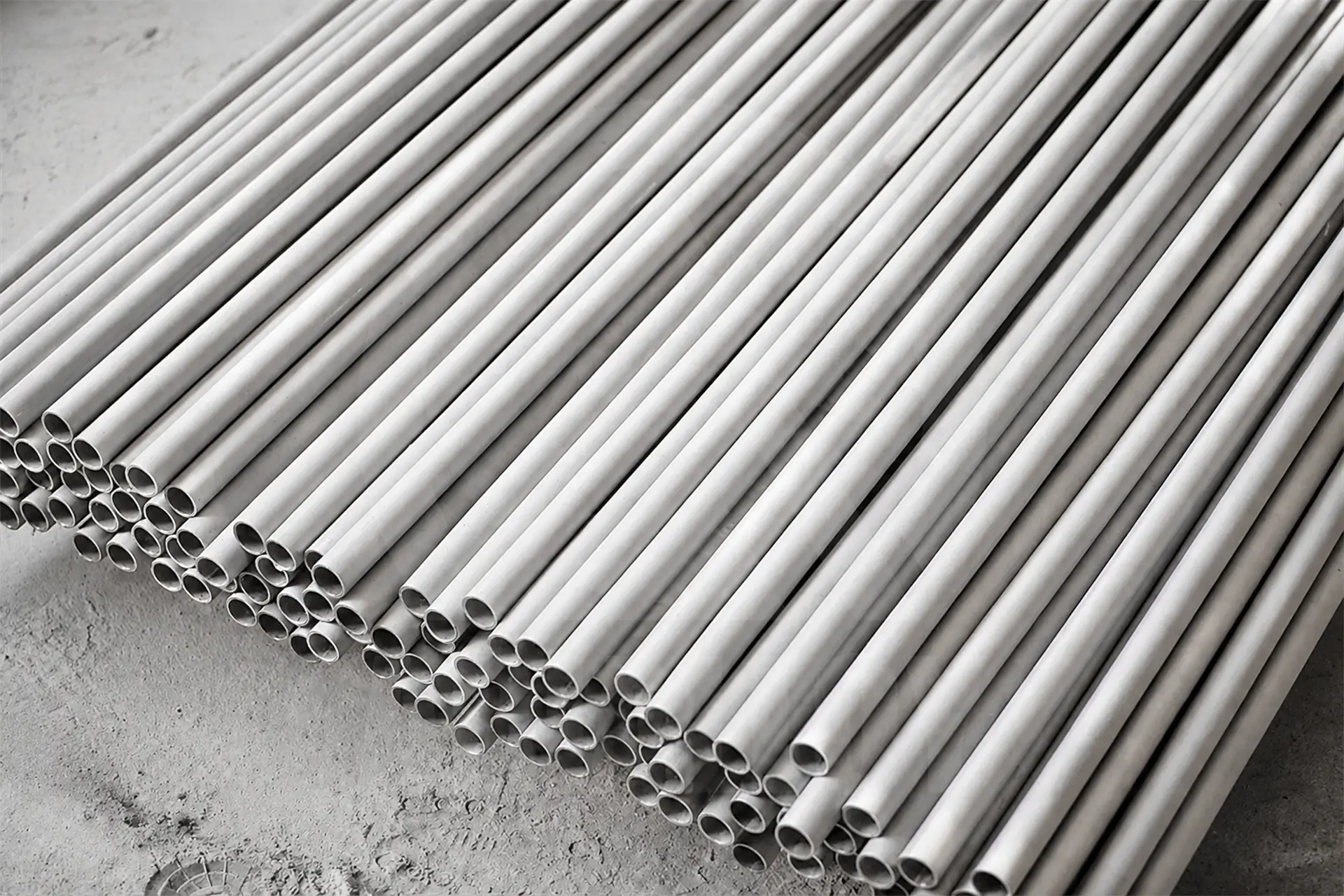

ASTM B983
Seamless Pipe & Tube

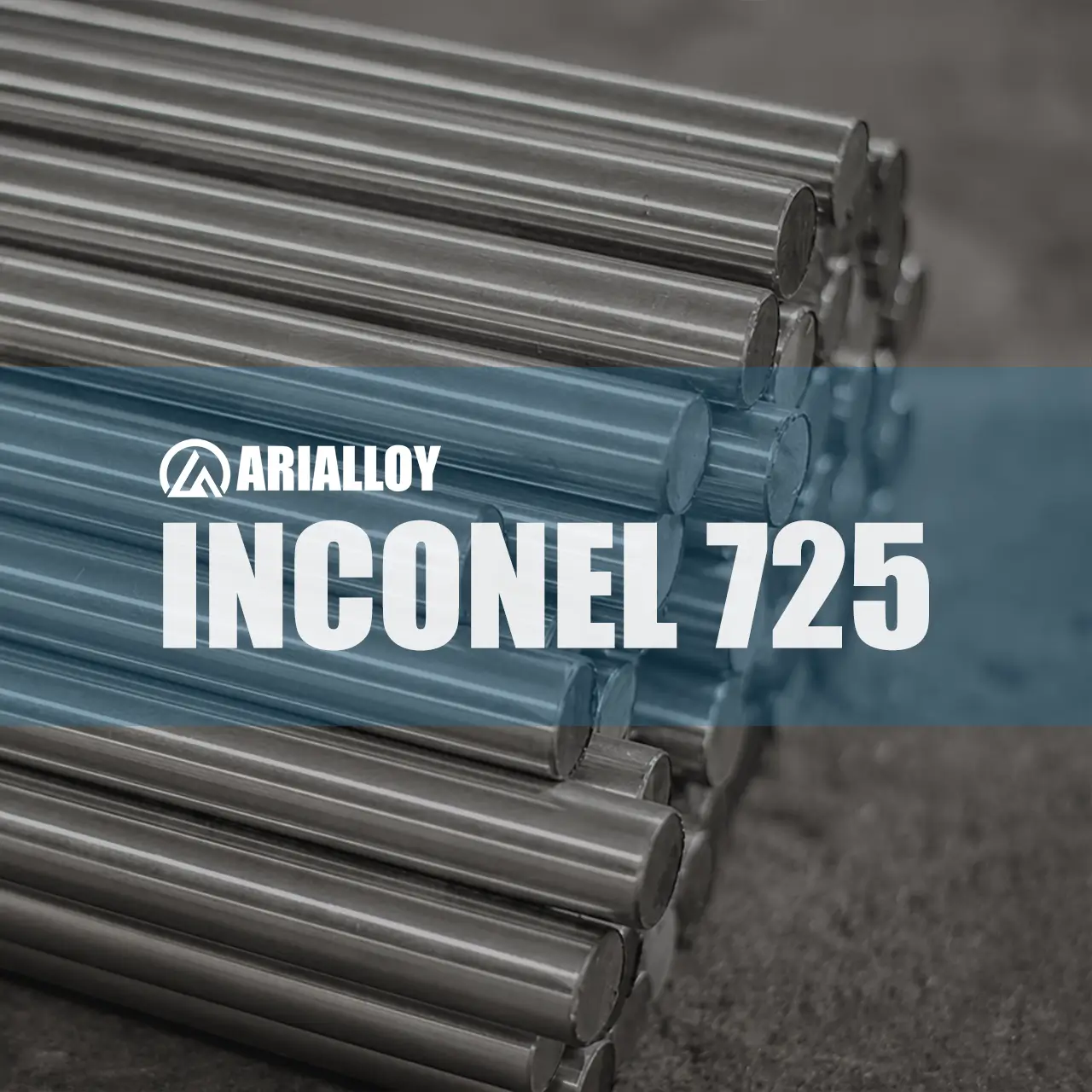

ASTM B637
Bar and Forgings
ASTM B805
Rod, Bar and Wire

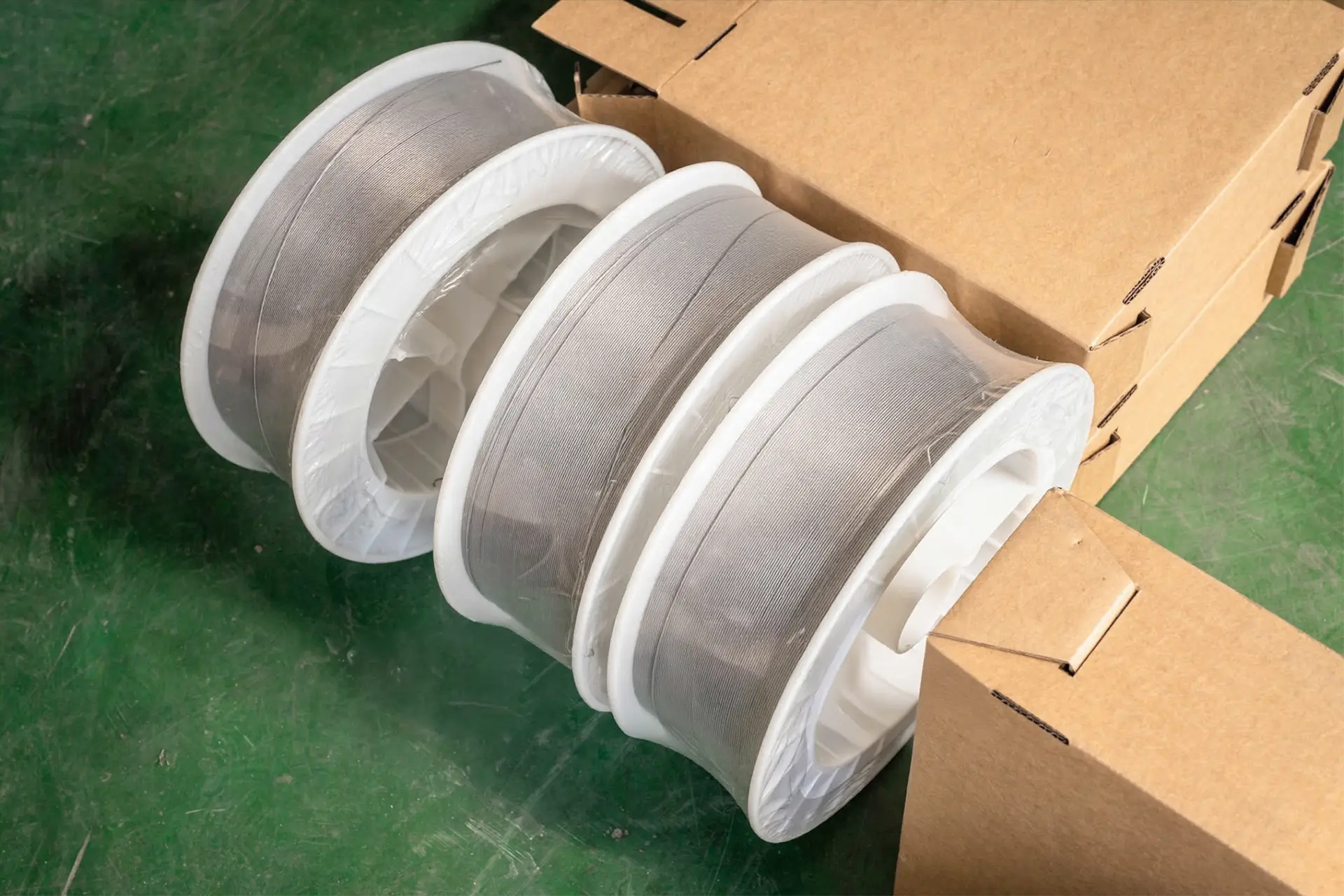

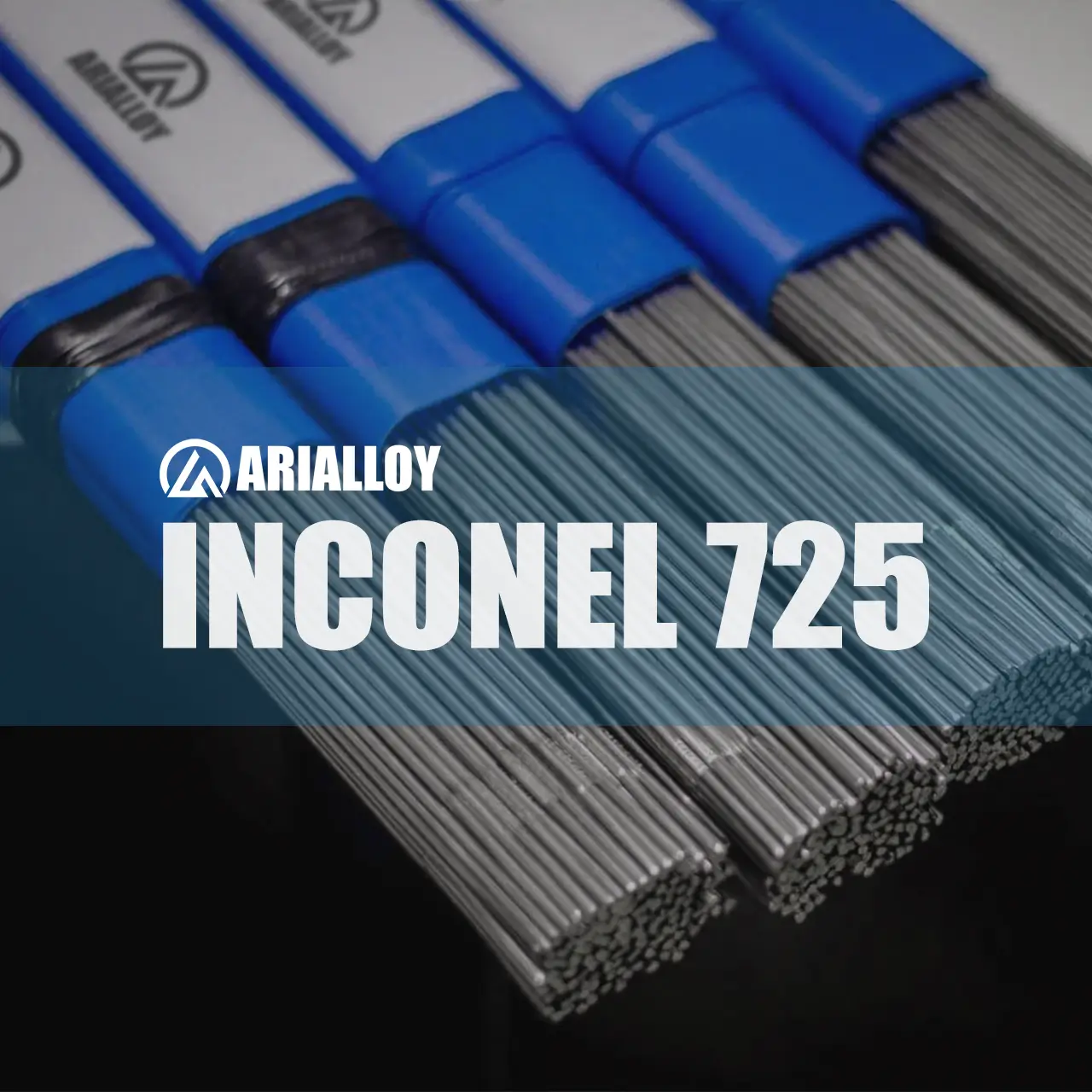

AWS A5.14 ERNiCrMo-15
Filler Metal
Inconel 725 SHOW
Nickel Alloy 725 Showcase
From initial samples to large scale production, we supply high quality inconel 725 products and help you achieve your manufacturing goals.
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Inconel 725 Quotation Process
From detailed consultation to final delivery, we make custom inconel 725 product orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Inconel 725 Supplier - Arialloy
From Production to Quality Control, Every Step Tailored to Perfection
Arialloy inconel alloy 725 manufacturer has always been at the forefront of the industry. With its unremitting pursuit of quality, precision, and professional solutions, Arialloy has gradually established a complete production system and rapid supply capabilities. By continuously improving manufacturing processes, adopting cutting edge equipment, and adhering to strict quality control, Arialloy ensures that every product meets the highest requirements for durability, precision, and international standards
Inconel 725 Applications
UNS N07725 Alloy Solutions
We serving diverse industries, focus on strict quality control and full scale production, turning your vision into reality with professional expertise and attention to detail
Inconel 725 Knowledge
Nickel Alloy 725 Wiki
Arialloy explores with you every factor that influences your choice
including chemical composition, mechanical properties, temperature characteristics, price, and manufacturing process
Inconel 686 VS Inconel 686
This addition of aluminum in Inconel 601 promotes the formation of a stable aluminum oxide (Al₂O₃) layer on the surface at high temperatures. This protective film significantly
Inconel 600 VS Inconel 601
Inconel Alloy 600 (UNS N06600 / W.Nr. 2.4816) is a classic nickel-chromium-iron superalloy designed for excellent corrosion resistance and mechanical stability at elevated temperatures. It combines a
Monel 400 VS Inconel 600
As this table shows, the high nickel and copper content in Monel 400 ensures excellent resistance against attack by seawater and many acids, while the significant chromium
More Inconel Grades
Inconel Alloy Grades
Explore the full range of Inconel alloys to expand your material choices and ensure you find the perfect nickel alloy
Custom Inconel 725 FAQs
Our team of experts is here to support you every step of the way, helping transform your vision into reality. Explore FAQs for related support
To request a quotation for inconel 725, simply email sales@arialloy.com or submit the online inquiry form. Our sales team will review your requirements and return a detailed offer. If you wish to proceed with the purchase, send us your PO. We will provide a PI for payment, then start production once the prepayment has been received. We will contact you after completion.
After receiving your inquiry, our professional sales team will normally prepare the inconel 725 quotation within 24 hours. If we need more information or cannot provide an offer, we will let you know right away.
We generally supply inconel 725 under FOB terms. In the normal arrangement, you designate a freight forwarder, and we coordinate with them to complete the necessary operations at origin. If you would like us to take over the shipping arrangements, we can do that and confirm the additional freight cost.
Changes in raw metal markets can explain much of the movement seen in alloy prices. Superalloys contain high value metals such as nickel, chromium, molybdenum, niobium, and titanium, and their prices can significantly influence the overall cost of the finished material.
Inconel 725 production begins with materials melted in our own facility. We have over 30 vacuum smelting and electroslag remelting furnaces, including 50 kg, 200 kg, 1,000 kg, and 5,000 kg models. The smaller furnace options give us the flexibility required for low volume orders.
Yes, we provide pre shipment material test reports for inconel 725. Each report presents the applicable material standard together with chemical composition, mechanical properties, dimensions, and heat number information.

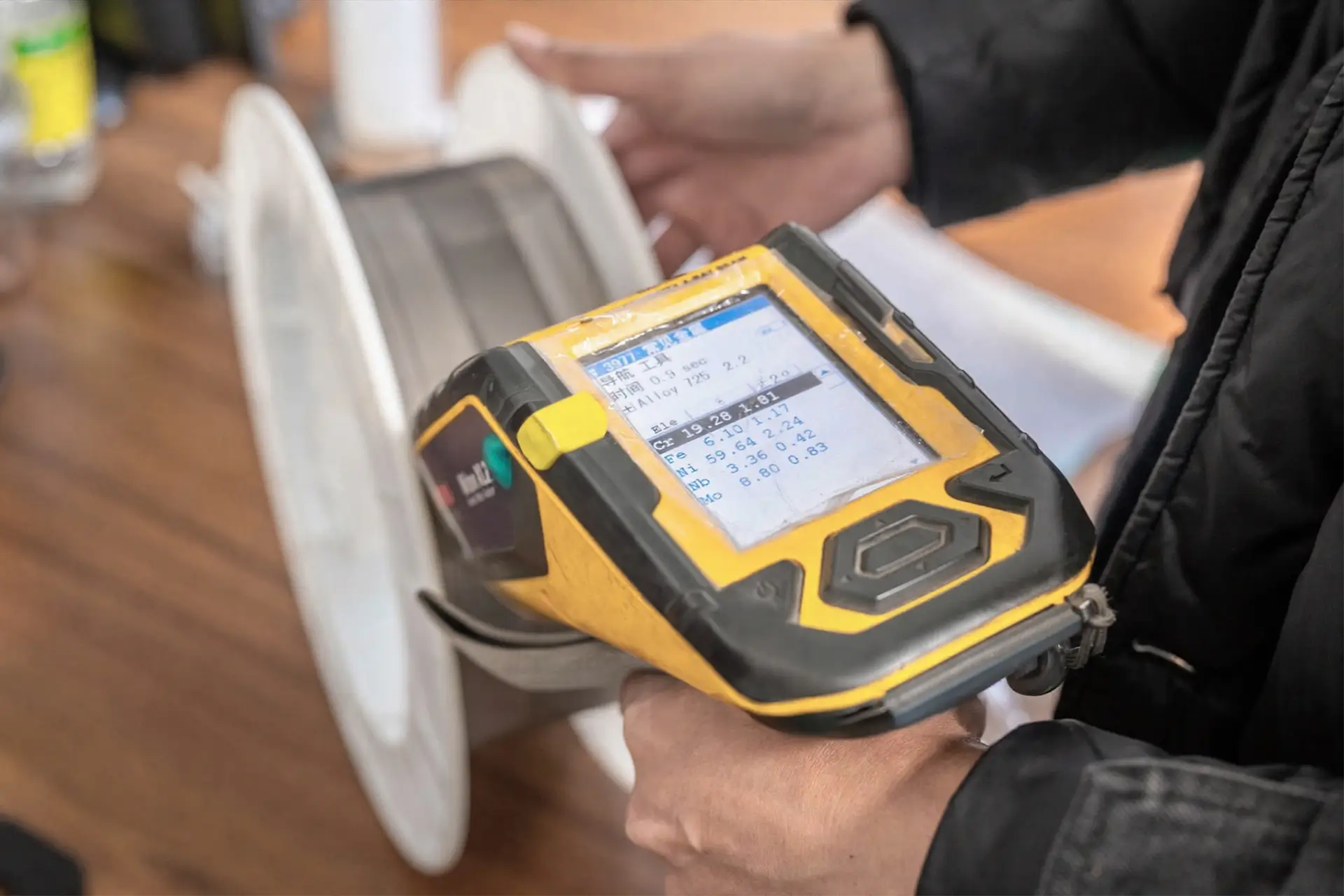

During inconel 725 smelting, we maintain precise control over the material mix and use chemical testing to monitor composition changes. Once production is complete, PMI verification is performed, with third-party laboratory analysis available as an additional option.
