Inconel 686 Tubes & Pipes
Arialloy Inconel Pipes & Tubes Type
Inconel 686 (UNS N06686) tubes & pipes from Arialloy combine outstanding resistance to general corrosion, stress-corrosion cracking, pitting, and crevice attack with reliable structural integrity. The Ni-Cr-Mo-W composition provides strong resistance in both reducing and oxidizing media. The range covers multiple outside diameters, wall thicknesses, lengths, and finishes with controlled dimensions, clean surfaces, and consistent material properties
UNS N06686 / W.Nr. 2.4606 Tubes & Pipes Chemical Composition
Inconel 686 Tubes & Pipes Chemical Composition
Arialloy manufactures high standard inconel 686 tubes & pipes using only the finest materials, ideal for functional testing or end use applications

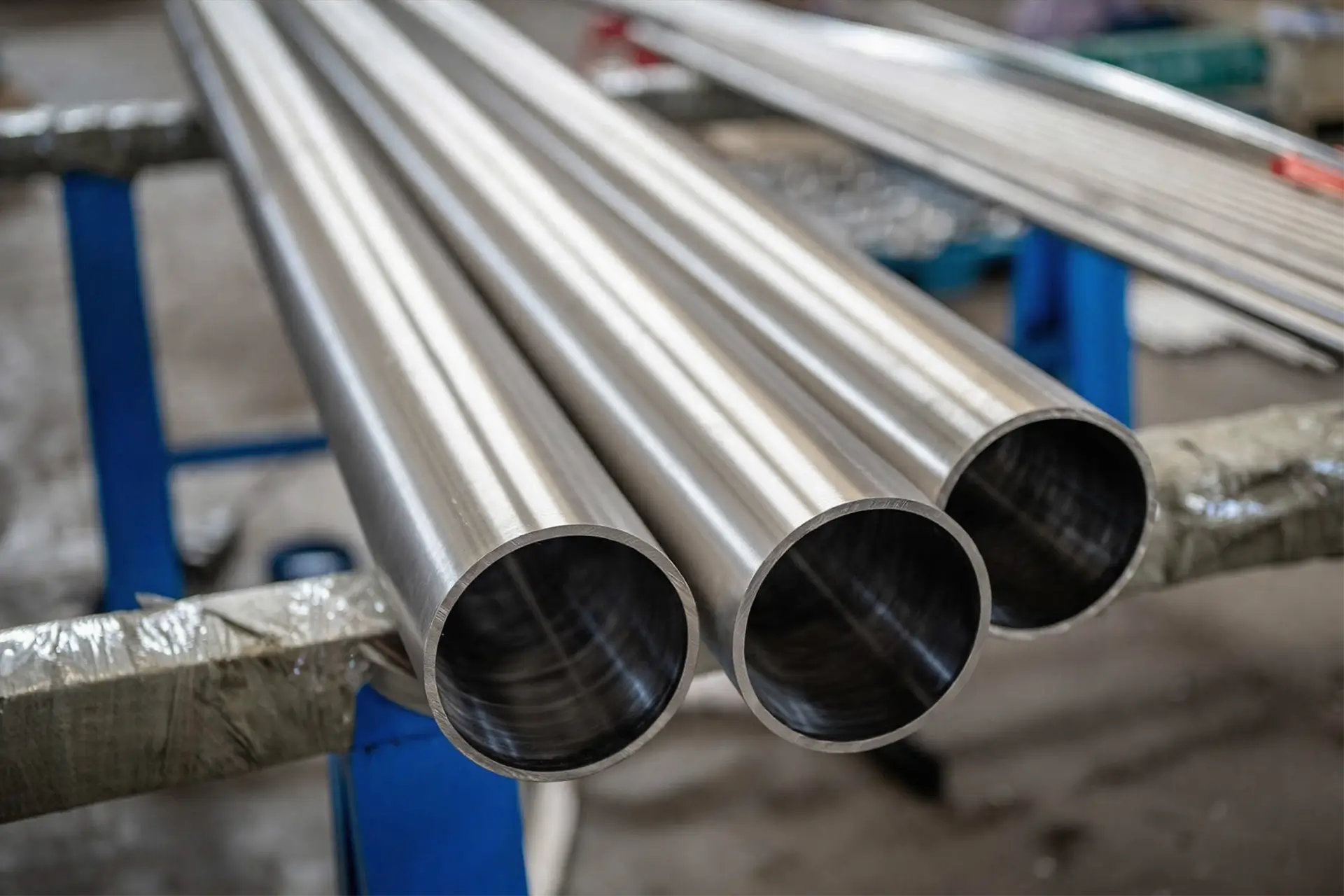

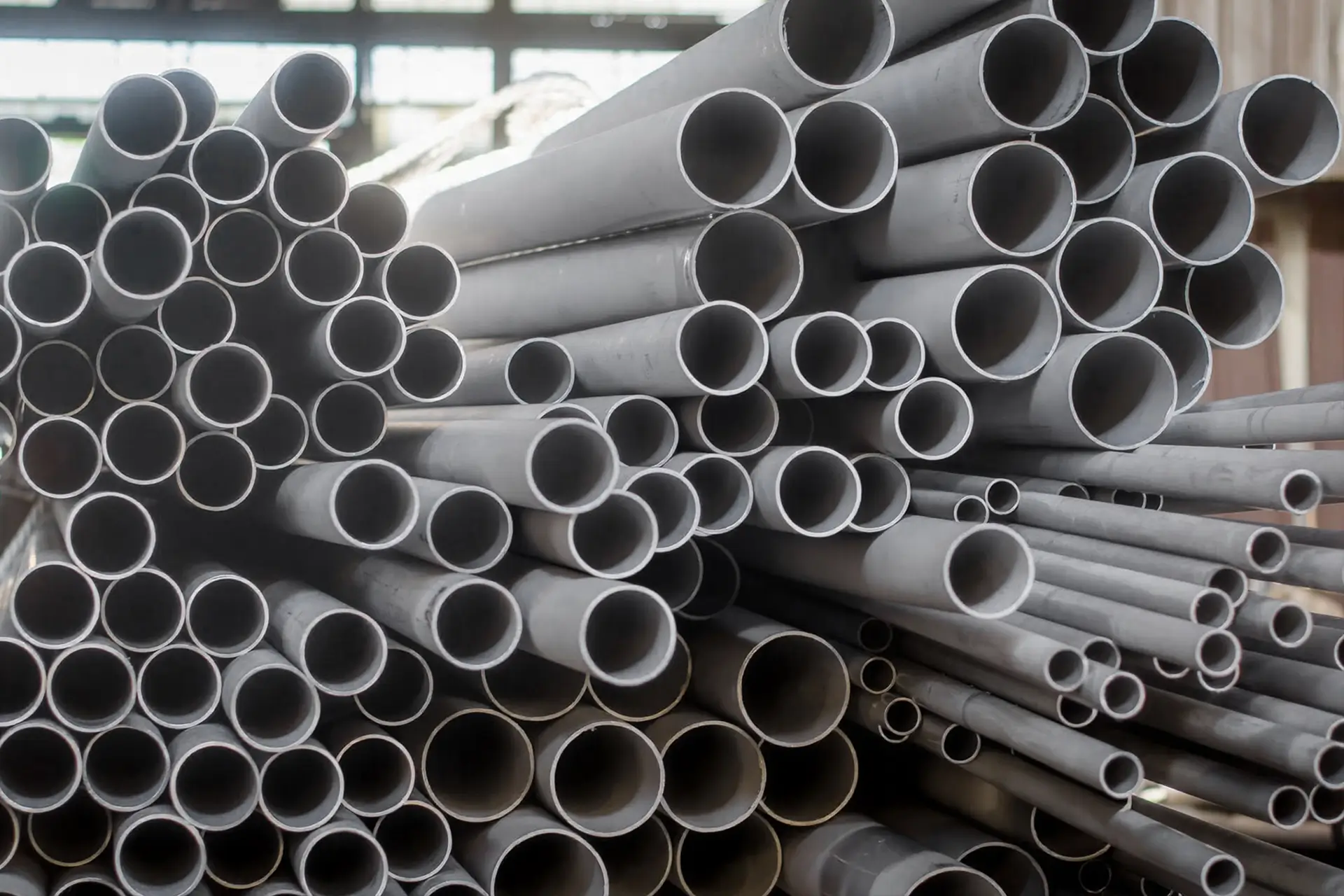

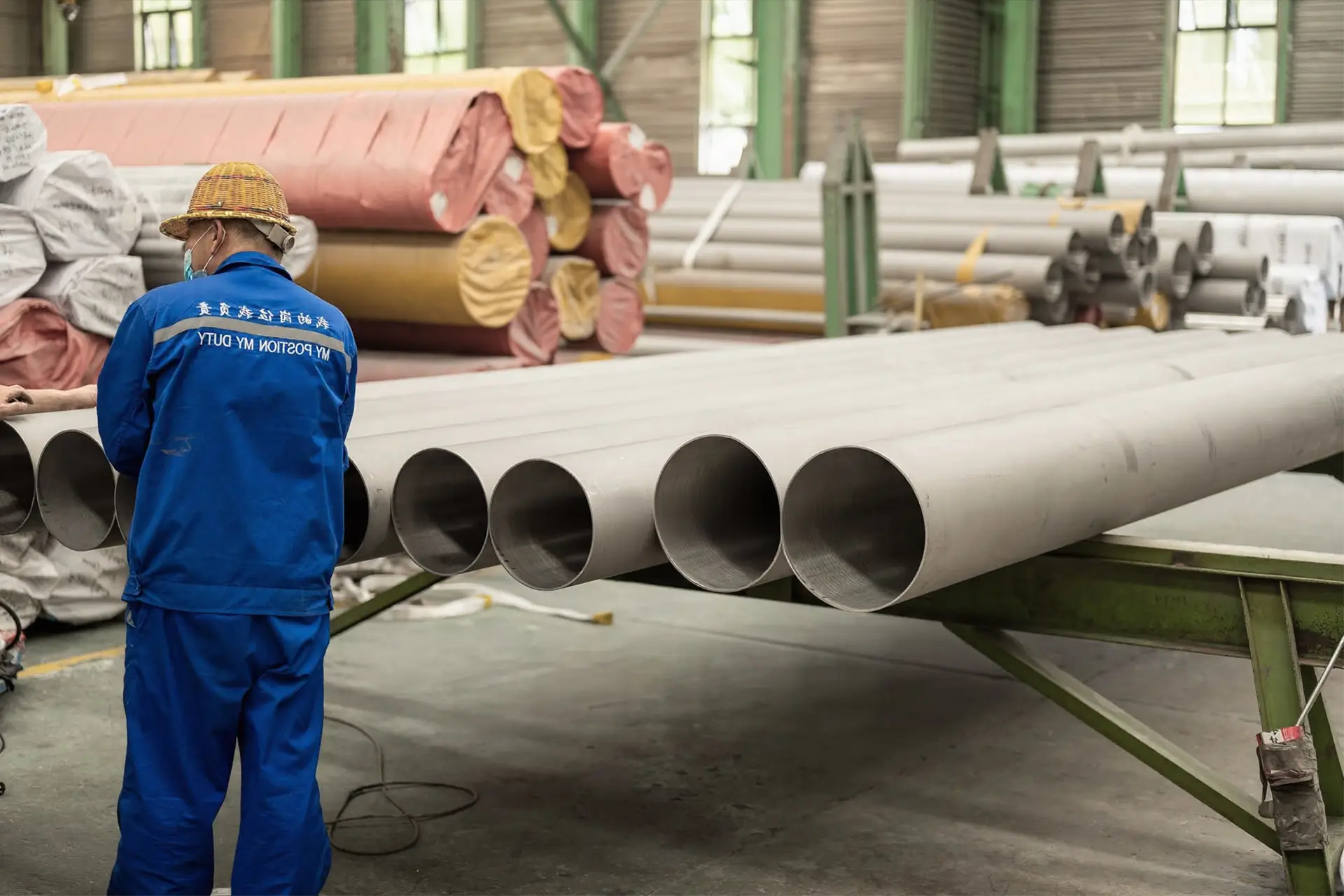

Seamless Pipe & Tube
Inconel 686 Seamless Pipes & Tubes
Inconel 686 seamless pipes & tubes are manufactured without longitudinal welds, creating a continuous structure with consistent mechanical properties and uniform wall thickness. Precise dimensional control and the highly alloyed Ni-Cr-Mo-W composition support reliable strength, clean surfaces, and strong resistance to general and localized corrosion throughout the pipe body.
- Outside Diameter (OD) : 3-600 mm
- Wall Thickness (THK) : 0.5-30 mm
- Length (L) : ≤12 m
- Standards: ASTM B622...
Welded Pipe & Tube
Inconel 686 Welded Pipes & Tubes
Inconel 686 welded pipes & tubes are formed from alloy strip or plate and joined through a controlled welding process. The alloy’s low carbon content helps limit grain boundary precipitation and retain corrosion resistance in heat affected zones, while inspected weld seams, accurate geometry, and consistent wall thickness support dependable product quality.
- Outside Diameter (OD) : 6-200 mm
- Wall Thickness (THK) : 0.35-6 mm
- Length (L) : ≤12 m
- Standards: ASTM B464...
Capillary Tube
Inconel 686 Capillary Tube
Inconel 686 capillary tube combines a small outside diameter and fine internal passage with strong resistance to pitting and crevice corrosion. Multiple precision drawing and finishing stages help achieve tight wall tolerances, a smooth bore, clean surfaces, and consistent material properties across its small cross section.
- Outside Diameter (OD) : 0.4-16 mm
- Wall Thickness (THK) : 0.1-3 mm
- Length (L) : ≤12 m
- Standards: ASTM B161...
Coil Tube
Inconel 686 Coil Tube
Inconel 686 coil tube is supplied in long, continuous lengths with controlled diameter, wall thickness, and coil dimensions. Careful forming and annealing help manage the alloy’s cold work hardening while maintaining flexibility, uniform geometry, clean surfaces, and consistent material condition throughout the coil.
- Outside Diameter (OD) : 0.4-16 mm
- Wall Thickness (THK) : 0.1-3 mm
- Length (L) : 150m, 1500m ...
- Standards: ASTM B161...
Thick Walled Pipe
Inconel 686 Thick Walled Pipe
Inconel 686 thick walled pipe combines a substantial wall section with broad resistance across reducing, oxidizing, and chloride containing media. The increased wall thickness provides greater rigidity and resistance to deformation, while controlled forming, solution annealing, and machining help maintain dimensional accuracy and uniform material properties.
- Outside Diameter (OD) : 10-600 mm
- Wall Thickness (THK) : SCH80S, SCH120 ...
- Length (L) : ≤12 m
- Standards: ASTM B161...
Upload Your Requirements
To begin, provide your contact details with the product type, dimensions, quantity, and required standards. If you have CAD drawings, specifications, or special tolerance requirements, please upload them
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote and (custom) design for manufacturability (DFM) feedback. This ensures the cost feasibility of your custom project and gives you a clear idea of the costs involved
Confirm Your Order & Begin Production
Once you approve the quote and design, your project will enter our production queue the morning after we receive your confirmation
Shipping & Delivery
On average, custom production orders ship within 20–45 business days. In stock products and samples ship within 48 hours
Just 4 Steps
Custom Inconel 686 Tubes & Pipes Quotation Process
From detailed consultation to final delivery, we make custom Inconel 686 tubes & pipes orders simple and convenient. With exceptional customer service, we anticipate your needs, provide professional solutions, and ensure on time delivery
Inconel 686 Tubes & Pipes SHOW
Supplying Inconel 686 Tubes & Pipes
From initial samples to large scale production, we supply high quality Inconel 686 tubes & pipes and help you achieve your manufacturing goals.
